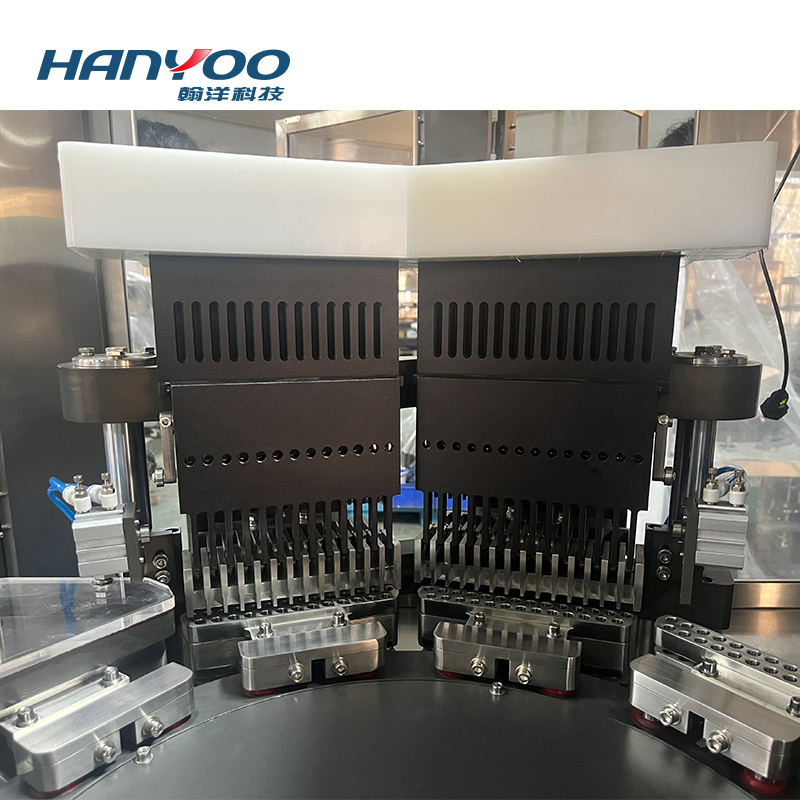

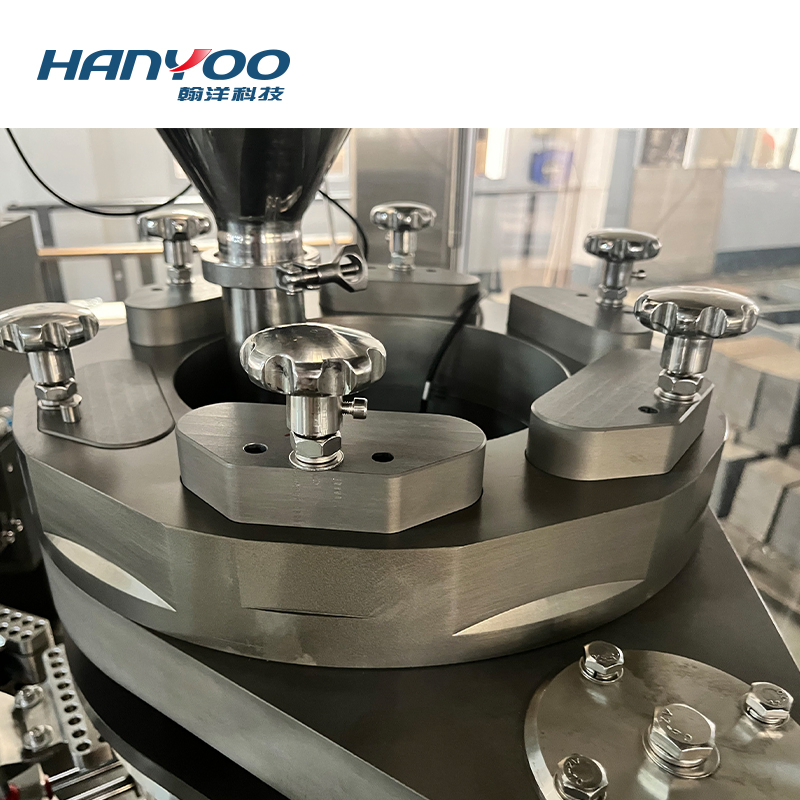

Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine
Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine
Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine
Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine
Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine
1 / 5
Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine
Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine
Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine
Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine
Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine

Hanyoo Njp-2000 Pharmaceutical Machinery High Speed Quality Medical Capsule Filling Machine Capsule Making Machine

Customization: Available
After-sales Service: Field, Online
Certification: CE, GMP
Send Inquiry

Product Description

📋 Basic Information
Model NO.
NJP-2000/3500/5800/7500
Condition
New
Customized
Available
Machine Type
Capsule Filling Machine
Main Material
Stainless Steel
Voltage
Customized
Warranty
1 Year
Suitable Size
#000-#5
Filling Dosage
Adjustable
Output (PCS/H)
Up to 210,000
Precision
High Precision
HS Code
842240000
⚙️ Product Description

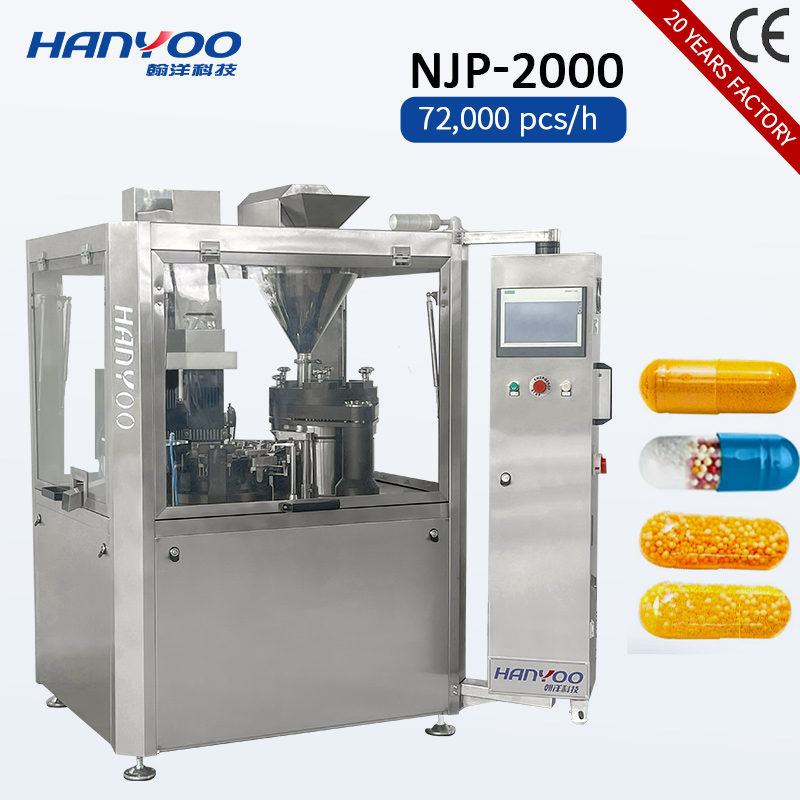

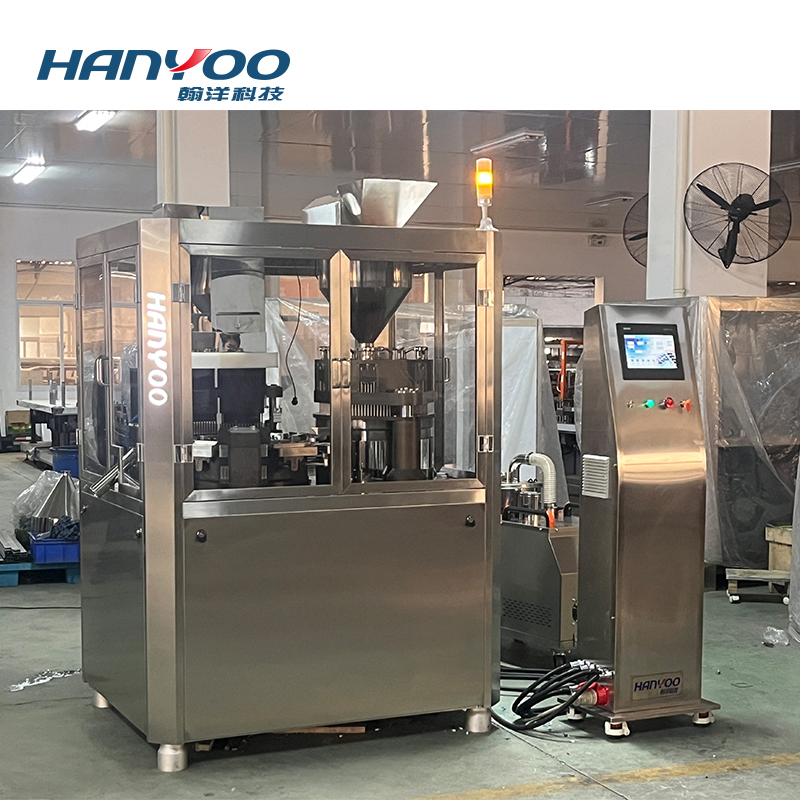

High Speed Automatic Capsule Filling Machine

The NJP series automatic capsule filling machine is an advanced solution featuring an arc design for smooth operation and a professional appearance. Equipped with PLC programming and a user-friendly touch screen interface, the machine ensures seamless management of production processes. It includes automatic alarms for faults or material shortages, ensuring high safety and reliability for pharmaceutical production, fully complying with GMP requirements.

Automatic Capsule Filling Machine

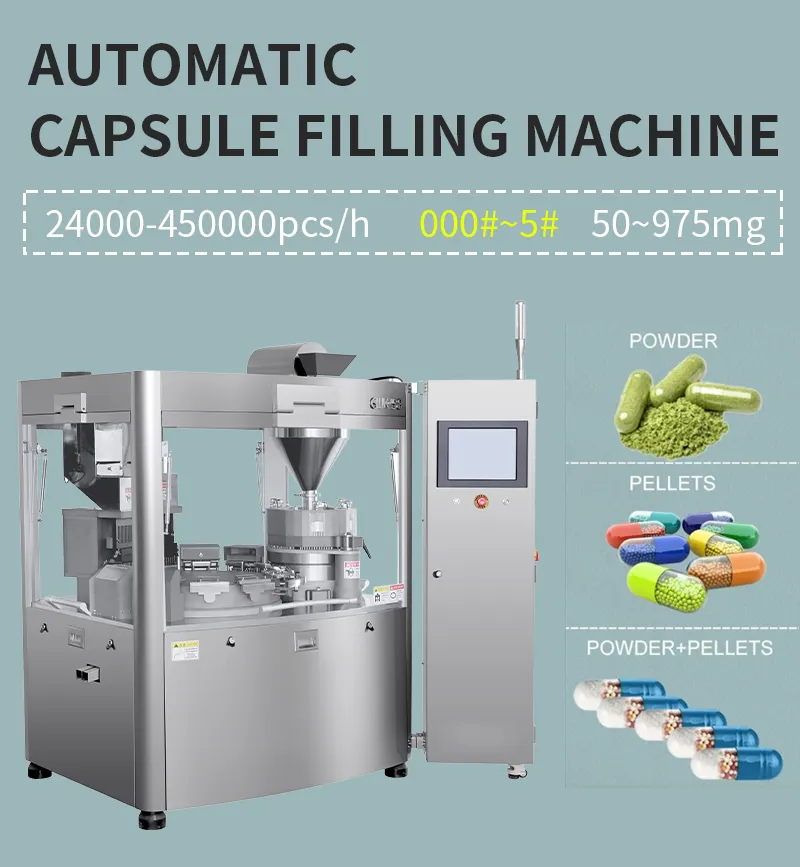

Capsule Making Equipment
  • Internal cam transmission reduces the center of gravity, ensuring stability at high speeds with noise levels under 75dB.
  • Fully enclosed rotary part with optional automatic lubrication to prevent oil contamination and meet strict hygiene standards.
  • Special adjustment device between the dose plate and copper plate for quick, feeler-gauge-free calibration.
  • Siemens HMI and PLC control system for real-time monitoring of output, material status, and fault diagnosis.
  • Precision mold installation with pin holes for fast and easy calibration.
  • Double-supply structure maintains capsule stability during high-speed runs.
  • Integrated brush cleaning and vacuum sucking device ensures a loading rate exceeding 99.99%.
Machine Detail 1

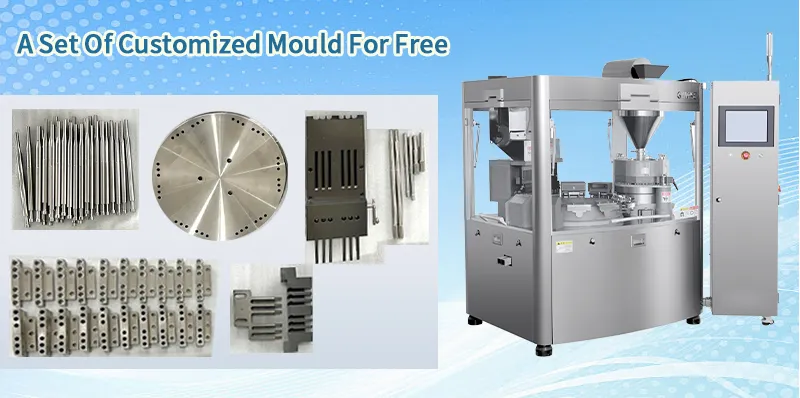

Machine Detail 2
Machine Detail 3
🔍 Detailed Photos

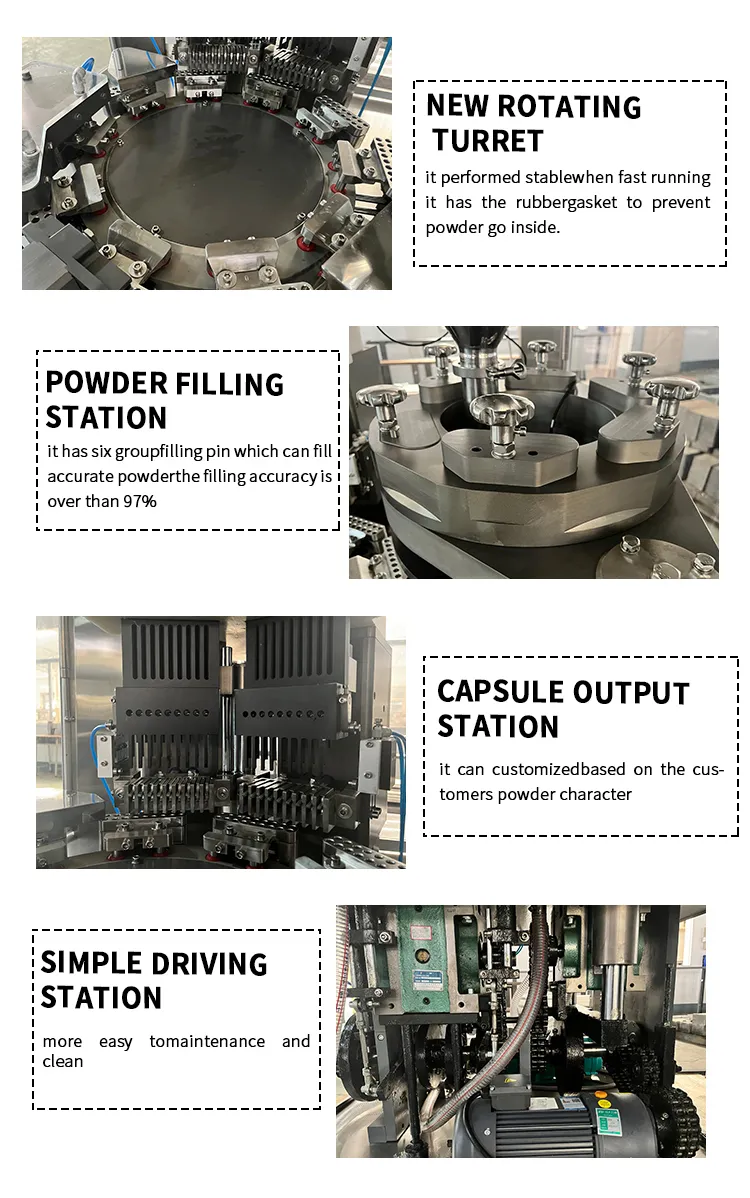

Detailed Component View
📊 Product Parameters
Model NJP-400 NJP-800 NJP-1200 NJP-2000 NJP-3500
Capacity (pcs/h) 24,000 48,000 72,000 120,000 210,000
Bores 3 6 9 18 27
Capsule size 000# - 5#
Power Supply Customized
Noise Less than 80dB(A)
Weight (kg) 900 1150 1150 1800 2300
Dimension (mm) 810*700*1840 1090*1070*1860 1090*1070*1860 1310*1260*2060 1450*1370*2060
Parameter View 1
Parameter View 2
Parameter View 3
Parameter View 4
🌟 Our Advantages

Pre-sale Service

  • Machine customization support.
  • Free trial and testing services.
  • Professional solid preparation solutions.
  • Free mechanical layout drawing design.

After-sales Service

  • Comprehensive operation manuals.
  • Installation, adjustment, and maintenance videos.
  • Expert video guidance from technical personnel.
  • Overseas engineering services available.
  • Warranty replacement for non-human damage.
Service and Support
❓ Frequently Asked Questions
What capsule sizes can the NJP machine fill?
The NJP series is versatile and can fill a wide range of capsule sizes from #000 to #5.
What is the maximum production capacity?
Depending on the model, the capacity ranges from 24,000 pcs/h (NJP-400) up to 210,000 pcs/h (NJP-3500).
Does the machine comply with pharmaceutical standards?
Yes, the machine is constructed from stainless steel and features a fully enclosed rotary part, fully complying with GMP requirements.
How is the noise level during operation?
Thanks to the internal cam transmission and Ferguson drive system, the operating noise is kept below 75-80dB(A).
Can the filling dosage be adjusted?
Yes, the filling dosage is fully adjustable, and the machine features a special device for quick and easy adjustments without complex measurements.
What kind of control system does the machine use?
The machine utilizes a high-quality Siemens human-machine interface and PLC programmable controller for precise operation and diagnostics.
