Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel
Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel
Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel
Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel
Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel
1 / 5
Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel
Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel
Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel
Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel
Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel

Gauze Bandage Packing Wrapping Wrap Machine Medical Bandage Packaging Pack Wrapper Machine with Heat Shrink Tunnel

Customization: Available
After-sales Service: Free Spare Parts
Warranty: 1 Year
Send Inquiry

Product Description

Product Overview
Model NO.
RS-590
Application
Food, Commodity, Machinery & Hardware, Textile, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical
Automatic Grade
Automatic
Driven Type
Electric
Type
POF Shrink Film Machine
Heating Mode
Stainless Steel Heating
Packaging Type
Cartons, Cans, Bottles, Bags, Film
Certification
CE, ISO
Voltage
220V/50-60Hz/1phase; 380V/50-60Hz/3phase
Package Size
5.00cm * 2.00cm * 3.00cm

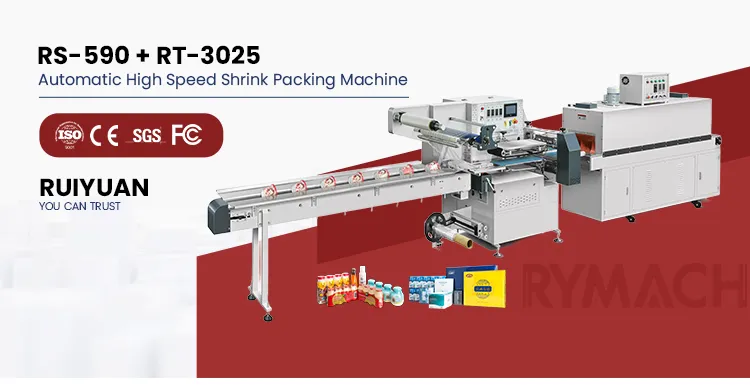

Automatic High Speed Flow Type Heat Shrink Packing Machine
Product Description

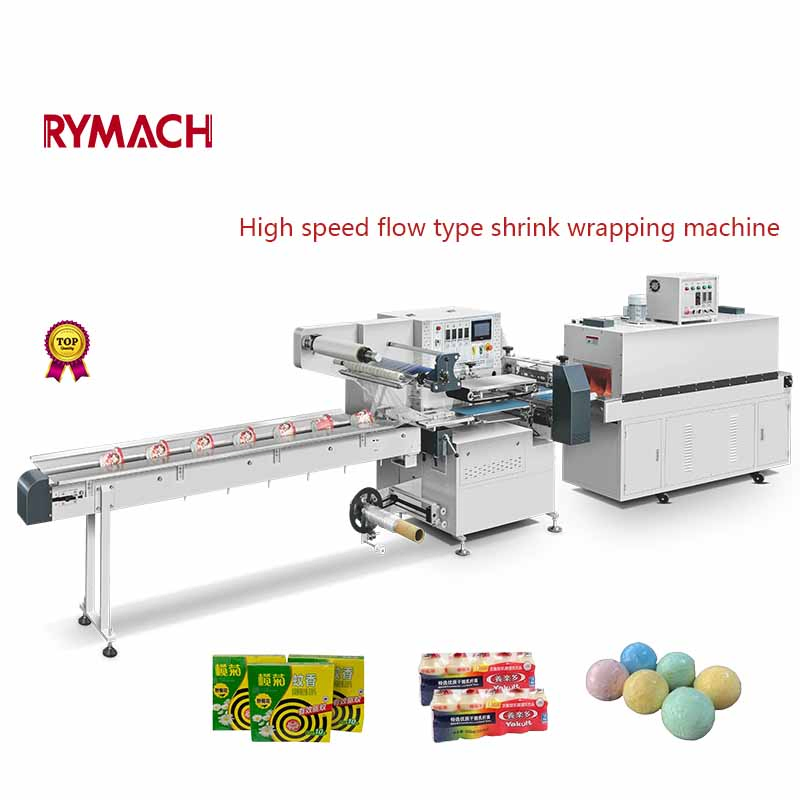

Automatic High Speed Flow Type Heat Shrink Packing Machine

Suitable for: Instant noodle cup or bowl, milk cup, carton, wallpaper rolls, cosmetic bottle, filter, and more.

Machine Applications
1
Driven by three servo motors for precise control.
2
Dual temperature zones inside shrink chamber for optimal results.
3
Adjustable cutting length, speed, and temperature.
4
Easy to operate with minimal maintenance requirements.
5
Equipped with a cutting safety device to prevent errors.
6
High-sensitivity photoelectric tracking for accurate sealing.
7
Simple and reliable transmission system.
Technical Specifications
Model Parameter RS-590 Details
Sealing TypeHigh Speed Flow Type Sealing
Installed Power220V/380V; 50-60Hz; 1Phase/3Phase
Packing Capacity50-150 Packs per minute (Depends on Product Size)
Sealing Height5-35mm; 35-60mm; 60-90mm; 90-130mm
Packing Width10-170MM
Packing Length10-450MM
Packing SizeWidth+Height ≤ 450MM
Film TypeSingle Layer POF Film
Max Film Roll Size590MM(Width)*280MM(Outer Diameter)

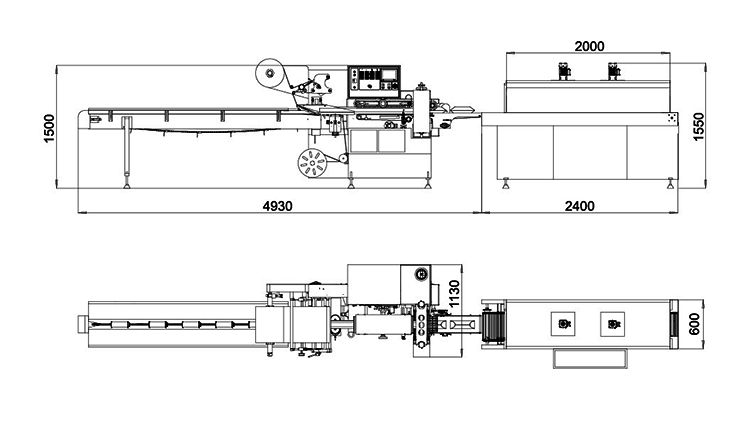

Machine Dimensions4930*1130*1500MM
Machine Weight835kg
Tunnel Model RT-3025S Details
ConveyorChains with Rotating Silicon Coated Rods/Mesh Belt
Tunnel Oven Size2000MM(L), Entrance 350(W)*250(H)MM
Rated Power ConsumptionMax. 16KW
Working Height780-850MM
Machine MaterialCarbon Steel
Dimensions2400*600*1550MM
Tunnel Weight355kg
Machine Details & Samples

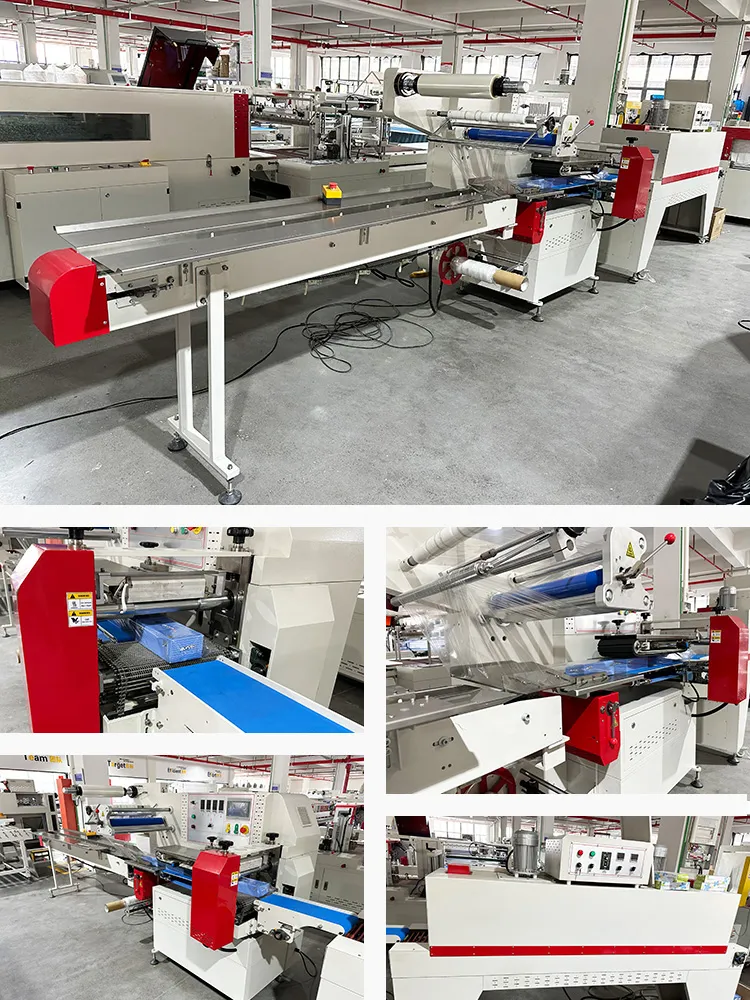

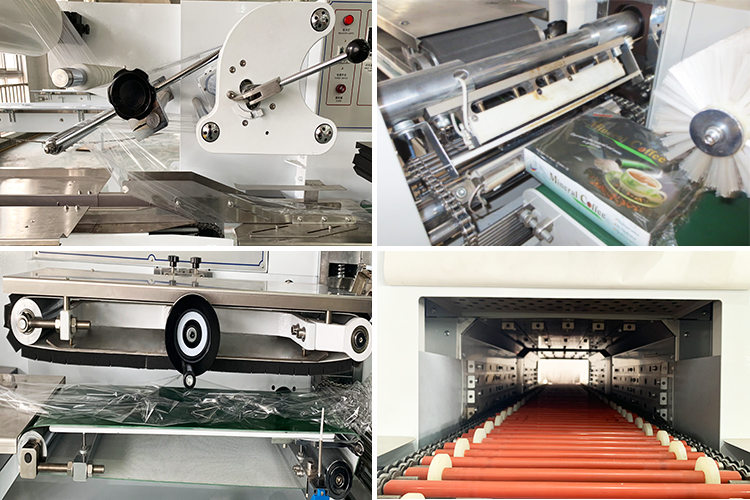

Machine Detail 1
Machine Detail 2
Machine Detail 3

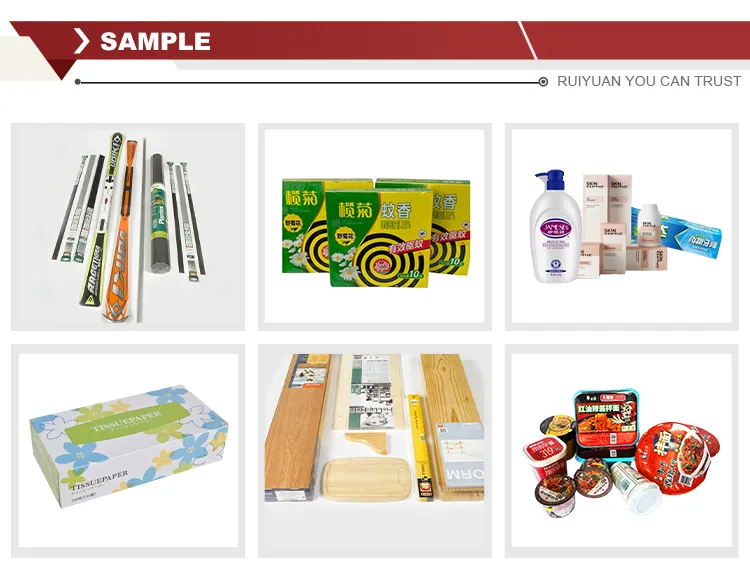

Packing Sample 1
Packing Sample 2
Frequently Asked Questions
What products are suitable for the RS-590 packing machine?
The RS-590 is highly versatile and can pack instant noodle cups, milk cups, cartons, wallpaper rolls, cosmetic bottles, medical filters, and various other commodities or food items.
What type of packaging film should I use?
This machine is specifically designed to work with single-layer POF (Polyolefin) shrink film.
What is the production capacity per minute?
The packing capacity ranges from 50 to 150 packs per minute, depending primarily on the dimensions and nature of the product being packed.
Does the machine support different voltages?
Yes, it supports multiple power configurations, including 220V Single Phase and 380V Three Phase at 50-60Hz to suit different industrial requirements.
How is the accuracy of the sealing and cutting ensured?
The machine utilizes high-sensitivity photoelectric tracking and is driven by three servo motors to ensure that every seal and cut is precisely aligned.
Is the machine easy to maintain?
Yes, it features a simple transmission system and high-quality components like stainless steel heaters, making it reliable with very low maintenance needs.
