Basic Specifications
Type
Filling and Sealing Machine
Function
Forming, Filling, Seal
Packaging
Cartons / Wooden Cases

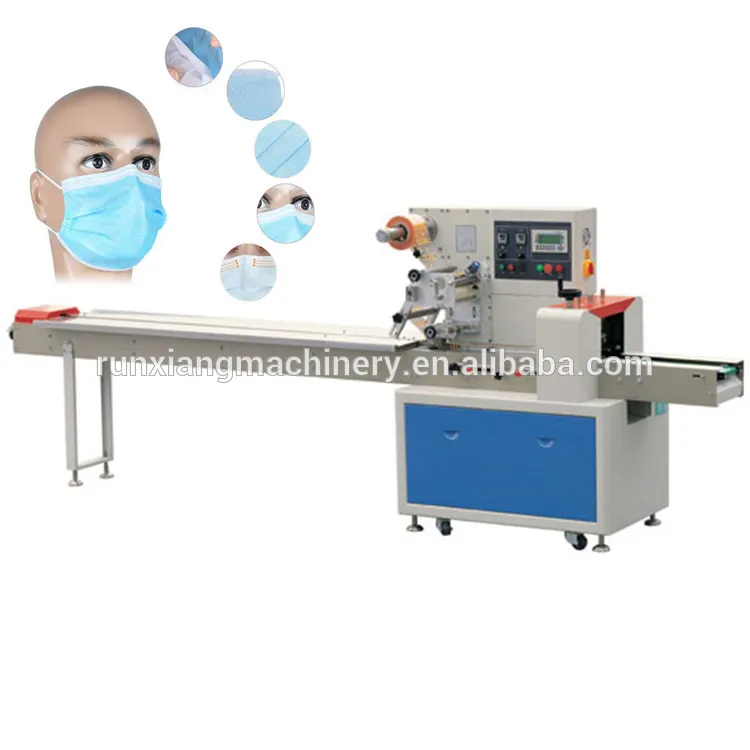

Automatic Package Machine for Medical Masks

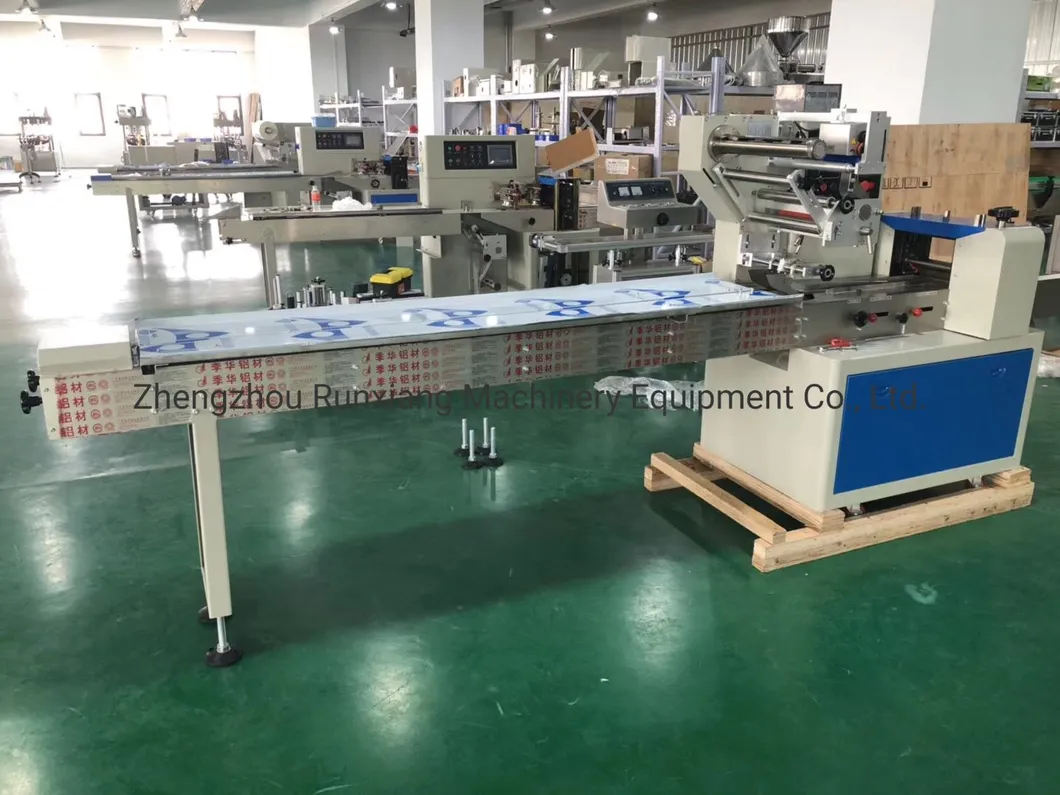

This flow automatic individual face mask packing machine is designed for high-efficiency packaging of medical masks. It features a compact structure, stable function, and simple operation.

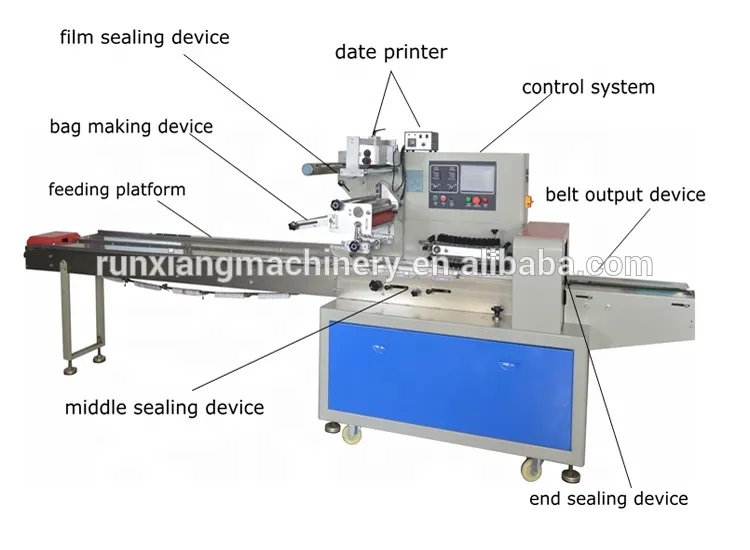

1
Parameters Setting: Set desired parameters via the intuitive touch screen.
2
Material Feeding: Place the masks onto the stainless steel conveyor.
3
Bag Forming: The stainless steel bag maker device creates the bag shape.
4
Back Sealing: The sealing device seals the film together securely.
5
Automatic Cutting: The high-precision cutting device separates the bags automatically.
6
Product Output: The belt conveyor sends out the finished packaged products.
Main Features & Performance
- Panasonic Double Transducer Control: Flexible bag length cutting, saving both time and film.
- 7-inch Touch Screen: Easy operation with multiple language options available.
- Imported PLC System: Ensures stable machine performance and convenient parameter adjustment.
- Self-Diagnosis Function: Machine errors are clearly displayed for quick troubleshooting.
- High Sensitivity Optical Photocell: Accurate eye mark tracking for precise cutting positions.
- Position Stop Function: Prevents adhesive sticking and membrane waste while protecting cutting jaws.
Technical Specifications
| Film Width |
Max. 350mm |
Max. 400mm |
Max. 450mm |
Max. 600mm |
| Bag Length |
65-330mm |
150-400mm |
150-450mm |
160-500mm |
| Bag Width |
50-160mm |
50-180mm |
50-180mm |
50-280mm |
| Packing Speed |
40-180 bag/min |
30-150 bag/min |
30-150 bag/min |
20-150 bag/min |
| Power |
2.6KW |
2.8KW |
2.8KW |
2.8KW |
| Weight |
580kg |
600kg |
650kg |
680kg |
Optional Devices: 1. Date coding printer, 2. Air-filling device, 3. Punching device
Frequently Asked Questions
What materials can this machine pack?
The machine is primarily designed for solid items like medical masks, but it can accommodate various products within the specified bag size ranges. It works with various packaging membranes.
How does the double frequency converter benefit the process?
The Panasonic double transducer control allows the bag length to be set and cut immediately without needless adjustment, which significantly saves time and reduces film waste.
Is the machine easy to operate for non-technical staff?
Yes, it features a 7-inch user-friendly touch screen interface and an imported PLC system that simplifies parameter setting and operation.
What is the maximum packing speed?
Depending on the model (RX-350 to RX-600), the speed ranges from 20 up to 180 bags per minute, ensuring high productivity for mask production lines.
Can I add a production date to the packaging?
Yes, a date coding printer is available as an optional device. Other options include air-filling and punching devices to meet specific packaging requirements.
