| Model NO. | NJP-400C | Condition | New |
| Machine Type | Capsule Filling Machine | Material | Stainless Steel |
| Max Output | 25,500 PCS Per Hour | Weight | 700kg |
| Dimension | 720X680X1700mm | Control Mode | Full Automatic |
| Filling Accuracy | ±3% | Suitable for | Powder, Granule, Pellet, Tablet |
| Filling Principle | Peristaltic Pump Filling | Power Supply | 380/220V 50Hz |

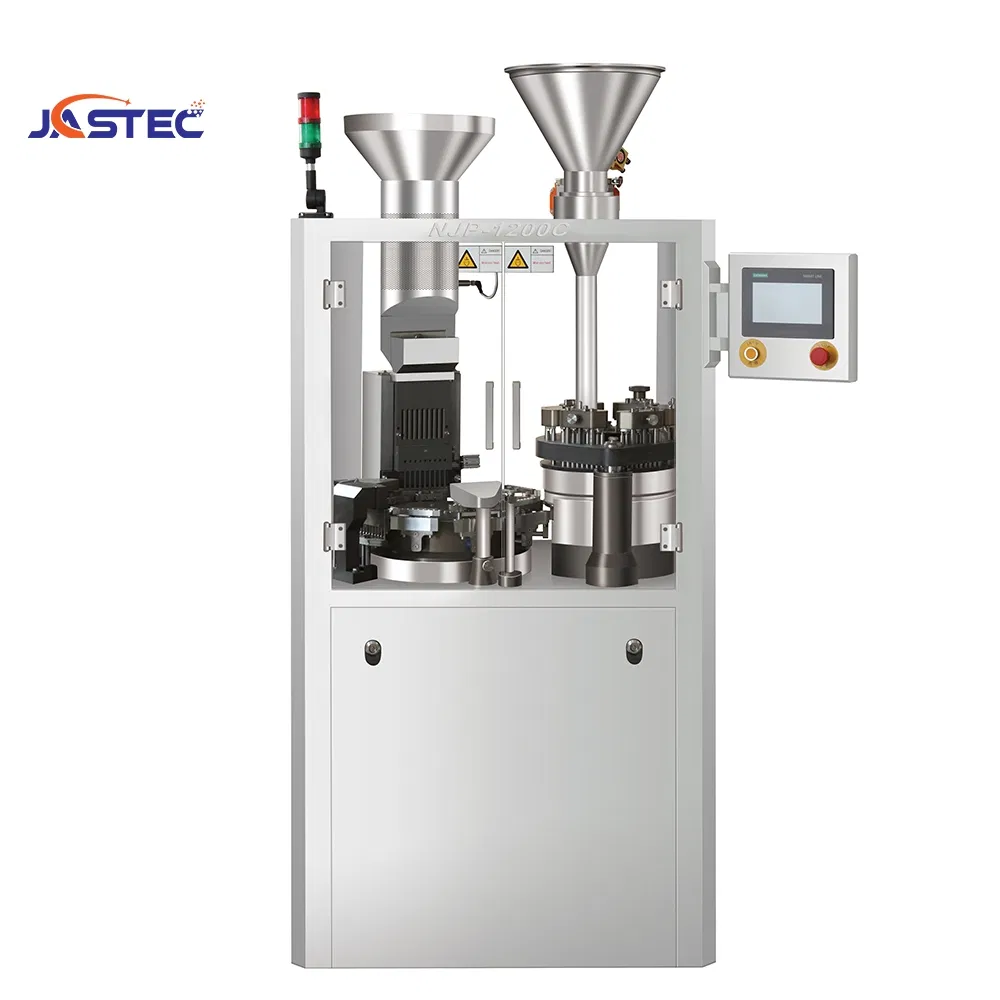

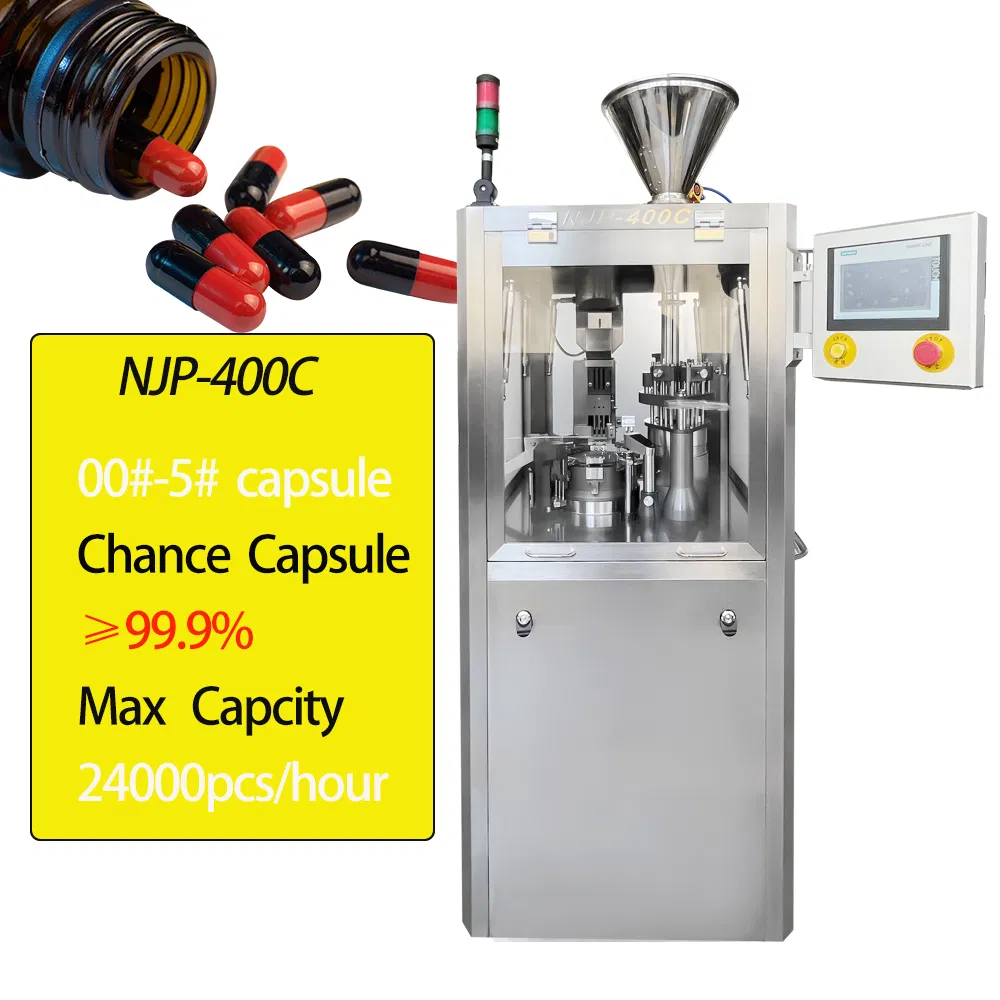

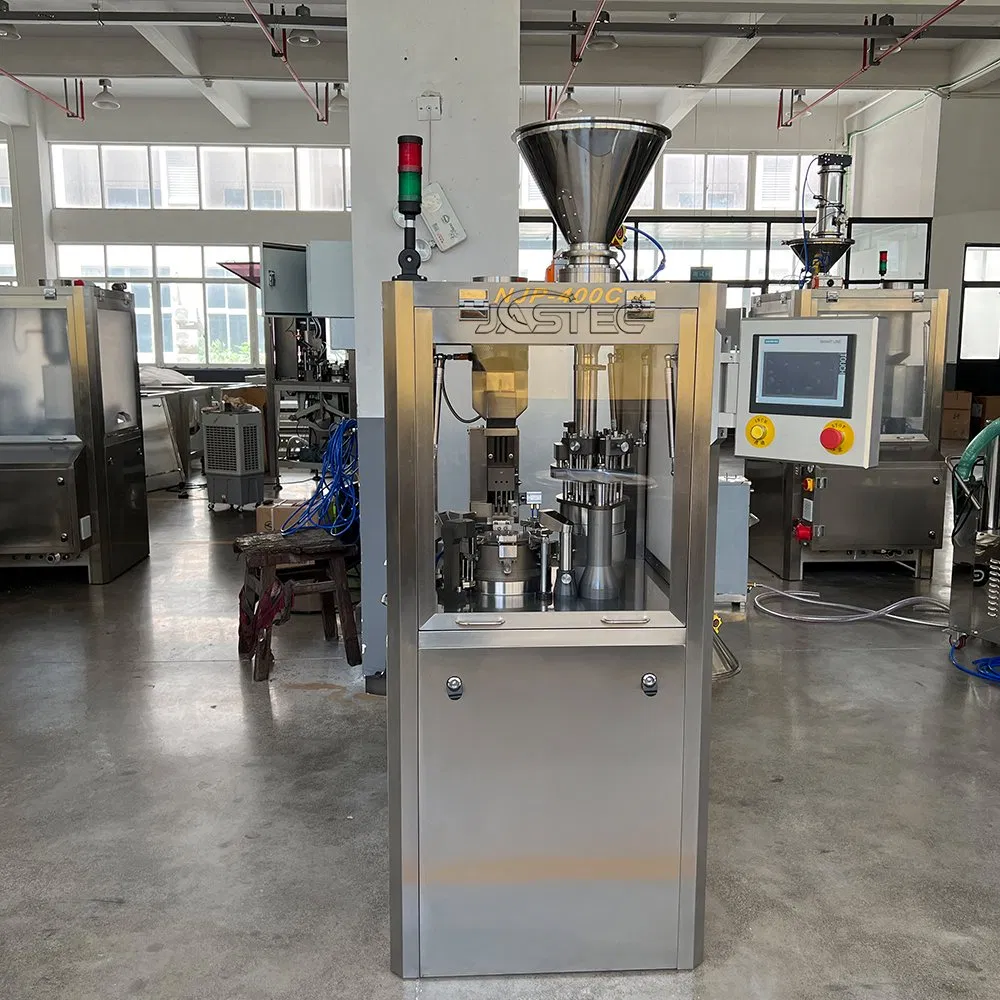

The NJP-400C Automatic Capsule Filler is a state-of-the-art, high-performance filling machine designed for the seamless production of hard gelatin and vegetarian capsules. This fully automated capsule filling system is ideal for pharmaceutical companies, health supplement manufacturers, and laboratories seeking efficiency, precision, and reliability.
Our third-generation innovation covers all the functions of standard models while introducing four groundbreaking technologies for improved stability and performance.

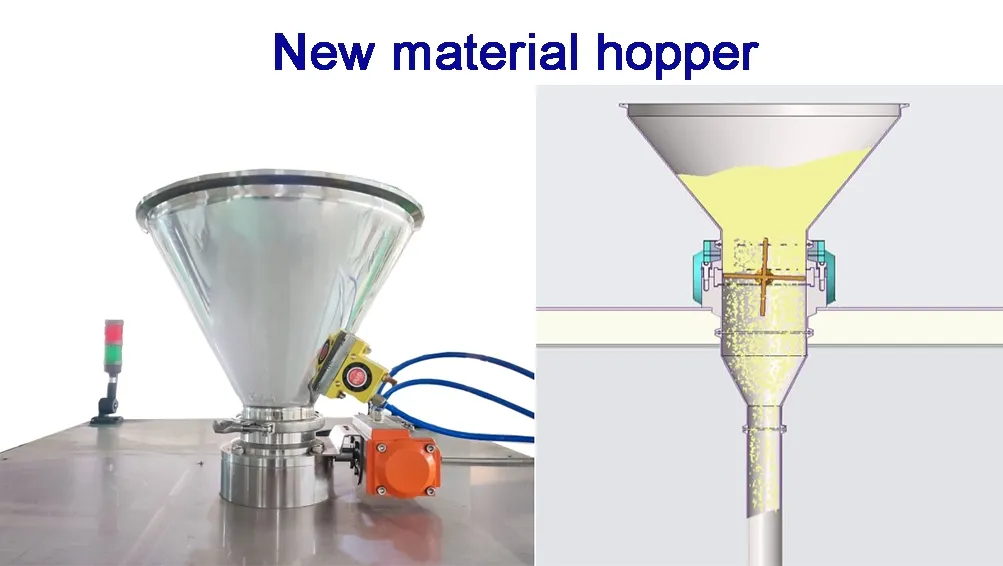

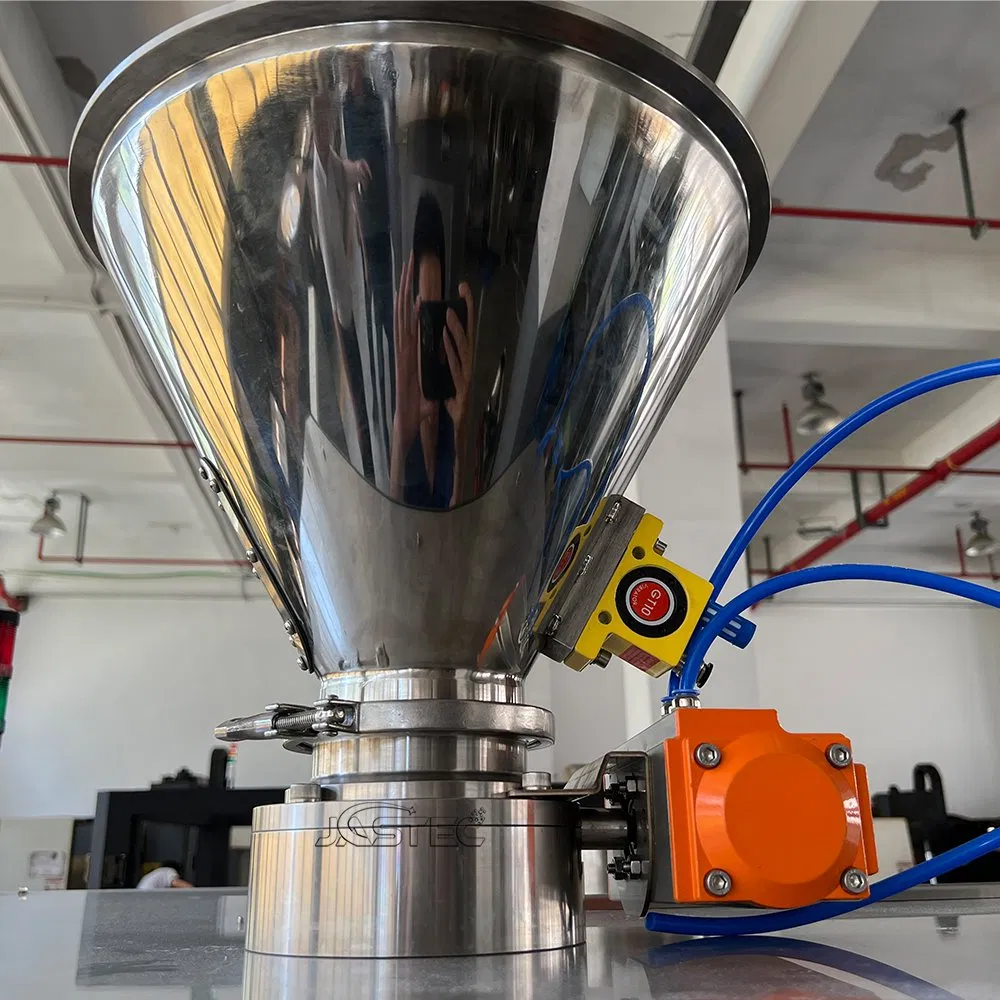

The butterfly valve feeding method with vibration solves fluid flow issues common in traditional screw feeders, especially for herbal powders. Easy to disassemble and clean.

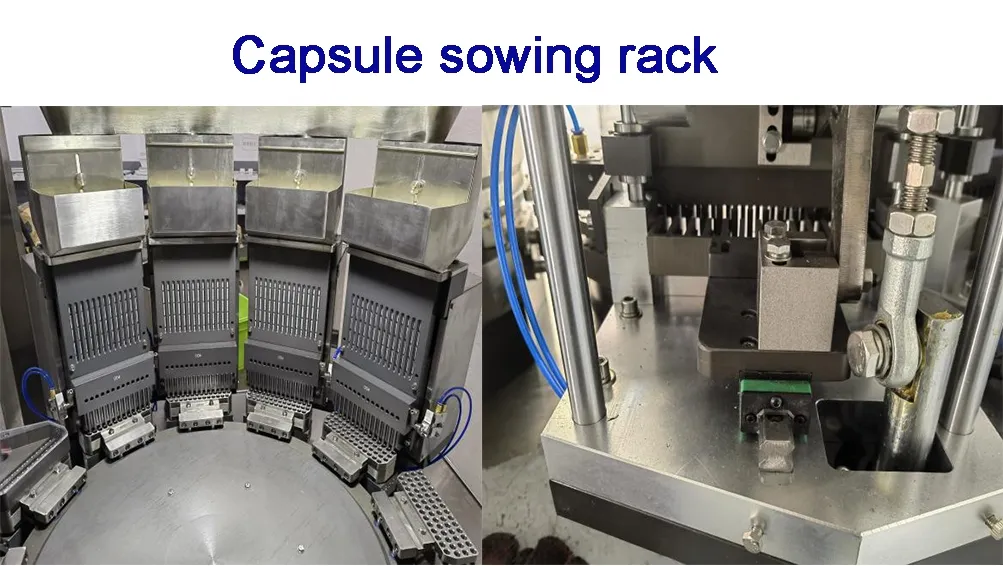

New capsule sowing frame with guide rail transmission. The closed design prevents dust entry, ensuring fast and accurate capsule adjustment.

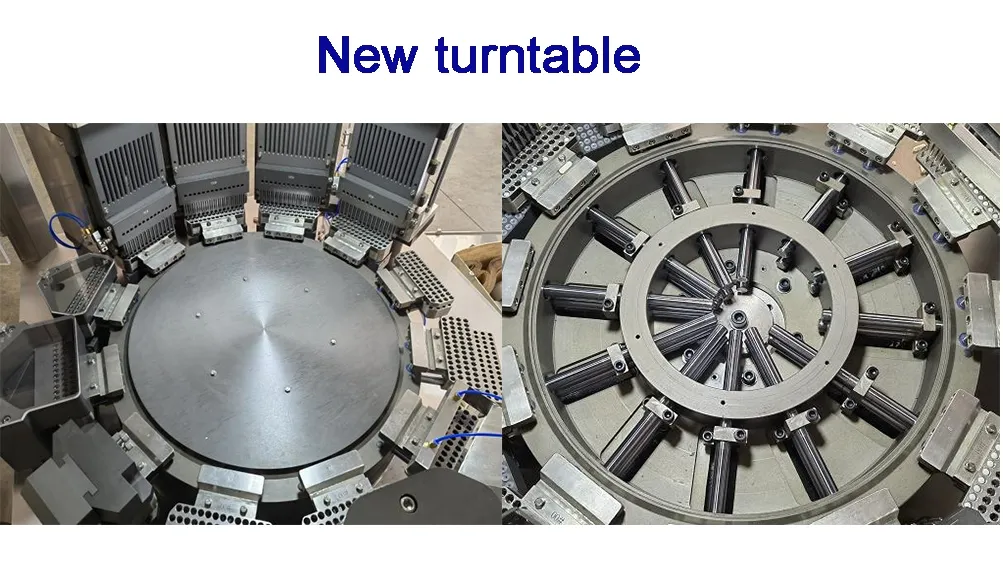

12-station turntable with one-piece processing. The fully enclosed design is maintenance-free and powder-free for up to three years (Patent ZL 2015 2 1021530.0).

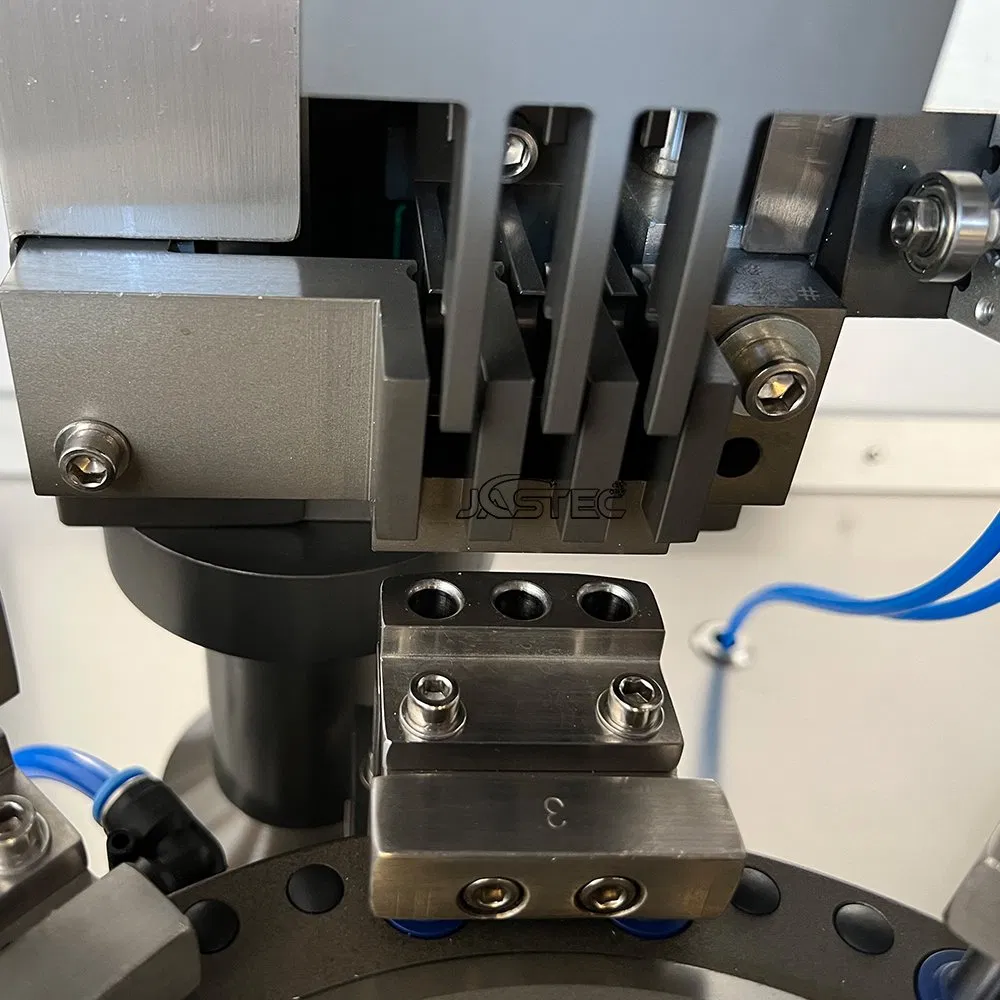

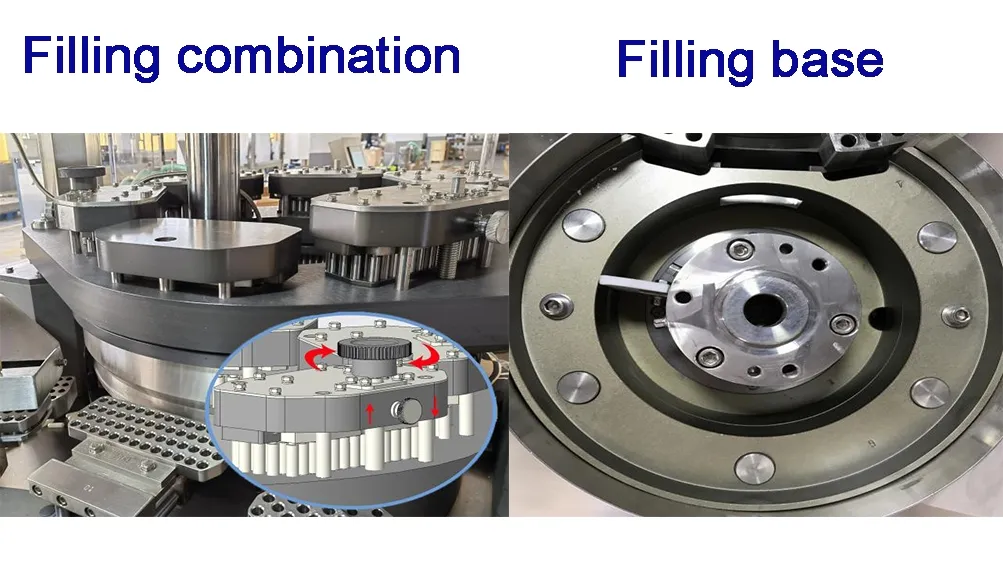

Modular filling clamp with pin-type positioning allows for quick adjustments without stopping the machine. Includes a negative pressure powder recovery system.

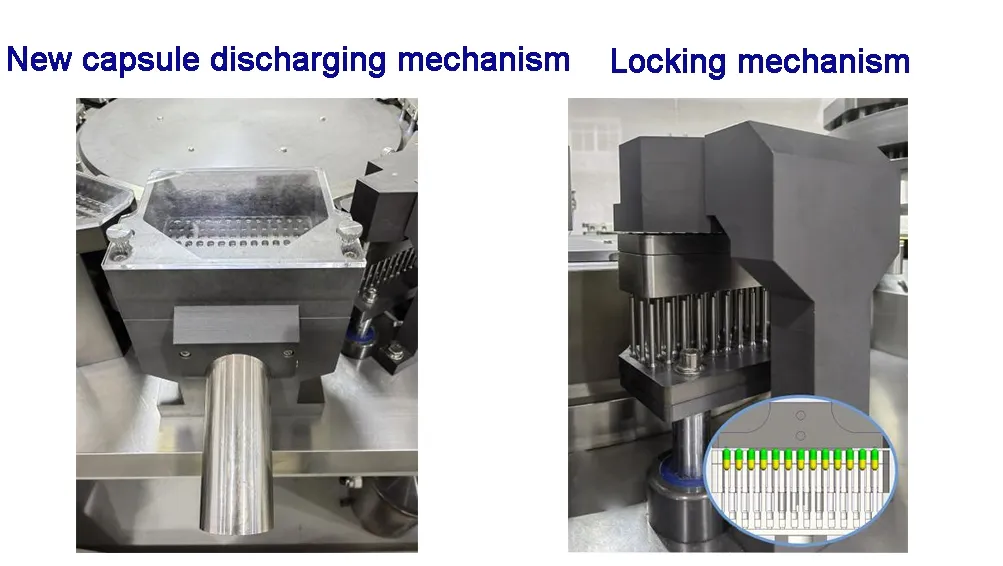

Exclusive capsule clamping plate made of aviation aluminum. No external air source required for discharging, preventing dust flight and mechanical clamping.

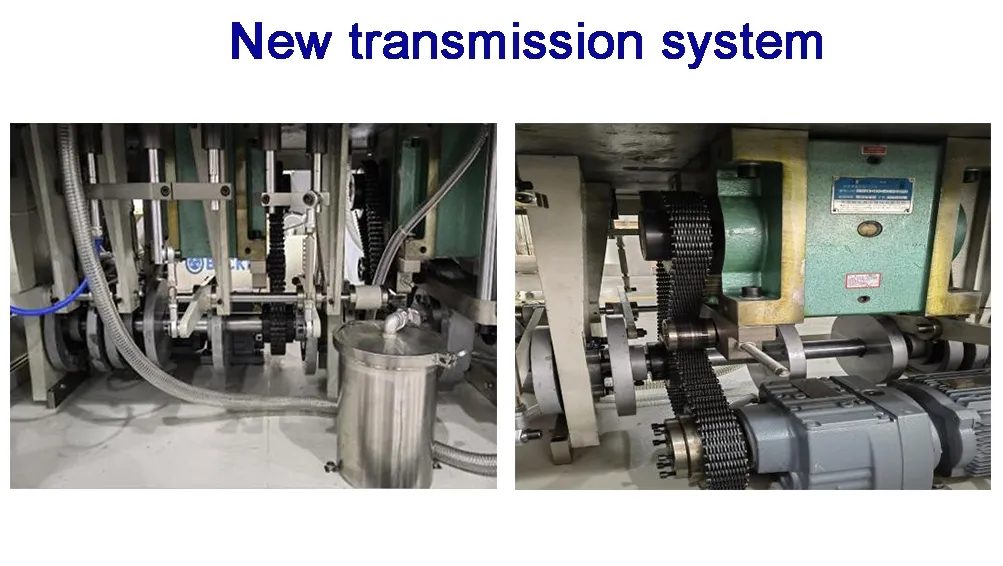

Advanced cam-down transmission system using inner groove cams for precise, stable, and noiseless high-speed operation.
| Specifications | NJP-400C Details |
|---|---|
| Maximum Yield | 24,000 grains/hour |
| Machine Volume | 720×680×1700mm |
| Total Power | 3.7 kw |
| Number of Holes | 6 holes |
| Vacuum Requirements | 40m³/h -0.04~-0.08MPa |
| Compressed Air | 5m³/h @ 0.3~0.4MPa |
| Working Noise | ≤78dBA |
| Capsule Compatibility | 00# - 5# Capsules |
| Material Standards | 316 Stainless Steel (Contact parts), cGMP compliant |
| Component | Specification/Model | Manufacturer |
|---|---|---|

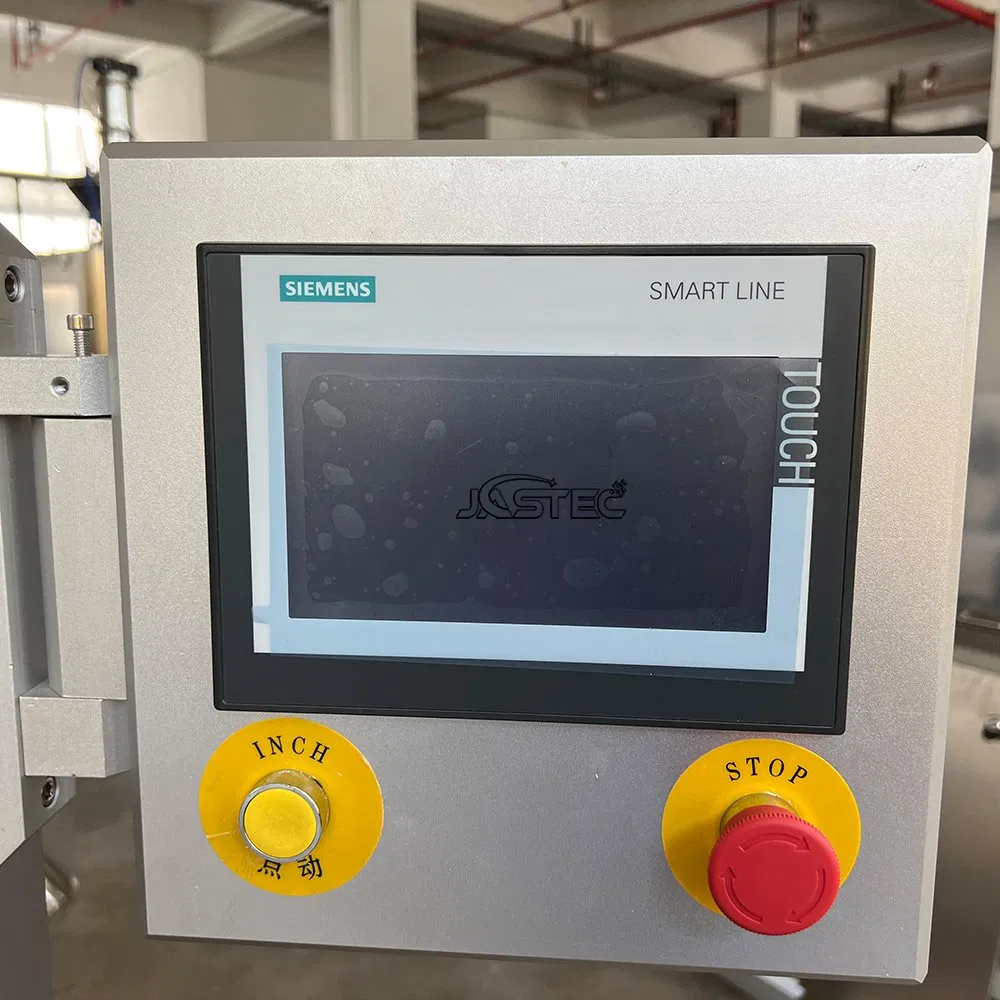

| Touchscreen | SMART 1000IE V4 | Siemens, Germany |
| PLC Controller | SIMATIC S7-200 | Siemens, Germany |
| Frequency Converter | ACS180 Series | ABB |
| AC Contactor | 3TS Series | Siemens, Germany |
| Main Motor | R77-RDRS112M4 | Germany |
| Vacuum Pump | KVT3-140 | German Becker |
| Linear Bearing | LM Series | SAMICK Korea |
Yes, we provide tailored proposals based on your specific requirements. Each machine can be customized to satisfy unique production needs.
We are a direct manufacturer with over ten years of experience in the pharmaceutical and food deep processing machinery industry.
Before delivery, we send detailed pictures and videos of the machine. You are also welcome to conduct quality checks personally or via a third-party inspection organization.
We provide a one-year warranty, operation manuals, installation videos, and 24-hour technical support via email. Overseas engineer services are also available if required.

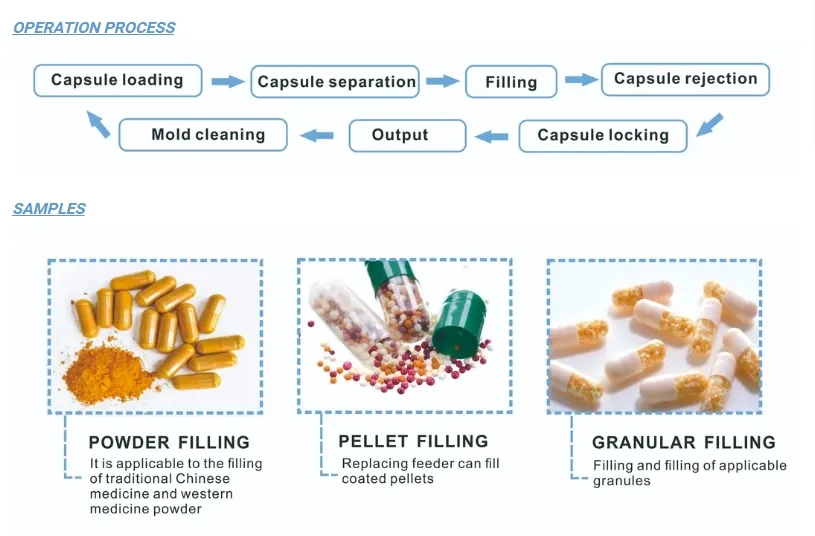

The machine is versatile and suitable for filling hard gelatin or vegetarian capsules with powder, granules, pellets, or tablets.
With over 15 years of R&D, we offer mature third-generation technology, cGMP compliance, high-precision German and Japanese components, and a comprehensive service system.
