FUNCTION:

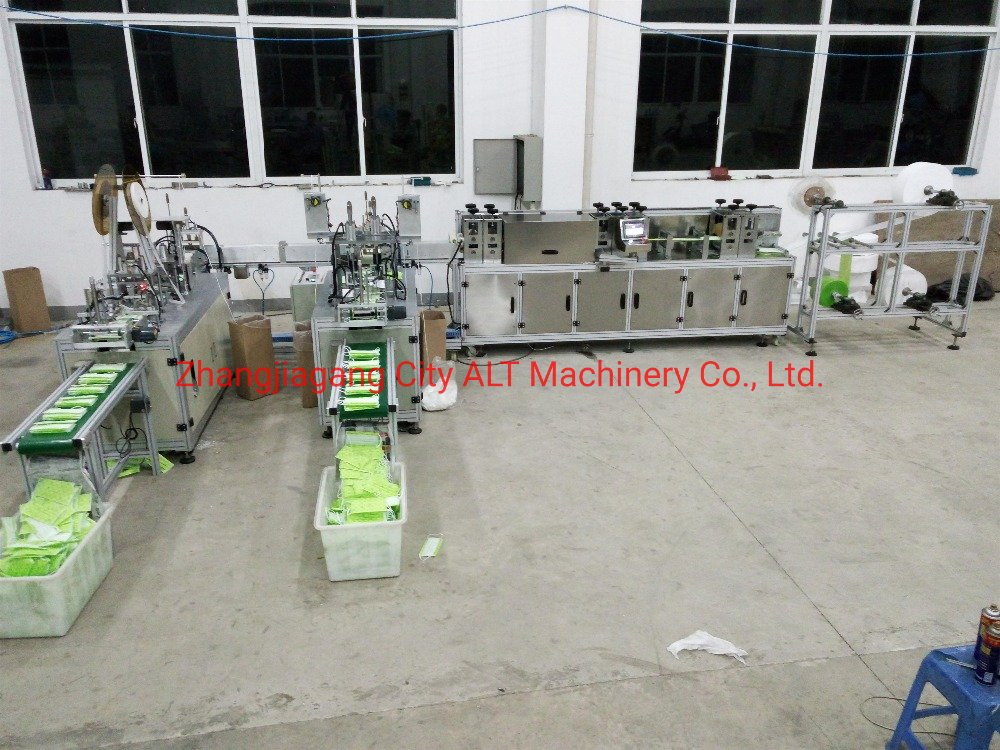

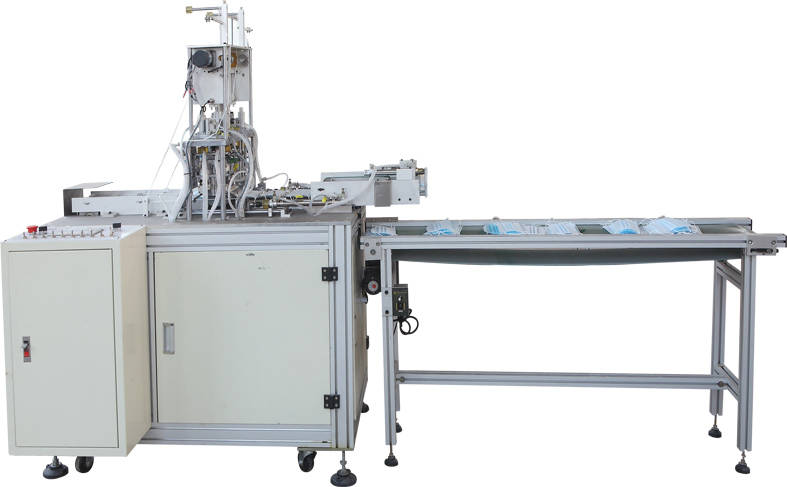

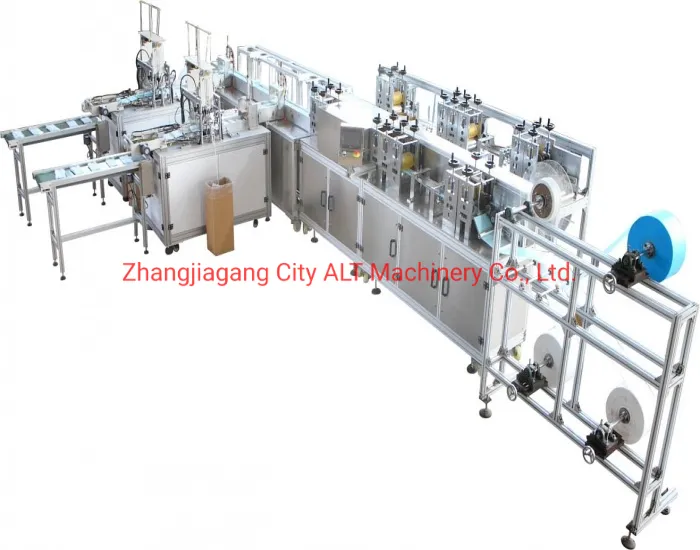

ALT-AUTO175 is a unit of fully automatic ear-loop mask making machine. This machine unifies 1 unit ALT-175 and 2 units ALT-WD175 by a unit of automated dispenser. Mask bodies produced on mother machine can be allocated onto 2 units child machine averagely by PLC at the speed of 0-120 pieces per minute. All operations are controlled through a touch screen interface.
Features
Made of aluminum alloy: Beautiful, rust-prevented, and compact size.
Versatile production: Can make 1-3 level mask blanks according to customer requirements with high output.
Adjustable: Flexible adjustment for mask blank size and folding location.

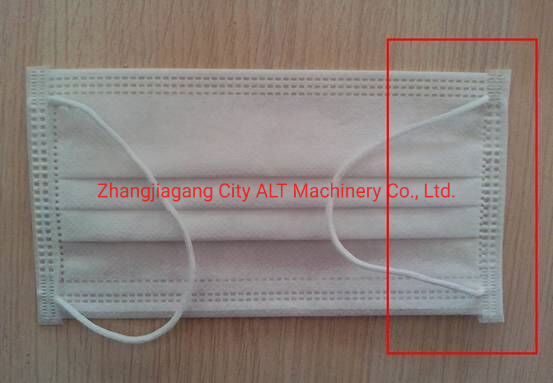

Ear loop design: Outside direction ear loop welding.
High Efficiency: More economical and efficient compared to sub-mask production equipment.
High Reliability: Computer program control and photoelectric detection ensure a low failure rate.
Specifications
Machine Size
7500(L) * 3500(W) * 1700(H) mm
Throughput
0-120 pcs/min
Line Source
220V or 380V, 1 or 3 Phase
Air Pressure
6kg/cm² (minimum)
Power Consumption
11KW
Instructions & Components
No.
Item
Quantity / Brand
1
Ultrasonic
6 sets
2
Motor
1 set (TaiWan "YongKun")
3
Servo motor
3 sets (Delta)
4
Inverter
1 set (TaiWan "Sunfar")
5
PLC
1 set (Mitsubishi) / 2 sets (Delta)
6
Touch screen
1 set (TaiWan "Wei-Lun")
7
Transport motor
5 sets
8
Static eliminator
2 sets
9
Cylinder
New Christine and AirTAC
10
Conveyor
2 sets
11
Bearing
NSK
12
Frame
Aluminum
13
Closure plate
Stainless steel
14
Reducer
2 sets
Terms & Conditions
Payment: 30% advance by T/T, balance 70% by T/T after inspection of finished machine.
Delivery Time: 50 days after order confirmation.
Warranty: 1 year warrant term.
Package: Professional Wooden Packing.
Installation: Engineering support available ($100/day per engineer) plus travel expenses (tickets, visa, board, and lodging).
Frequently Asked Questions (FAQ)
1. What is the maximum production speed of the ALT-AUTO175?
The machine can produce mask bodies at a speed of 0-120 pieces per minute, depending on the material and settings.
2. What type of masks can this machine produce?

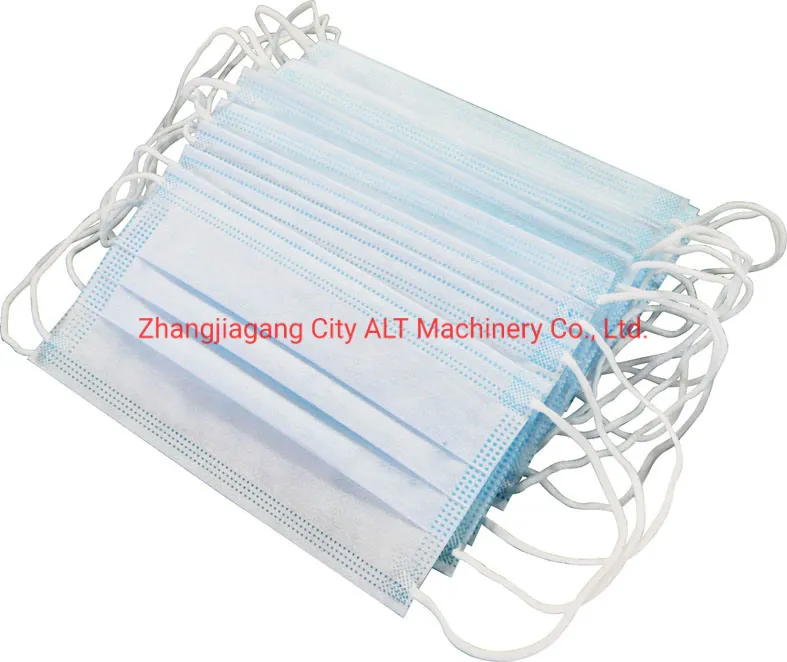

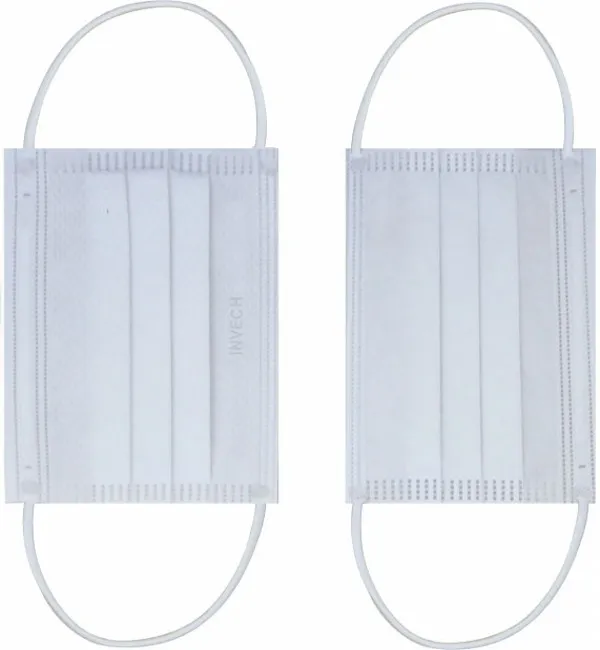

It is designed for fully automatic ear-loop face masks and can adjust to produce 1 to 3-level mask blanks.
3. What are the electrical requirements for installation?
The machine supports both 220V and 380V power sources, in either 1-phase or 3-phase configurations.
4. Is the machine frame durable and resistant to rust?
Yes, the machine frame is constructed from high-quality aluminum alloy, which provides a beautiful finish and prevents rust.
5. Does the machine come with a warranty?
Yes, we provide a 1-year warranty term for the machine from the date of delivery.
6. How is the machine packaged for international shipping?
The machine is packed in a robust wooden box to ensure safety during transport and handling.
