En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory
En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory
En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory
En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory
En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory
1 / 5
En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory
En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory
En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory
En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory
En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory

En 13726-3 Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine China Factory

Customization: Available
Warranty: 12 Months
Hydrostatic Pressure: 0-600mm
Send Inquiry

Product Description

Basic Information
Model NO.
ZSY-05
Control Valve
Electronic Valve
Pressure Time
0~999
Stations
5-Station Independent
Overflow Switch
5PCS Independent
Env Temperature
15°C - 50°C
Package
Veneer Case
Production
10 Sets/Quarter
Product Overview

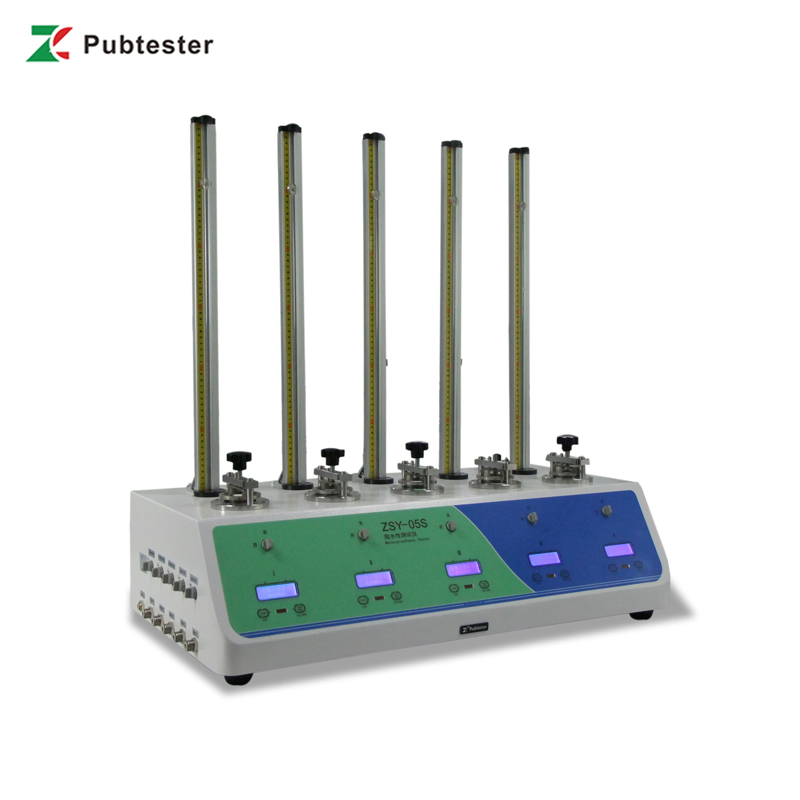

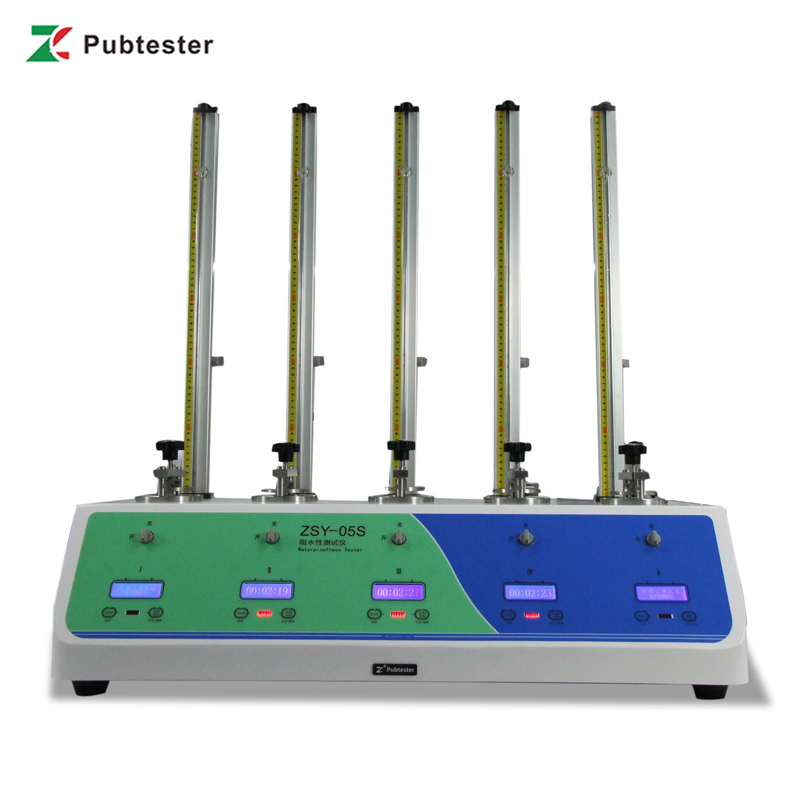

ZSY-05 Primary Wound Dressings Waterproofness Test Machine (5-station)

The ZSY-05 Primary Wound Dressings Combined Materials Waterproofness Test Machine is suitable for testing the waterproofness performance of primary wound dressings such as band-aids, bandages, medical tapes, coated paper, non-woven materials, or combined materials of any shape, form, or specification. The instrument adopts automatic timing and automatic watering, making it the premier choice for material manufacturers and inspection agencies.

Primary Wound Dressings Waterproofness Test Machine
Technical Features
  • 5-station design: Test simultaneously or separately
  • Automatic watering: Separate or simultaneous operation
  • 500mm overflow: Ensures precise water level accuracy
  • High-precision sampling chip: Real-time accuracy performance
  • Safety design: Over-voltage protection & power-down memory
  • Indicator light alert system
  • Microcomputer controlled automatic water filling and pressurization
Applications
Basic Application Extended Application
Non-Woven material Any shape and state band-aid, bandage, medical adhesive, non-woven and composite materials
Bandage
Technical Specifications
Specifications ZSY-05S Details
Hydrostatic Pressure0-600mm
Control ValveElectronic Valve
Pressure Withstanding Time0~999
Stations5-station independent
Drainage WayUnified
Timer5pcs
Overflow Port Switch5pcs independent
Fixture5pcs
Environment Temperature15ºC - 50ºC
HumidityMax 80%, no water condensed
Instrument Dimension500mm(L) * 200mm(W) * 750mm(H)
Net weight5kg
Power SupplyAC 220V 50Hz
Standards

Compliance: EN 13726-3, YY0471.3

Standard Chart 1 Standard Chart 2 Standard Chart 3
Frequently Asked Questions
Are you a manufacturer or trading company?
We are the manufacturer and trading combo, specializing in material testing instruments for plastic packages, medical devices, facial masks, protective clothing, and pharmaceutical packages.
Do you have any certificates?
We have obtained CE certificates, passed ISO 9001, IPMS management system certificates, and hold 18 utility model patents and 4 software copyright certificates.
How about the installation?
The user manual specifies installation requirements in detail. We advise on relative information in advance, such as power supply, space, required temperature, and humidity.
Do you have after-sales service?
We carry out equipment inspection before delivery. If the machine fails, we provide remote control services. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, with lifelong service. Users only bear material costs and express charges outside the warranty period.
How long is the delivery time?
For regular machines, 3-5 working days. For customized units, approximately 30 days.
