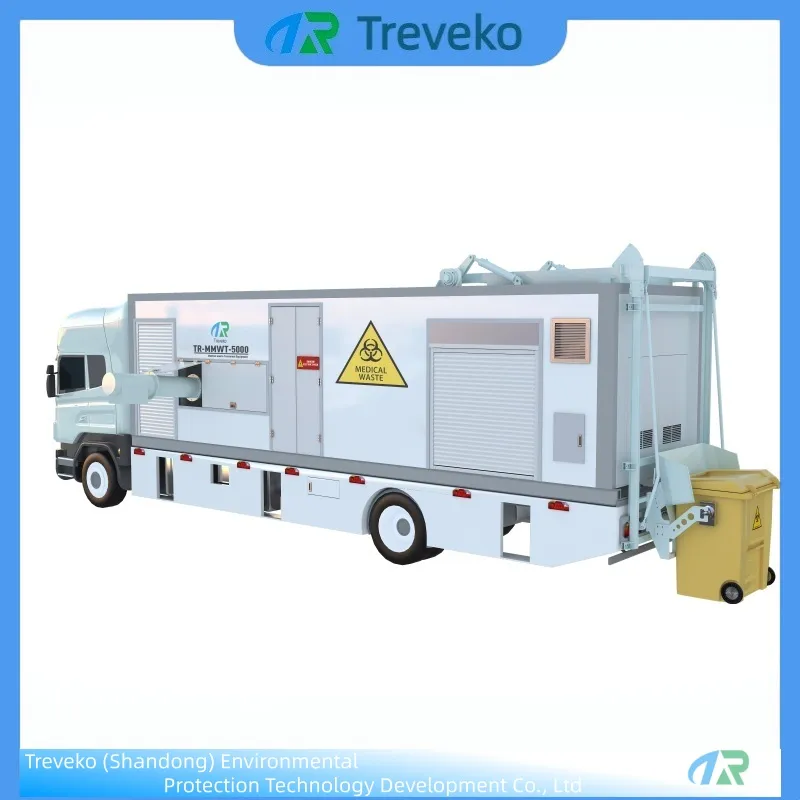

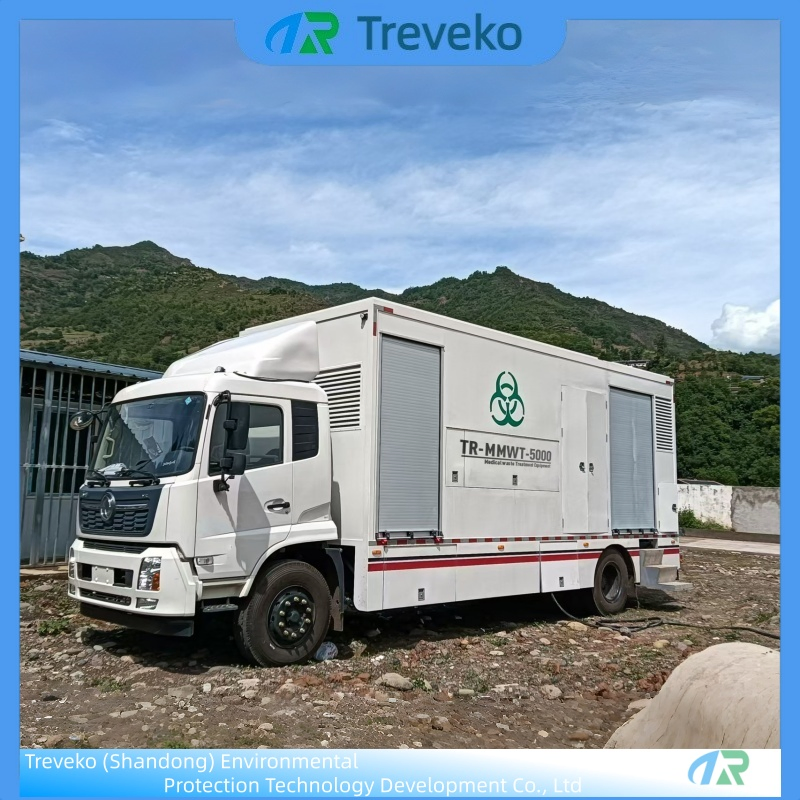

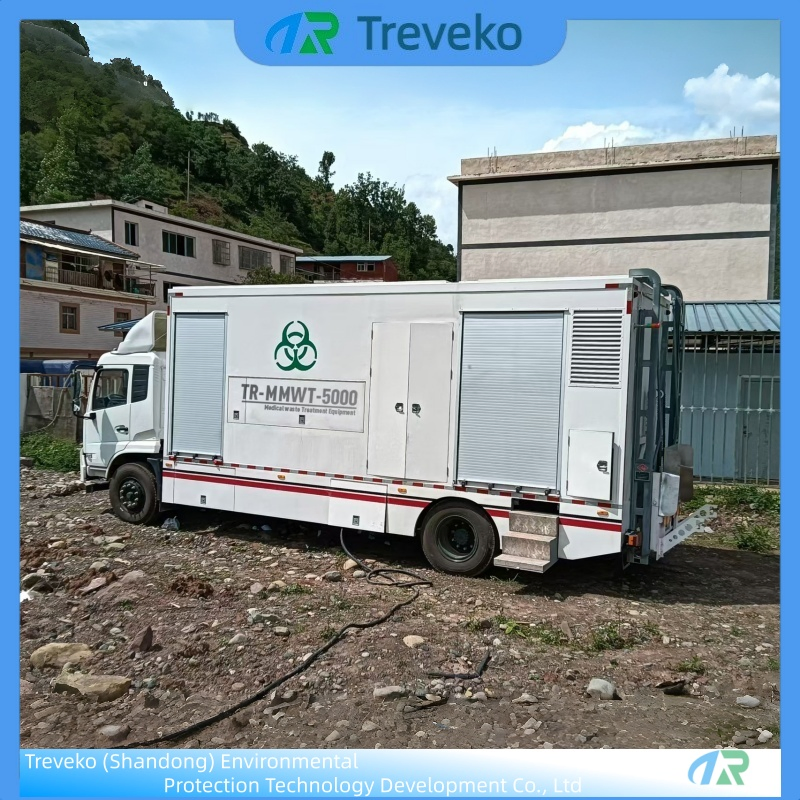

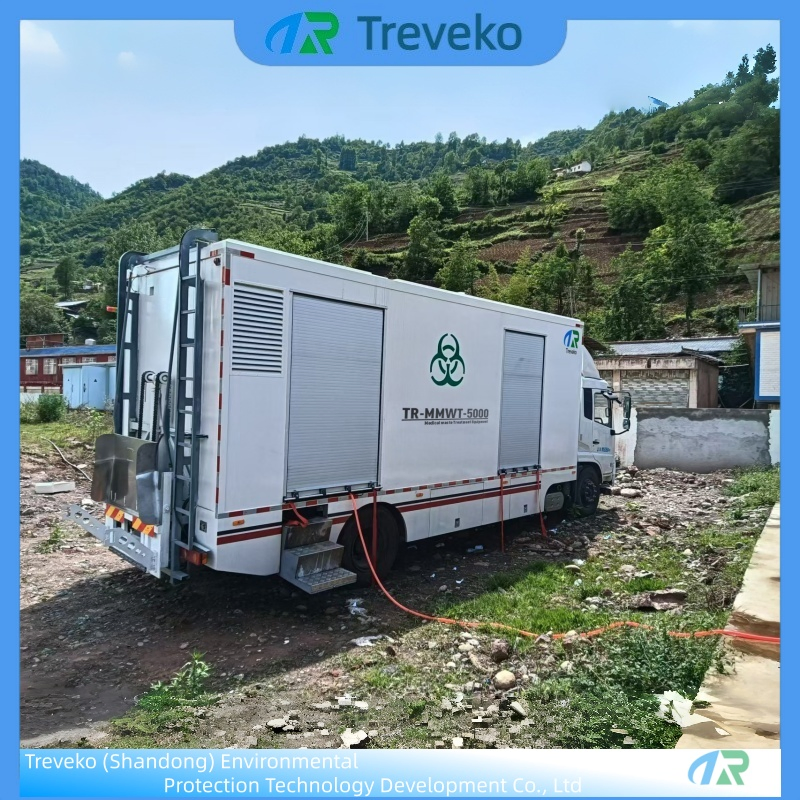

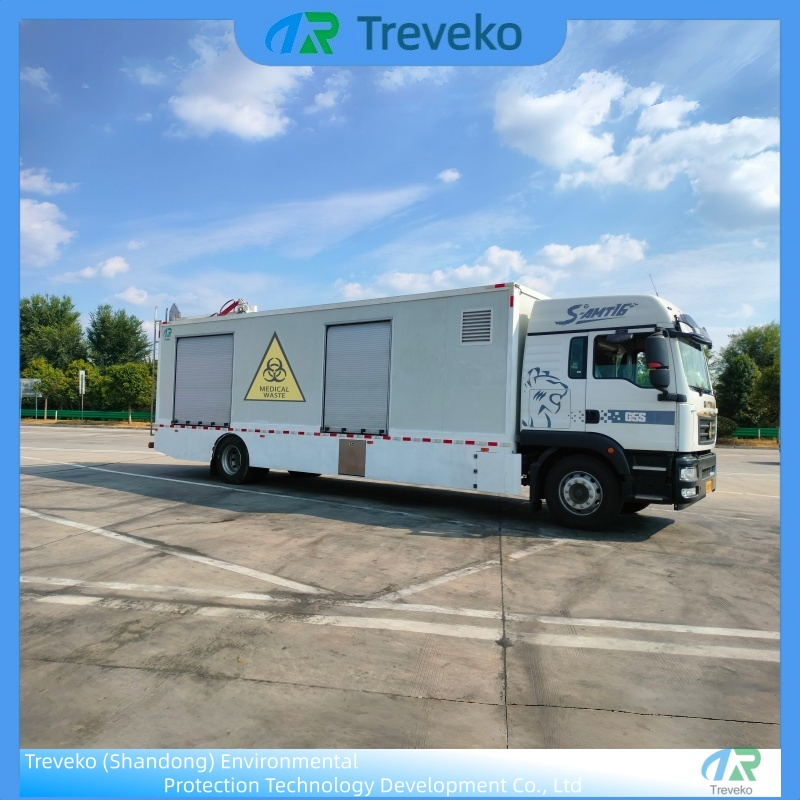

The Mobile Medical Waste Microwave Disinfection Vehicle is a truck-mounted, fully automatic system designed for on-site treatment of infectious hospital waste, including syringes, gauze, PPE, bandages, textiles, and clinical sharps. It combines microwave irradiation (2.45GHz) with saturated steam to achieve a sterilization rate exceeding 99.99% (≥5 log reduction).

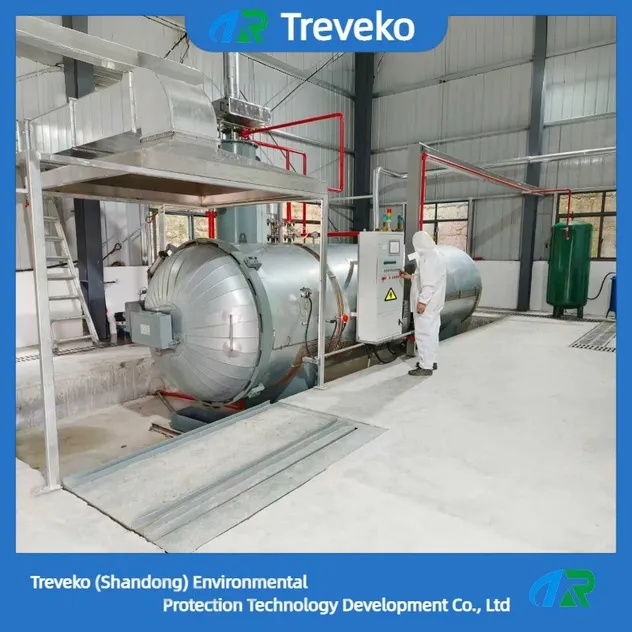

The integrated process begins with automatic bin lifting and feeding into a high-strength shredder, reducing waste volume by over 80%. Shredded material then enters the microwave disinfection chamber, where steam injection ensures uniform heating at ≥95°C for a minimum of 45 minutes.
A multi-stage exhaust treatment system, including HEPA filtration (0.2μm) and activated carbon adsorption, captures odors and volatile organic compounds, ensuring zero dioxin emissions and compliance with international environmental standards. The sealed negative-pressure design prevents any contamination leakage during processing.
With a daily processing capacity of 1-10 tons, this mobile unit can be rapidly deployed to hospitals, airports, quarantine centers, or emergency sites, eliminating transportation risks. Its compact design, low noise operation (≤60dB(A)), and energy-efficient performance make it an ideal solution.
Main Components

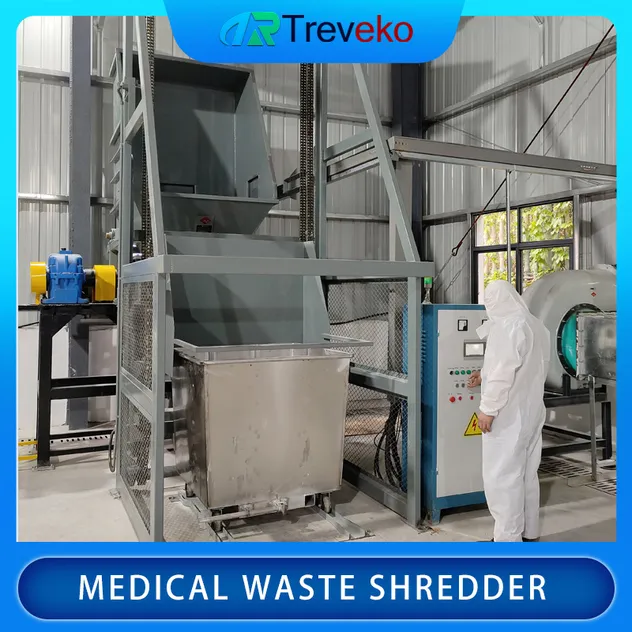

1. Feeding System
Hydraulic lifting unit for standard waste bins; 1.2m³ Stainless steel hopper; Sealed feed chute with negative pressure.

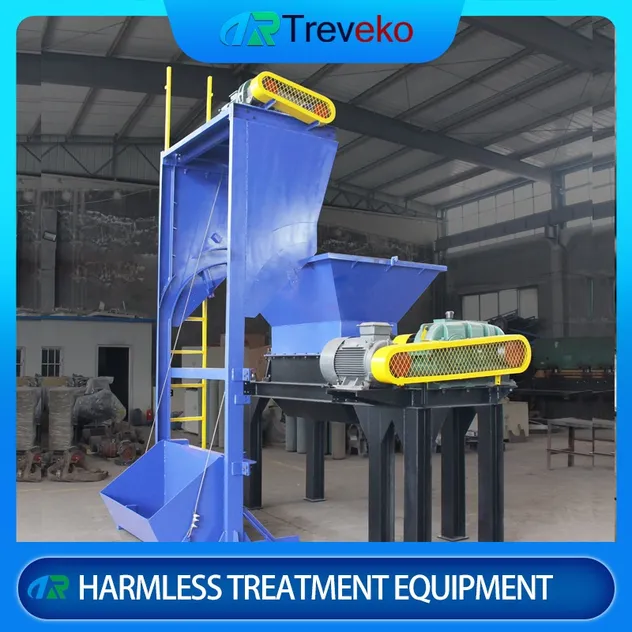

2. Shredding Unit
Dual-shaft high-torque shredder with special alloy blades (Hardness ≥62HRC); 18.5kW motor; Waste particles ≤20mm.
4. Exhaust Treatment
Primary filter + HEPA (0.2μm); Activated carbon adsorption unit; Negative pressure fan for odor control.
Our Advantages
Eco-Friendly: Unlike incineration, our microwave technology generates zero toxic dioxins or harmful emissions, ensuring safe operation.
Superior Sterilization: Combined saturated steam achieves deep penetration (>95°C for 45 mins), delivering a 99.99% sterilization rate, more effective than conventional autoclaves.
High Efficiency: Fully automated system requires only one operator, reducing labor costs. Integrated shredding reduces waste volume by over 80%.
Product Gallery
Professional Capability

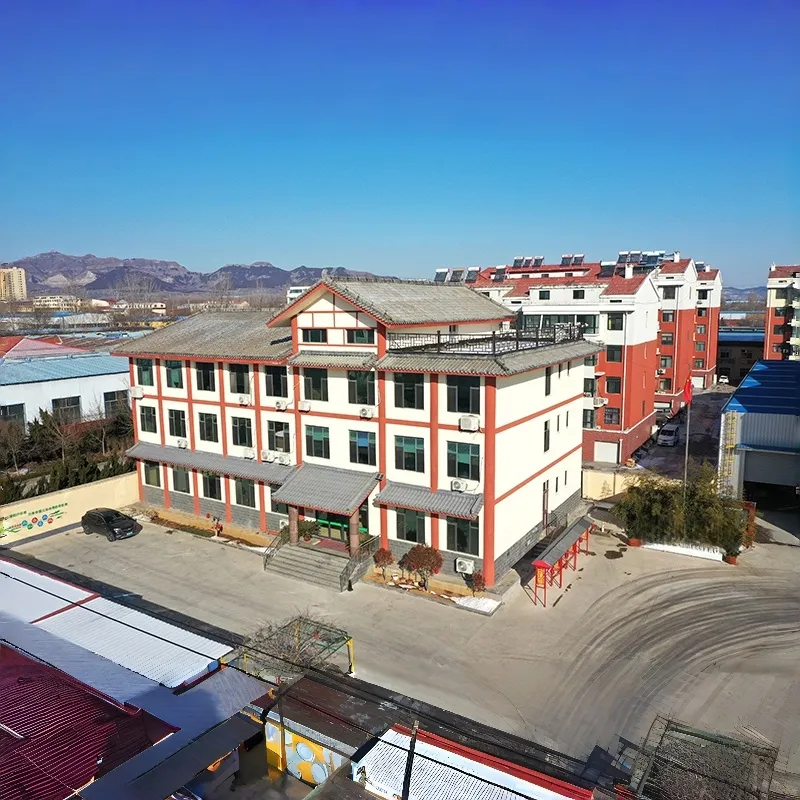

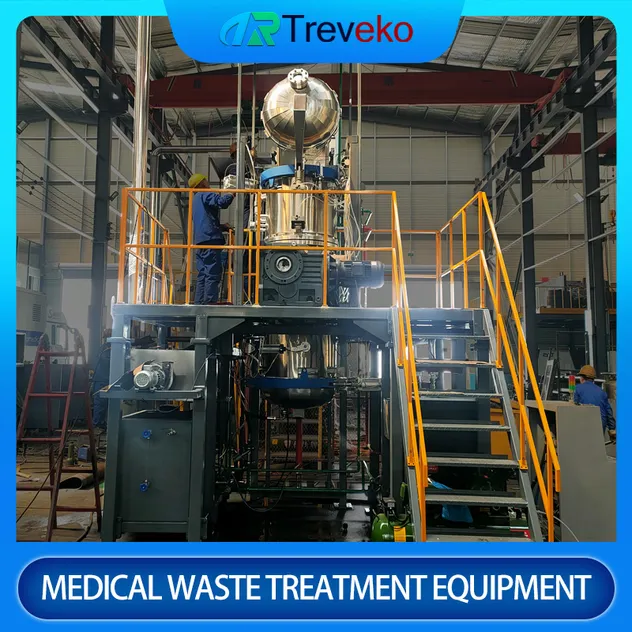

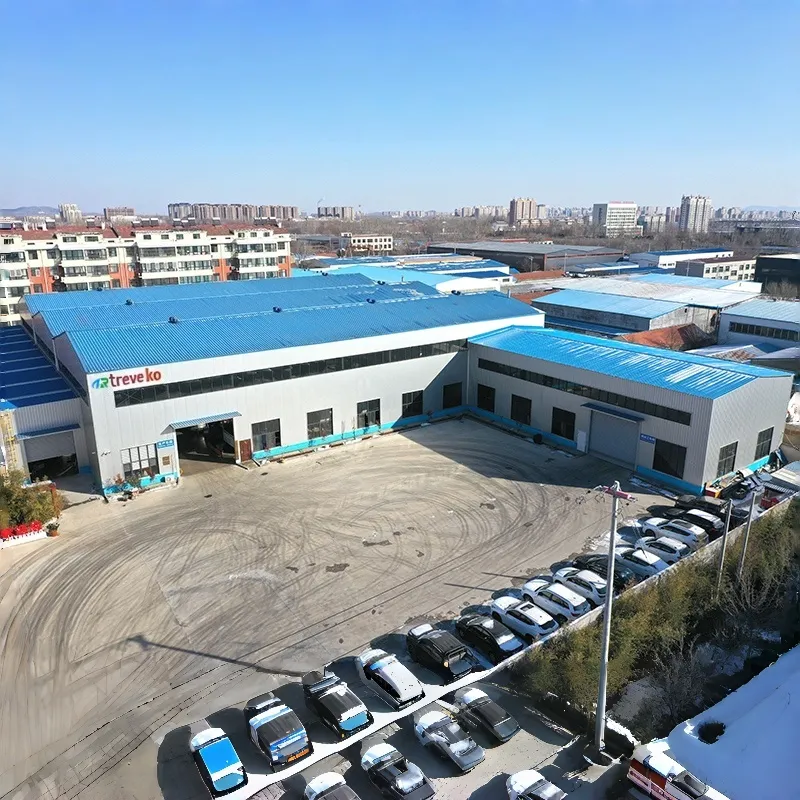

Our enterprise integrates scientific research, engineering design, production, and installation services. We focus on solid waste treatment solutions, including medical waste, domestic waste, and sludge treatment equipment. We customize efficient production lines based on specific customer needs, adhering to the principle of "environmental protection first."
Frequently Asked Questions
What types of medical waste can this vehicle process?
It is designed for infectious and sharps waste, including syringes, gauze, bandages, PPE, contaminated textiles, and disposable sheets. It is not for pharmaceutical or chemical waste.
How effective is the sterilization process?
The system uses 2.45GHz microwave irradiation combined with saturated steam at ≥95°C for 45 minutes, achieving a sterilization rate exceeding 99.99% (≥5 log reduction).
Are there any harmful emissions during operation?
No. Unlike incineration, it produces zero dioxins. A multi-stage HEPA and activated carbon filtration system ensures that exhaust meets strict environmental standards.
How much can the waste volume be reduced?
The integrated dual-shaft shredder reduces medical waste volume by over 80%, significantly lowering final disposal costs.
How many people are required to operate the unit?
The system is fully automated via a PLC touchscreen interface and requires only one operator to manage the entire process.
What is the processing capacity of the TR-MMWT5000?
It has a processing capacity of approximately 5 tons per hour, making it suitable for high-volume emergency or regional hospital waste management.
