| Model NO. | GN-J-ST550 |
| Coating Color | Black, Gray, Transparent, White, According to The Properties of Your Adhesive |
| Warranty | 1 year |
| Drying Tunnel Roller | 304 Stainless Steel Roller |
| Drying Tunnel Material | 304 Stainless Steel (Box) |
| Heating Method | Electric Heating Tube |
| Drying Tunnel Structure | Flat-Lay Structure |
| Laminating Device | Automatic Laminating |
| Slitting Function | Liftable Slitting Knife |
| Cross-Cutting Function | Heavy-Duty Cross-Cutting Machine |
| Equipment Power Supply | Power Supply: 380V Control DC24V |
| Coating Thickness | 0.01-5mm (Uniformity +-5%) |
| Coating Width | 580mm (Effective) |
| Production Capacity | 50000 Pieces/Years |

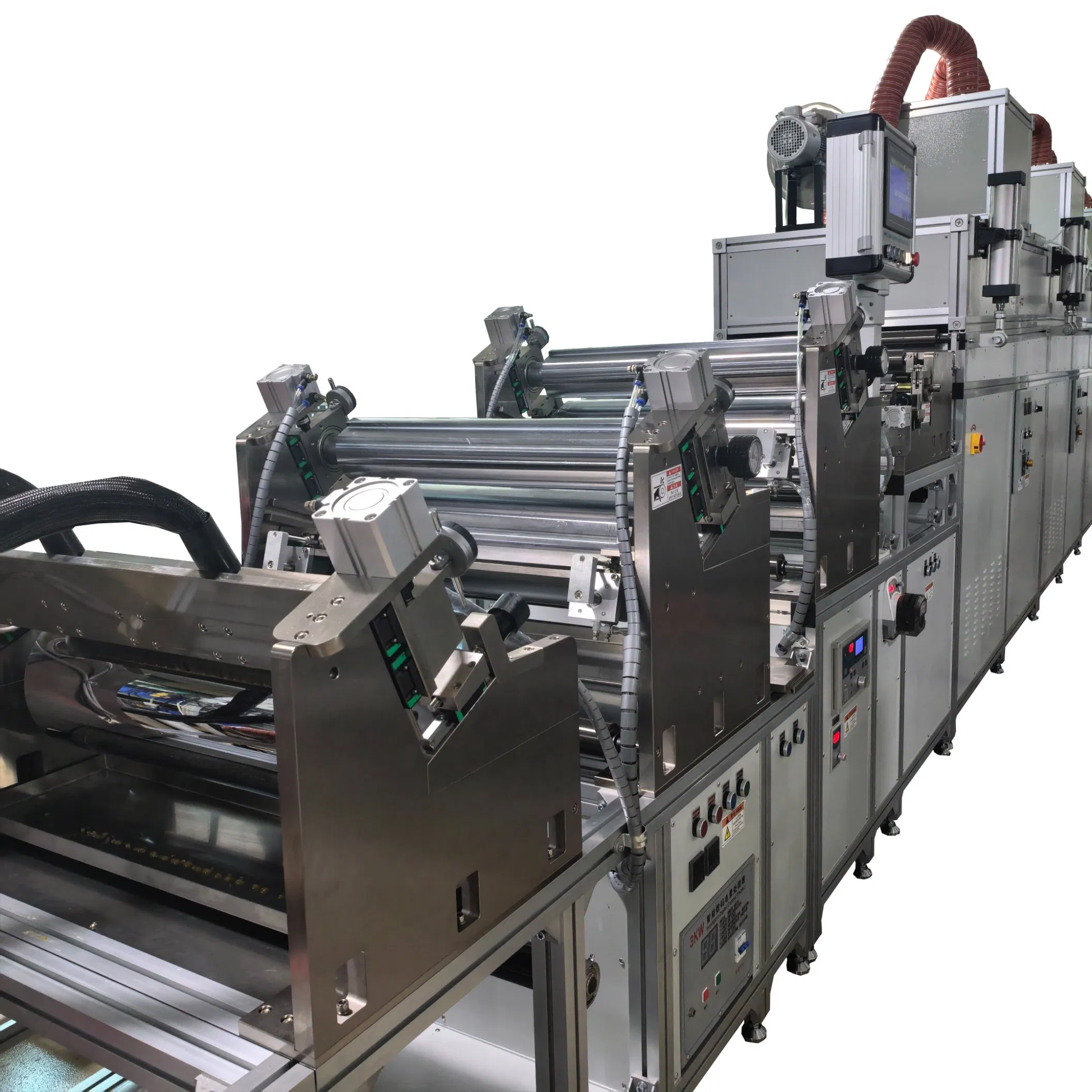

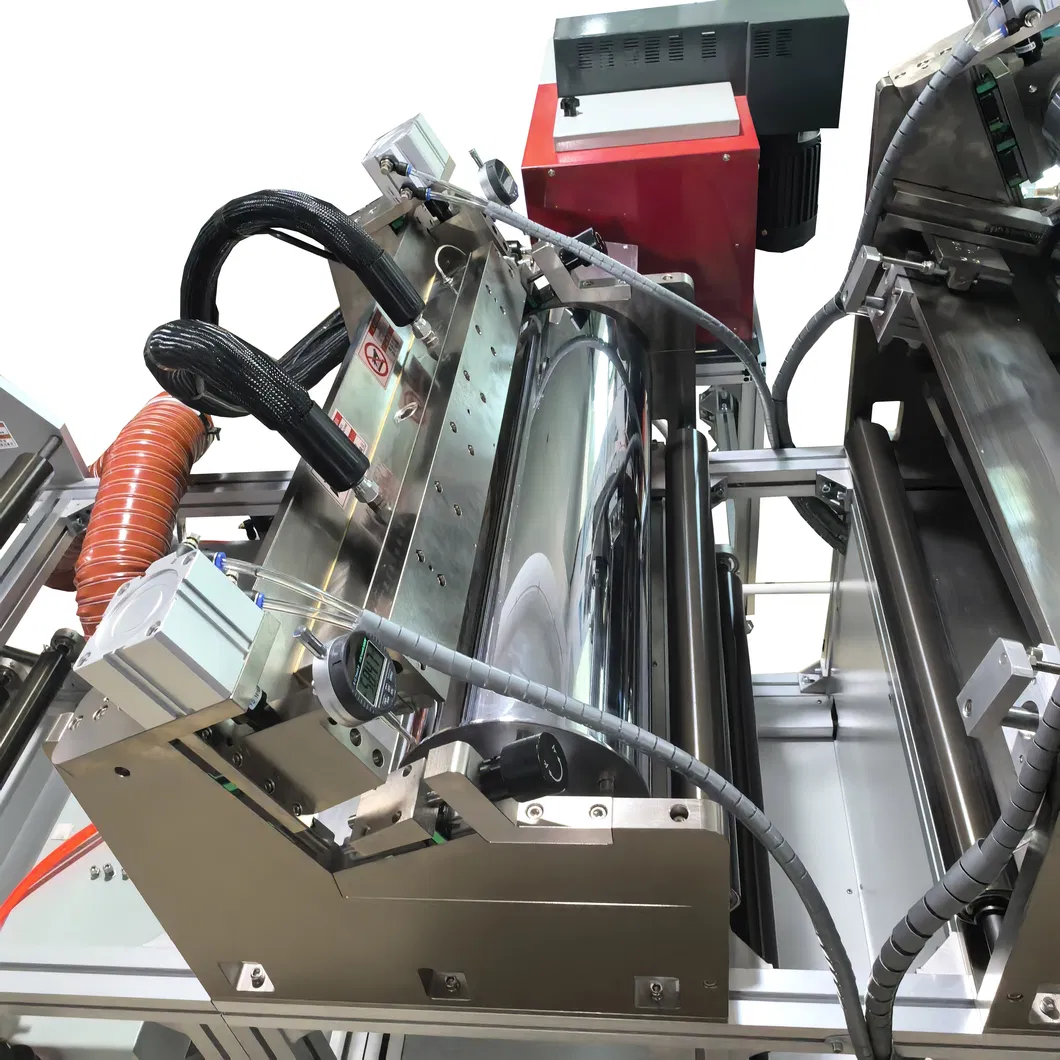

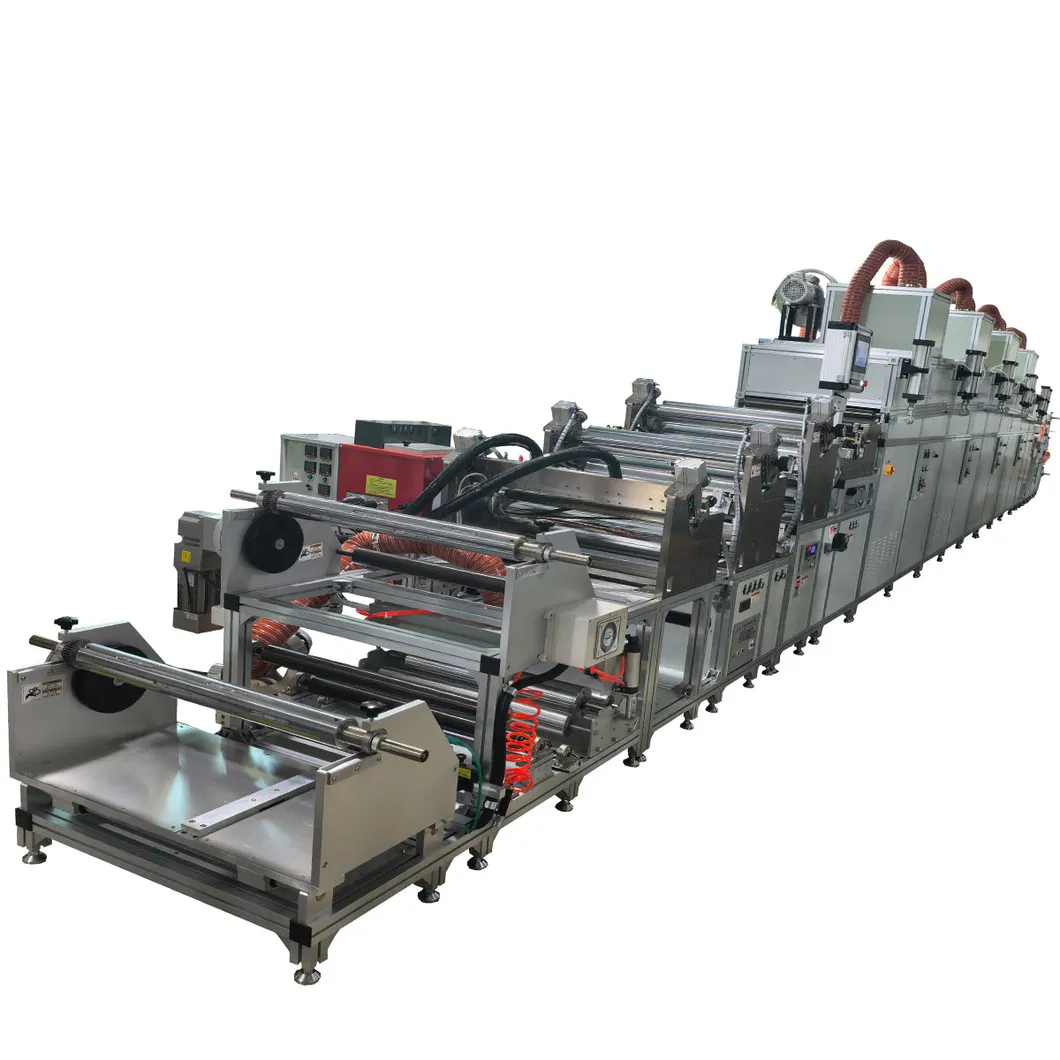

The comma scraper coater is a device used for uniform coating on flat materials. The surface of the round roller is processed into a blade along the generatrix, which is shaped like a comma. Once the adhesive passes through the blade, it suddenly loses pressure, eliminating sticky marks even as the material rebounds.
During coating, the comma scraper remains fixed. The notched edge ensures that the coating passing through is precisely scraped to maintain uniform thickness.
The uniformity depends on the runout, cylindricity, and straightness of the comma scraper blade. This method is highly valued for its simple operation and compatibility with a wide range of glue viscosities, reducing errors caused by human factors.
| Parameter Item | Technical Specifications |
|---|---|
| Control System | Developed Independently |

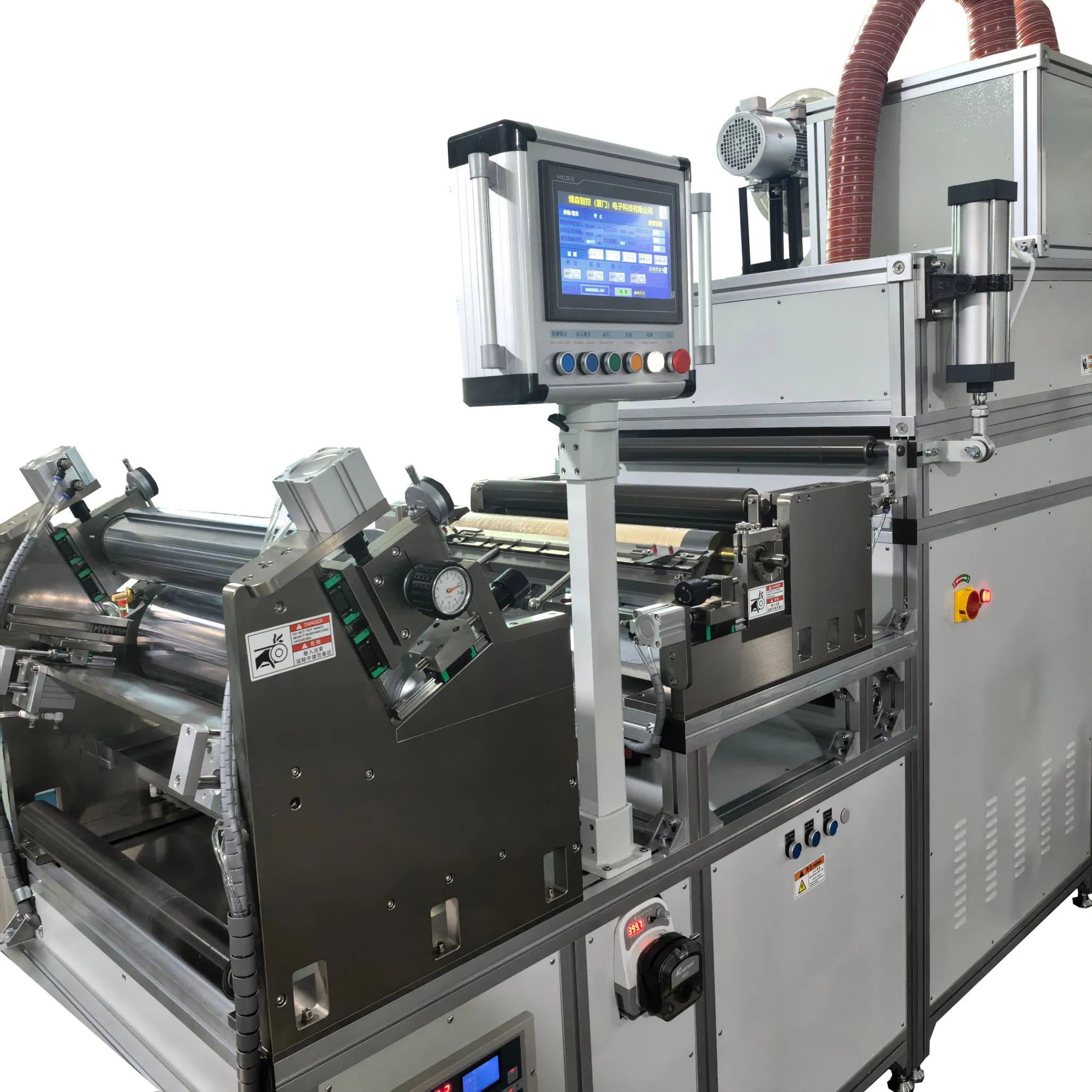

| Human Interface | 10-Inch Touch Screen |
| Coating Width | 550mm (Effective) |
| Coating Method | Comma Scraper / Micro Gravure / Hot Melt |
| Scraper Lifting | Automatic Lifting (Pneumatic) |
| Coating Thickness | 0.01-2mm (Uniformity ±5%) |
| Heating Channel | Drying Tunnel 8 Meters (Independent Constant Temperature) |
| Tension Control | Fully Automatic Tension Discharge (1~100N) |
| Correcting Device | Fully Automatic Deviation Correction |
| Equipment Speed | 1-10 Meters/Minute |
| Drying Tunnel Temp | Normal Temperature - 150 Degrees |
| Exhaust System | Centrifugal Fan (External Interface 100mm) |
| Total Power | 60KW |

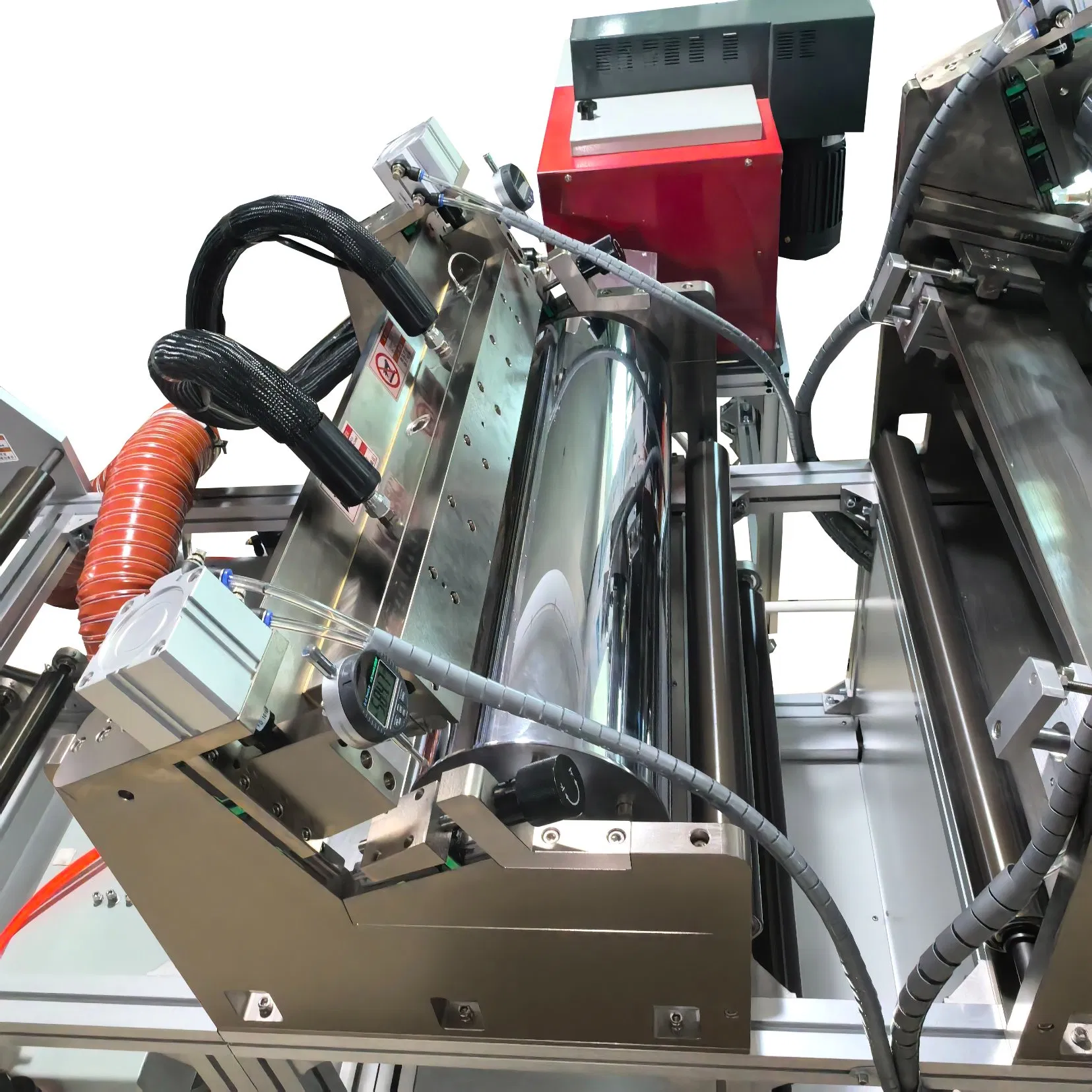

The roller clutch adjustment adopts a pneumatic swing arm type, equipped with a micro-adjustment device. Thickness is precisely controlled using a feeler gauge.
Features heavy-duty dual-axis mechanical independent movement. The angle can be adjusted arbitrarily. The coating amount is determined by the mesh line of the anilox roller, which can be replaced for different requirements.
The oven is 10 meters long, divided into 4 sections with independent temperature control. Utilizes a hot air entry drying system with adjustable internal circulation suction for thorough drying.
A: We are an integrated factory and trade entity with over 20 years of focus on the lab coating machine field and extensive export experience.
A: Generally, delivery takes about 15-25 working days. If items are in stock, we can arrange shipment within 2 working days.
A: We provide a 12-month warranty. Our professional team offers technical support and helps resolve any operation issues or complaints promptly.
A: Each piece of equipment undergoes 100% quality examination and testing before shipping. We also provide video training for installation and operation.
A: Yes, our products can be fully customized according to your specific parameters and production requirements.
A: Yes, we can arrange for an engineer to provide on-site operation training at the customer's facility when necessary.
