Efficient Disposable Medical Dressing Machine for Catheter Production Lines
Efficient Disposable Medical Dressing Machine for Catheter Production Lines
Efficient Disposable Medical Dressing Machine for Catheter Production Lines
Efficient Disposable Medical Dressing Machine for Catheter Production Lines
Efficient Disposable Medical Dressing Machine for Catheter Production Lines
1 / 5
Efficient Disposable Medical Dressing Machine for Catheter Production Lines
Efficient Disposable Medical Dressing Machine for Catheter Production Lines
Efficient Disposable Medical Dressing Machine for Catheter Production Lines
Efficient Disposable Medical Dressing Machine for Catheter Production Lines
Efficient Disposable Medical Dressing Machine for Catheter Production Lines

Efficient Disposable Medical Dressing Machine for Catheter Production Lines

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

Product Overview

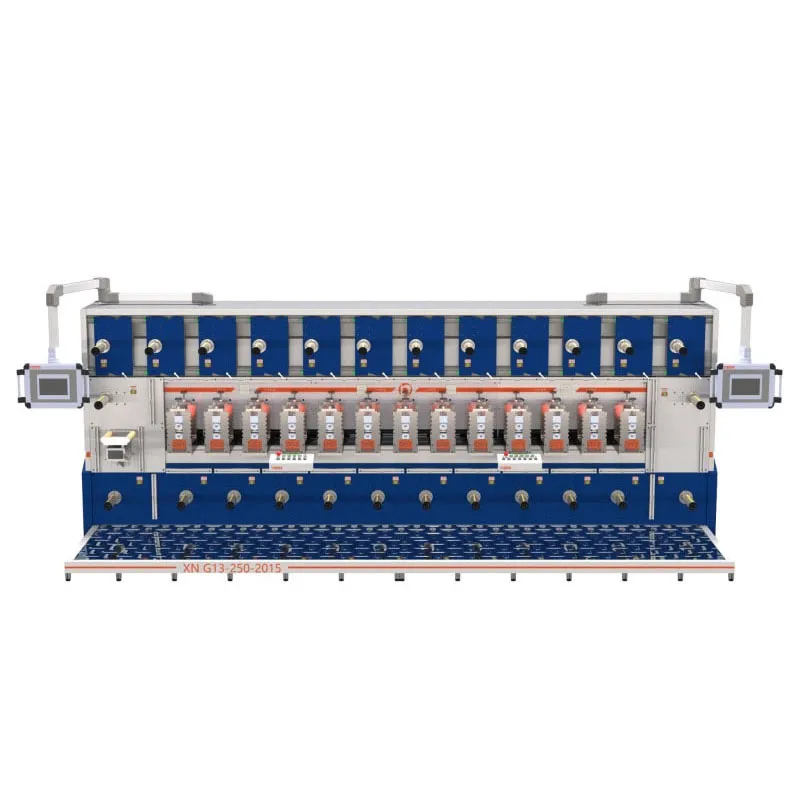

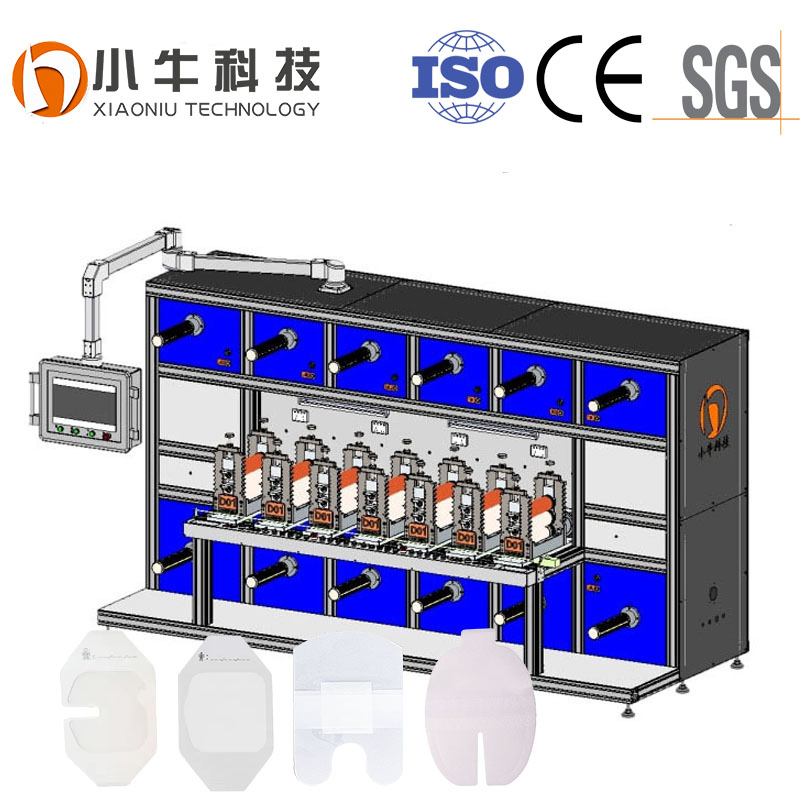

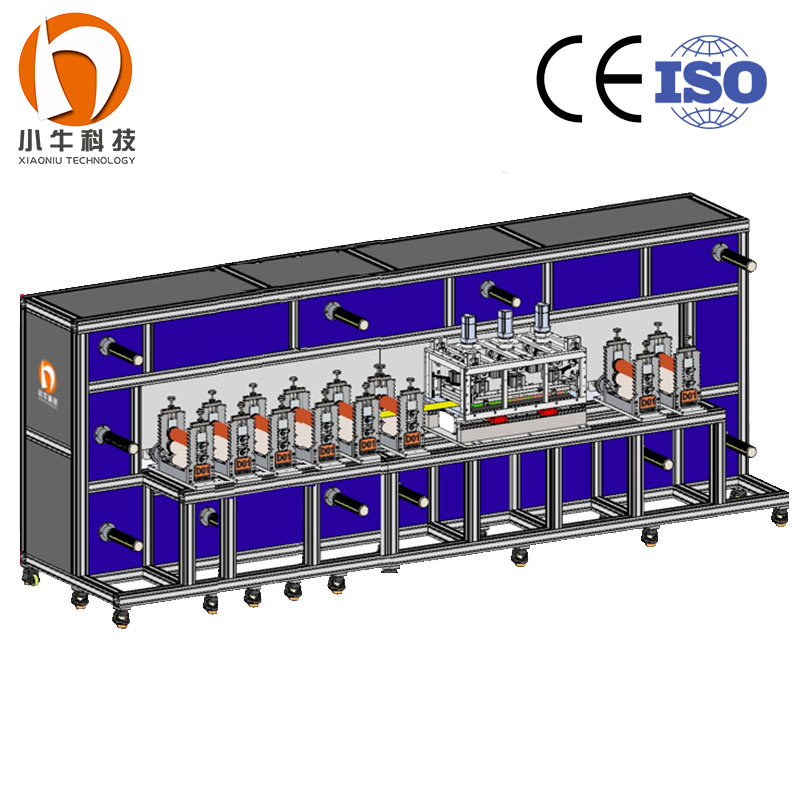

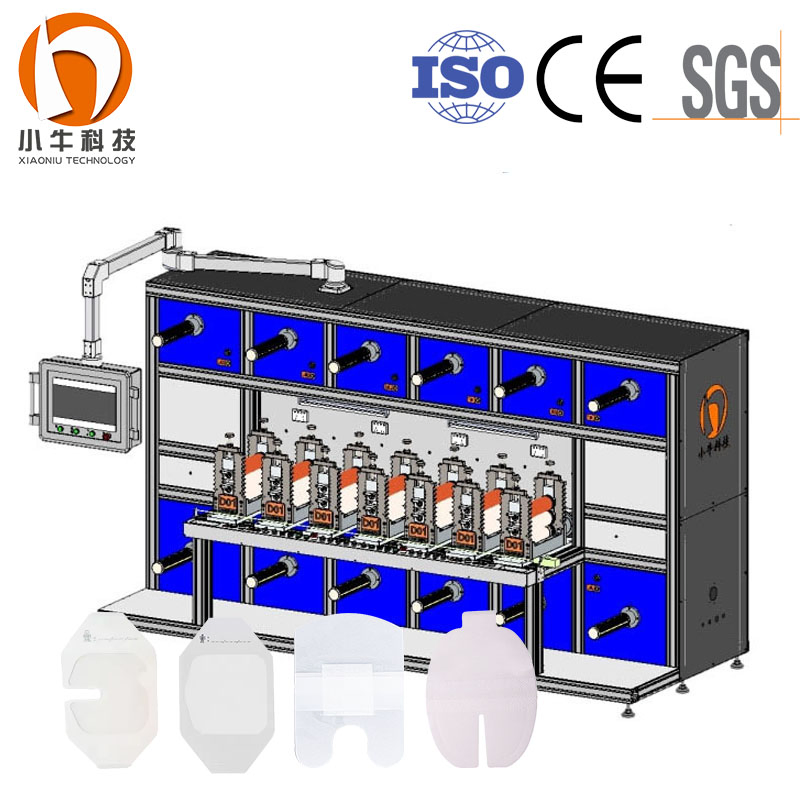

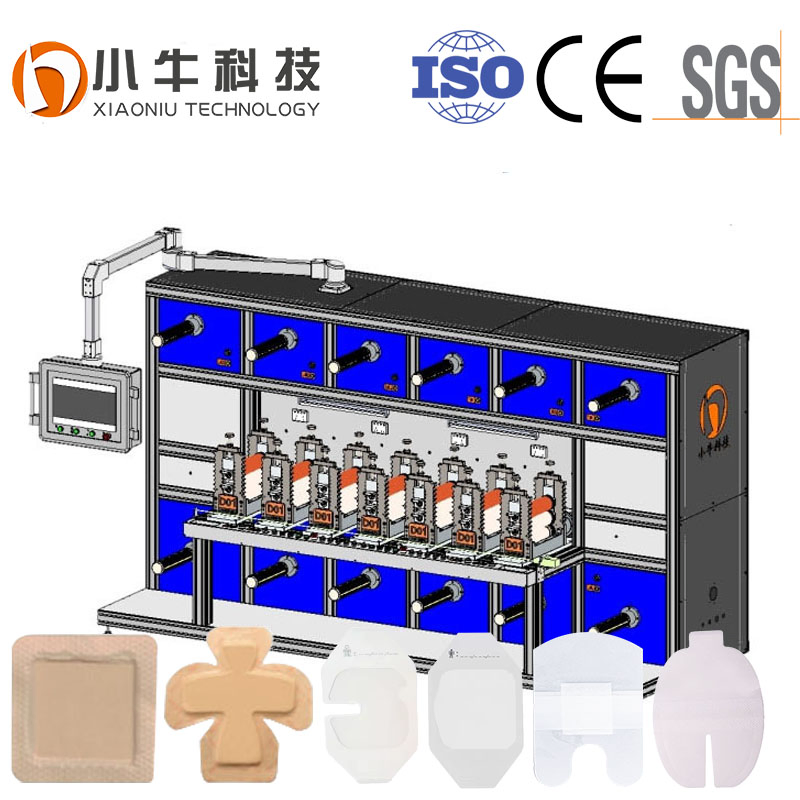

This 13-station rotary die-cutting machine, driven by servo motors, allows each station or feed shaft to operate independently or as a cohesive unit. It accommodates a variety of pressing, die-cutting, and other production needs, supporting synchronous, asynchronous, speed ratio, and constant tension functions. Truly automatic and highly intelligent.
Model NO.
XN13
Species
Rotary Die-Cutting Machine
Automatic Grade
Automatic
Cutting Precision
±0.1mm
Power
32.5kw
Drive Motor
Servo
Rotary Die-Cutting Machine
Medical IV Catheter Fixation Dressing Manufacturing Machine
Key Advantages
  • High Efficiency: Continuous roll cutting with 5-60m/min efficiency.
  • Precision Engineering: ±0.1mm precision, stable and consistent performance.
  • Multi-station Design: Integrated multi-process capabilities in a single machine.
  • Wide Application: Adaptable to all flexible substrates (Medical, 3C Electronics, Automotive).
  • Intelligent Control: Full-auto system with intelligent tension and deviation control.
  • Smart Features: Asynchronous processing and power-off memory.
Technical Specifications
Parameter Details
Power32.5kw
Working VoltageAC380V (Customized)
Feeding Width250mm or 350mm
Max. Web Diameter400mm
Die Cutting Precision±0.1mm
Max Speed60m/min
Control SystemPLC Servo Control (Omron)
Application Samples

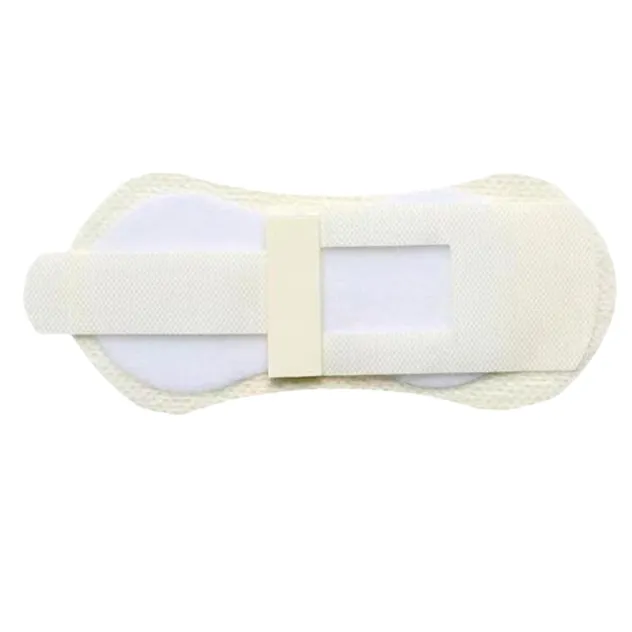

Catheter Dressings
Catheter Fixation Dressings

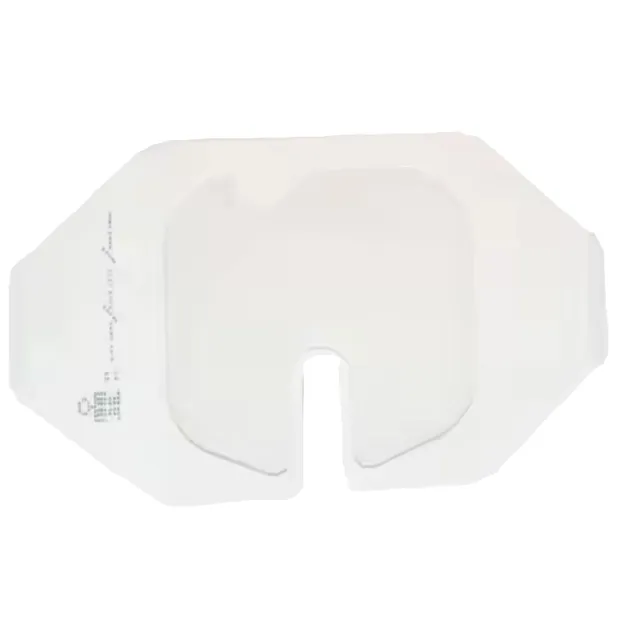

I.V. Dressing
I.V. Dressing
Acne Patches
Acne Patches

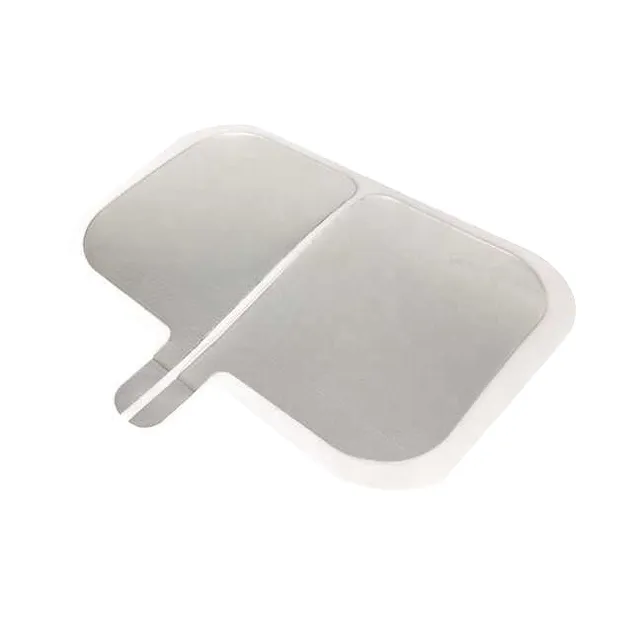

ESU pads
ESU Pads
Infusion Dressing
Infusion Dressing
Hydrocolloid dressing
Hydrocolloid Dressing
Components & Packaging
Main Parts
High-Quality Main Parts
Electronics
Precision Electronics
Stations
Processing Stations
Package Information:
Standard wooden packing. Size: 549.00cm * 170.00cm * 260.00cm. Gross Weight: 5600.00kg.
Service & Support

Standard Warranty: 1 year of comprehensive coverage.

Global Support: 24/7 technical assistance and prompt spare parts supply.

Training: Comprehensive on-site or remote operation and maintenance training by professional engineers.

Global Service
Frequently Asked Questions
What materials can this rotary die-cutting machine process?
The machine is adaptable to all flexible substrates, including medical consumables, 3C electronics, automotive materials, and daily consumer goods.
How many products can be manufactured on one machine?
The modular design allows you to share one machine for multiple products by simply adding stations or changing die cutters, significantly saving equipment costs.
What is the production efficiency of the equipment?
The machine offers continuous roll cutting with a high efficiency rate of 5 to 60 meters per minute, depending on the material and process.
What kind of control system does the machine use?
It utilizes a full PLC servo control system, featuring high-quality Omron components for intelligent tension and deviation control.
Do you provide technical training for machine operation?
Yes, we provide both on-site and remote training for operation and maintenance. Engineers can be dispatched for on-site training and debugging.
Is the machine customizable for specific medical dressing needs?
Absolutely. Our R&D team specializes in customizing machines to your exact specifications and product types to ensure the best fit for your production needs.
