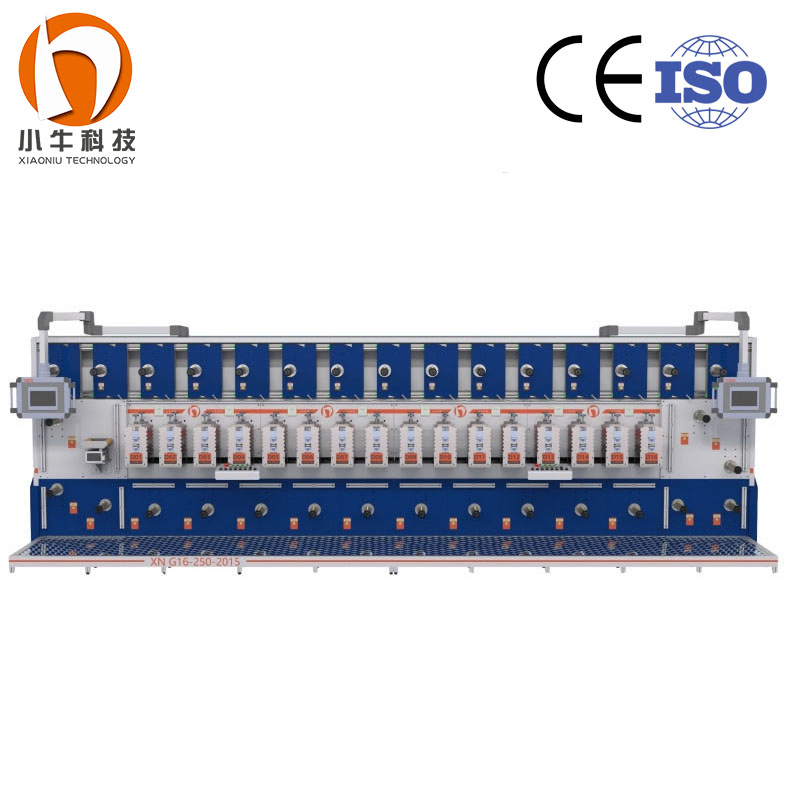

Efficient IV Dressing Manufacturing Machine for Optimal Healthcare

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Product Overview

Model NO.

XN10

Species

Rotary Die-Cutting Machine

Imprinting Type

Rotary

Placing Form

Horizontal

Die Cutting Tool

Metal Mold

Automatic Grade

Automatic Computerized

Power

25kw

Cutting Precision

±0.1mm

Drive Motor

Servo (Omron PLC)

Production Capacity

200PCS/Year

Packaging & Delivery

Package Size

450.00cm * 170.00cm * 260.00cm

Gross Weight

4700.000kg

Transport Package

Wooden Packing

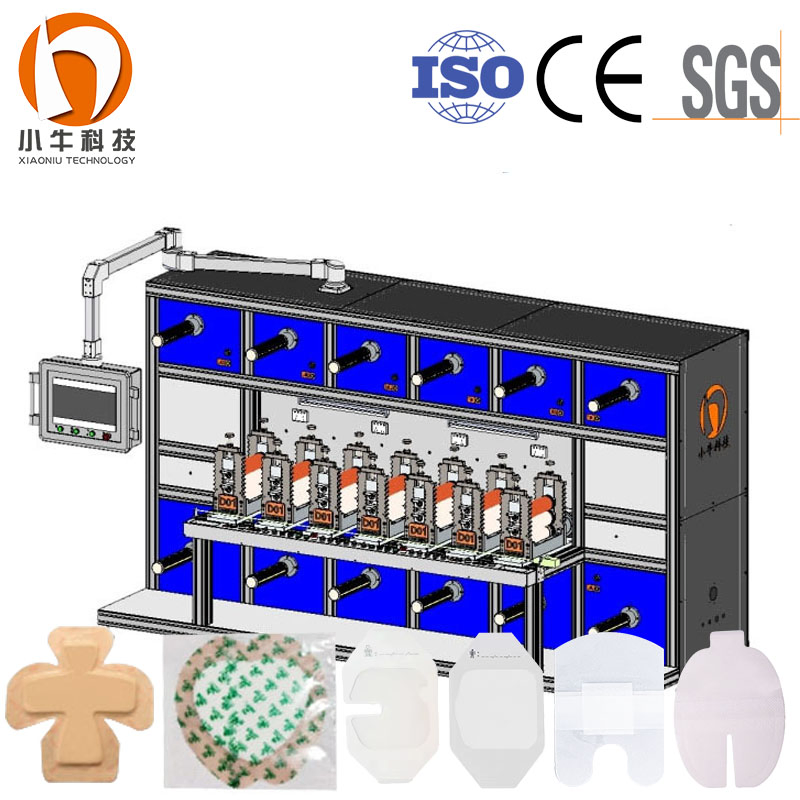

Medical Silicone Foam Dressings Producing Machine

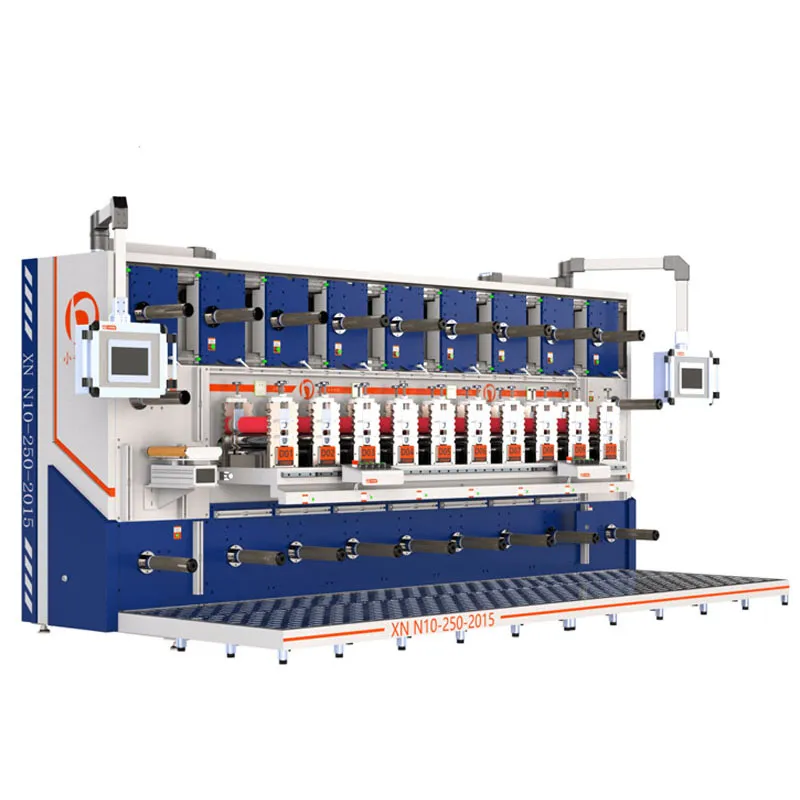

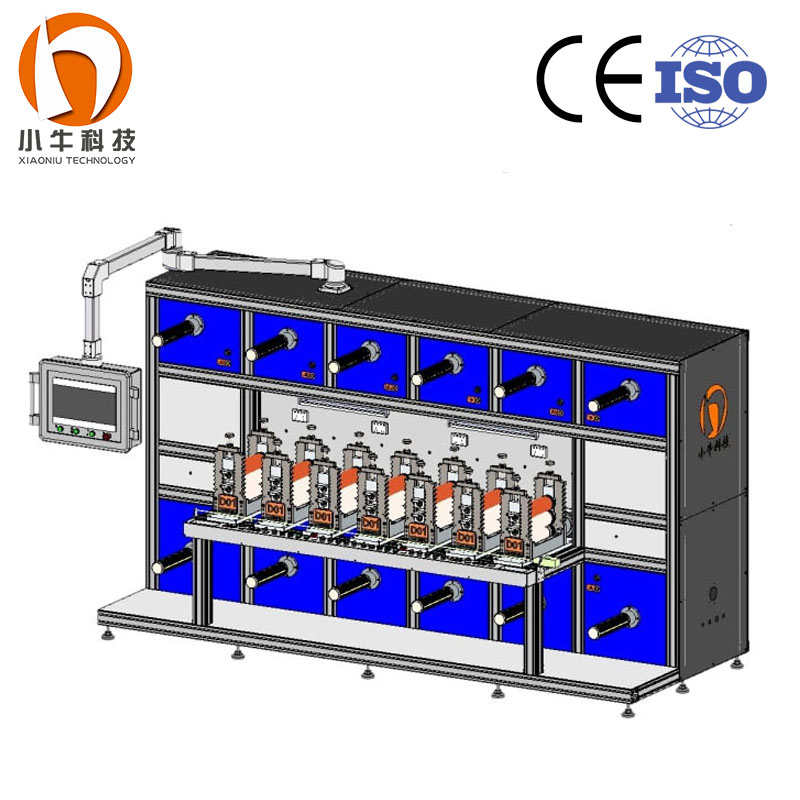

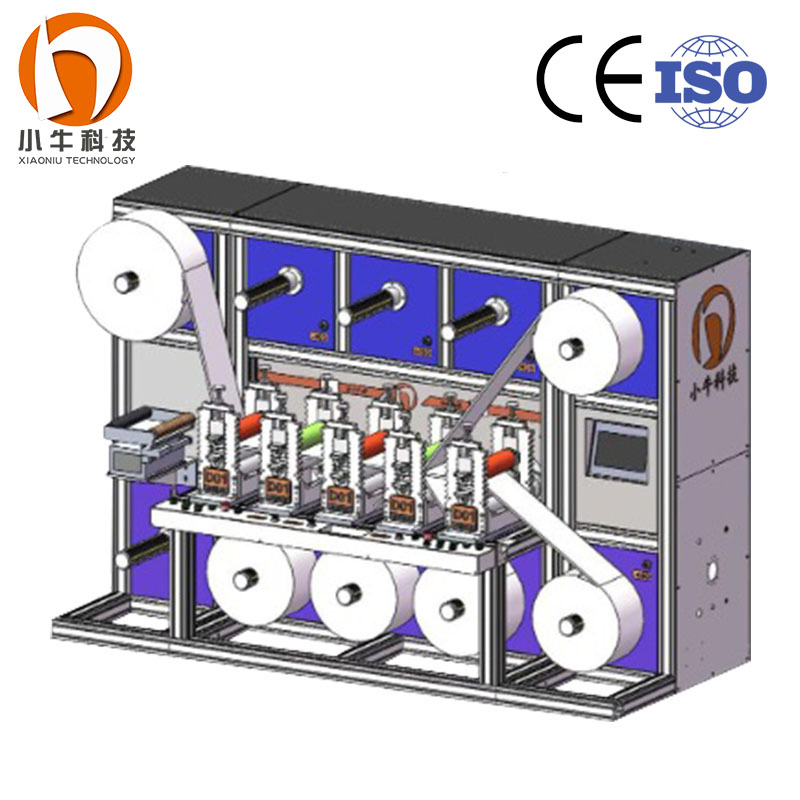

This 10-station rotary die-cutting machine is driven by a servo motor at each station and feed shaft, making each independent yet part of a cohesive unit. It suits various pressing, die cutting, transfer, and other needs with synchronous, asynchronous, speed ratio, and constant tension functions. This is a fully automatic, highly intelligent universal machine.

Key Functions

Synchronous & Asynchronous Processing
Automatic Target Tracking & Dual System
Material Breaking Alarm & System Failure Monitoring
Constant Tension Control

Machine Advantages

Continuous roll cutting, 5-60m/min high efficiency
±0.1mm precision, stable & consistent processing
Multi-station design, integrated multi-process compounding
Adapts to all flexible substrates
Full-auto operation, intelligent tension & deviation control
Smart adjustment asynchronous processing & power-off memory

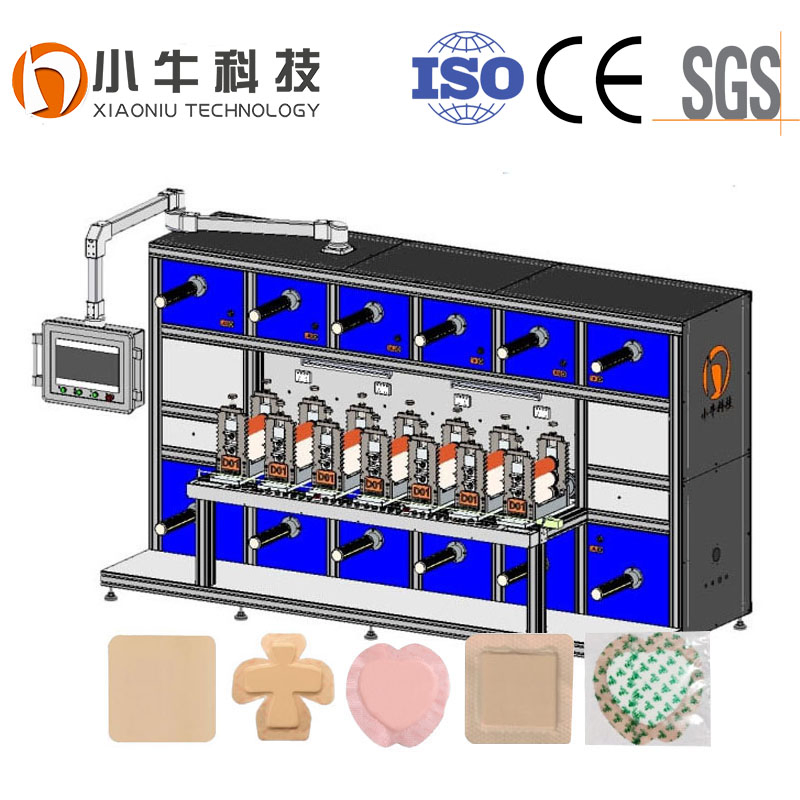

Finished Product Samples

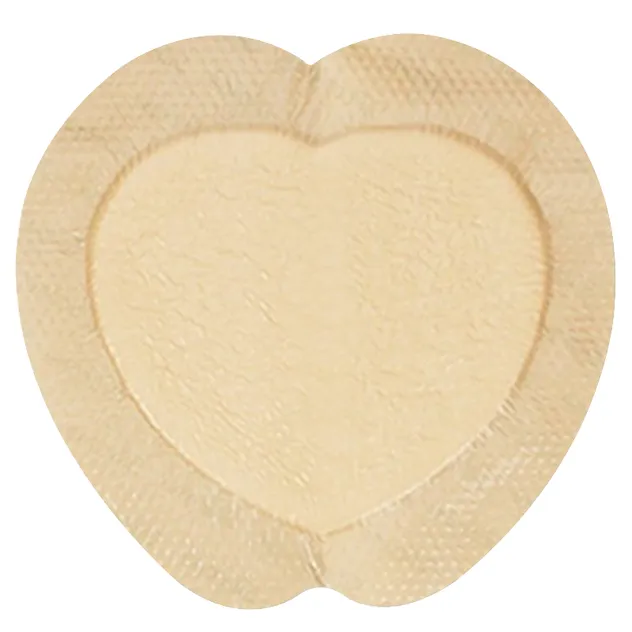

Foam Dressings

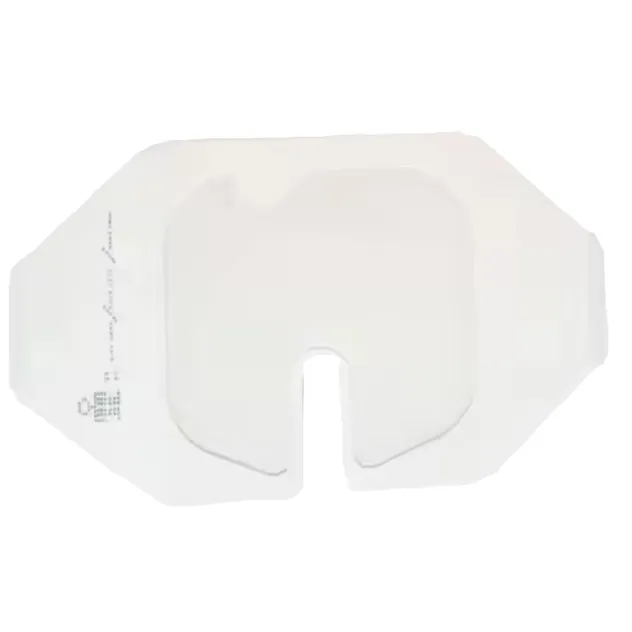

I.V. Dressings

Acne Patches

Technical Specifications

(Custom configurations available upon request.)

Parameter	Detail
Power (KW)	25kw
Working Voltage (V)	AC380 (Customizable)
Feeding Width (mm)	250mm / 350mm / Customized
Max. Diameter (mm)	400mm
Die Cutting Precision (mm)	±0.1mm
Max Speed	60m/min

Equipment Components & Delivery

After Sales Service

Standard Warranty

1 year comprehensive coverage.

Global Support

24/7 technical assistance and spare parts supply.

Training

On-site or remote operation and maintenance training by expert engineers.

Frequently Asked Questions

What materials can this rotary die-cutting machine process?

The machine is designed to handle all flexible substrates, including stickers, dust-proof materials, EMI shielding materials, and various medical dressing products.

How high is the cutting precision?

Our equipment achieves a high die-cutting precision of ±0.1mm, ensuring stable and consistent processing for high-quality requirements.

Can one machine produce different types of products?

Yes. Due to the modular and multi-station design, you can produce multiple products by adding stations or changing die cutters, which significantly saves equipment costs.

What control system does the machine use?

The machine is equipped with a full-auto PLC servo control system, primarily using high-quality OMRON components for intelligent tension and deviation control.

Do you provide technical training for new operators?

Absolutely. We offer on-site training and debugging by our engineers to ensure your team can operate and maintain the machine efficiently.

What is the lead time for equipment delivery?

Standard equipment can typically be delivered within 20 days following the final design approval. Custom configurations may vary depending on specifications.
