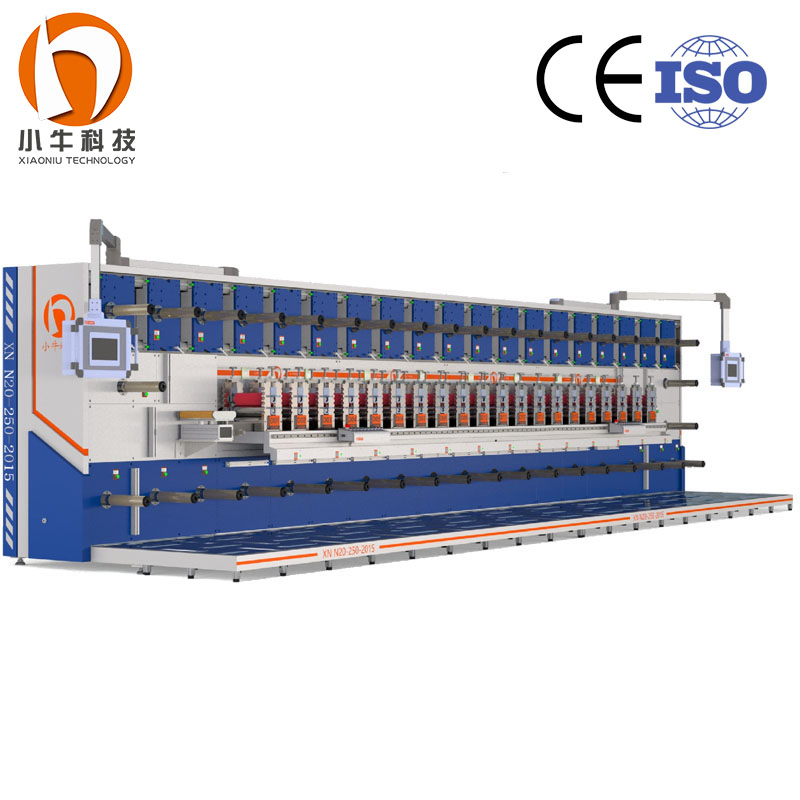

Disposable IV Dressings Machine for Efficient Production Solutions

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Product Overview

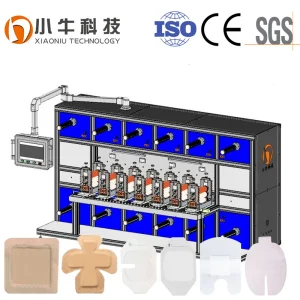

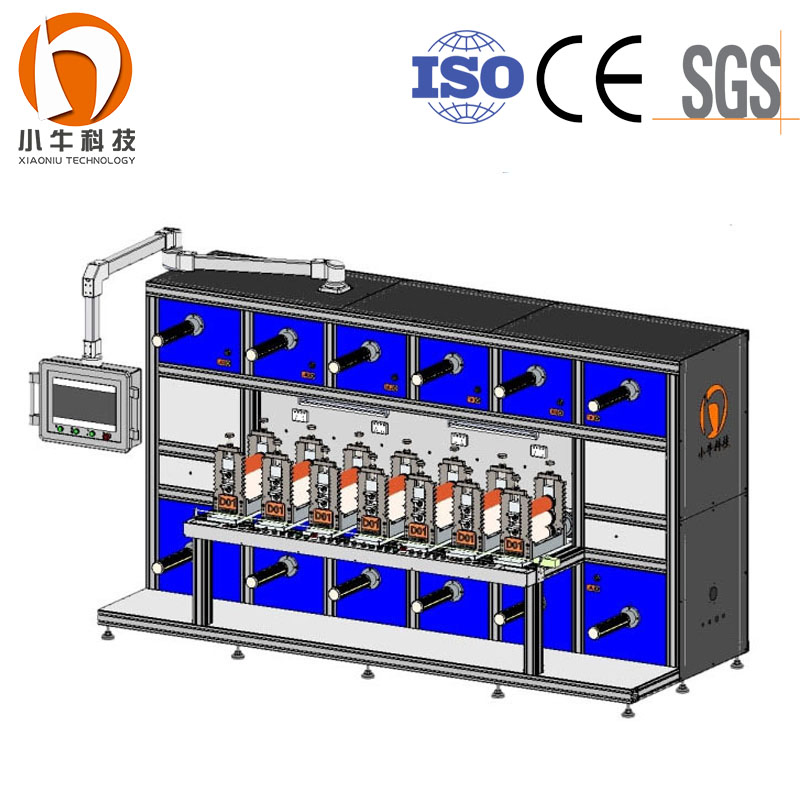

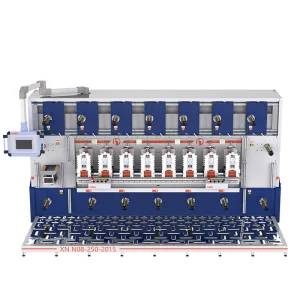

The 10-station rotary die-cutting machine is driven by independent servo motors, designed to seamlessly integrate diverse pressing, die-cutting, and transfer needs. It supports synchronous and asynchronous functions with constant tension, offering a high degree of automation and intelligence for modern manufacturing.

✓

High-precision cutting (±0.1mm)

✓

Efficient production (5-60m/min)

✓

Independent servo control for each station

Technical Specifications

Parameter	Details
Model No.	XN10
Application	Medical Dressing, Stickers, EMI Shielding, Dust-proof Material
Power	25kw
Voltage	AC380 (Customizable)
Feed Width	250mm / 350mm / Customized
Web Max. Diameter	400mm
Cutting Precision	±0.1mm
Max. Speed	60m/min
PLC System	Omron
Drive Motor	Servo Motor
Weight	Approx. 4100kg - 4700kg

Key Advantages

01. High Efficiency

Continuous roll cutting with speeds ranging from 5-60m/min ensures high productivity for mass manufacturing.

02. Precision Engineering

Achieves ±0.1mm precision, providing stable and consistent processing for sensitive medical materials.

03. Intelligent Control

Full-auto operation with intelligent tension control, deviation adjustment, and power-off memory functions.

Applications & Finished Products

This equipment is widely used in medical consumables, 3C electronics, automotive electronics, and new energy industries.

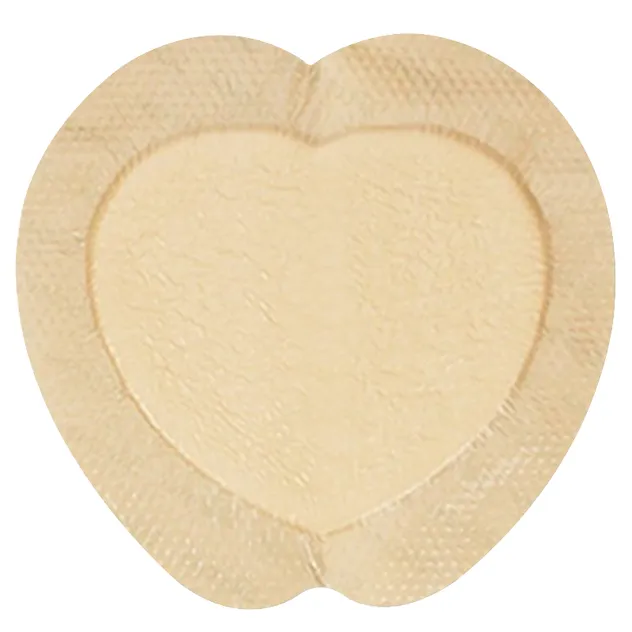

Foam Dressings

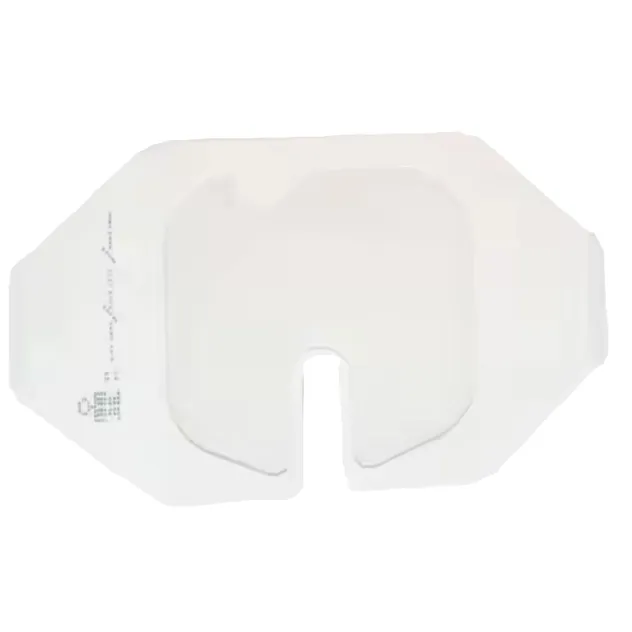

I.V. Dressings

Acne Patches

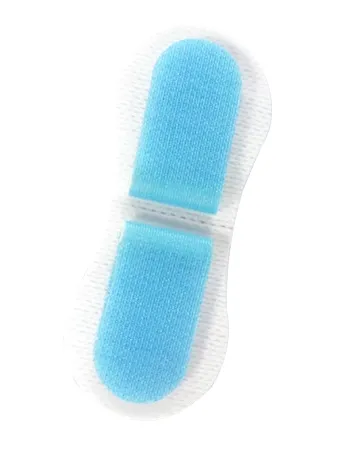

Catheter Fixation

Infusion Dressings

Hydrocolloid Dressings

Core Components & Details

Main Mechanical Parts

Premium Electronics

Multi-Station Design

Equipment Delivery

Service & Support

★

Standard Warranty: 1 year of comprehensive coverage.

★

Global Support: 24/7 technical assistance and rapid spare parts supply.

★

Expert Training: On-site or remote operation and maintenance training provided by engineers.

Frequently Asked Questions

What materials can this rotary die-cutting machine process?

It is designed for all flexible substrates, including medical dressings, foam, hydrocolloids, stickers, EMI shielding materials, and various 3C electronic components.

How many stations can be included in one machine?

The modular design allows for flexible station counts. Standard configurations include 10 stations, but more can be added to integrate multi-process compounding, printing, and packaging.

What is the cutting precision of the XN10 model?

The machine utilizes an Omron PLC and independent servo motors to achieve a high cutting precision of ±0.1mm.

Can one machine produce different types of products?

Yes. By adding stations or changing cutting tools, the machine can be shared across multiple product lines. Machines with 8+ stations also support a dual-system design for dual product production.

Do you provide technical support for international customers?

We offer 24/7 technical support, lifetime paid maintenance, and can dispatch engineers globally for on-site training, installation, and debugging.

What is the typical lead time for equipment delivery?

Standard equipment can typically be delivered within 20 days post-design finalization, depending on specific customization requirements.
