Efficient Disposable IV Dressings Machine for Healthcare Applications

1 / 5

Efficient Disposable IV Dressings Machine for Healthcare Applications

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Product Overview

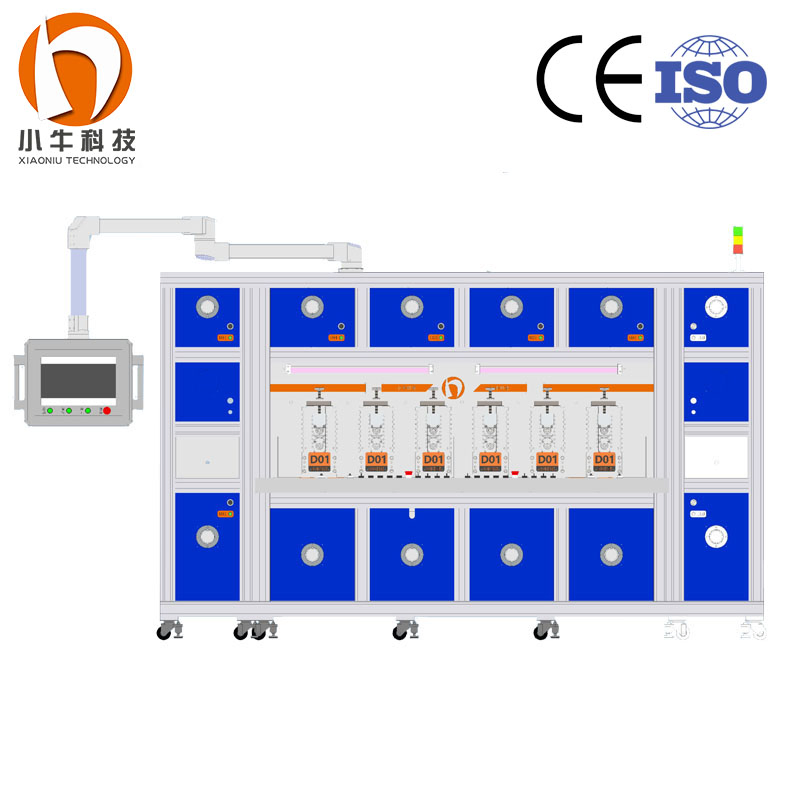

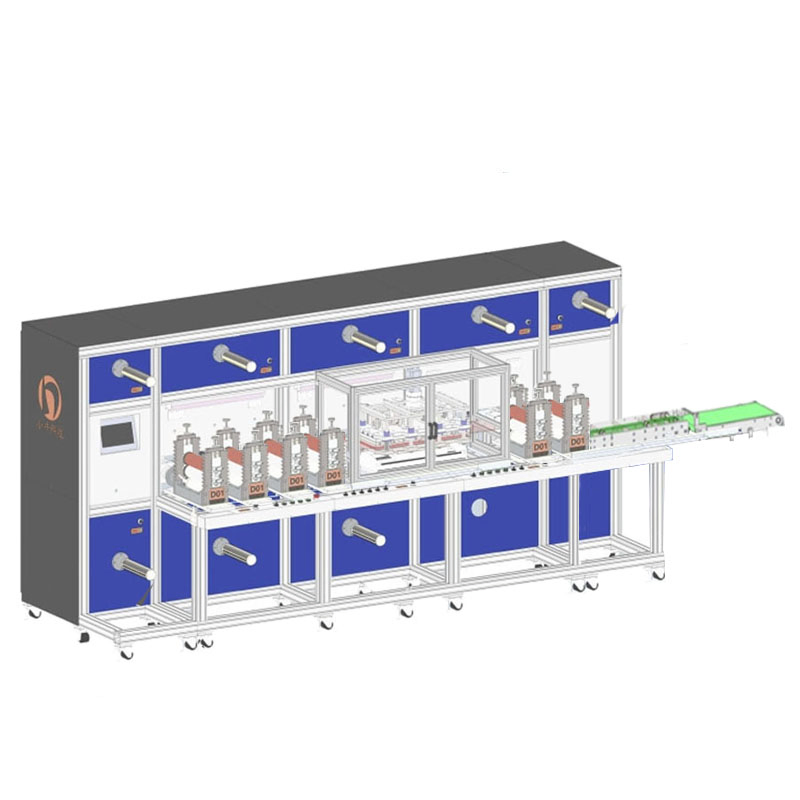

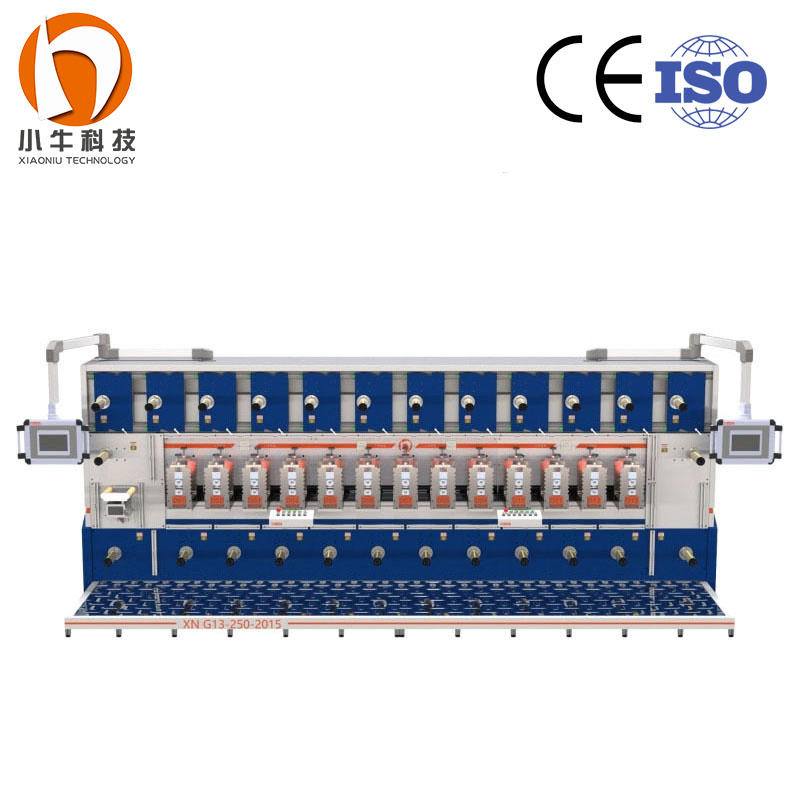

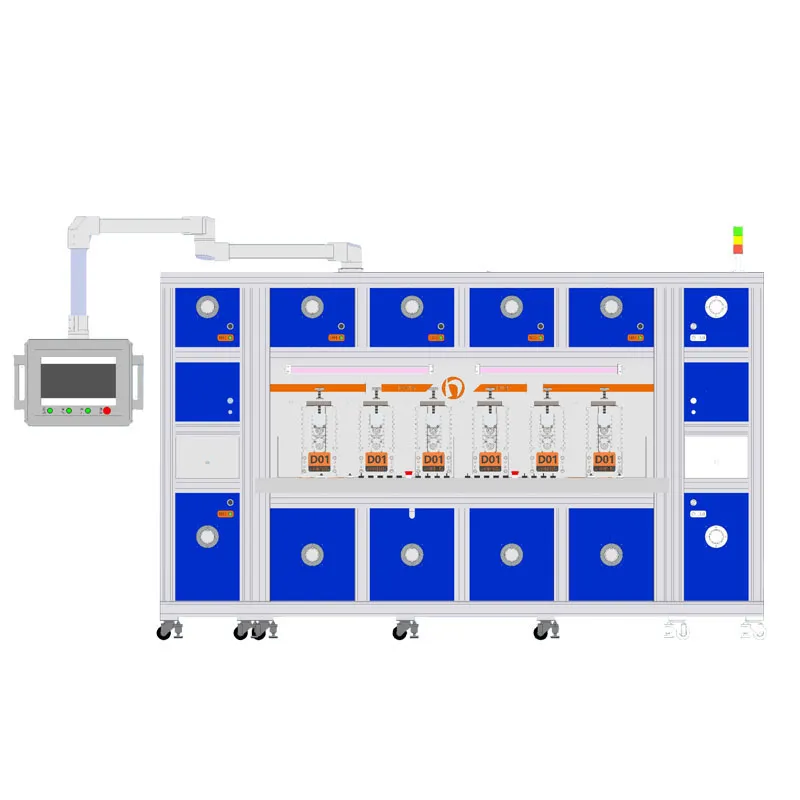

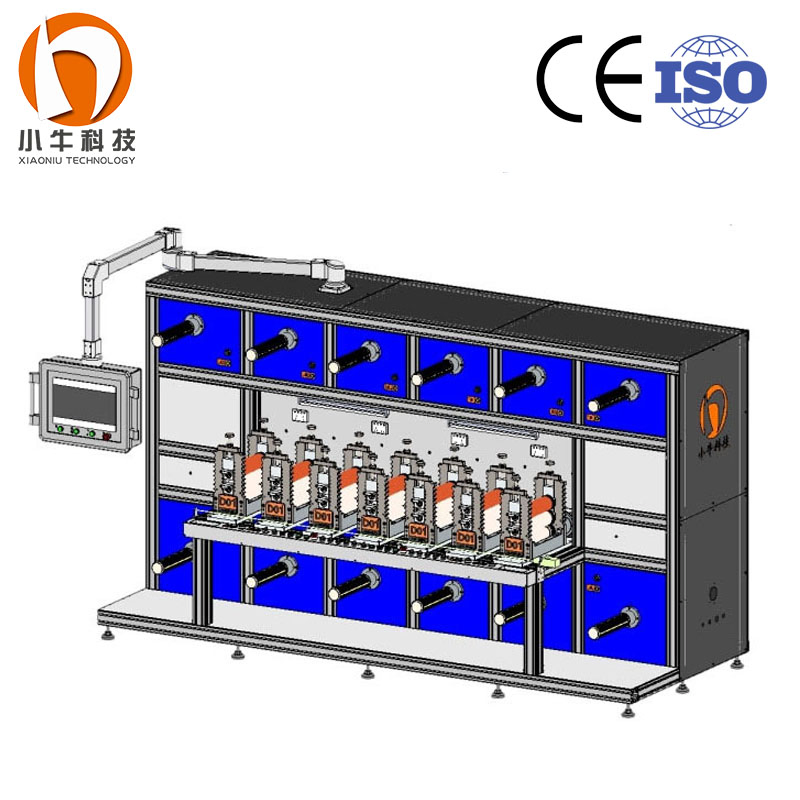

Fully Automatic Tracheostomy Dressings Wound Care Hydrocolloid Machine

This 6-station rotary die-cutting machine features servo motor-driven independent stations and feed shafts, forming a cohesive unit. It accommodates pressing, die cutting, and transfers while supporting synchronous, asynchronous, speed ratio, and constant tension operations. A truly automatic, intelligent universal machine.

Basic Specifications

Model NO.	XN6
Species	Rotary Die-Cutting Machine
Imprinting Type	Rotary
Placing Form of Template	Horizontal
Die Cutting Tool	Metal Mold
Automatic Grade	Automatic
Application	Stickers, Dust-proof Material, EMI Shielding, Medical Dressings
Power	15kw
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Gear
Cutting Precision	±0.1mm

Technical Advantages

High Efficiency: Continuous roll cutting with 5-60m/min processing speed.

High Precision: Stable and consistent processing with ±0.1mm precision.

Multi-station Design: Integrated multi-process compounding for complex products.

Intelligent Control: Full-auto operation with OMRON PLC, intelligent tension, and deviation control.

Operational Demonstration

Applications & Final Products

Our rotary die-cutting machines excel in high-precision mass production for medical consumables, 3C electronics, and new energy industries.

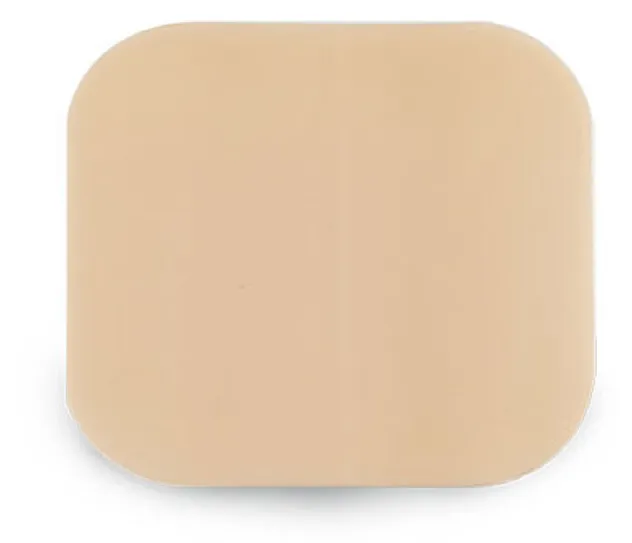

Foam Dressings

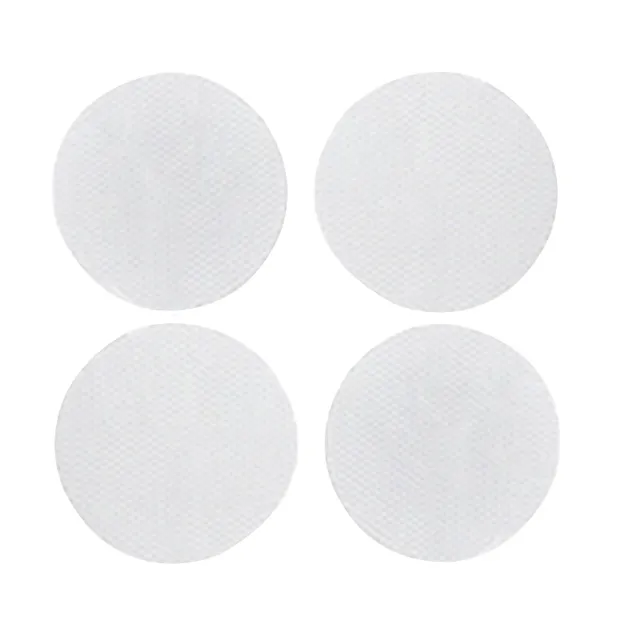

Tens Pads

Acne Patches

Tracheostomy Dressings

Infusion Dressings

Hydrocolloid Dressings

Technical Specifications

Power (KW)	15kw
Working Voltage (V)	AC380 (Customizable)
Feeding Width (mm)	250mm or 350mm
Max. Diameter (mm)	400mm
Die Cutting Precision (mm)	±0.1
Max Speed	60m/min

Equipment & Delivery

Package Size: 318.00cm * 170.00cm * 230.00cm
Gross Weight: 1800.00kg

Frequently Asked Questions

What kind of materials can this machine process?

The machine is designed for various flexible substrates, including medical consumables, foam, stickers, EMI shielding materials, and electronic components.

What is the production efficiency and cutting precision?

It offers high efficiency with speeds ranging from 5-60m/min and maintains a high precision of ±0.1mm for consistent processing.

Can the machine handle multiple processes simultaneously?

Yes, the multi-station design allows for integrated multi-process compounding, including pressing, die-cutting, and material transfer in one pass.

Is the machine customizable to specific requirements?

Absolutely. We provide modular designs where stations can be added or removed, and feeding widths can be customized (e.g., 250mm or 350mm) to suit your specific product needs.

What kind of after-sales support is provided?

We provide a 1-year standard warranty, 24/7 technical assistance, and lifetime maintenance. Engineers can also be dispatched for on-site training and debugging.

What control system does the machine use?

The equipment utilizes a full OMRON PLC servo control system for intelligent tension and deviation control, ensuring stable operation.
