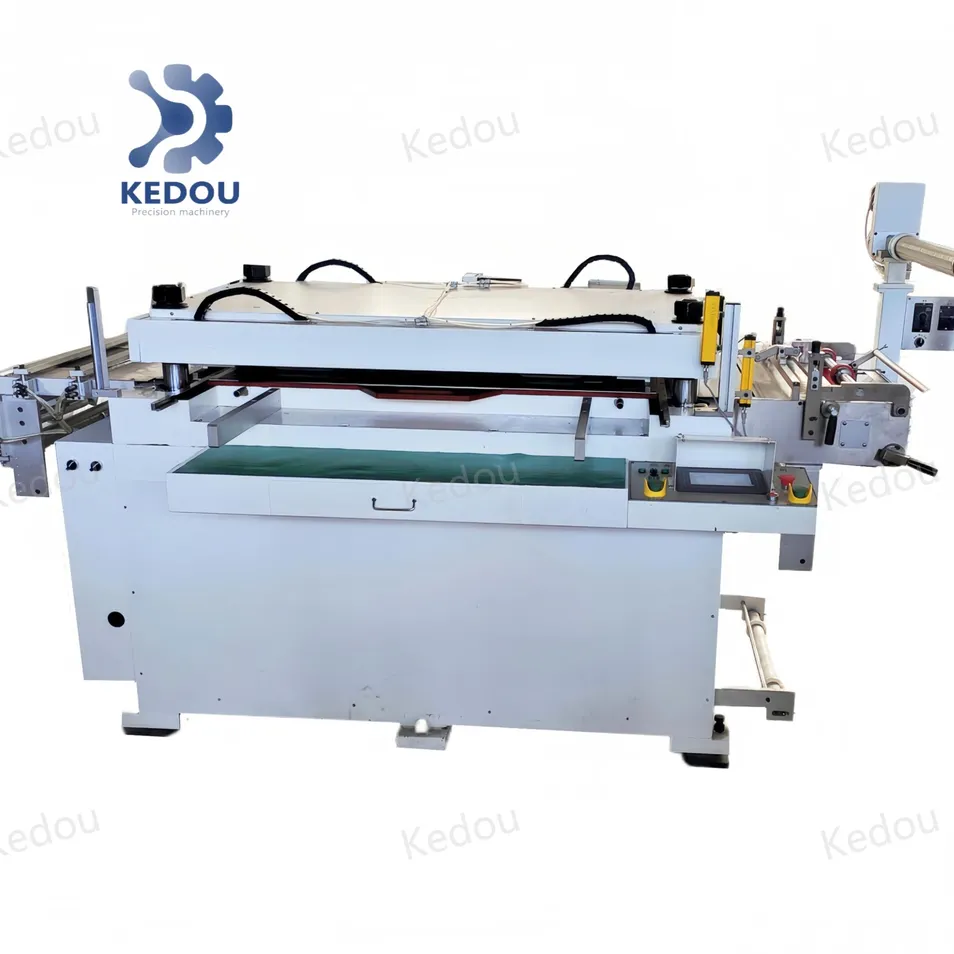

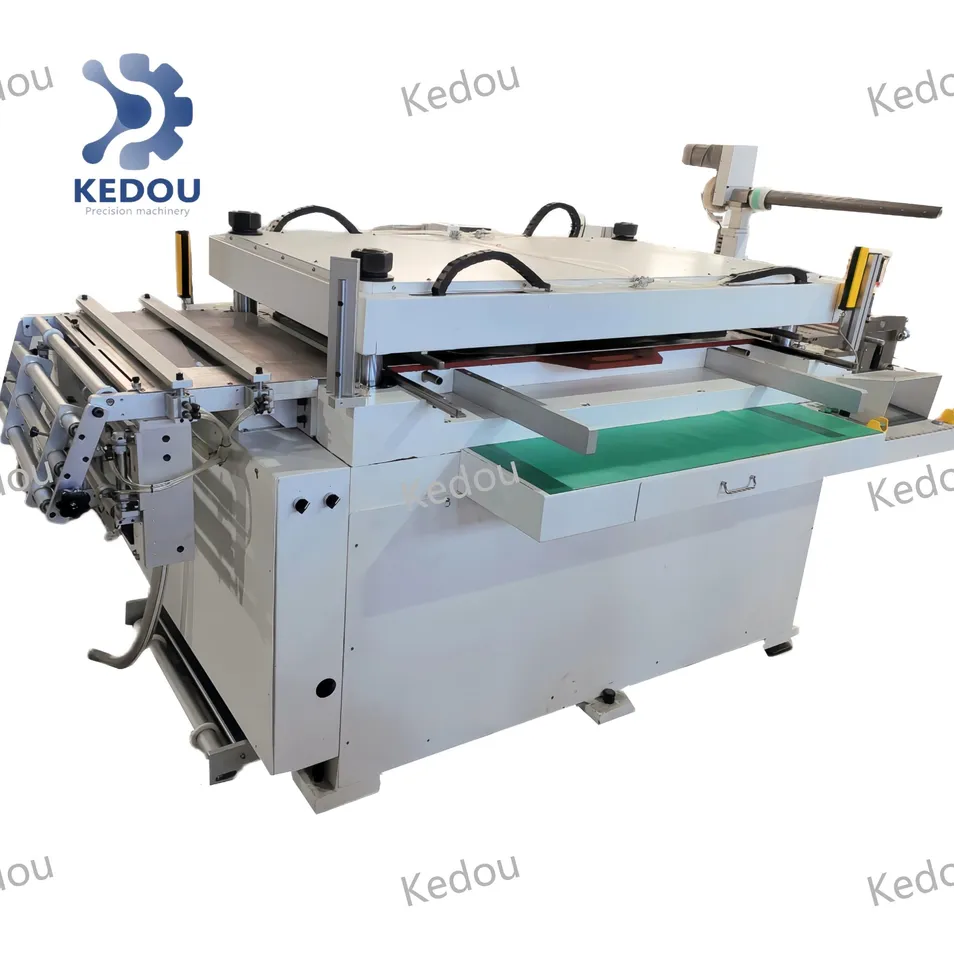

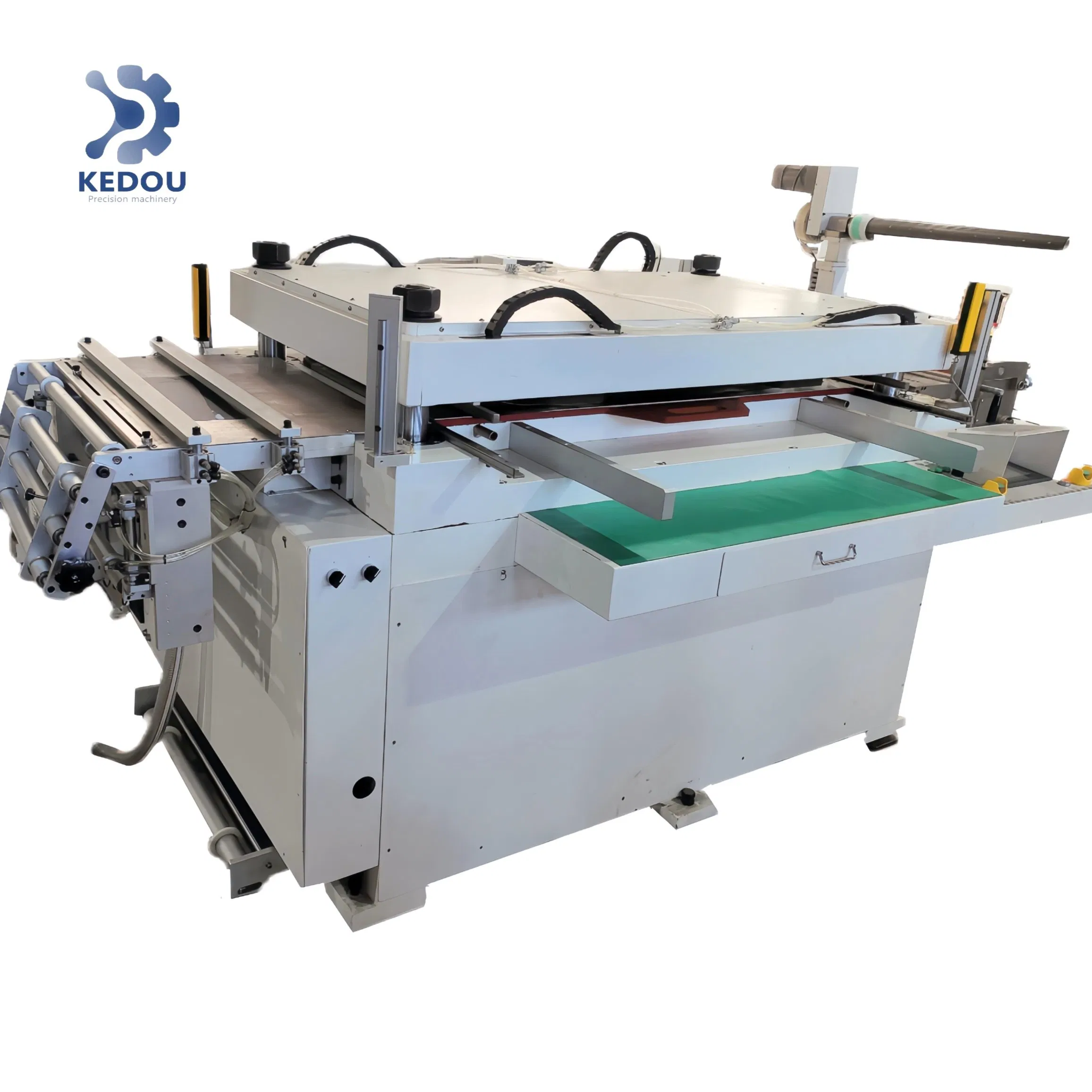

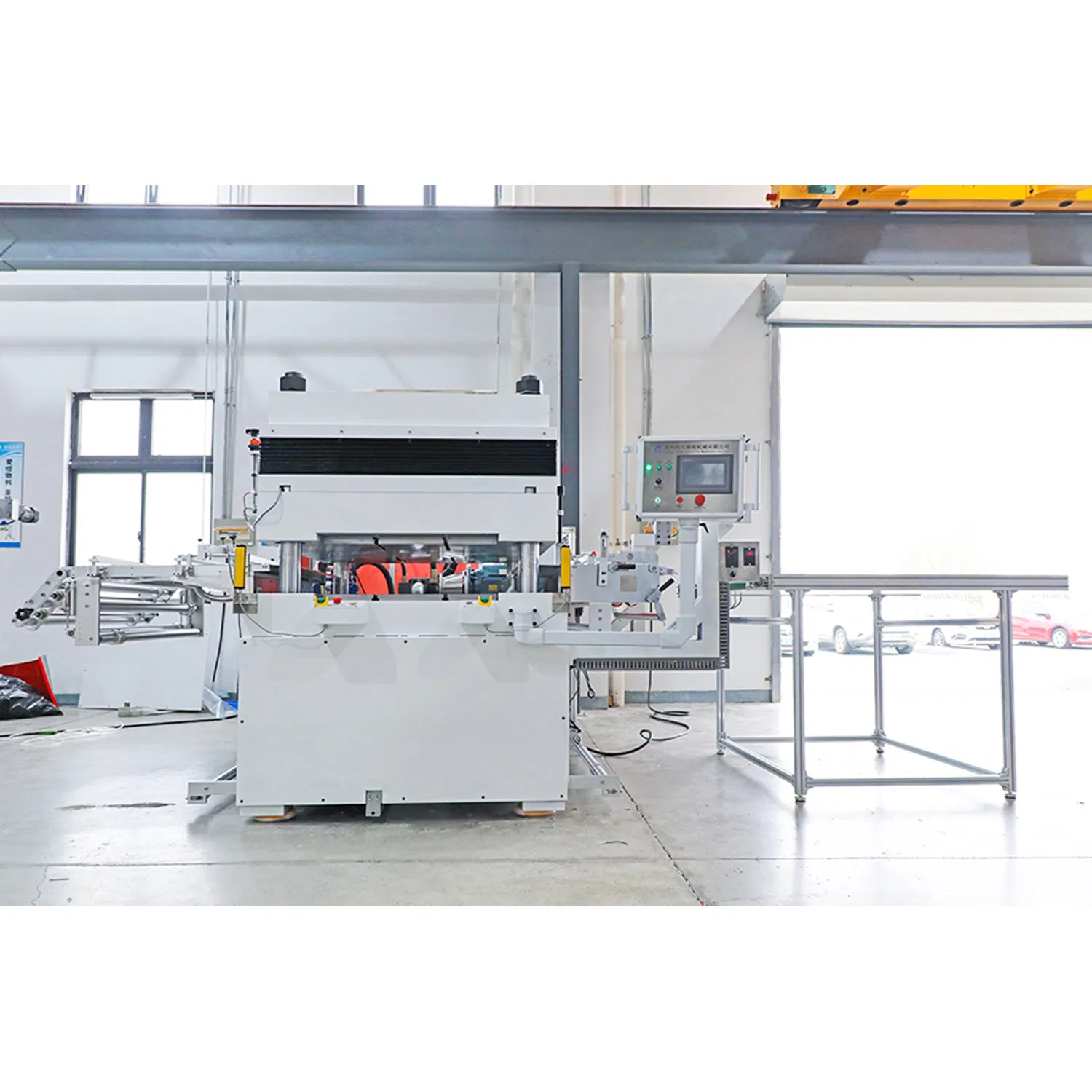

KD-D High Speed Die Cutting Machine offers a high-performance solution for precision industrial needs. Designed for efficiency, it integrates inline feeding, stamping, full cutting, and partial cutting into a single streamlined process.
Inline feeding, stamping, full cutting, and partial cutting. Highly compatible with wood molds, metal molds, and etched molds.
Perfect for processing cover film, shielding film, FPC, PP film, copper foil, silver foil, silicone, and various sheet materials with panels.
| Model NO. | KD-D1100*1300 |
|---|---|
| Species | Die Cutting and Creasing Machine |
| Imprinting Type | Platen |
| Automatic Grade | Automatic / Computerized |
| Maximum Speed | 300 strokes/minute |
| Effective Template Area | 650 mm |
| Stamping Stroke | 30 mm |
| Accuracy | ±0.05mm |
| Pressure Adjustment | Digital adjustment (0.01mm precision) |

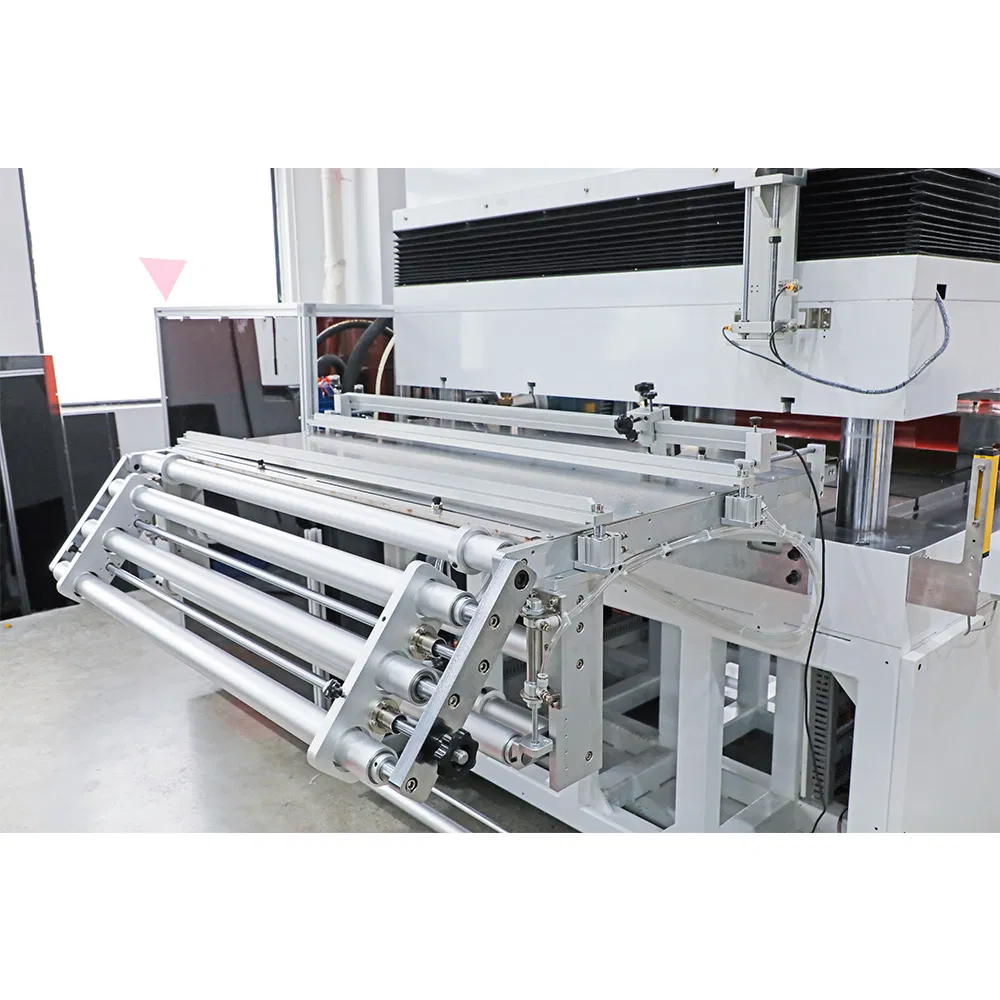

| Mechanical Systems | Servo-Driven Material Feeding |
| Control System | PLC Computer System |
| Weight | Approx. 7500kg |
| Dimensions | 3100*1800*1900mm |
12-month warranty against manufacturing defects to ensure long-term reliability.
Comprehensive training programs (approx. one week) and flexible online remote support.
Professional wooden craft packaging for secure international transport.

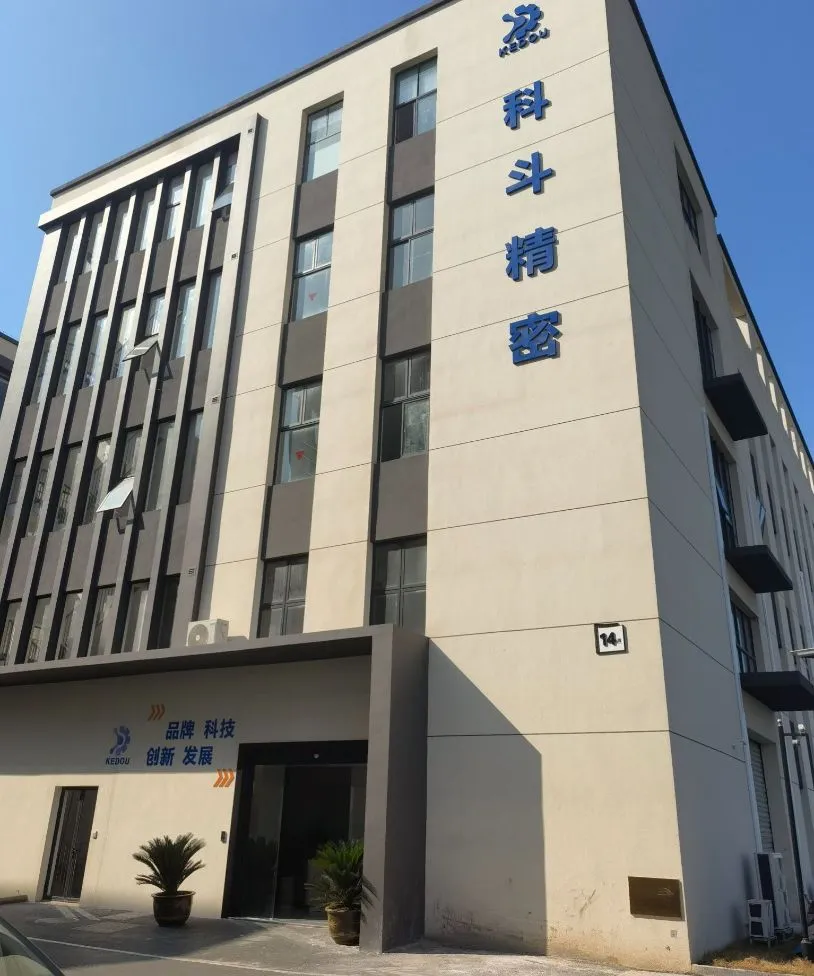

Factory Advantages: Actual manufacturing facility, dedicated R&D team, non-standard customization options, and full CE/ISO certification.
