Surgical Face Mask Machine with One Set Tows Two Production Lines

Customization:	Available
Automatic Grade:	Semi-Automatic
Certification:	CE, ISO9001: 2000

Send Inquiry

Product Description

Basic Information

Condition:New

Capacity:150-180 PCS/Min

Size:3400*820*1950mm

Usage:Single Use Mask

Final Products:Disposable Nonwoven Face Mask (3 Ply)

Grade:Medical

Transport:Film Packing

Origin:China

HS Code:8515800090

Production:10000 PC/Year

Product Description

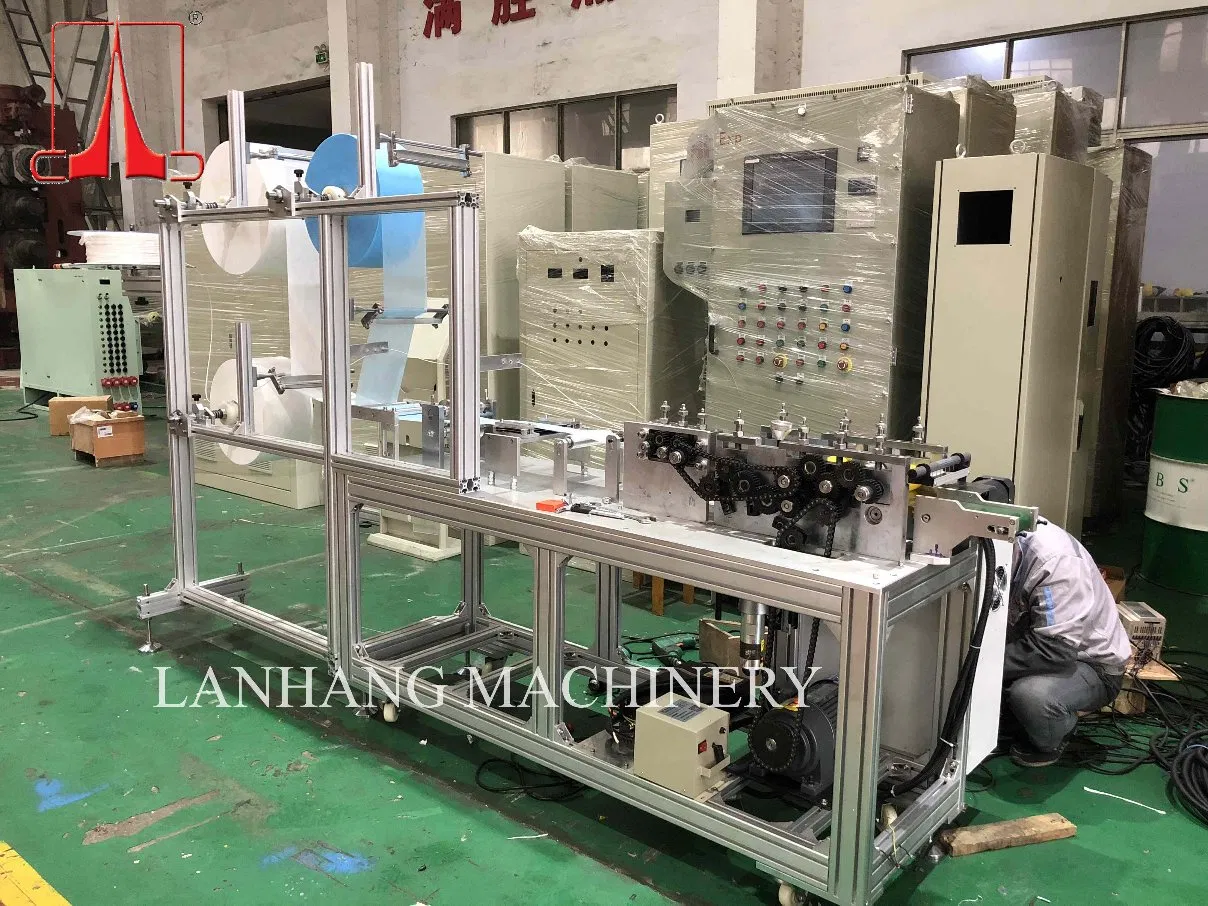

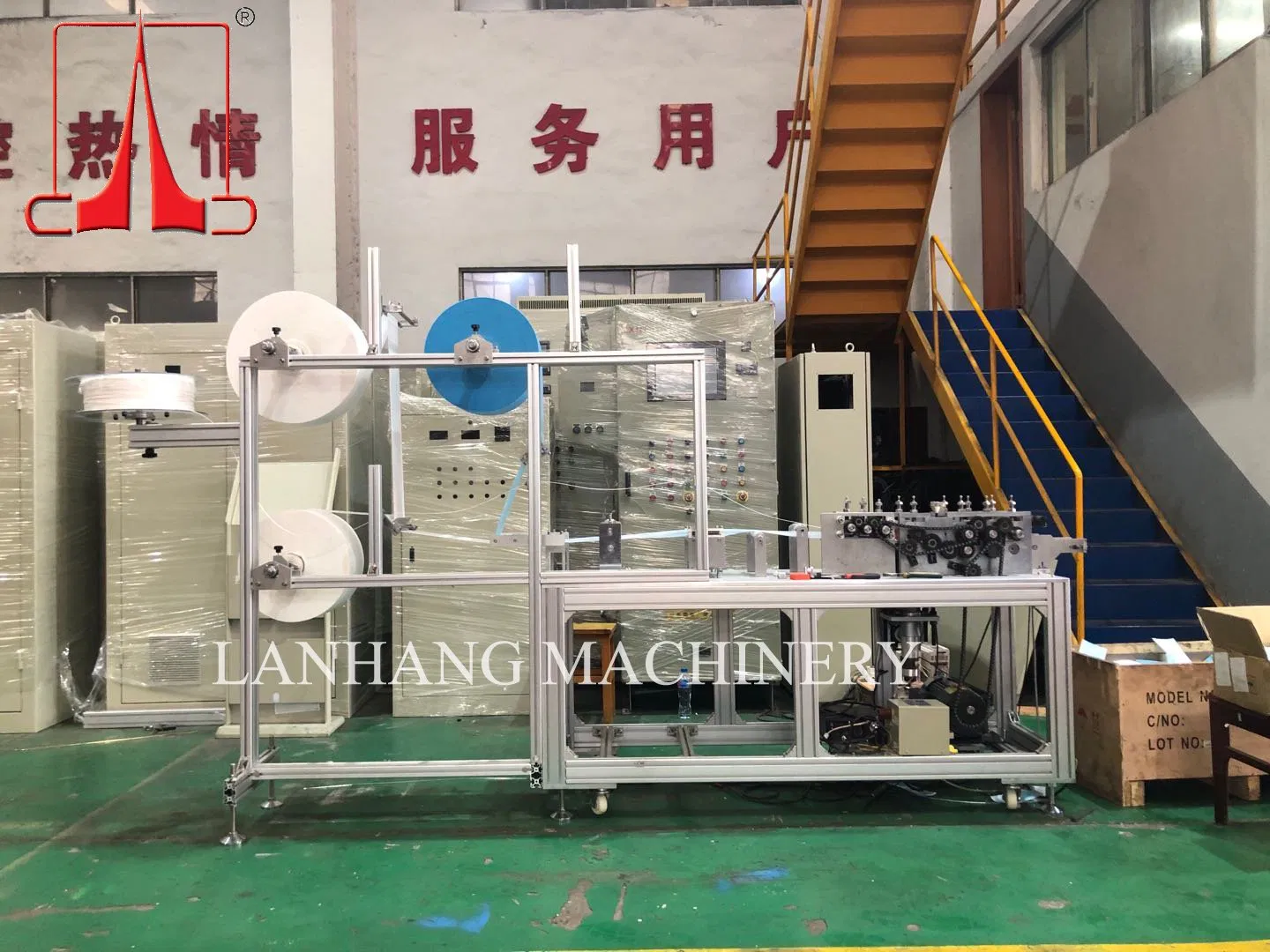

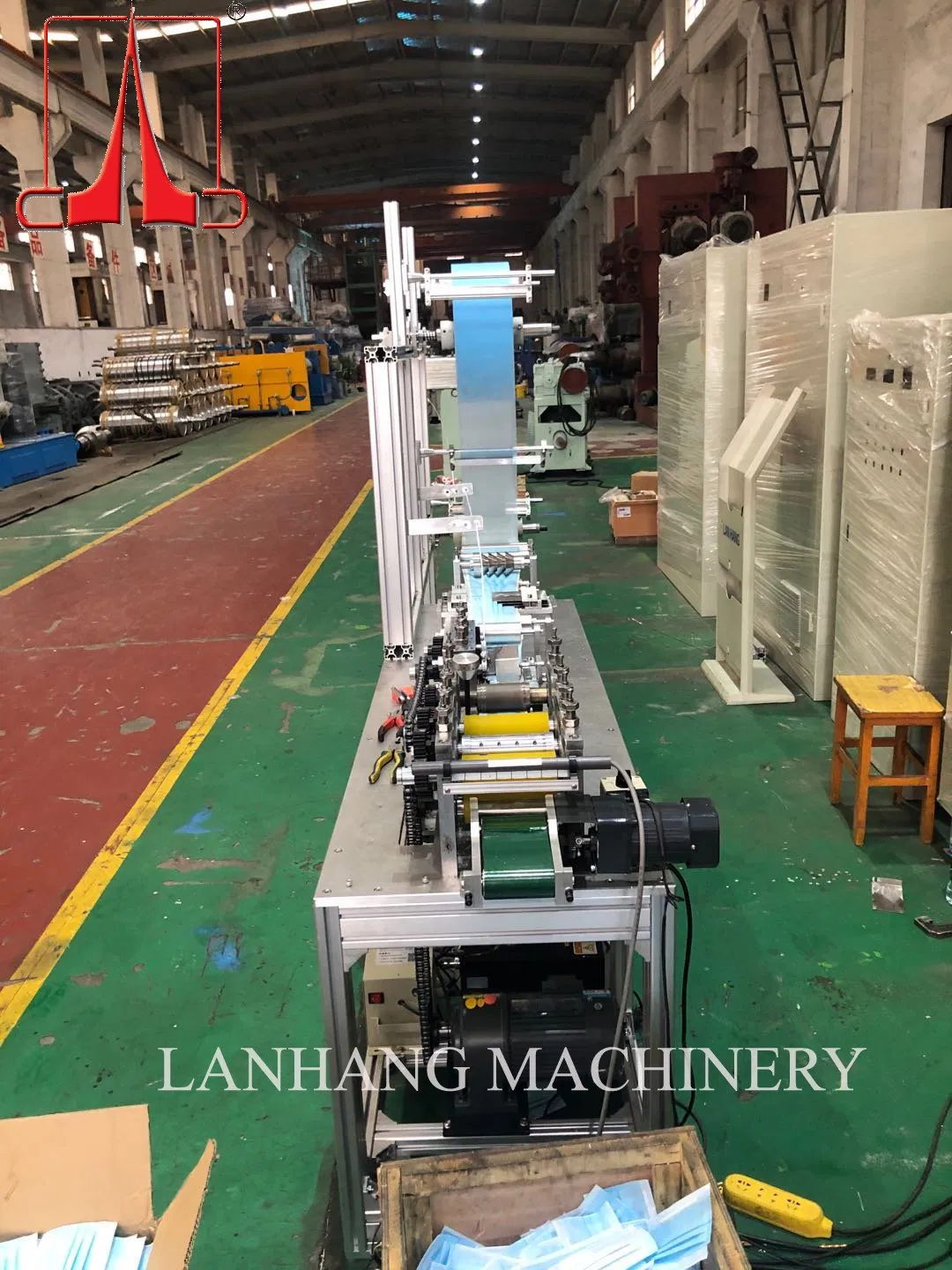

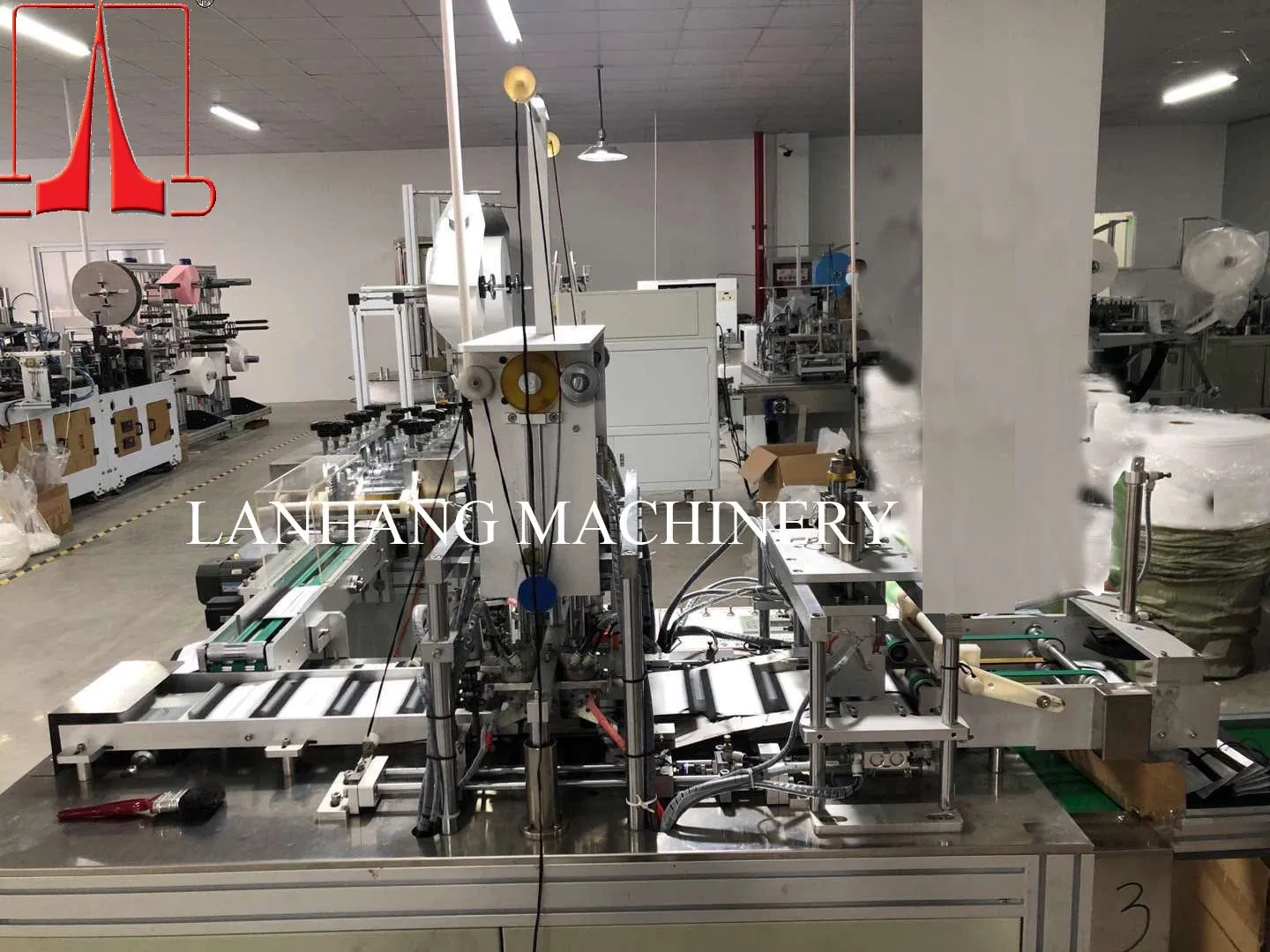

Semi-automatic Face Mask Production Line

(Max. 150-180 PCS/Min)

I. Key Features

Controlled by Computer PLC programming for high stability and low failure rate.

Driven by servo motors ensuring automation, high output, and stable performance.

Optical fiber inspection of raw materials to avoid errors and minimize waste.

Main conveyor driven by single-phase motor and turned over by stepping motor.

II. Main Technical Parameters

NO.	SPECIFICATIONS	DETAILS
01	Face mask size (mm)	175 × 95 (for adults)
02	Capacity	150-180 PCS/Min
03	Input voltage	AC 220 V 50/60 Hz
04	Working power (KW)	4
05	Working pressure	Over 0.6 Mpa
06	SS non-woven fabric (Outer layer)	Width: 200mm
07	Meltblown nonwoven (Filter Layer)	Width: 180mm
08	SS non-woven fabric (Inner layer)	Width: 210mm
09	Nose bridge bar	Width: 3mm, Plastic or Iron wire
10	Elastic earband	150mm × 2 sides
11	Overall dimensions (mm)	6550(L) × 3350(W) × 1850(H)
12	Total weight (T)	1.75T

Frequently Asked Questions (FAQ)

Q1: What is the maximum production capacity of this machine? The semi-automatic production line can produce between 150 to 180 pieces per minute.

Q2: What are the mask size specifications? The standard output size is 175mm × 95mm, which is the standard size for adult medical/disposable masks.

Q3: Does the machine include an automated control system? Yes, it is controlled by a high-stability PLC programming system and driven by a precision servo motor.

Q4: What types of materials does this production line support? It supports 3-layer mask production, including SS non-woven fabric for outer/inner layers and Meltblown non-woven fabric for the filter layer.

Q5: How does the machine reduce raw material waste? The line is equipped with optical fiber inspection sensors that monitor raw materials in real-time to avoid errors and minimize waste.

Q6: What is the power requirement for installation? The machine operates on AC 220V (50/60 Hz) with a working power of 4KW and requires a working pressure over 0.6 Mpa.
