Basic Info.
Classification
Double-Shaft Log Roll Cutting Machine
Suitable Substrates
PVC Tape, Masking Tape, Double Sided Tape, Foam Tape
Servo Motor
Japan Mitsubishi
Certification
CE, SGS, ISO
Product Description

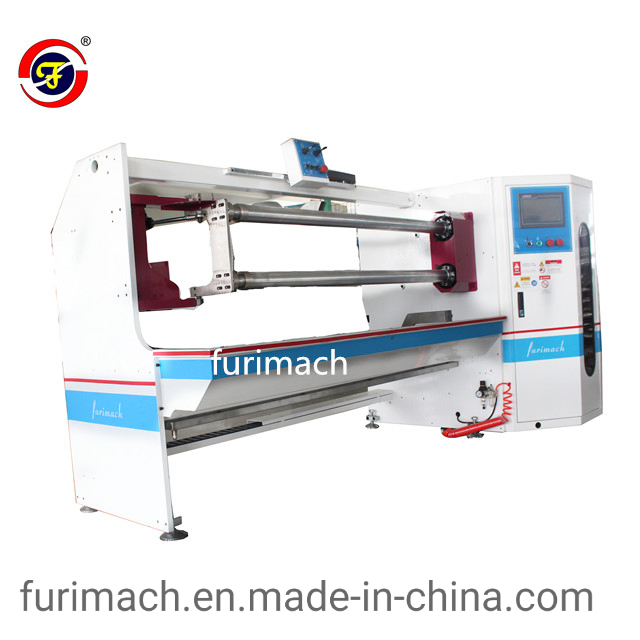

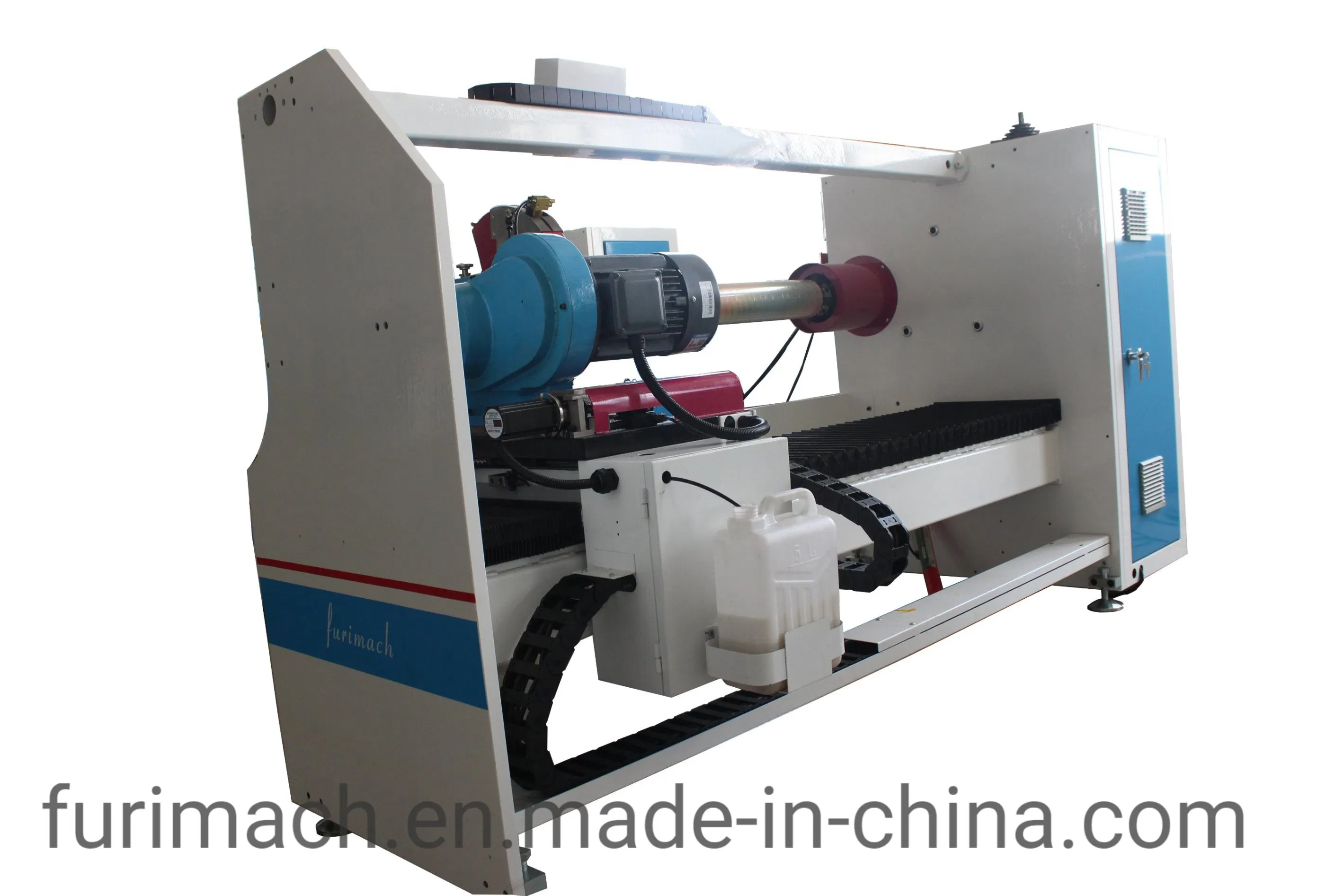

Double-Shaft Log Roll Cutting Machine for PVC, Medical Tape

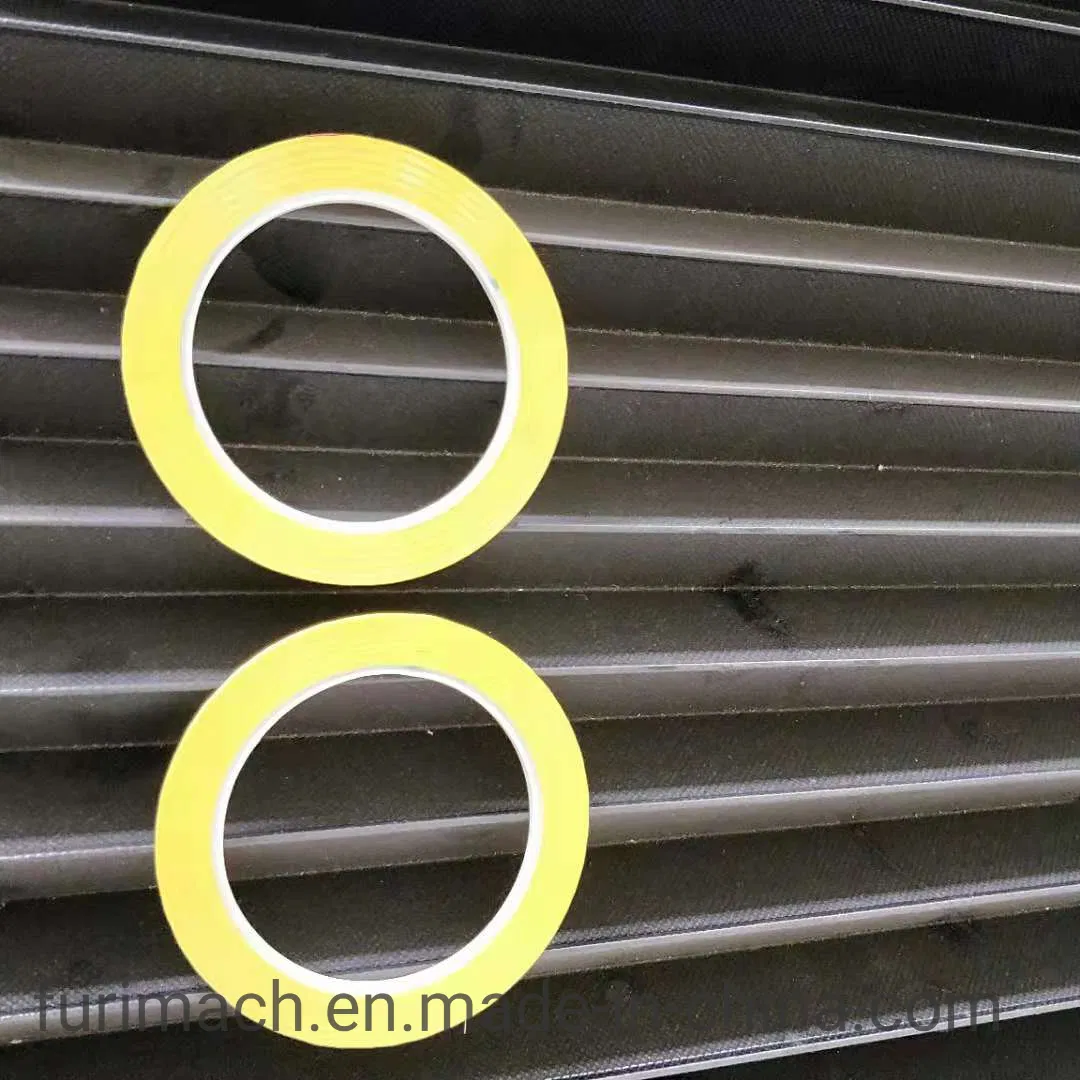

Suitable for cutting BOPP, PVC, PE, masking tape, double-sided tape, cloth tape, industrial tape, protection film, etc.
Main driving part: Taiwan AC motor with inverter is employed.
Central control unit: Programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting.

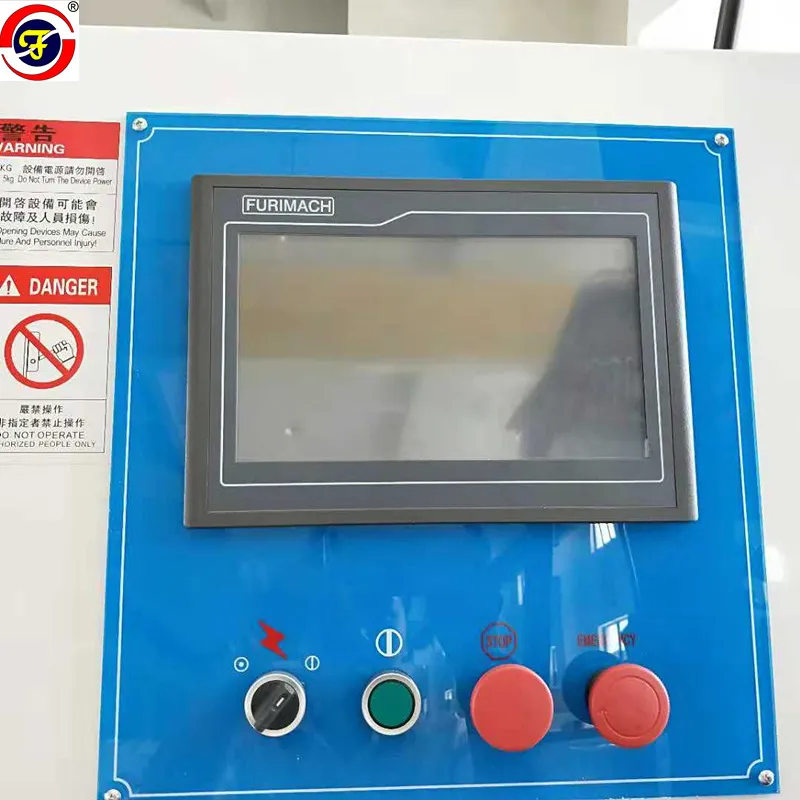

Operating panel: All functions are operated on the 10" LCD touch panel.
Motor control system: The central control system is PLC programmable controller.
Cutting positioning system: Controlled by Mitsubishi servo motor. High precision ball screw and linear slide rail ensure accuracy.

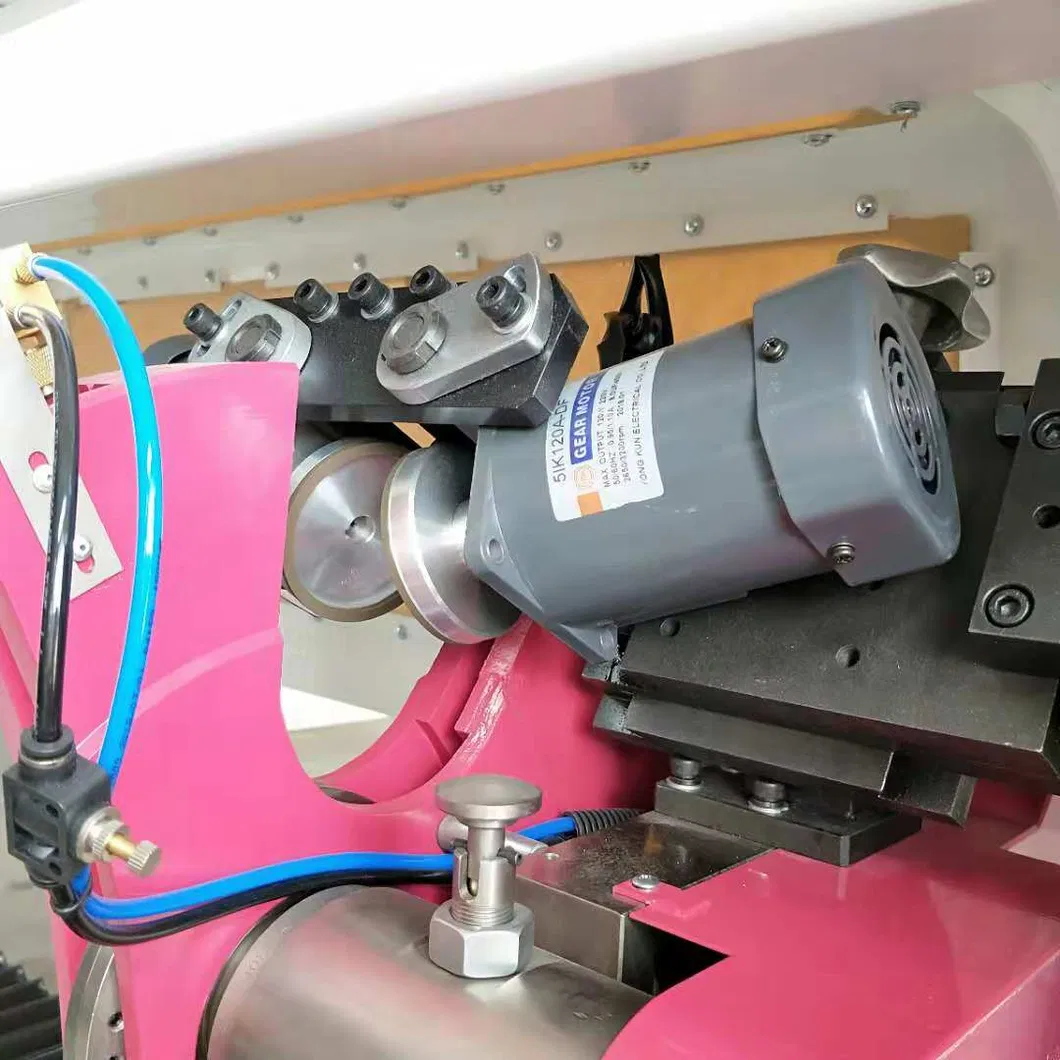

Blade feeding positioning system: Controlled by Mitsubishi servo motor, with adjustable three-stage cutting speed.
Auto angle adjustment: Mitsubishi servo motor calculates the circular blade angle (range ± 8°) based on materials.
Quick shaft change system: Three kinds of shafts are available for quick change to suit different materials.
Optional Parts
Other size cutting shaft: Customizable based on required core I.D.
Cutting supporter: For supporting log rolls when cutting cores below 38mm.

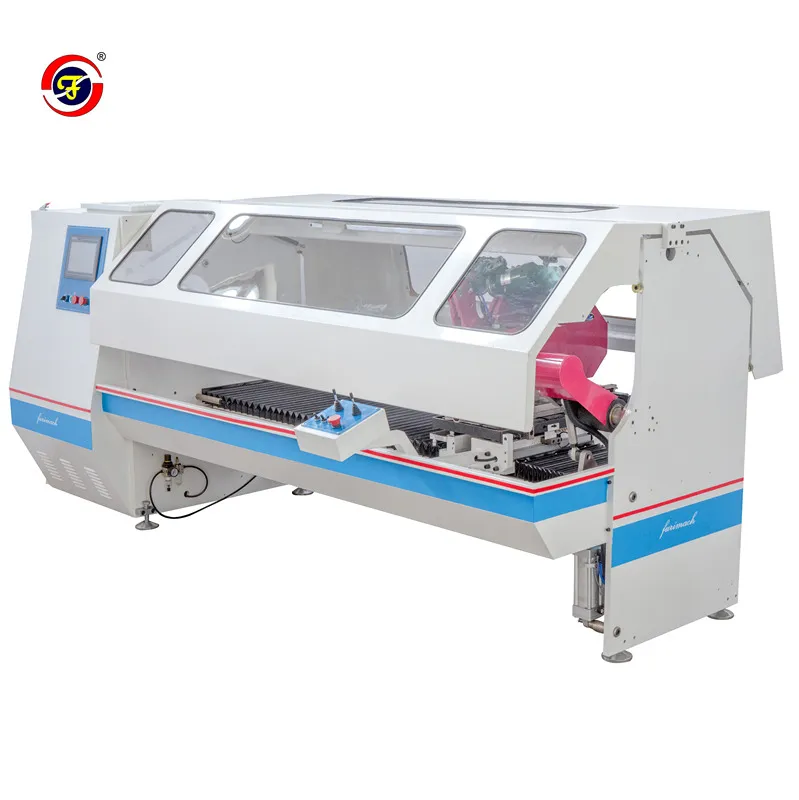

Safety cover: Protects operator during production, compliant with CE regulations.
Main Technical Parameters
| Machine width | 1.3M / 1.6M |
| Cutting precision | +/-0.1mm |
| Max. Cutting O. D. | 150mm |
| Min. Cutting width | 1mm |
| Inner core I. D. | 1" - 3" |
Frequently Asked Questions
What materials can this machine cut?
The double-shaft log roll cutting machine is ideal for BOPP, PVC, PE, masking tape, double-sided tape, cloth tape, industrial tapes, and various protection films.
How accurate is the cutting process?
Thanks to the Mitsubishi servo motor and high-precision ball screw positioning system, the machine achieves a cutting precision of +/- 0.1mm.
Can I set multiple cutting sizes at once?
Yes, the PLC programmable central control unit allows you to set up to 20 different sizes on the same shaft for automatic transfer and cutting.
What safety features are included?
The machine offers an optional safety cover designed to protect operators during the production process, fully complying with CE regulations.
Is it easy to change the cutting shafts?
Yes, the machine features a quick shaft change system. Three different types of shafts are available to accommodate various core IDs and materials.
What is the maximum cutting diameter?
The machine is designed to handle a maximum cutting outer diameter (O.D.) of up to 380mm, with a standard technical specification of 150mm for specific configurations.
