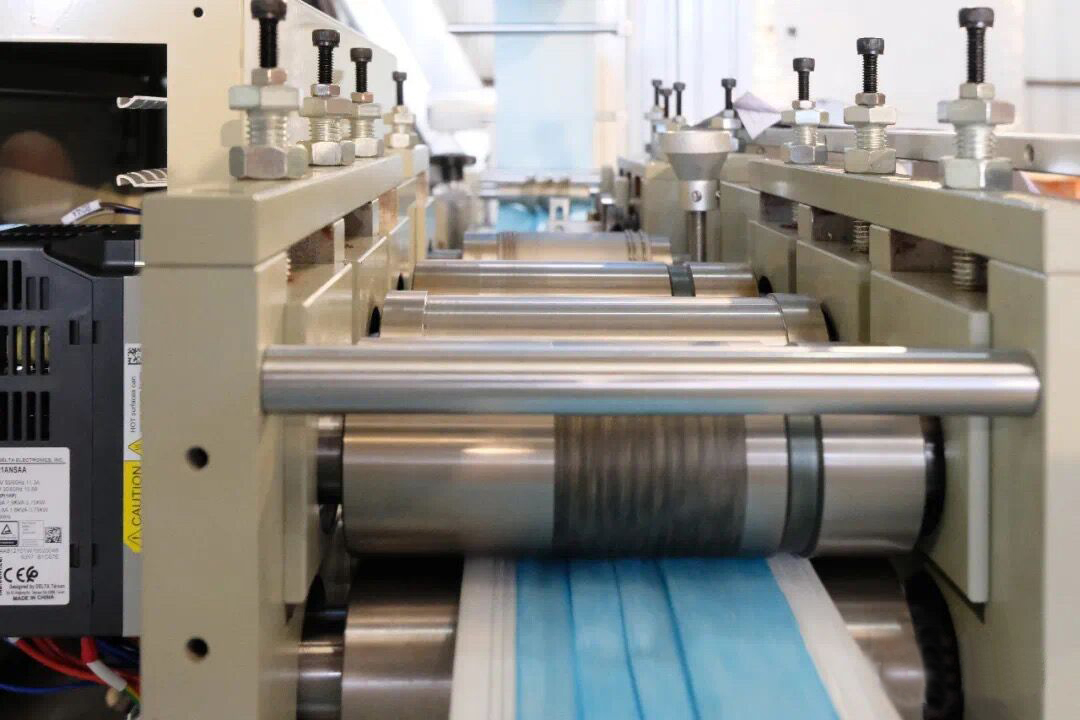

The production line is composed of a laminating machine, a flap feeder and two ear belt welding machines. The following processes are automatically completed through the equipment: manual feeding roll - automatic conveying material - cutting iron line - ultrasonic welding body piece - cutting body piece - splitting material - flap - feeding - ultrasonic welding ear line - cutting ear line - automatic blanking - belt line output.
- Machine size: 6500x3600x1990 mm (L * W * H)
- Power supply: 220V AC
- Air source: 0.5-0.6mpa
- Equipment weight: ≤ 2000kg
- Control mode: Touch screen + PLC
- Capacity statistics function available on the touch screen in real time
- Safety: Features grounding wire and leakage protection switch
| Parameter |
Specifications |
| Outline Size | 6500mm * 3600mm * 1990mm |

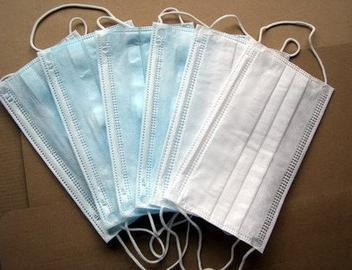

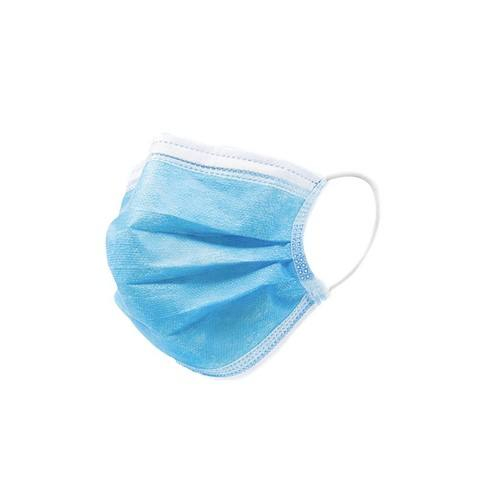

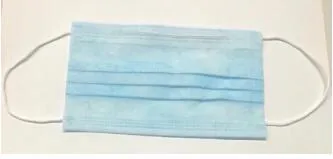

| Product | Mask |
| Capacity | ≥ 100 PCS/min |
| Equipment Failure Rate | ≤ 5% |
| Control System | Xinjie PLC |
| Working Air Pressure | 0.5-0.6MPa |
| Input Voltage | 220V / 50HZ |
| Total Power | About 12KW |

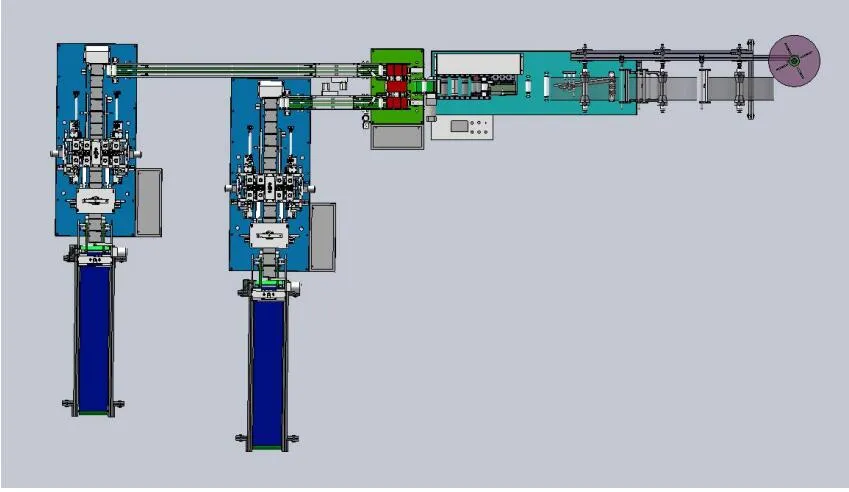

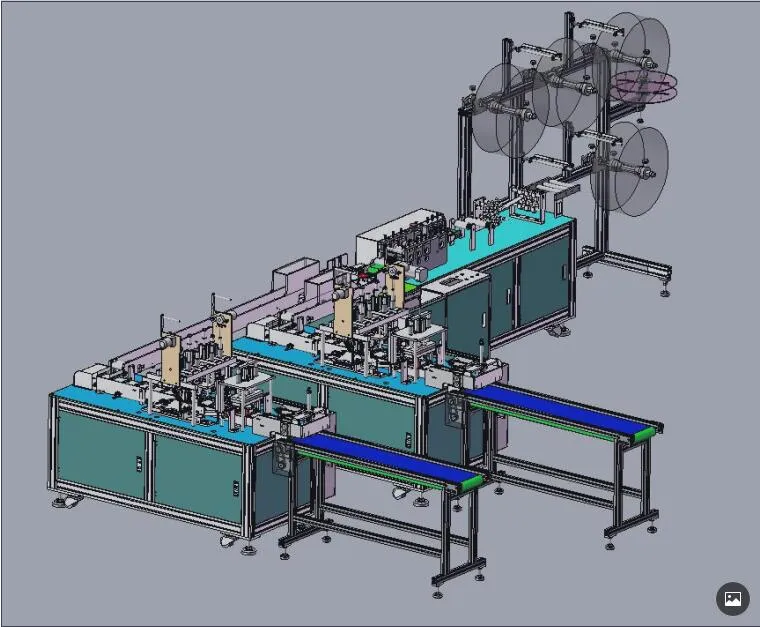

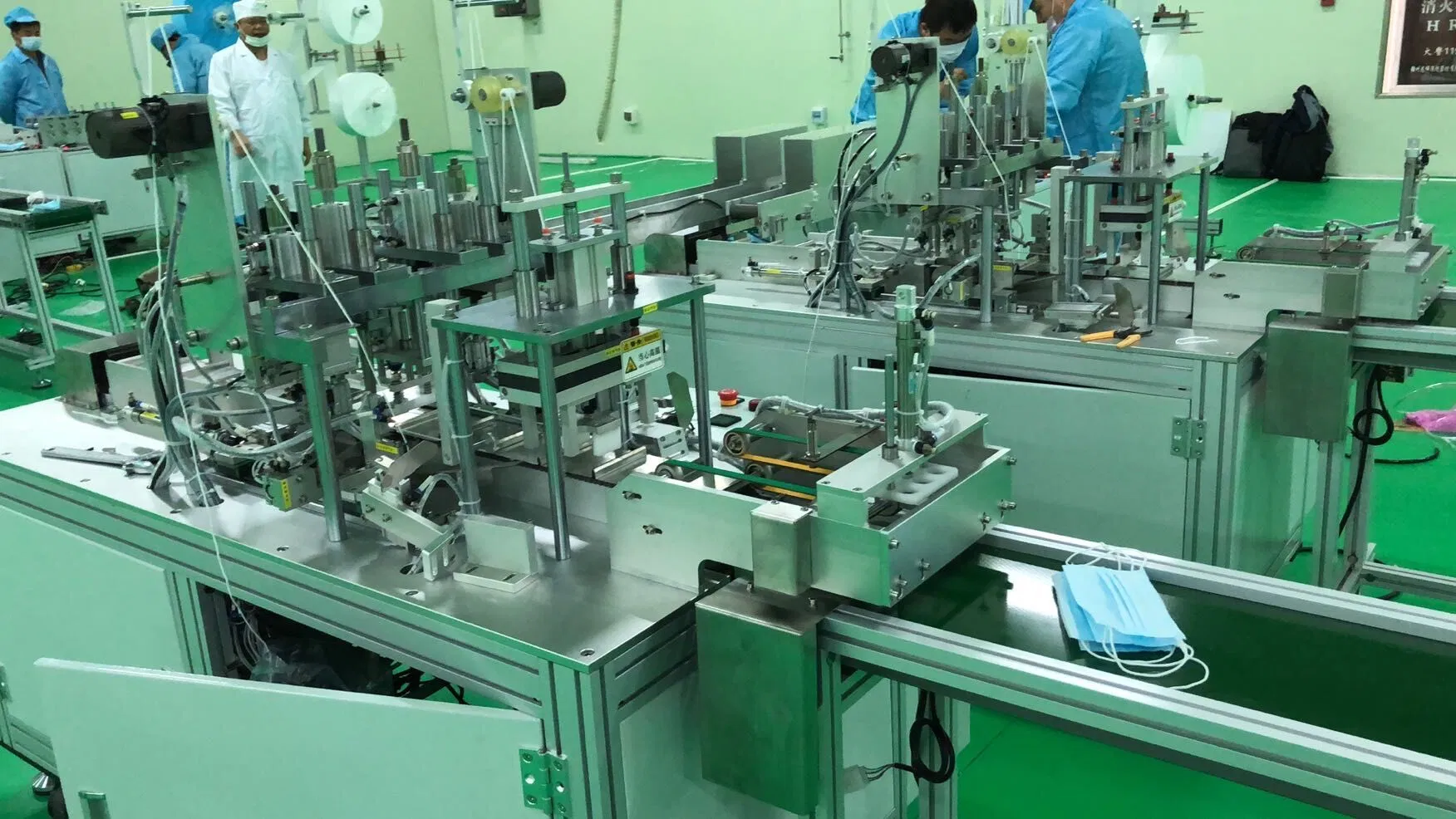

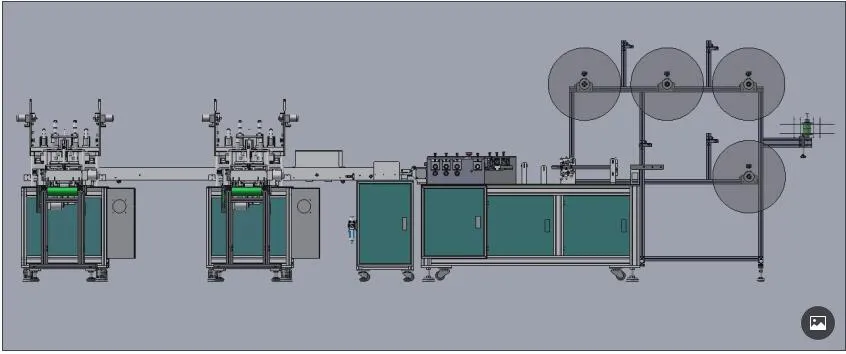

This production line consists of 1 main body welding machine, 1 turning / feeding machine and 2 ear band welding machines, with 4 machines working together.
Operation Notes:
1. The winder can put 4 rolls of materials to feed the body piece welding machine;
2. The body piece welding machine has two functions of ultrasonic welding and cutting;
3. The dividing machine mainly transports the cut body pieces to two ear belt welding machines;
4. The ear belt welding machine transports the finished products by ultrasonic welding and cutting the ear belt.
?
Frequently Asked Questions
What is the maximum production capacity of this mask machine?
The machine has a high-speed capacity of ≥ 100 pieces per minute.
What materials are used for the machine's fuselage?
The fuselage is constructed from high-quality Aluminium Alloy for durability and stability.
Which control system does the equipment use?
It utilizes a professional Xinjie PLC system paired with a user-friendly touch screen interface.
What are the power and air pressure requirements?
The equipment requires a 220V/50HZ power supply and a working air pressure of 0.5-0.6MPa.
What is the estimated failure rate of the production line?
The equipment is designed for high reliability with a failure rate of ≤ 5%.
Are there specific environmental requirements for installation?
Yes, it requires a temperature between 0-45ºC, humidity below 90%, and a flat concrete foundation with proper grounding.
