Reliable Disposable Medical Dressing Machine for Catheter Securement Devices

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

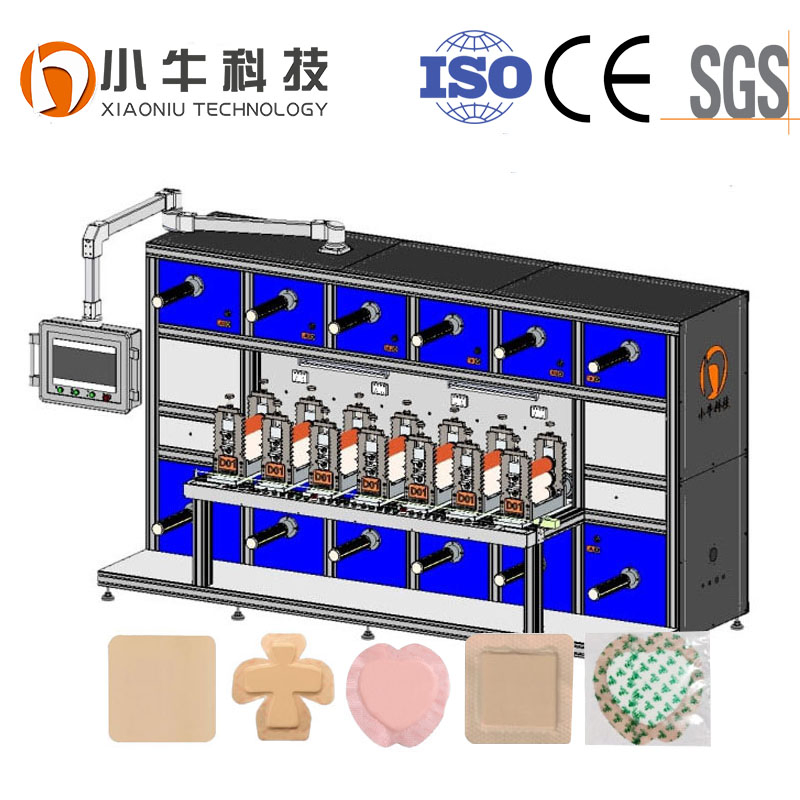

Disposable Medical IV Catheter Fixation Dressing Machine

This 13-station rotary die-cutting machine, driven by servo motors, offers independent stations and feed shafts, making it versatile for pressing, die cutting, and transfer. It supports synchronous, asynchronous, and constant tension functions, providing a fully automatic, intelligent solution.

Basic Info

Model NO.

XN13

Species

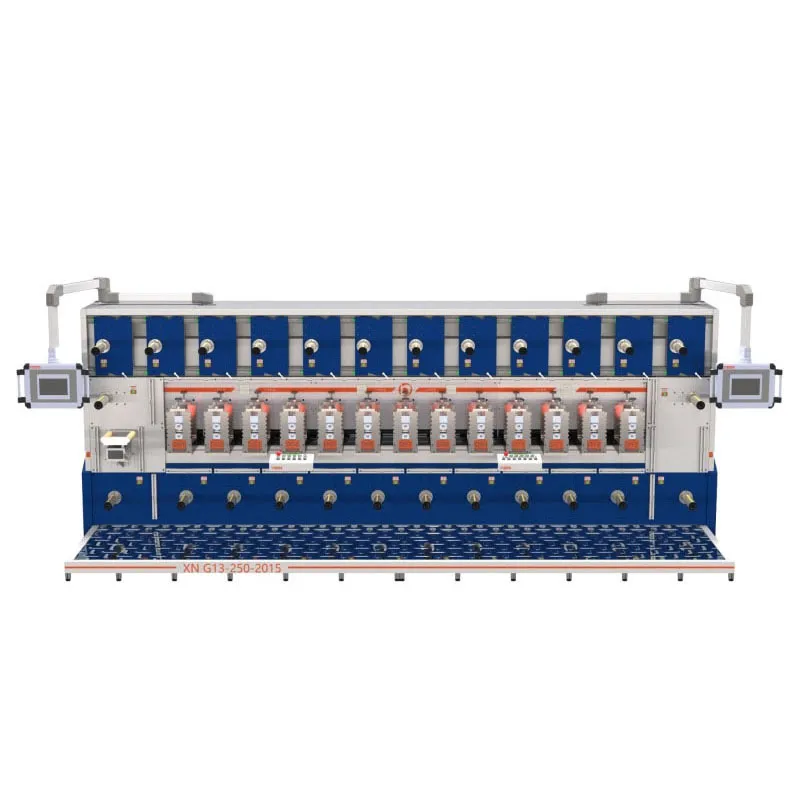

Rotary Die-Cutting Machine

Automatic Grade

Automatic

Application

Stickers, Dust-proof Material, EMI Shielding, Medical Dressing

Power

32.5kw

Drive Motor

Servo

PLC

Omron

Cutting Precision

±0.1mm

Product Description & Advantages

Continuous roll cutting, 5-60m/min efficiency
±0.1mm precision, stable & consistent
Multi-station, integrated multi-process
Wide adaptability for flexible substrates
Full-auto, intelligent tension control
Smart adjustment, power-off memory

Core Functions

1. Synchronous / Asynchronous

2. Automatic Target Tracking

3. Dual System Capability

4. Material Breaking Alarm

5. Constant Tension Control

6. System Failure Monitoring

Machine Operation Overview

Applications & Sample Products

Widely used in medical consumables, 3C electronics, automotive, packaging, and new energy industries.

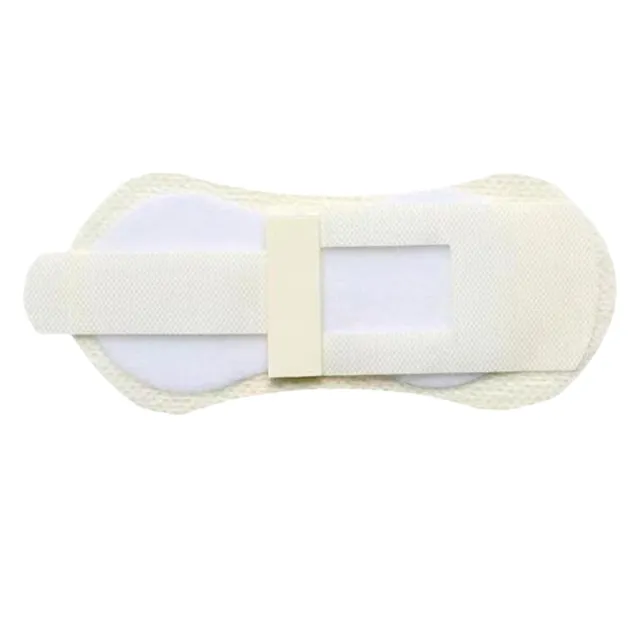

Catheter fixation dressings

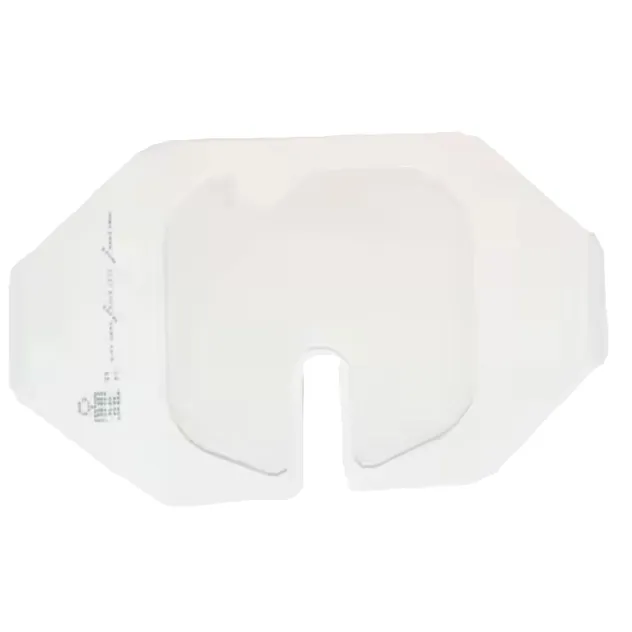

I.V. dressing

Acne patches

ESU pads

Infusion dressing

Hydrocolloid dressing

Technical Specifications

Power (KW)	32.5kw
Working Voltage (V)	AC380
Feeding Width (mm)	250mm or 350mm
Max. Diameter (mm)	400mm
Die Cutting Precision (mm)	±0.1
Max Speed	60m/min

Component Details

Main Mechanical Parts

Electronic Control System

Processing Stations

Packaging & Delivery

Package Size

549.00cm * 170.00cm * 260.00cm

Gross Weight

5600.000kg

Packing Type

Wooden Packing

FAQ

1. What products can be manufactured with this machine?

The machine is ideal for medical dressings (foam, transparent, electrode pads), 3C electronics components, and various flexible substrates used in automotive and packaging industries.

2. What is the precision and speed of the die-cutting process?

The equipment offers a high cutting precision of ±0.1mm and an efficient production speed of 5-60 meters per minute.

3. Can the machine handle different product types simultaneously?

Yes, machines with 8 or more stations feature a dual-system design, allowing for the simultaneous production of two different products.

4. What kind of control system does the equipment use?

The machine utilizes a full-auto PLC servo control system, specifically using high-quality OMRON brand components for reliability.

5. What is included in the after-sales service and warranty?

We provide a standard 1-year warranty, 24/7 technical support, and can dispatch engineers for on-site training, installation, and debugging.

6. Is the machine modular or customizable?

Yes, the modular design allows for flexible combinations (like die-cutting with packaging or printing). Stations and tools can be adjusted or added to accommodate new product requirements.
