Disposable IV Dressings Machine for Fast Healthcare Solutions

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model	XN10
Species	Rotary Die-Cutting Machine
Application	Stickers, Dust-proof Material, EMI Shielding, Medical Dressings
Automatic Grade	Full Automatic
Power / Voltage	25kw / Customized
Cutting Precision	±0.1mm
Core Components	PLC (Omron), Servo Motor, Gearbox, Bearing
Production Capacity	200 PCS/Year

Product Overview

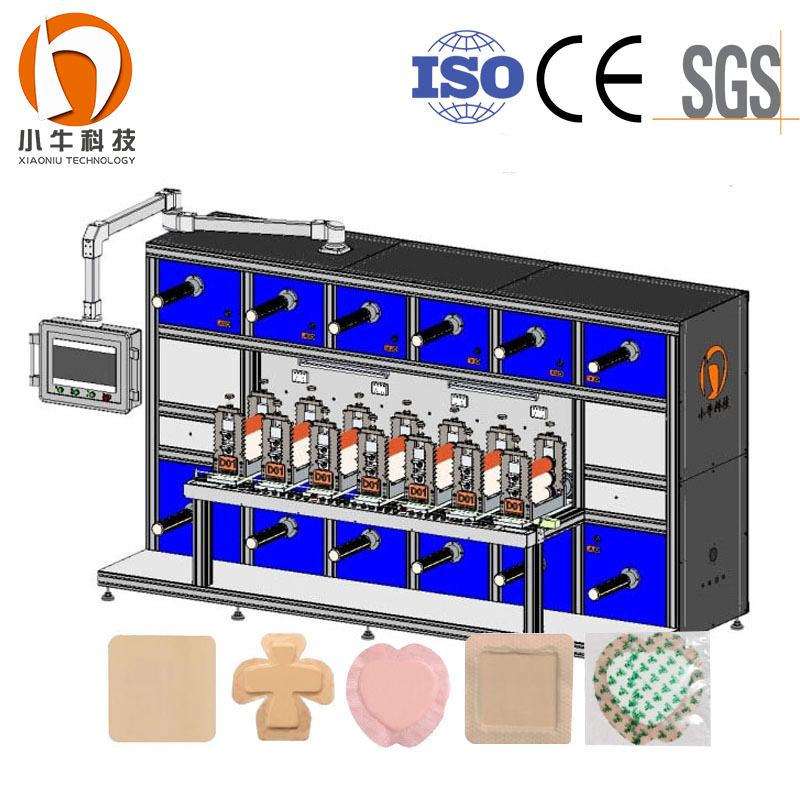

Medical Silicone Foam Dressings Producing Machine

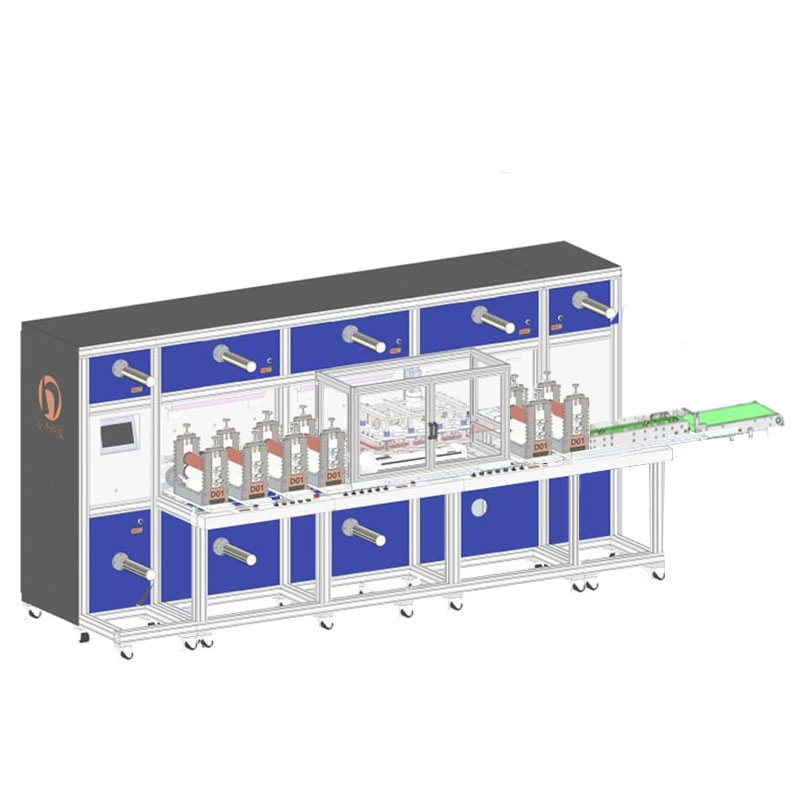

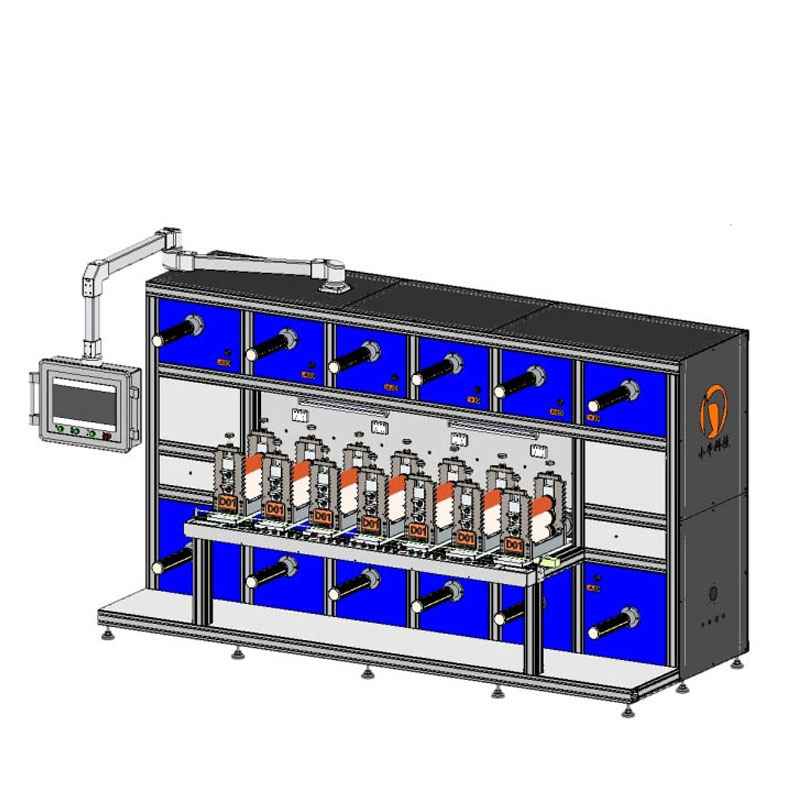

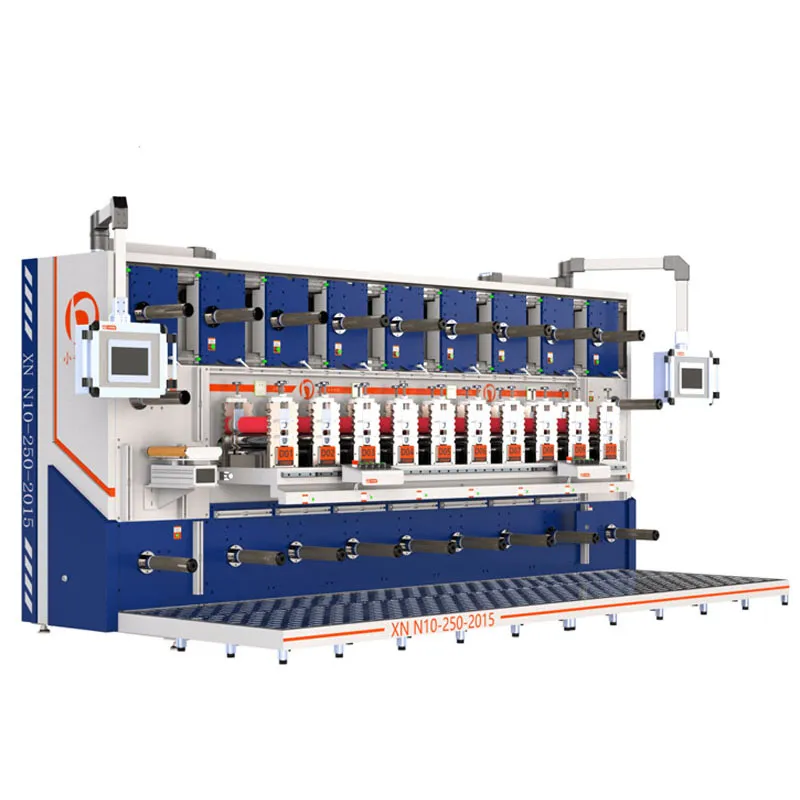

This 10-station rotary die-cutting machine is driven by independent servo motors. Each station and feed shaft operates autonomously yet integrates seamlessly, meeting complex production needs such as pressing, die-cutting, and transfer. It supports synchronous and asynchronous modes with constant tension for complete automation.

Key Advantages

High Efficiency: Continuous roll cutting with speeds of 5-60m/min.
Superior Precision: ±0.1mm accuracy for stable and consistent processing.
Versatile Design: Multi-station integrated processing for complex multi-layer compounding.
Material Adaptability: Suitable for all flexible substrates including medical foam and films.
Intelligent Control: Full-auto operation with intelligent tension and deviation control.
Smart Memory: Power-off memory and smart adjustment for asynchronous processing.

Operation Demonstration

Applications & Finished Products

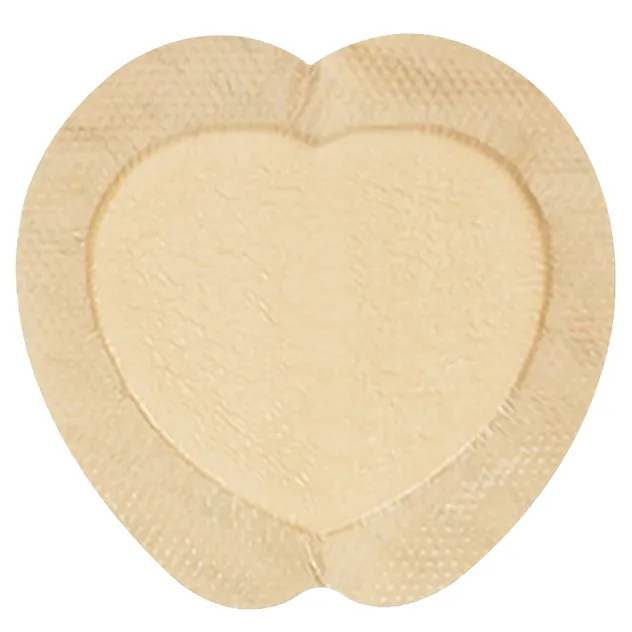

Foam Dressings

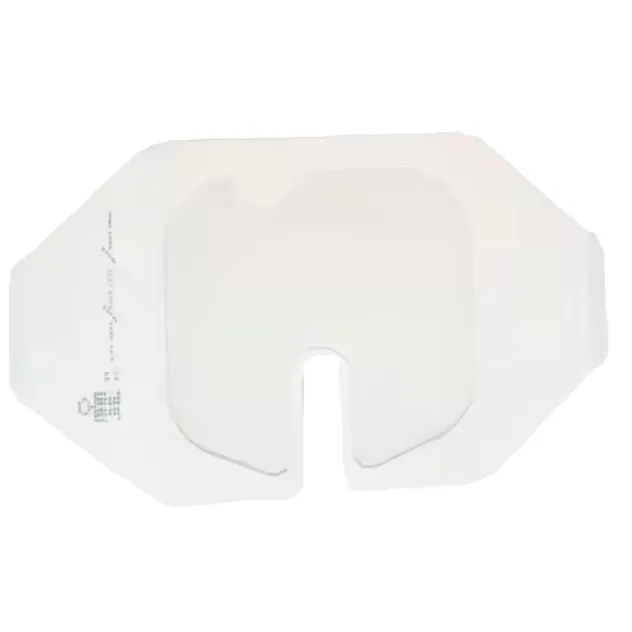

I.V. Dressings

Acne Patches

Catheter Fixation

Infusion Dressings

Hydrocolloid Dressings

Technical Parameters

Parameter Item	Specifications
Feeding Width (mm)	250mm / 350mm (Customizable)
Max. Material Diameter	400mm
Working Voltage	AC 380V
Max Die-Cutting Speed	60m/min
System Control	Omron PLC Servo Control

Components & Packaging

Core Components

Electronics System

Workstations

After-Sales Support

Standard Warranty
1-year comprehensive warranty for all machines.

Global Support
24/7 technical assistance and prompt spare parts supply.

Training
On-site or remote training for operation and maintenance.

Frequently Asked Questions

1. What products can be manufactured with this machine? The equipment is ideal for high-precision production of medical dressings (foam, transparent, hydrocolloid), 3C electronics components, EMI shielding materials, and various adhesive products.

2. Can the machine handle different material widths? Yes, standard feeding widths are 250mm and 350mm, but custom configurations are available upon request to meet your specific material requirements.

3. What are the advantages of the multi-station design? The modular multi-station design allows for simultaneous die-cutting, laminating, and waste removal. You can also produce two different products at once on machines with more than 8 stations.

4. How is the cutting precision maintained? The machine utilizes an OMRON PLC servo control system and intelligent tension control, ensuring a stable cutting precision of ±0.1mm even at high speeds.

5. Is technical training provided for international clients? Yes, we provide engineers for on-site debugging and training, as well as comprehensive remote video support and process consultation.

6. What is the typical lead time for equipment delivery? Generally, machines can be delivered within 20 days after the final design and technical specifications are confirmed.
