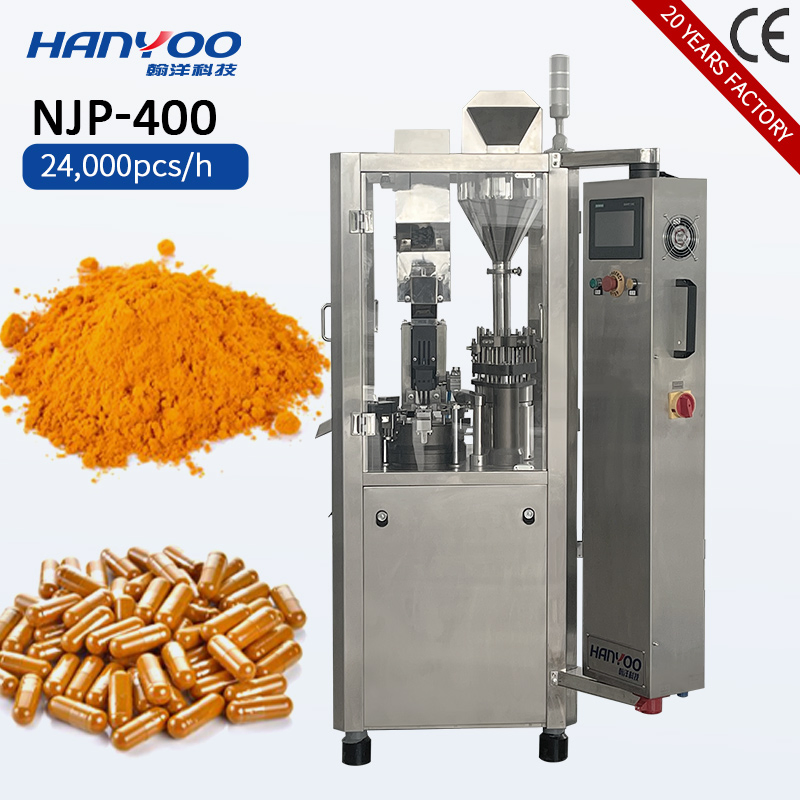

China Manufacturer Njp-400 Capsule Filler Capsule Maker Encapsulation Machine Size 00 Small Mini Automatic Capsule Filling Machine for Pharma Health Product

Customization: Available
After-sales Service: Engineers Available to Service Machinery Overseas
Certification: CE, GMP

Product Description

Basic Information
Model NO.
NJP-400
Machine Type
Capsule Filling Machine
Main Material
Stainless Steel
Voltage
380V (Customizable)
Capacity
24,000 PCS/H
Weight
850kg
Warranty
1 Year
Dimensions
810×700×1840mm
Product Overview
The automatic capsule filling machine is a state-of-the-art solution designed for efficiency and reliability in pharmaceutical production. Featuring a sleek arc design and smooth flow lines, the equipment utilizes PLC programming and a touch-screen man-machine interface for seamless operation. It includes automatic alarms for faults or material shortages, ensuring a safe and continuous production cycle. All key transmission components are made from imported high-quality materials, fully complying with GMP requirements.

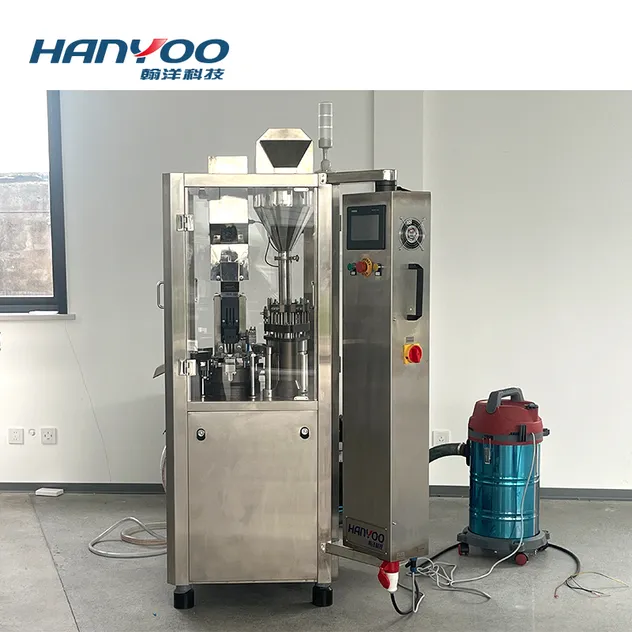

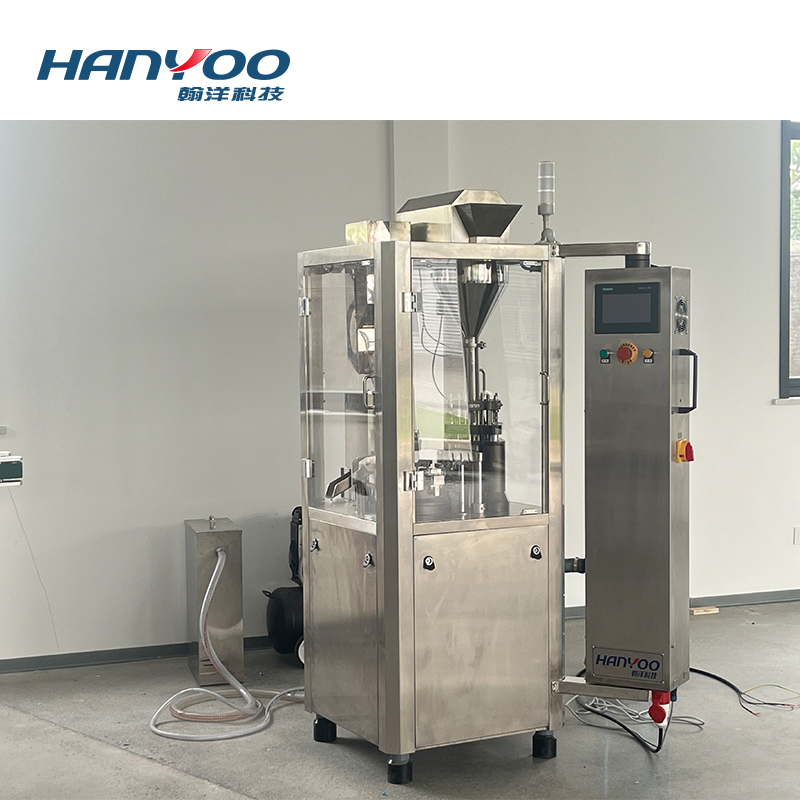

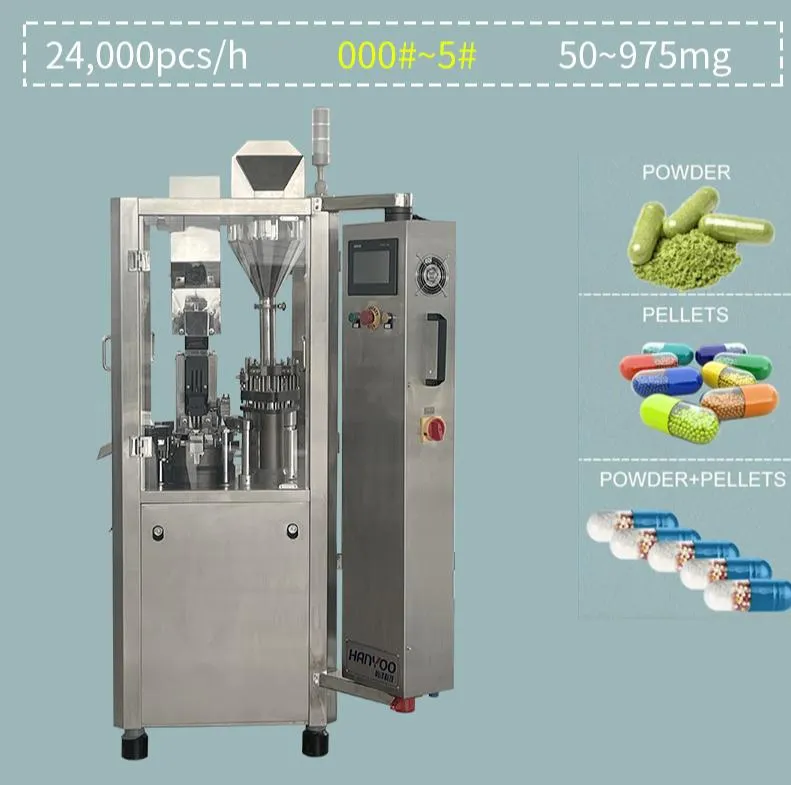

Capsule Filling Machine
Core Features
  • Internal CAM drive for a lower center of gravity and stable high-speed operation.
  • Low vibration and noise levels (less than 75dB) with Ferguson drive integration.
  • Completely closed rotating parts with optional automatic lubrication to prevent cross-contamination.
  • Special adjustment device for dose plate gap, enabling quick calibration without specialized tools.
  • Advanced Siemens PLC control system with real-time output monitoring and fault diagnosis.
  • Pin-hole mold installation for rapid and accurate setup.
Technical Parameters
Model NJP-400 NJP-800 NJP-1200
Motor Power 3kw 4KW 5kw
Number of Holes 3 6 9
Filling Capsule Model #000 - #5 #000 - #5 #000 - #5
Max Capacity (pcs/h) 24,000 48,000 72,000
Weight 850kg 1150kg 1150kg
Technical Drawing

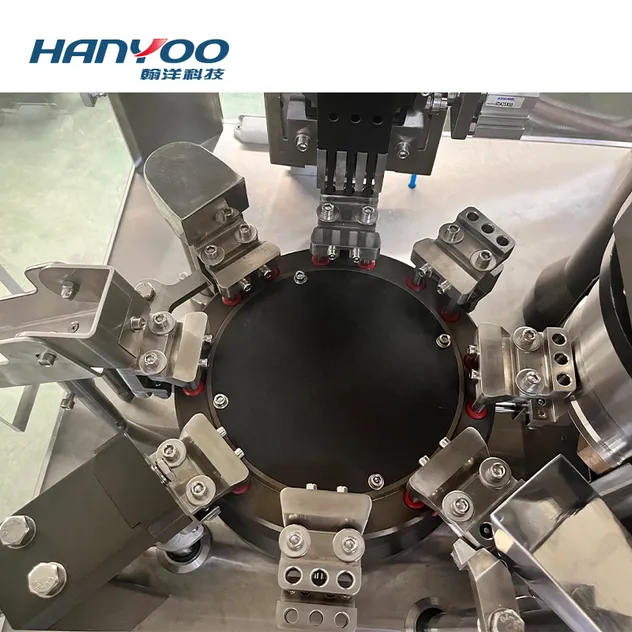

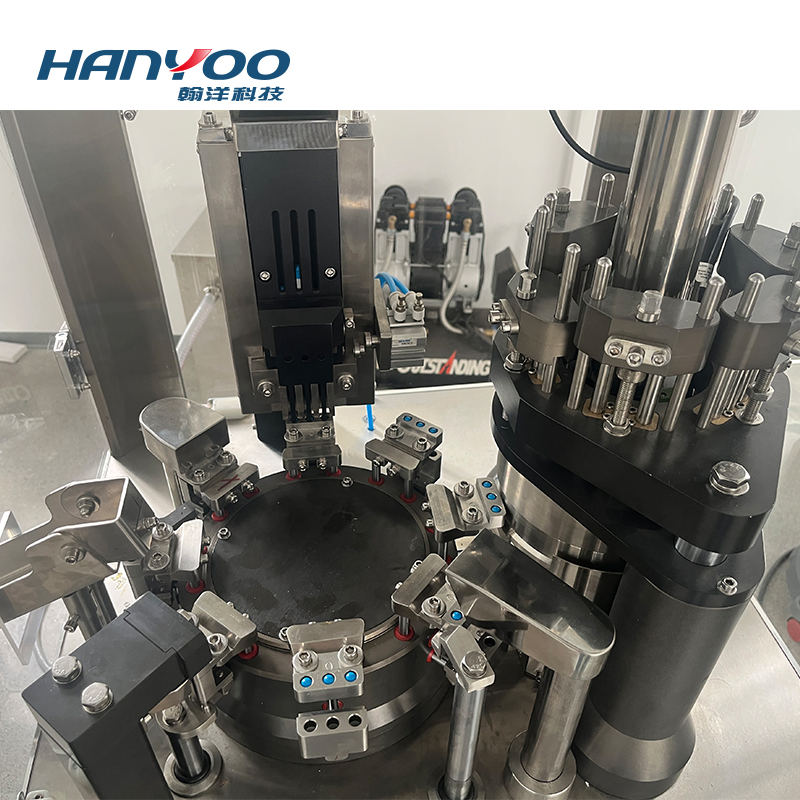

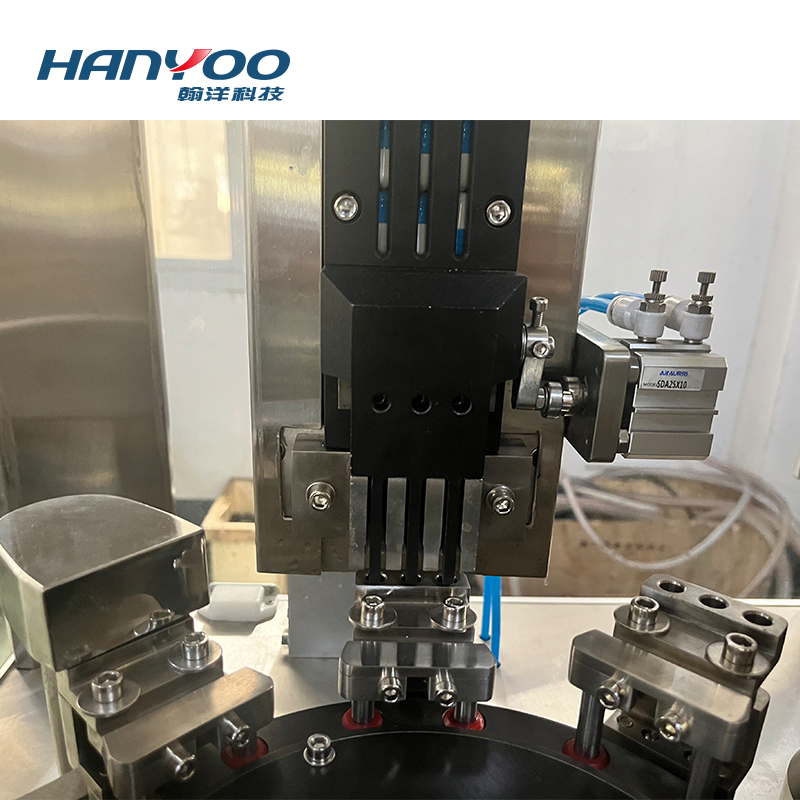

Detail Display
Service & Support
After-Sales Service
  • Detailed operation manual provided.
  • Installation, adjustment, and maintenance videos.
  • Free remote video guidance from experienced technicians.
  • Available overseas engineering services.
  • Component replacement for non-human damage during warranty.
Pre-Sale Service
  • Equipment customization based on requirements.
  • Free tablet/capsule design and trial services.
  • Professional solid preparation solutions.
  • Free mechanical layout design.
Manufacturing & Global Presence

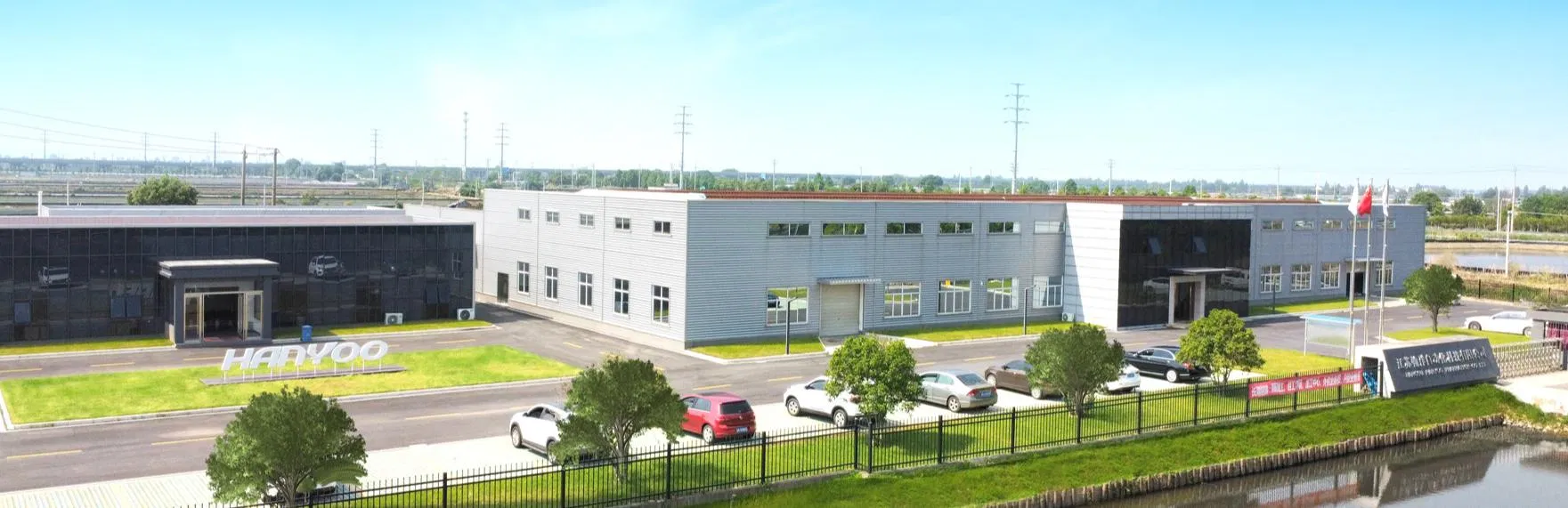

Factory View
Exhibition

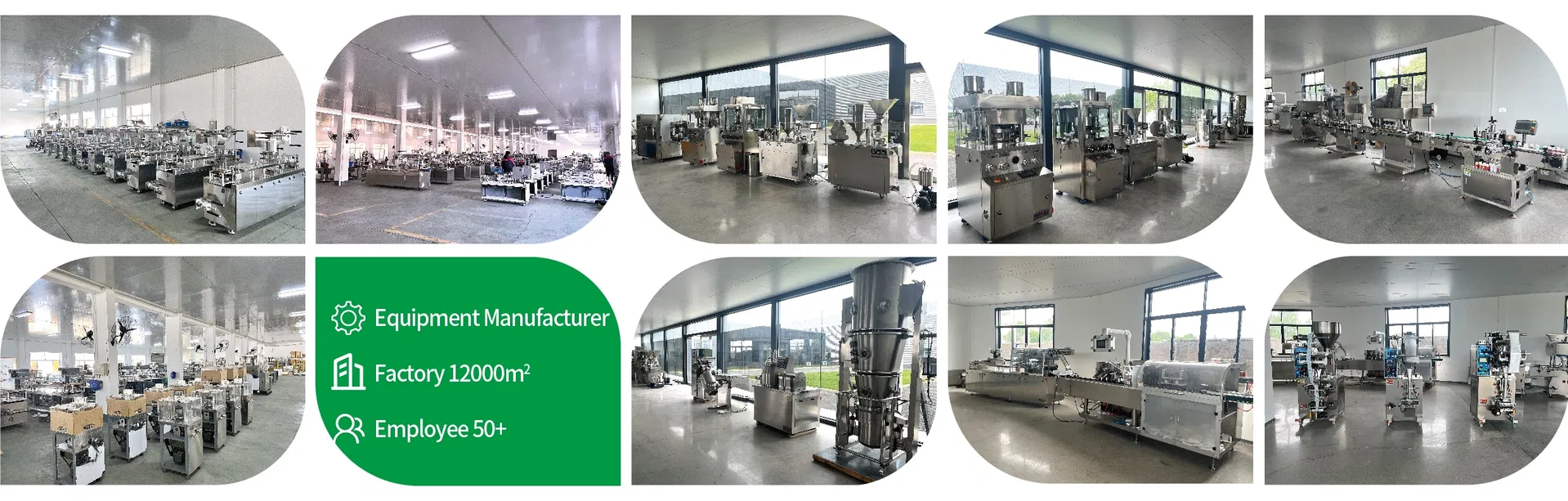

Workshop
Packaging & Shipping
Frequently Asked Questions
Q1: How do I know if this machine is suitable for my specific powder?
A: You can send us samples of your powder and capsules. We will perform a test run on our machines and provide you with clear videos and photos of the results, or demonstrate via live video chat.
Q2: What is the warranty period for the capsule filling machine?
A: We offer a standard 1-year warranty from the date of arrival. We also provide life-long technical support available 24 hours a day to ensure optimal performance.
Q3: Does the machine comply with international pharmaceutical standards?
A: Yes, our equipment is designed and manufactured to fully comply with GMP requirements and has passed EU CE certification.
Q4: Can the production speed be adjusted?
A: Yes, the NJP-400 series features a variable frequency speed control system, allowing you to adjust the production capacity up to 24,000 capsules per hour based on your requirements.
Q5: What kind of after-sales technical support do you provide?
A: We provide a complete set of operation and maintenance videos, manual documentation, and free remote guidance from professional engineers with over 10 years of experience. Overseas engineering services are also available if needed.
Q6: Is the machine easy to clean and maintain?
A: Yes, the rotating parts are completely enclosed and the working table is designed to be oil-free, making it easy to clean and preventing cross-contamination between different drug batches.
