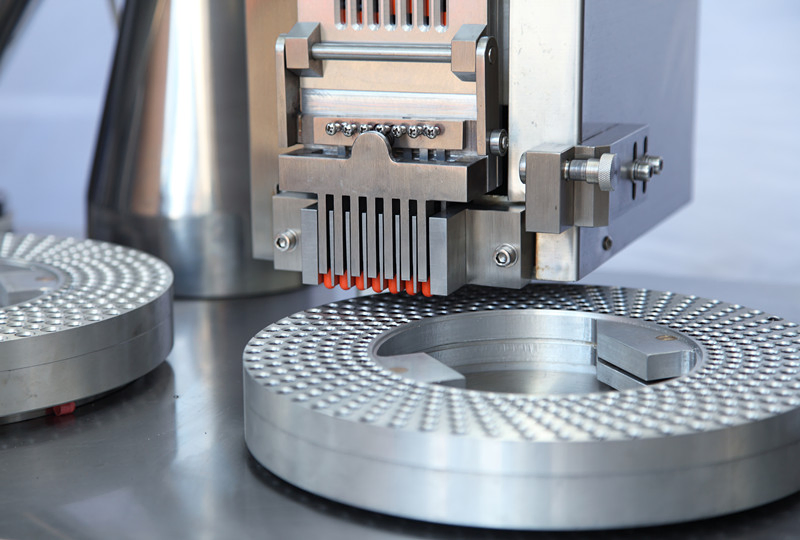

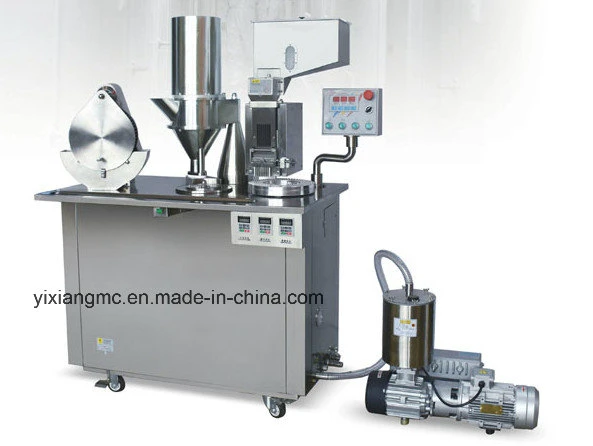

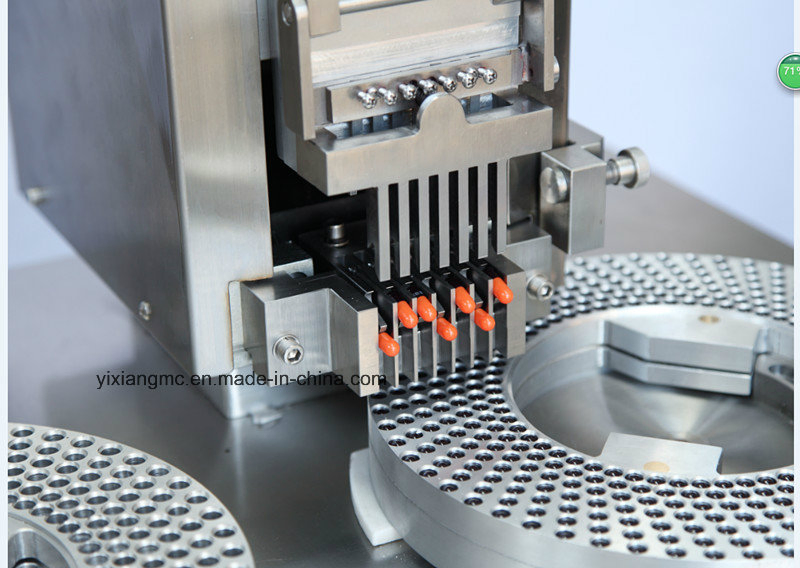

The CGN208-D type capsule filling machine is a new efficient equipment based on the DTJ-C model. Following extensive research and development, this machine offers an easier, more intuitive experience with higher loading efficiency in capsule dropping, U-turning, and vacuum separation compared to older types.

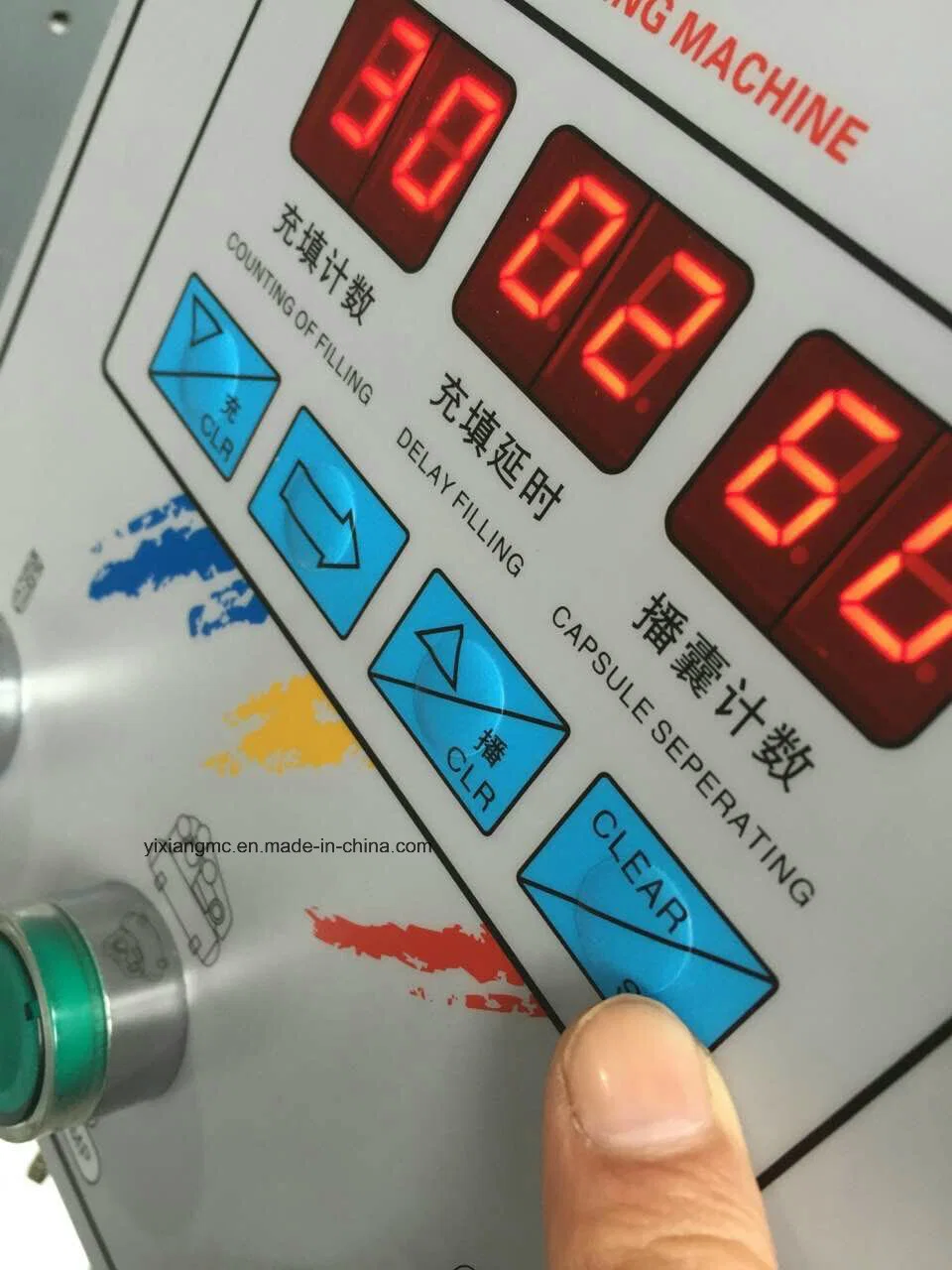

This equipment combines electricity and pneumatic control, featuring automatic counting electronics, a programmable controller, and a frequency conversion speed regulating device. It is the ideal solution for small and medium-sized pharmaceutical companies, research institutions, and hospital preparation rooms to reduce labor intensity.
| Adjust new mould time: | 5-8 minutes (for beginner) |
| Production capacity: | 10000-25000 capsules/hour (depends on size) |
| Suitable capsule: | 000#,00L#,00#,0L#,0#,1#,2#,3#,4#,5# standard capsules |
| Filled material: | Powder (non-wet/sticky); granules |
| Total power: | 2.12KW |
| Compressed air: | 0.03m³/min, 0.7Mpa |
| Vacuum pump: | Exhaust 40m³/h |
| Overall dimension: | 1200*700*1650mm |
| Gross Weight: | 420 KGS |
All machines are installed and tested to ensure the best working condition before shipment. Technical support is available for on-site adjustment and staff training upon request. Expenses such as travel, local conveyance, and lodging for technicians are to be covered by the client.
