| Model NO. | Customized System -1 |
| Material | Glass, Stainless Steel, Wet Part Is SS316L and Other Is SS304 |
| Safety Feature | Auto-Retractable Needle, Locking Mechanism, Needle Guard, Tamper-Evident Seal |
| Usage | Medical |
| Warranty | 1 Year |
| Working Pressure | Inside Vessel: 0.25MPa / Inside Jacket: 0.3MPa |
| PLC | Self-Developing PLC / Siemens PLC |
| Basic Functions | Culture Microorganism, Adjust pH, Do, Temp, Antifoam |
| Optional Functions | Weigh, Pressflow, Discharged Gas Detect, Multi-Fee |
| Capacity | 50L - 500L |
| Finished Dosage Form | Liquid |
| Certification | CE, GMP, ISO |
| Voltage | 380V |
| Condition | New |

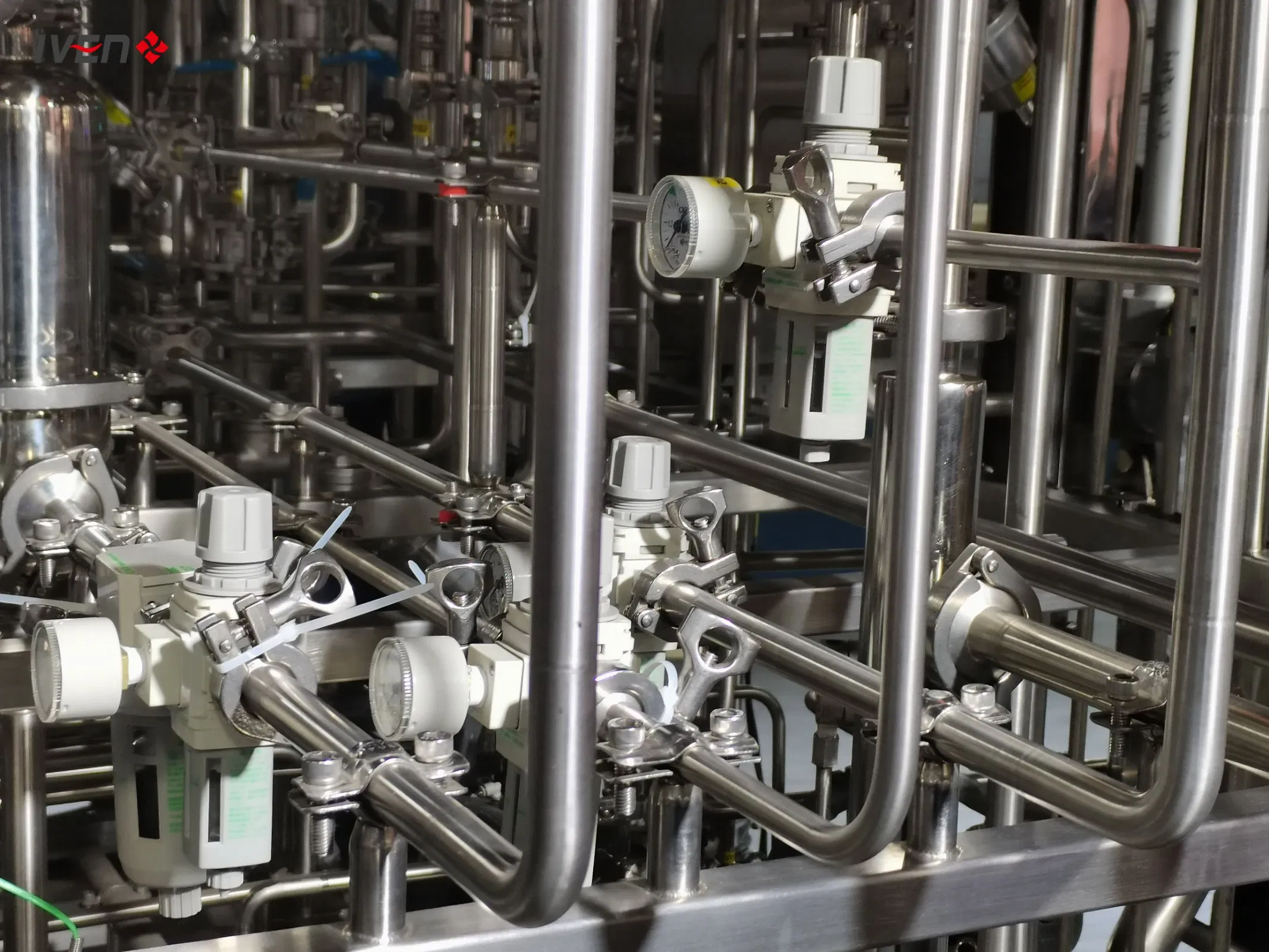

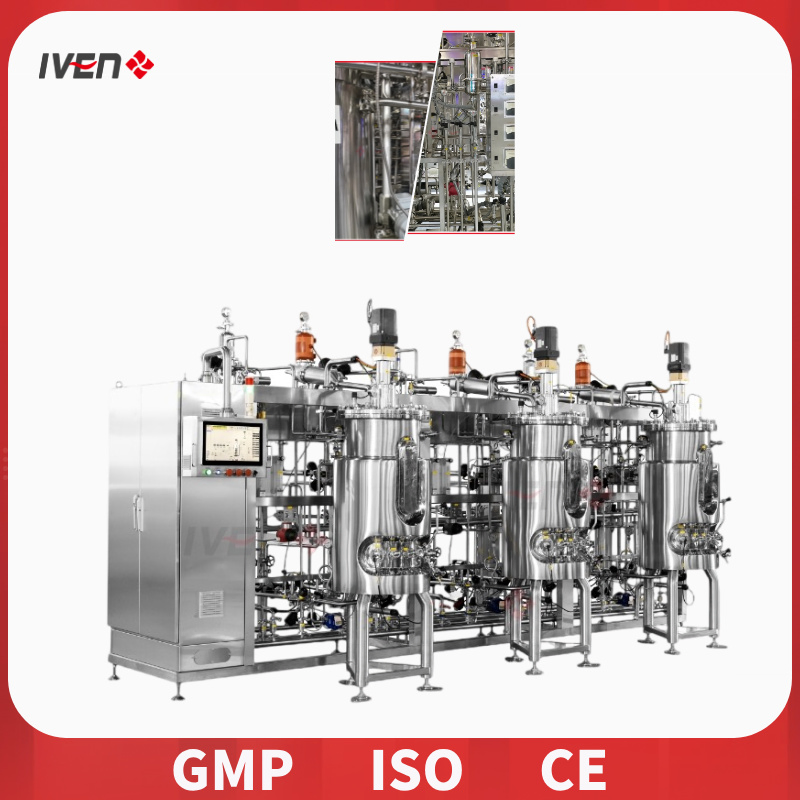

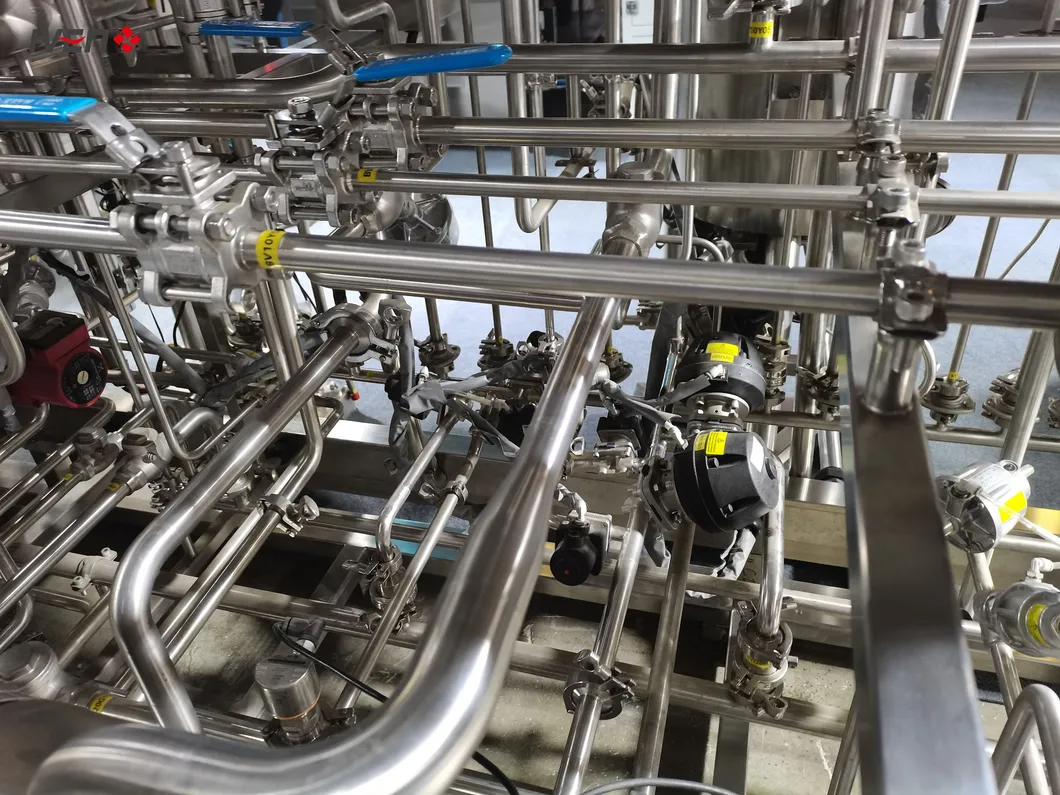

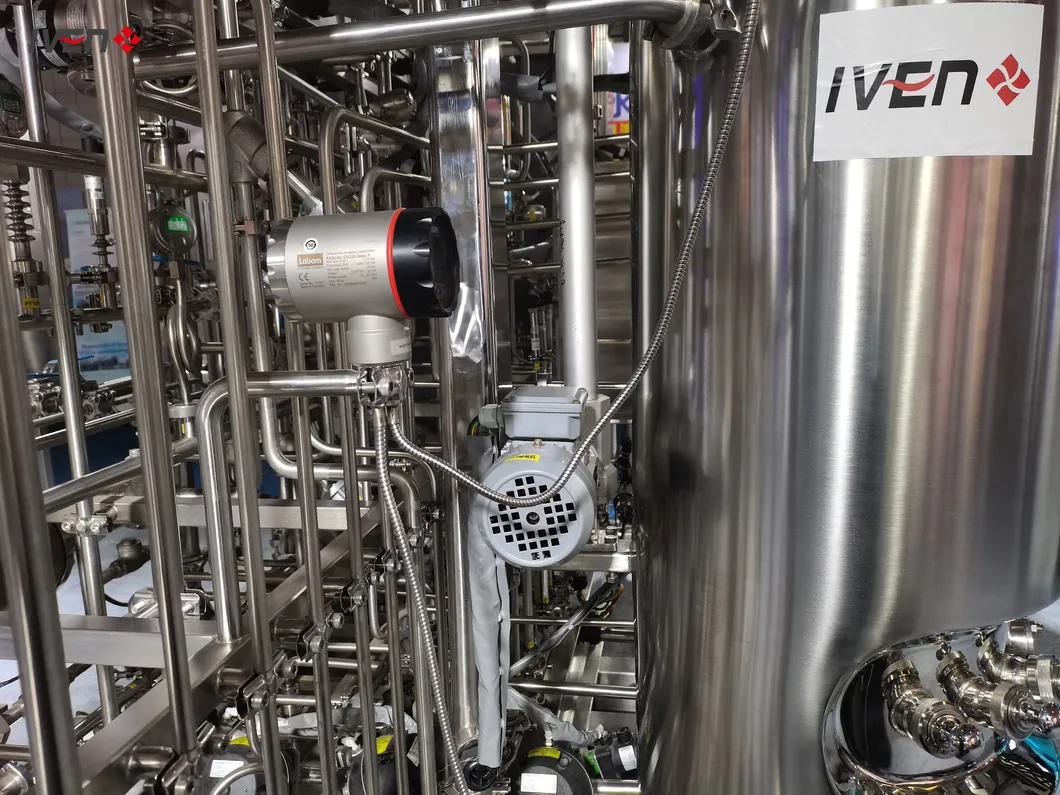

This machine is a small fermentation system consisting of a 15L seed tank and 100L fermentation tank, including all instrumentation and an advanced automation system. It is specifically designed for microbial fermentation or cell culture. The system integrates fermentation tanks, temperature control, pH control, stirring mechanisms, gas distribution, and a comprehensive cleaning/sterilization system.
| Technical Specifications | |
|---|---|
| Key Selling Points | Long Service Life |
| Mixing Speed | Fermenter Special Motor |
| PH Control | Intelligent PID Control |

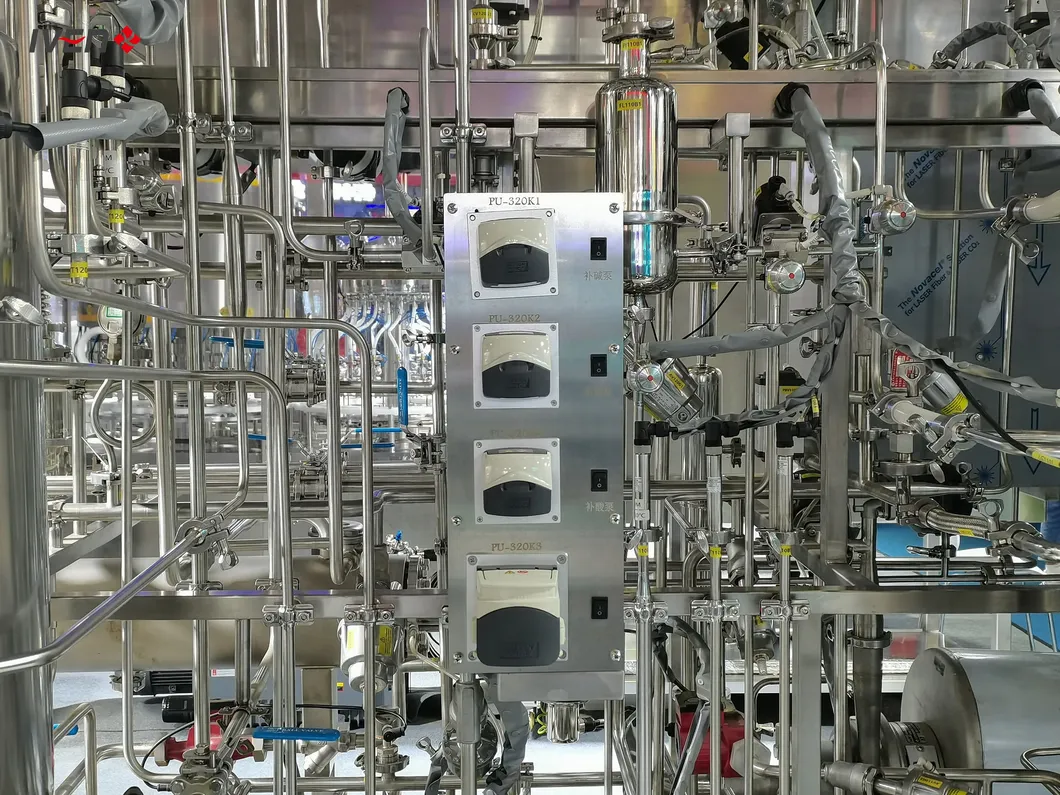

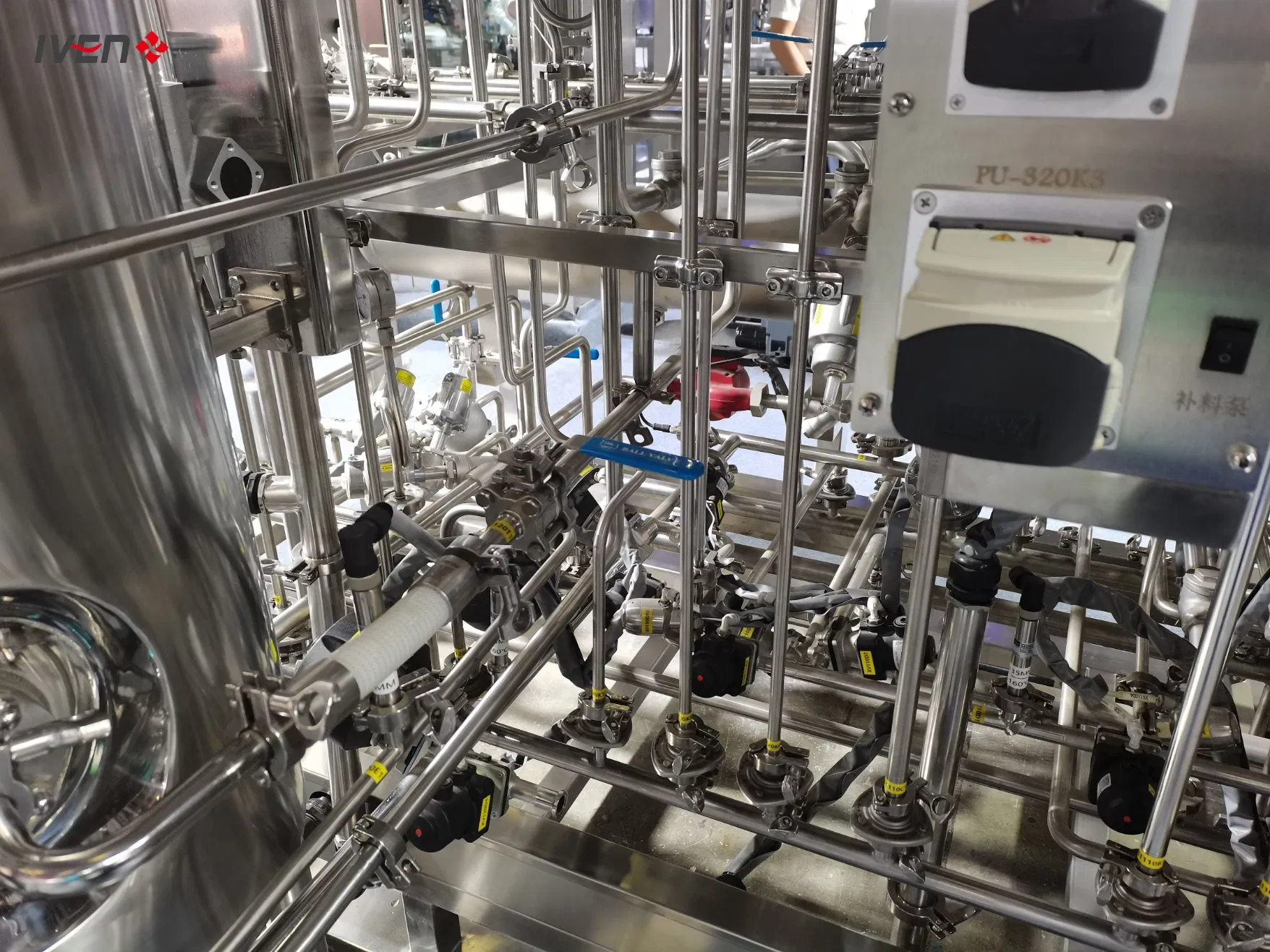

| Foam Control | Peristaltic pump refoaming agent, automatic control |
| Tank Pressure | Automatic adjustment, digital display |
| Applicable Industries | Manufacturing Plant, Medical, Pharmaceuticals |
| Package Size | 150.00cm * 150.00cm * 150.00cm |
| Package Weight | 1000.000kg |
A full range of microbial culture fermentation tanks are available, from laboratory research and development and pilot trials to industrial production. Engineering solutions are customized, strictly following GMP regulations and ASME-BPE requirements. Modular designs can meet various national pressure vessel standards such as ASME-U, GB150, and PED. Tanks range from 5 liters to 30 kiloliters, suitable for recombinant protein drugs (e.g., insulin) and vaccines (e.g., HPV, pneumococcal vaccine).
