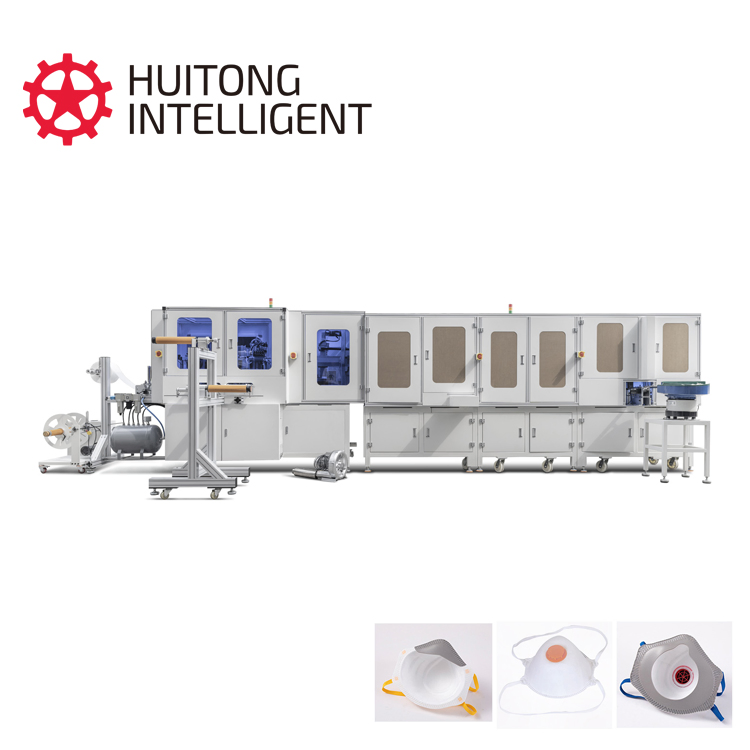

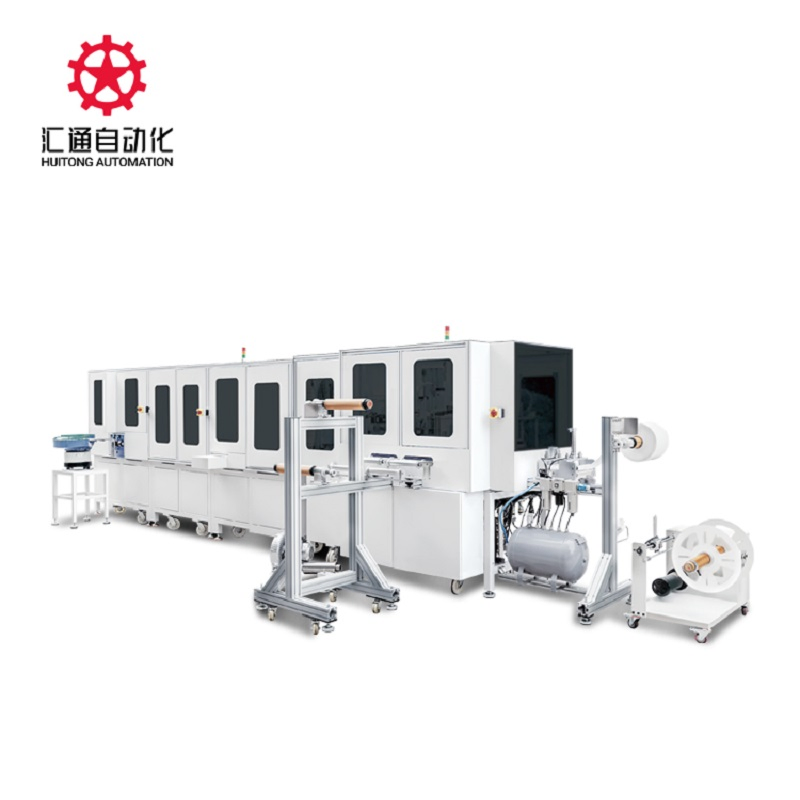

Ultrasonic Medical/Surgical Nonwoven N95/KN95 Cup Mask Machine
Automatic Cup Mask Production Line with Advanced Plastic Type Transfer System for Maximum Efficiency
This machine offers fully automated production from raw materials to finished products: outer cotton, middle meltblown cloth, inner cotton shaping and cup melt cutting, mask nose bridge strip, pad printing, automatic spot welding of elastic band, automatic sticking of sponge strips, breathing valve punching, and automatic welding valve.
Key Features
◈ PLC and touch screen control with imported servo motor for stable and accurate transmission.
◈ Fully automated production speed of 15-25 PCS per minute with continuous feeding.
◈ Cold-pressed melt spray ensures product quality reaches FFP3 grade.
◈ Automatic sponge strip pasting for accurate and aesthetic positioning.
◈ Modular design for easy maintenance and rapid production splicing.
◈ Small footprint (6500×1200×2000 mm) suitable for air transportation and efficient space use.
◈ Modular components can be used separately or in free combinations.
◈ Durable frame made of cast iron welding with baking paint; aluminum alloy hard oxygen processing.
◈ Photoelectric detection of raw materials to minimize waste and avoid errors.
◈ Equipped with pulleys and fixed feet for convenient mobility and strong stability.
Technical Parameters
| Model No. | HT-KBL02 |
| Speed | 15-25 pcs/min |
| Output Power | 21kw |
| Power Supply | AC 380V 50/60Hz |
| Air Pressure | 0.6-0.8 mpa |
| Weight | 3700 kg |
| Dimensions | 9000 × 2700 × 2100 mm |

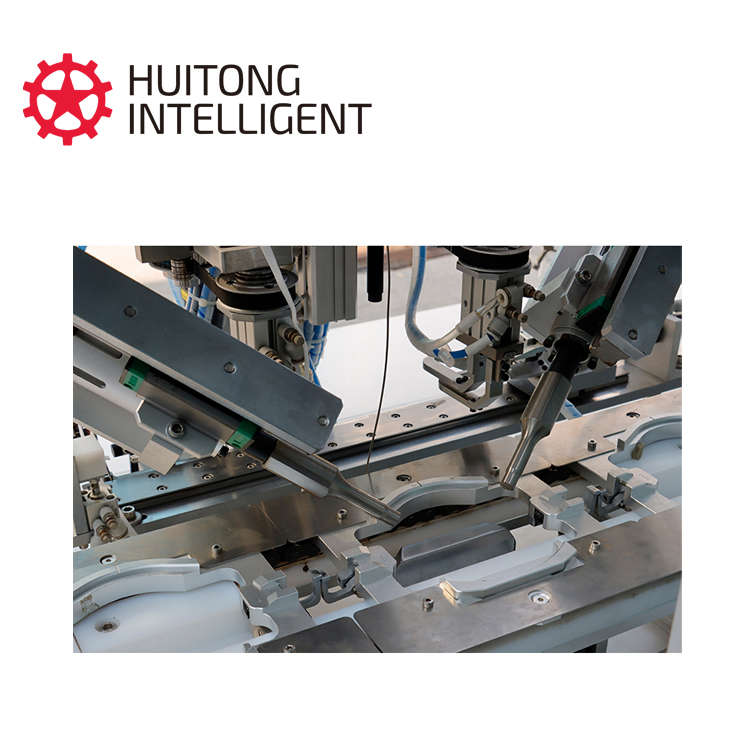

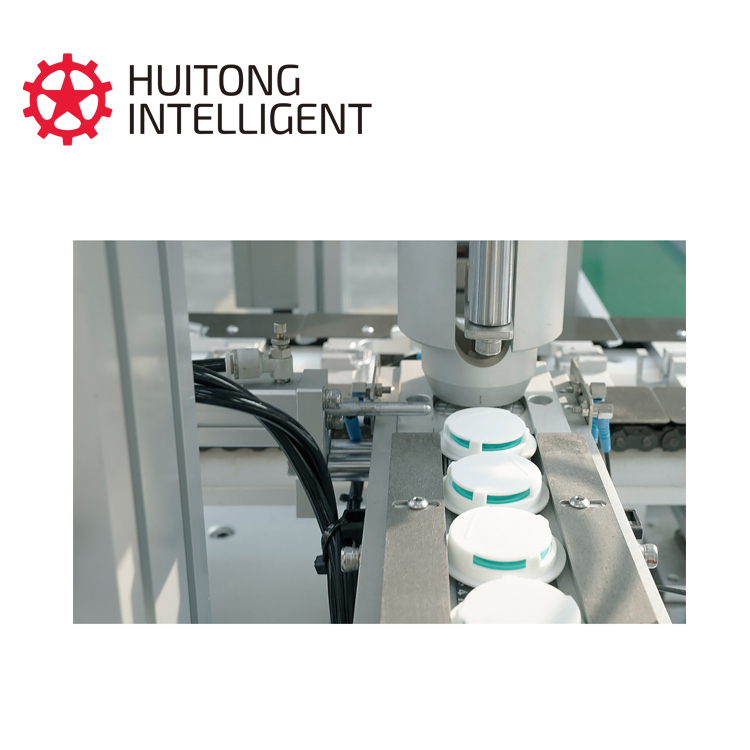

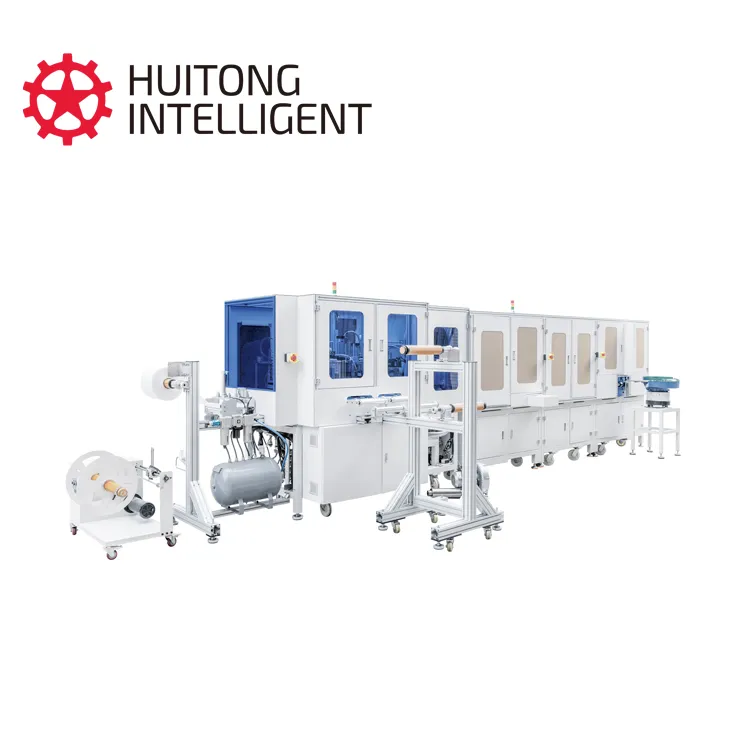

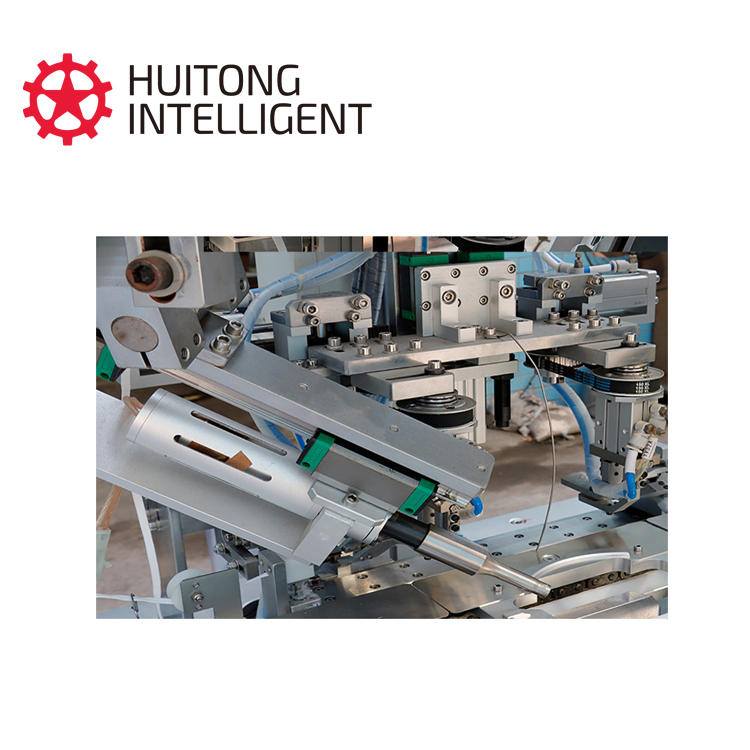

Detailed Photos
Process & Production

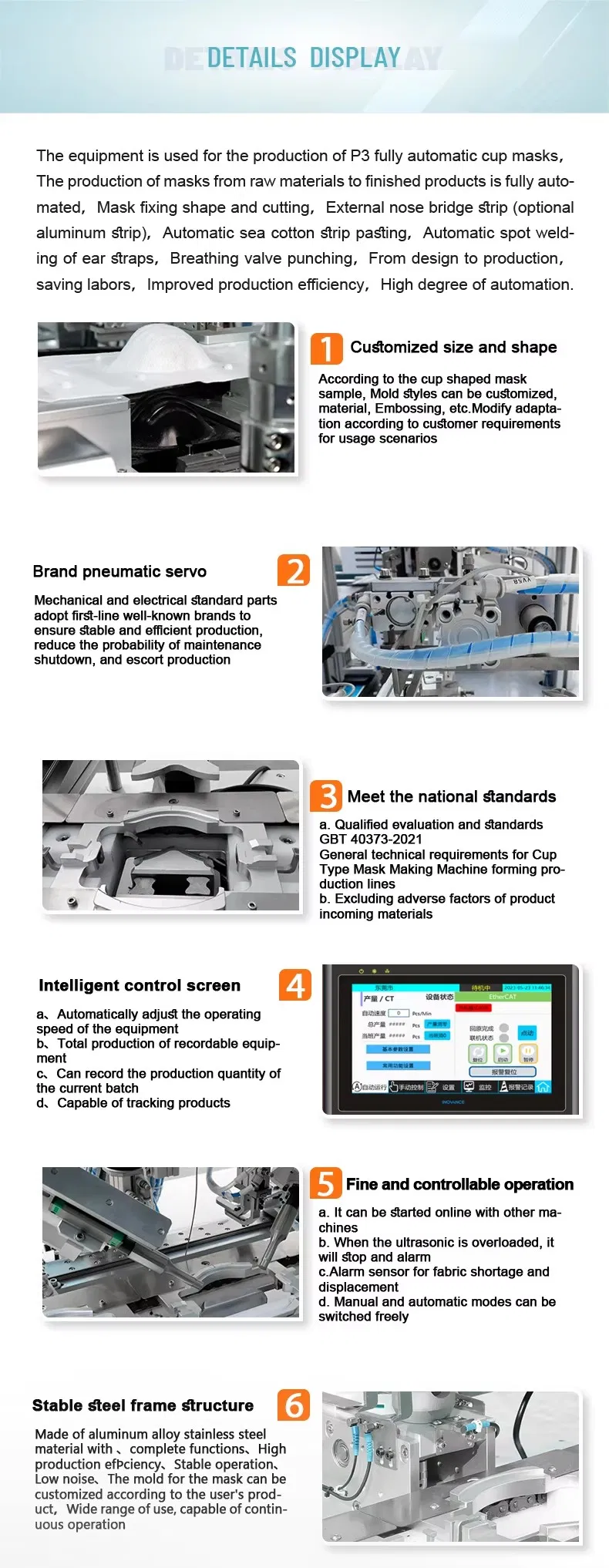

Machinery Process Diagram
Global Exchange & Certificates
Frequently Asked Questions

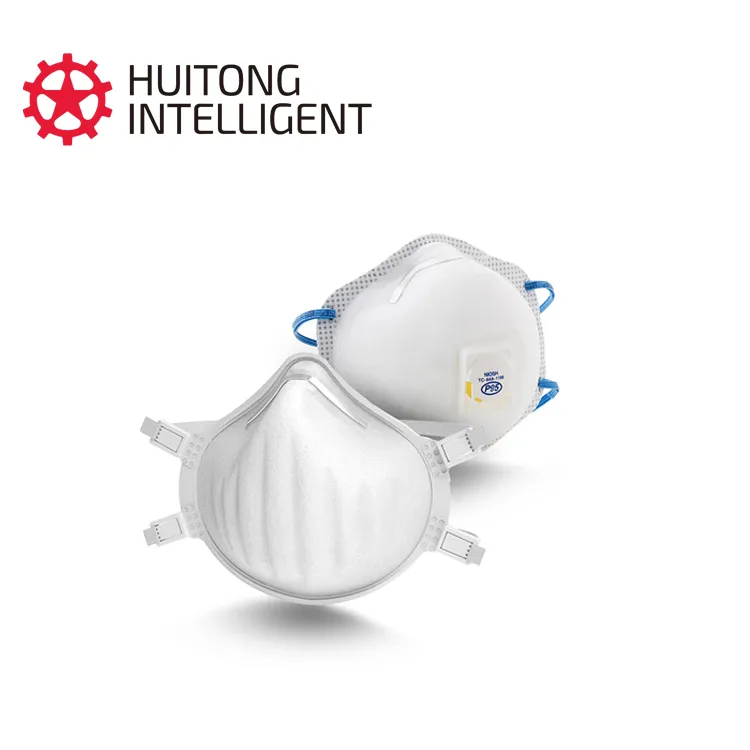

What types of masks can this machine produce?
This machine is specifically designed for the fully automated production of nonwoven N95 and KN95 cup-shaped masks, including medical and surgical grades.
What is the production capacity of the HT-KBL02?
The machine can produce between 15 to 25 finished cup masks per minute, depending on the material and settings.
Does the machine support automatic sponge strip and valve attachment?
Yes, the production line includes modules for automatic sponge strip sticking, breathing valve punching, and automatic valve welding.
What is the filtration grade of the masks produced?
With the cold-pressed melt spray capability, the product quality can reach the FFP3 grade standard.
Is the equipment easy to transport and install?
Yes, the machine features a modular design for quick splicing. Its compact size is suitable for air transportation, and it includes pulleys for easy movement within your facility.
What control system does the machine use?
It utilizes a high-stability PLC (Mitsubishi) programming control system with a user-friendly touch screen interface and imported servo motors for precision.
