Automatic N95 Surgical Solid Face Mask Making Machine
Automatic N95 Surgical Solid Face Mask Making Machine
Automatic N95 Surgical Solid Face Mask Making Machine
Automatic N95 Surgical Solid Face Mask Making Machine
Automatic N95 Surgical Solid Face Mask Making Machine
1 / 5
Automatic N95 Surgical Solid Face Mask Making Machine
Automatic N95 Surgical Solid Face Mask Making Machine
Automatic N95 Surgical Solid Face Mask Making Machine
Automatic N95 Surgical Solid Face Mask Making Machine
Automatic N95 Surgical Solid Face Mask Making Machine

Automatic N95 Surgical Solid Face Mask Making Machine

Customization: Available
Warranty: 1 Year
Application: Face Mask
Send Inquiry

Product Description

Basic Information
Model NO.
RYC-N95
Automatic Grade
Automatic
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
Life Time
Transport Package
Wooden Case
Specification
175*95mm
Origin
China
Production Capacity
70piece Per Month
Product Description

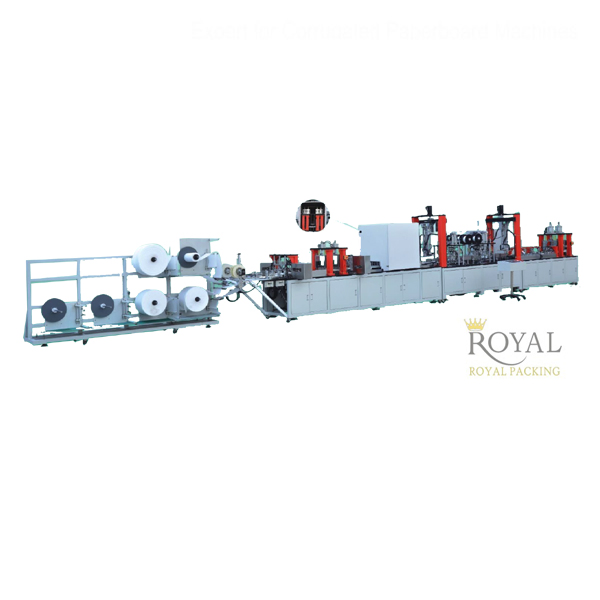

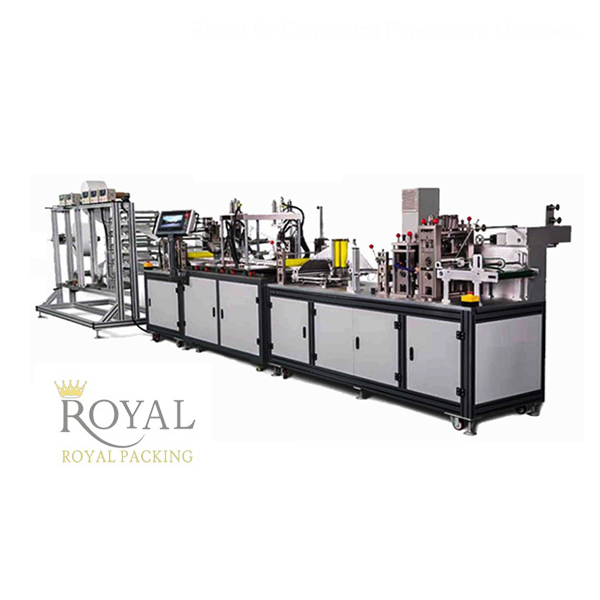

RYC-N95 Full Automatic Face Mask Machine

Automatic N95 Surgical Solid Face Mask Making Machine

Introduction

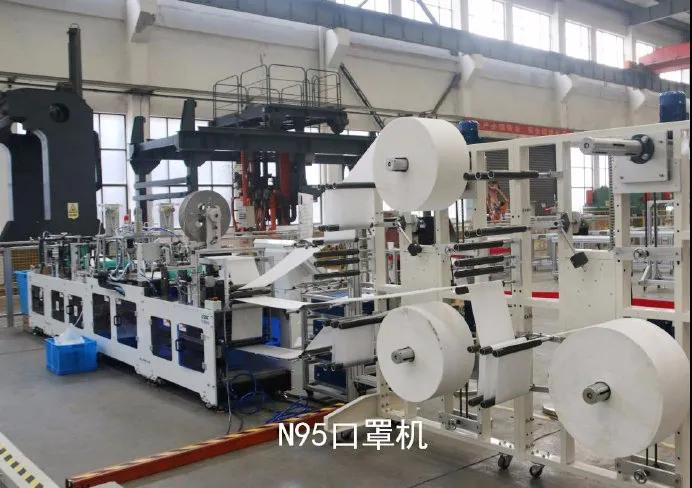

The RYC-N95 Mask making machine is a full-automatic folding mask production line (Typical models such as N95 masks). The equipment rolls the entire roll of material, and the multi-layer non-woven fabric roll is subjected to composite roll welding. After rolling and cutting to length, it is welded, and then the body is folded in half. After ultrasonic welding and fusion, the final mask is rolled and formed.

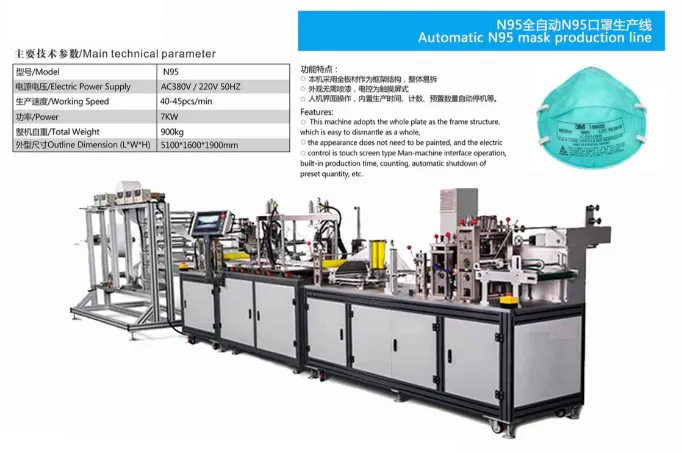

Main Technical Parameters
Parameter Specification
ModelRYC-N95
Mask typeN95 folding shape mask
Working speed40~45 pcs/min (related to the material flexibility)
Control systemEnglish/Chinese
Mask sizeBased on customer's design
Control modePLC + touch screen
Mask structureOutline/inner line
Machine materialAluminum alloy + Section steel
Gross weightAbout 1000KG
Outline dimensions (L*W*H)5200*1600*1900mm
Eligibility rate99.0%
Equipment failure rate2%
Folding symmetry±1.0
Power7.0KW
Compressed Air0.6~0.8MPa, Flow: 300L/min
Working surroundingsTemp 10~35 ºC, humidity 5-35% HR, Grade 100,000 clean room
Automatic N95 Surgical Solid Face Mask Making Machine
Special Features
  • 1
    Equipped with 6 sets of cloth unwinding, roll diameter up to 600mm.
  • 2
    Active unwinding method with automatic tension roller positioning.
  • 3
    Advanced nose strip module: leveling, fixed length conveying, and welding.
  • 4
    Ultrasonic composite roll welding with precise parallelism and cooling.
  • 5
    Earband welding unit with tension control and adjustable length settings.
  • 6
    Integrated printing function for customizable logs and content.
  • 7
    Servo motor controlled main driving roller for smooth material pulling.
  • 8
    Adjustable triangle plate for centered folding and forming.
  • 9
    High-firmness ultrasonic welding with adjustable technical parameters.
  • 10
    High-speed steel roll cutter wheel with adjustable pressure.
  • 11
    Automatic waste material separation and collection system.
  • 12
    Integrated PLC control system with a user-friendly touch screen.
Machine detail 1
Machine detail 2
Machine detail 3
Frequently Asked Questions
What is the production speed of the RYC-N95?
The machine operates at a speed of 40 to 45 pieces per minute, depending on the flexibility of the materials used.

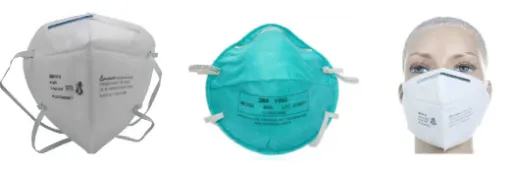

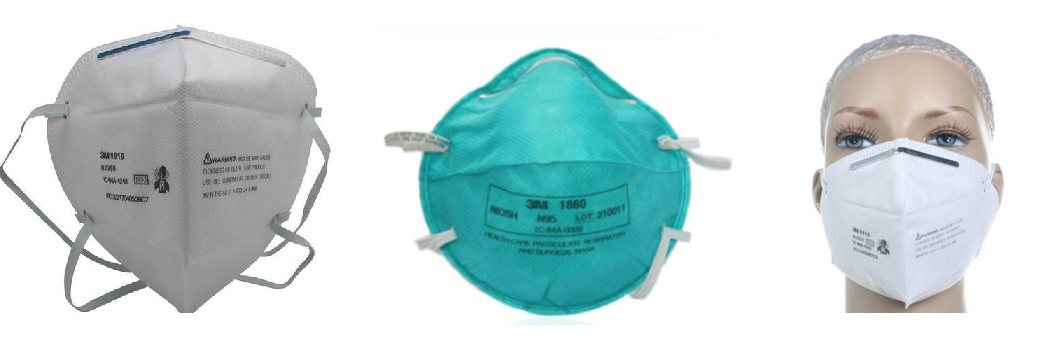

What type of masks does this machine produce?
It is designed specifically for producing N95 folding shape masks through a full-automatic production line.
How is the equipment controlled?
The machine utilizes a high-precision PLC system combined with a touch screen interface, supporting both English and Chinese languages.
What are the power and air requirements?
The equipment requires 7.0KW of power and compressed air at 0.6~0.8MPa with a flow rate of 300L/min.
Is the mask earband length adjustable?
Yes, the earband welding unit allows for the length to be adjusted, and the ultrasonic welding ensures the bands are firmly attached.
What is the quality eligibility rate for production?
The equipment maintains a high eligibility rate of 99.0%, ensuring minimal waste and high efficiency.
