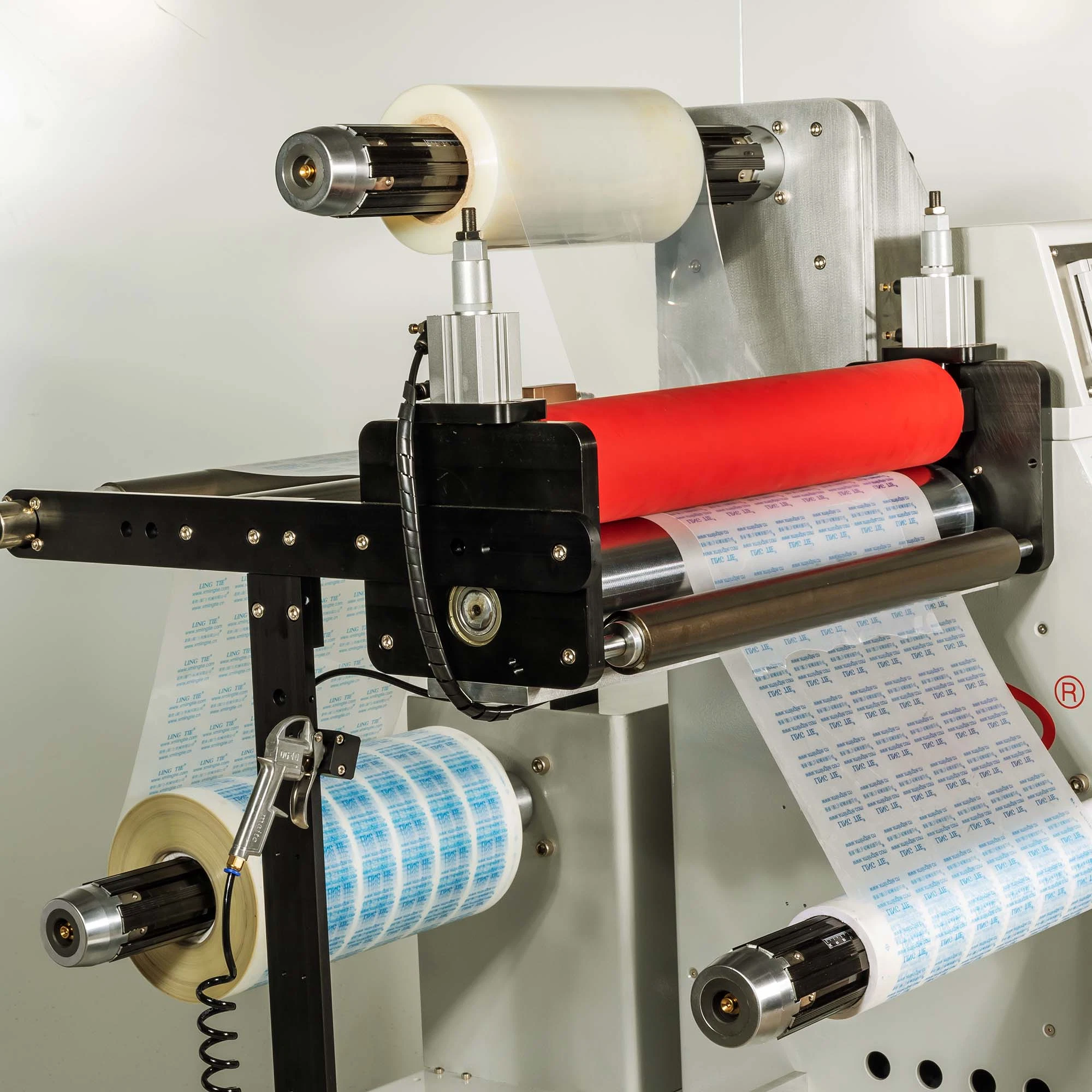

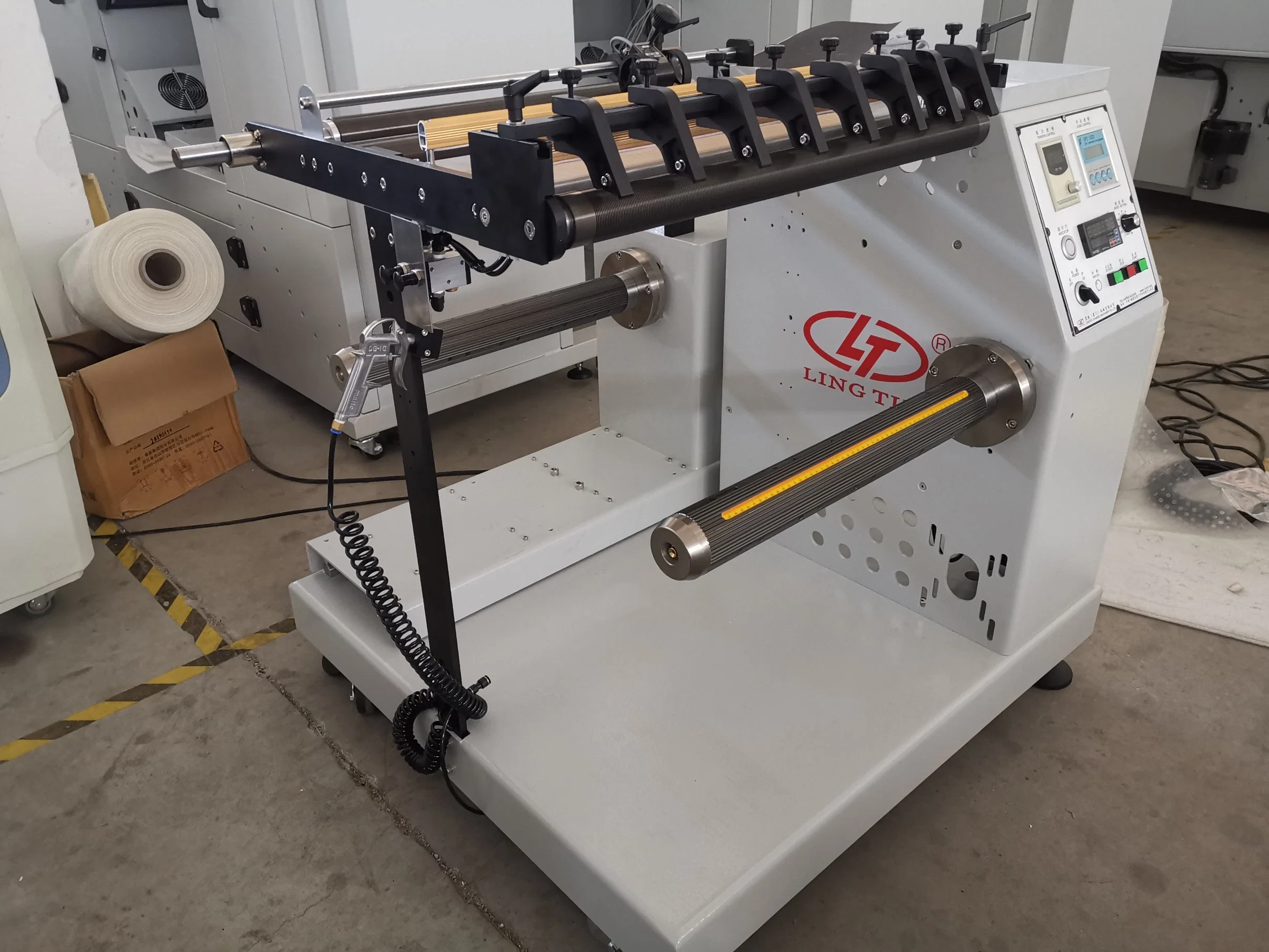

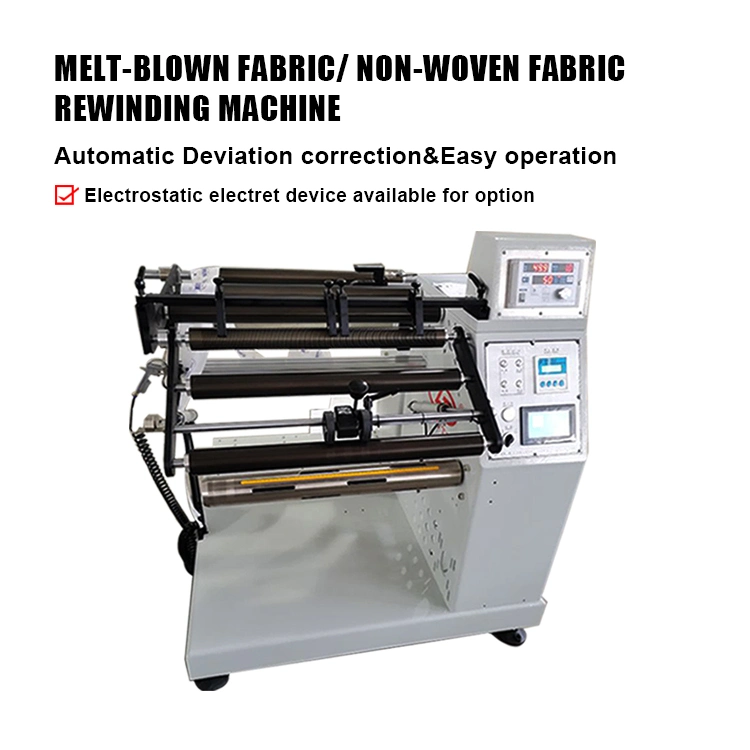

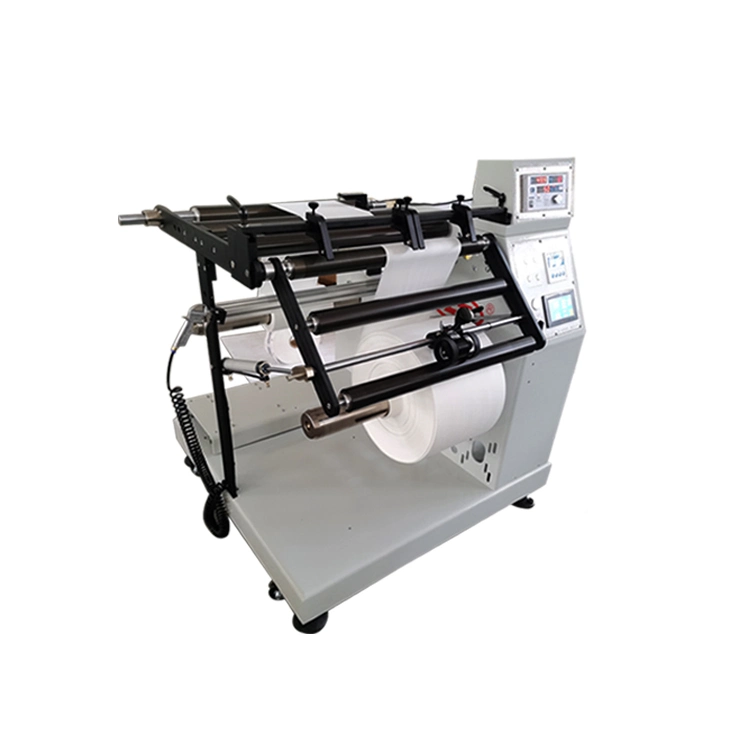

Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine
Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine
Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine
Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine
Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine
1 / 5
Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine
Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine
Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine
Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine
Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine

Paper Plastic Film Nonwoven Fabric Medical Gauze Automatic Roll to Roll Edge Control Rewinding Machine

Customization: Available
Application: Machinery&Hardware, Food, Commodity
Work Method: Flat Knife Slitting
Send Inquiry

Product Description

Basic Info.

Packaging:Case
Packaging Material:Wood
Condition:New
Power(W):1kw
Weight:350kg
Certification:Ce and ISO 9001:2015
Warranty:12 Months
Lead Time:15 Days After Deposit
Maximum Web Width:600mm
Transport Package:Wooden Box
Specification:(L1010xW950xH1120)mm
HS Code:8477800000
Production Capacity:50 Sets/Month

Product Description

Automatic roll to roll edge control rewinding machine banner

Paper, plastic film, nonwoven fabric, medical gauze Automatic roll to roll edge control rewinding machine

◈ Unwinding & rewinding air shaft 3" diameter, customizable.
◈ Air shaft for max.roll width 400mm-900mm, max.roll diameter 550mm, max.roll weight 40kg-150kg.
◈ Sensor adopted for web guide. It works for transparent and non-transparent materials.
◈ Magnetic powder brake is used for tension control during rewinding process.
◈ Machine automatic stop when the rewinding finish.
◈ Count meter function, slitting function, dust cleaning function and corona function are available for option.

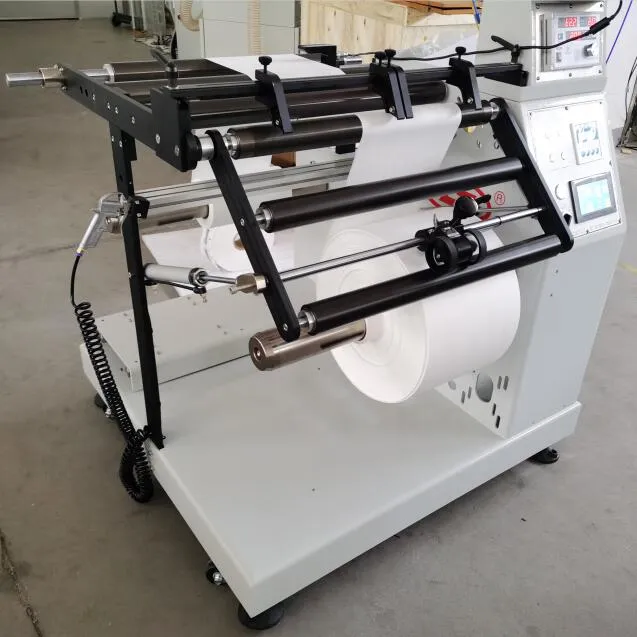

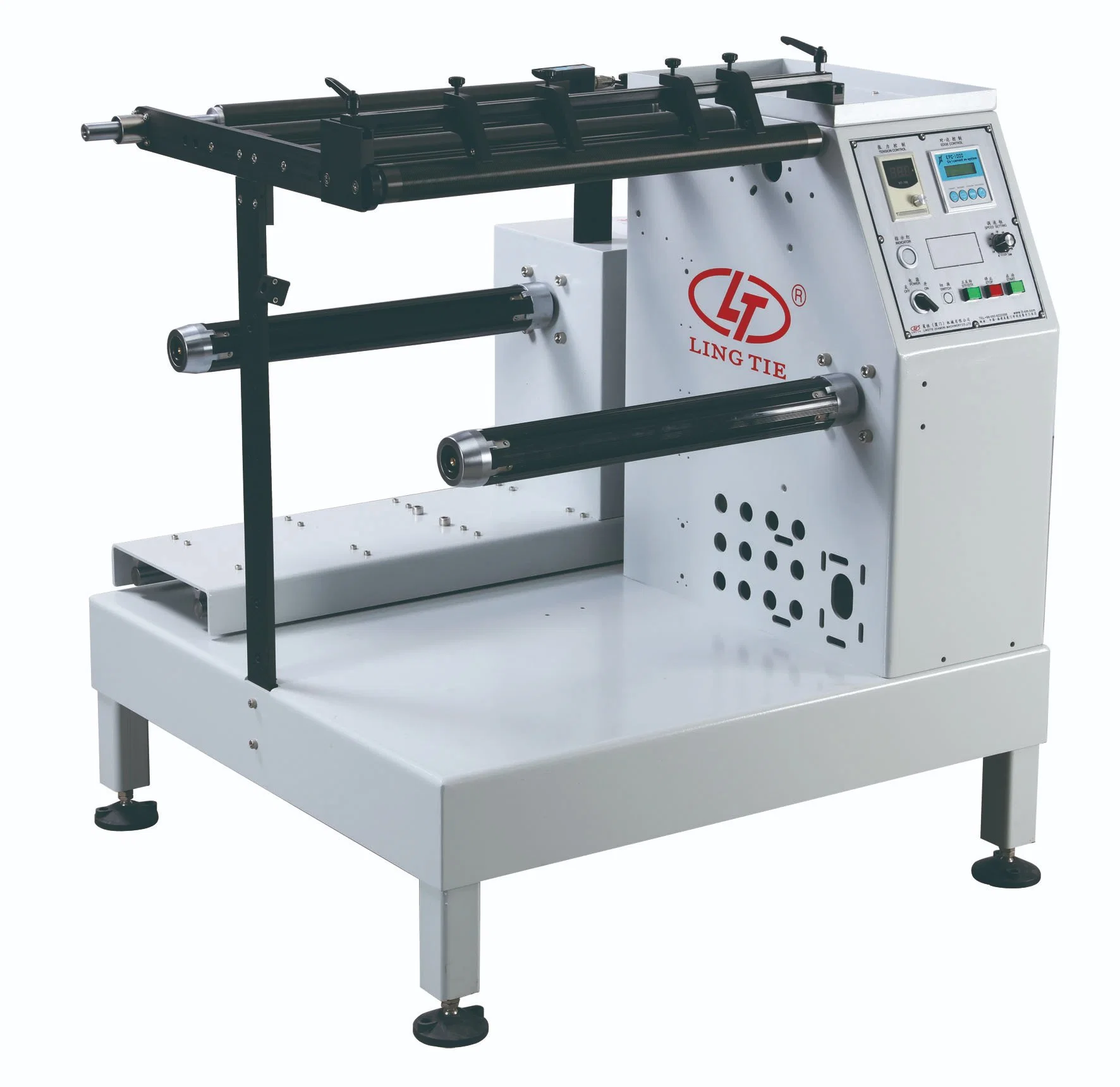

Rewinding Machine Main View

Application:

This automatic rewinding machine with web guide is widely used to rewind various soft materials in roll form, such as plastic film, paper, medical gauze, non-woven fabric, aluminum foil, etc.

Technical Information:

Model LTD-600B LTD-400B LTD-900B
Max.Paper Width 600mm 400mm 900mm
Allowable Weight 70kg 40kg 150kg
Max Diameter 550mm 550mm 550mm
Power Supply 1kw 1kw 1kw
Tension 0-25N 0-25N 0-25N
Net Weight 350kg 300kg 500kg
Machine Size (mm) L1010xW950xH1120 L1010xW950xH1120 L1450xW1300xH1200

Detailed Images:

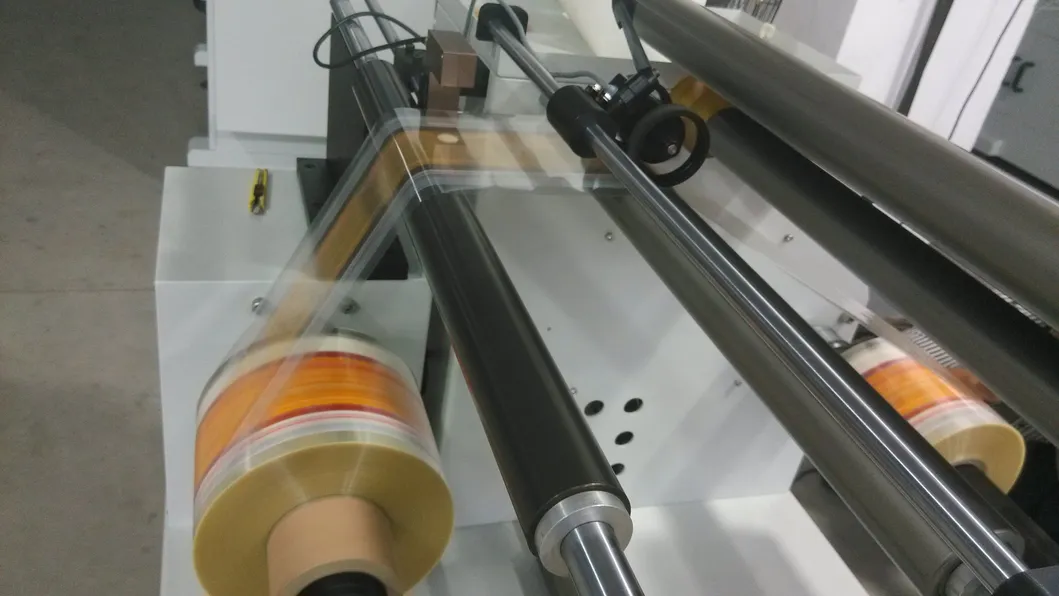

Web guide and count meter

Automatic rewinding machine with web guide and count meter function.

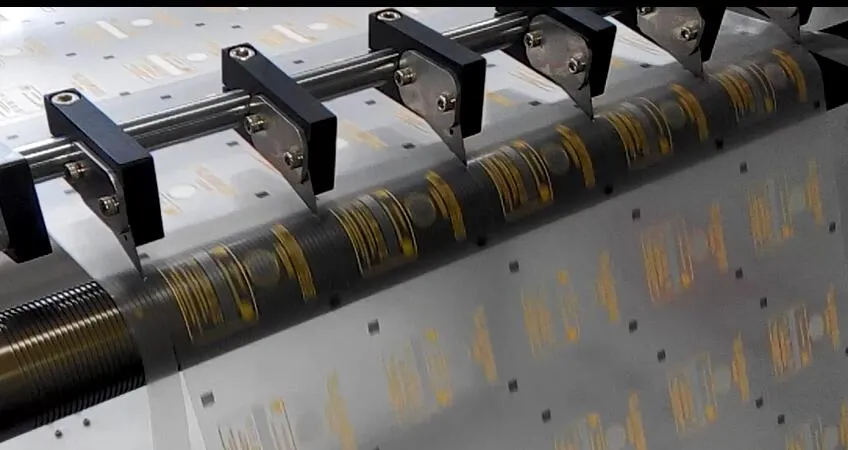

Slitting function

Automatic rewinding machine with web guide and slitting function.

Dust cleaning

Automatic rewinding machine with web guide and dust cleaning function.

Component Detail
Full Machine Overview

Frequently Asked Questions

What materials can this automatic rewinding machine handle?
The machine is designed to rewind a wide variety of soft materials in roll form, including paper, plastic film, nonwoven fabric, medical gauze, and aluminum foil.
Does the machine support transparent materials for web guidance?
Yes, the integrated sensor used for the web guide is compatible with both transparent and non-transparent materials.
How is the tension controlled during the rewinding process?
The machine utilizes a magnetic powder brake system to ensure precise and consistent tension control throughout the process.
What are the available optional functions?
Depending on your production needs, you can opt for additional functions such as a count meter, slitting capabilities, dust cleaning, and corona treatment.
What is the maximum roll diameter and width capacity?
The machine supports a maximum roll diameter of 550mm. The width capacity ranges from 400mm up to 900mm depending on the specific model selected.
Is there an automatic safety stop feature?
Yes, the machine is programmed to stop automatically once the rewinding process is finished, ensuring efficiency and safety.

Related Products

High Speed Cotton Fabric Weaving Textile Machines Medical Gauze Bandage Making Air Jet Loooms Jlh9200

High Speed Cotton Fabric Weaving Textile Machines Medical Gauze Bandage Making Air Jet Loooms Jlh9200
Medical Gauze Bleaching Line Machine Medical Cotton Dyeing Machine

Medical Gauze Bleaching Line Machine Medical Cotton Dyeing Machine
Medical Gauze Bleaching Line Machine Medical Cotton Dyeing Machine

Medical Gauze Bleaching Line Machine Medical Cotton Dyeing Machine

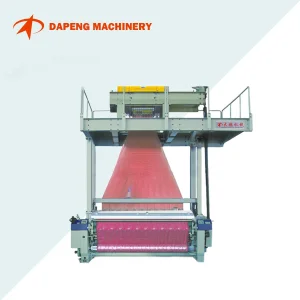

Dapeng High Speed Fabric Medical Gauze Making Machine Electronic Jacquard Home Textile Weaving Machine Interlining Making Machine From China

Dapeng High Speed Fabric Medical Gauze Making Machine Electronic Jacquard Home Textile Weaving Machine Interlining Making Machine From China
Dapeng High Speed Fabric Medical Gauze Making Machine Electronic Jacquard Home Textile Weaving Machine Interlining Making Machine From China

Dapeng High Speed Fabric Medical Gauze Making Machine Electronic Jacquard Home Textile Weaving Machine Interlining Making Machine From China

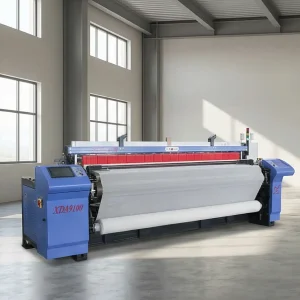

High Speed Tsudakoma Weaving Power Textile Jacquard Rapier Flannelette Spandex Yarn Plain Cotton Bandage Cam Dobby Towel Medical Gauze Air Jet Loom Machine

High Speed Tsudakoma Weaving Power Textile Jacquard Rapier Flannelette Spandex Yarn Plain Cotton Bandage Cam Dobby Towel Medical Gauze Air Jet Loom Machine
Air Jet Type High Speed Medical Gauze Making Machine Sq910

Air Jet Type High Speed Medical Gauze Making Machine Sq910
Jlh 425s Medical Gauze Making Machine Medical Manufacturing Machine

Jlh 425s Medical Gauze Making Machine Medical Manufacturing Machine

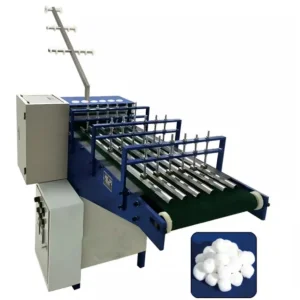

High Speed Automatic Absorbent Surgery Medical Fiber Dentist Non Woven Soft Cotton Ball Non-Woven Textile Machine for Medical Use Gauze and Make-up Cotton
