This emergency medical waste disposal system features a daily processing capacity of 3.2 tons, adopting the core sterilize first, then crush process for safe and standardized waste treatment. It realizes full-process PLC centralized automatic control with manual operation backup for power failure, and real-time fault alarm for key parameters like boiler liquid level and steam pressure, ensuring stable and continuous operation.

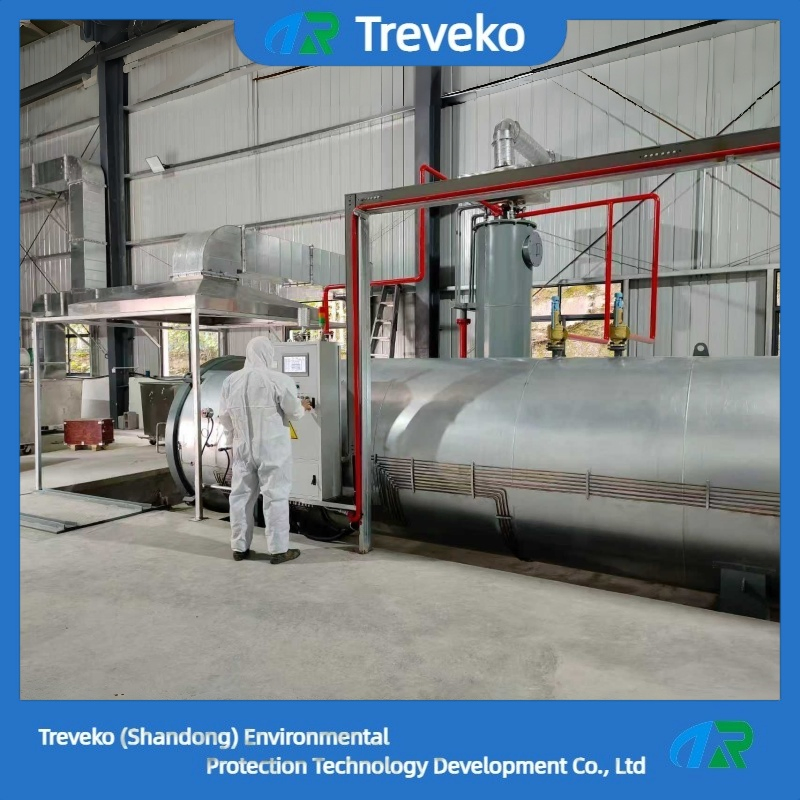

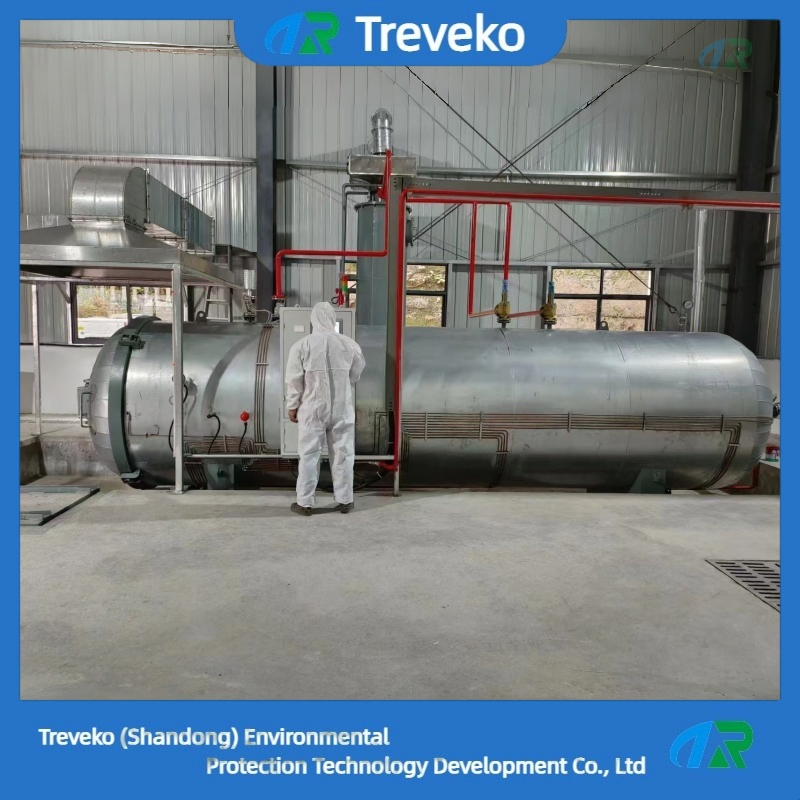

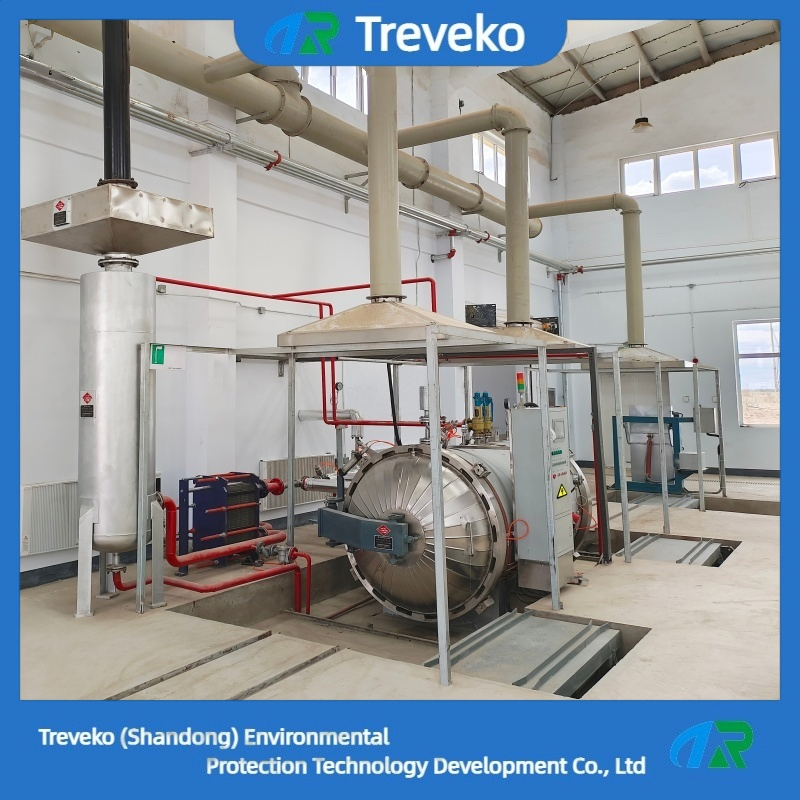

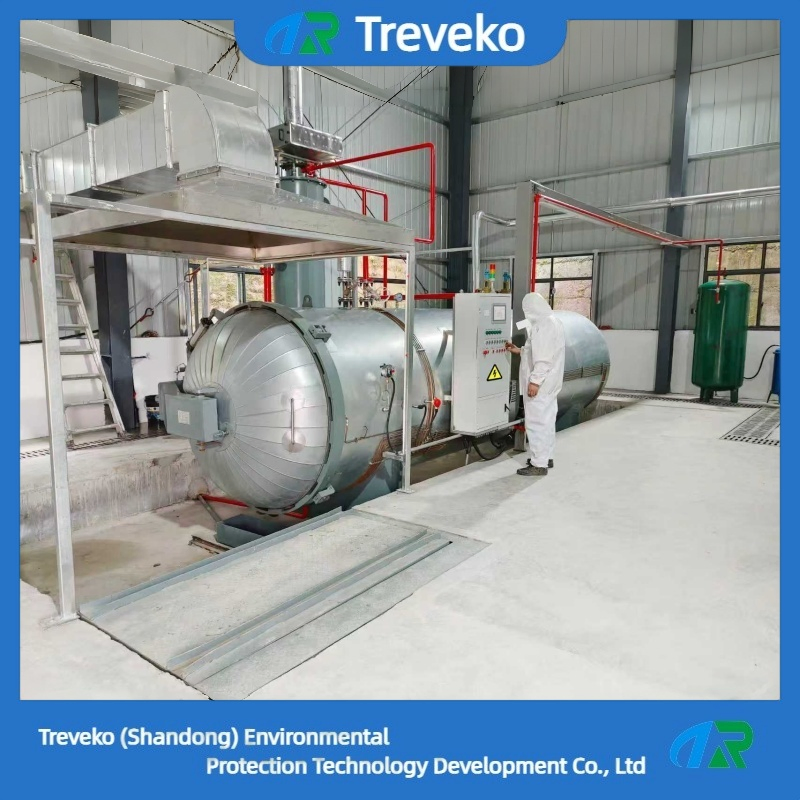

The horizontal double-door sterilizer operates at ≥135℃ and ≥0.22Mpa with a 45-minute sterilization cycle, adopting pre & post vacuum technology to achieve thorough sterilization, deodorization and drying. The high-power crushing system enables irreversible waste deformation and volume reduction, turning medical waste into non-recyclable general waste.
| System Unit | Project | 2.5T type | 5T type | 8T type |
|---|---|---|---|---|
| Sterilization Tank | Volume | 2.5m³ | 10m³ | 12m³ |
| Water Softener | Power | 0.1KW | 0.2KW | 0.2KW |
| Steam Generator | Power | 72KW×2 | 180KW×2 | 180KW×2 |
| Air Compressor | Power | 7.5kw | 7.5kw | 7.5kw |
| Exhaust Fan | Power | 7.5KW | 7.5KW | 7.5KW |
This medical waste system features high automation and reliable operation. With a 3.2t/d capacity, it adopts the "sterilize first, then crush" process. Key safety features include an interlock device and high-temperature rock wool insulation for energy saving.
All core components use 304 stainless steel and anti-corrosion materials. The system ensures zero secondary pollution with integrated waste gas and water treatment units.
Mature technology and full-process integration ensure unmanned operation in most processes, significantly reducing labor costs. The closed disposal chain prevents secondary recycling risks and environmental contamination.
