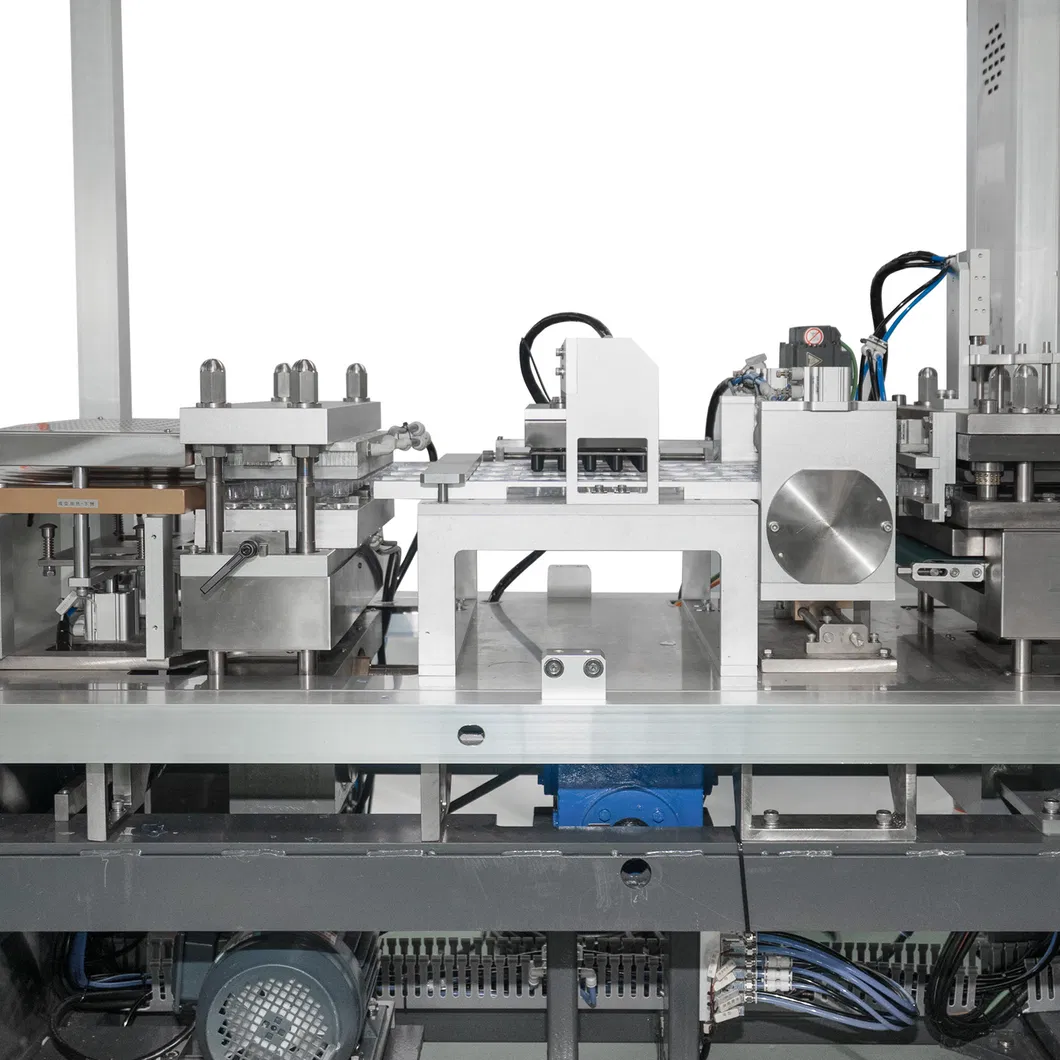

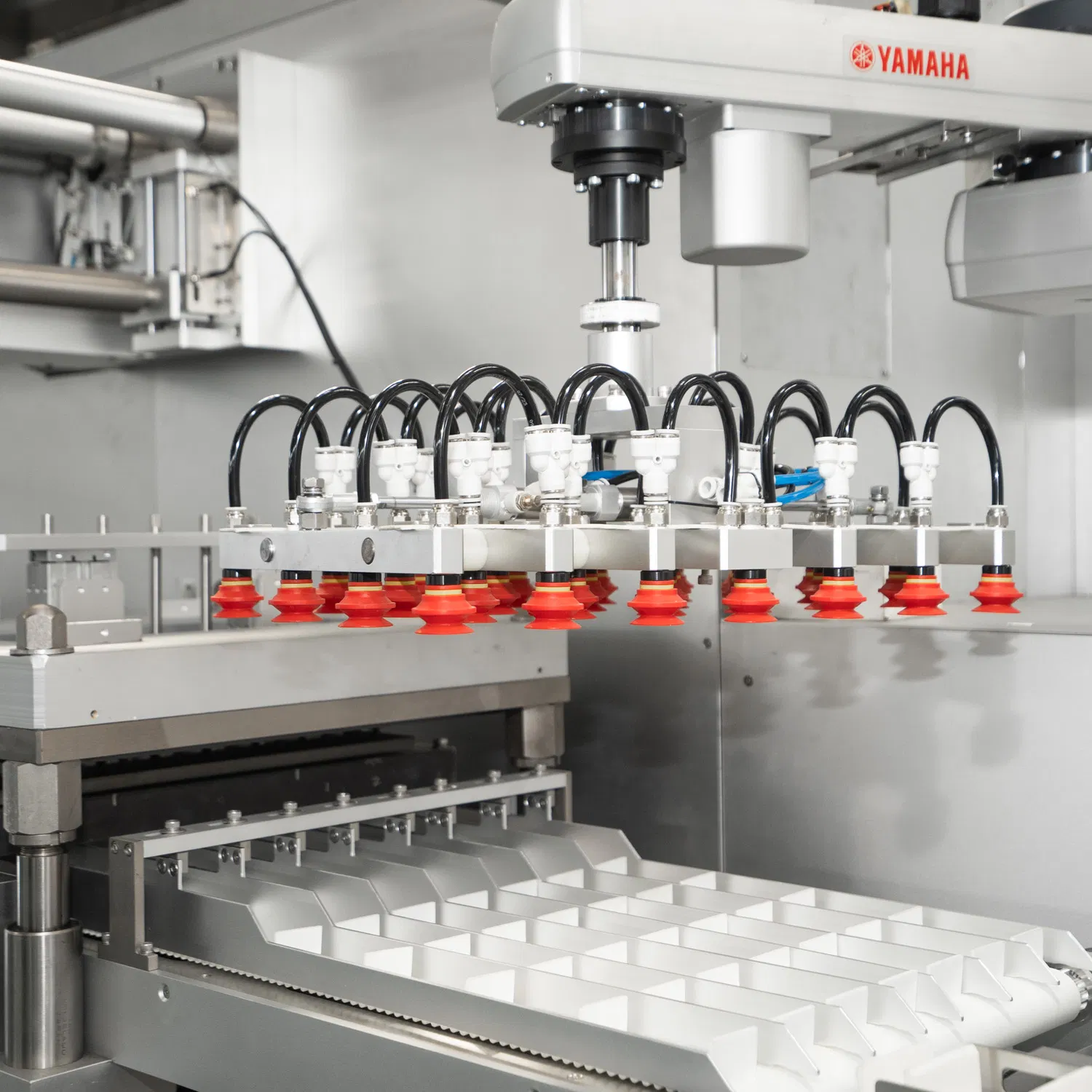

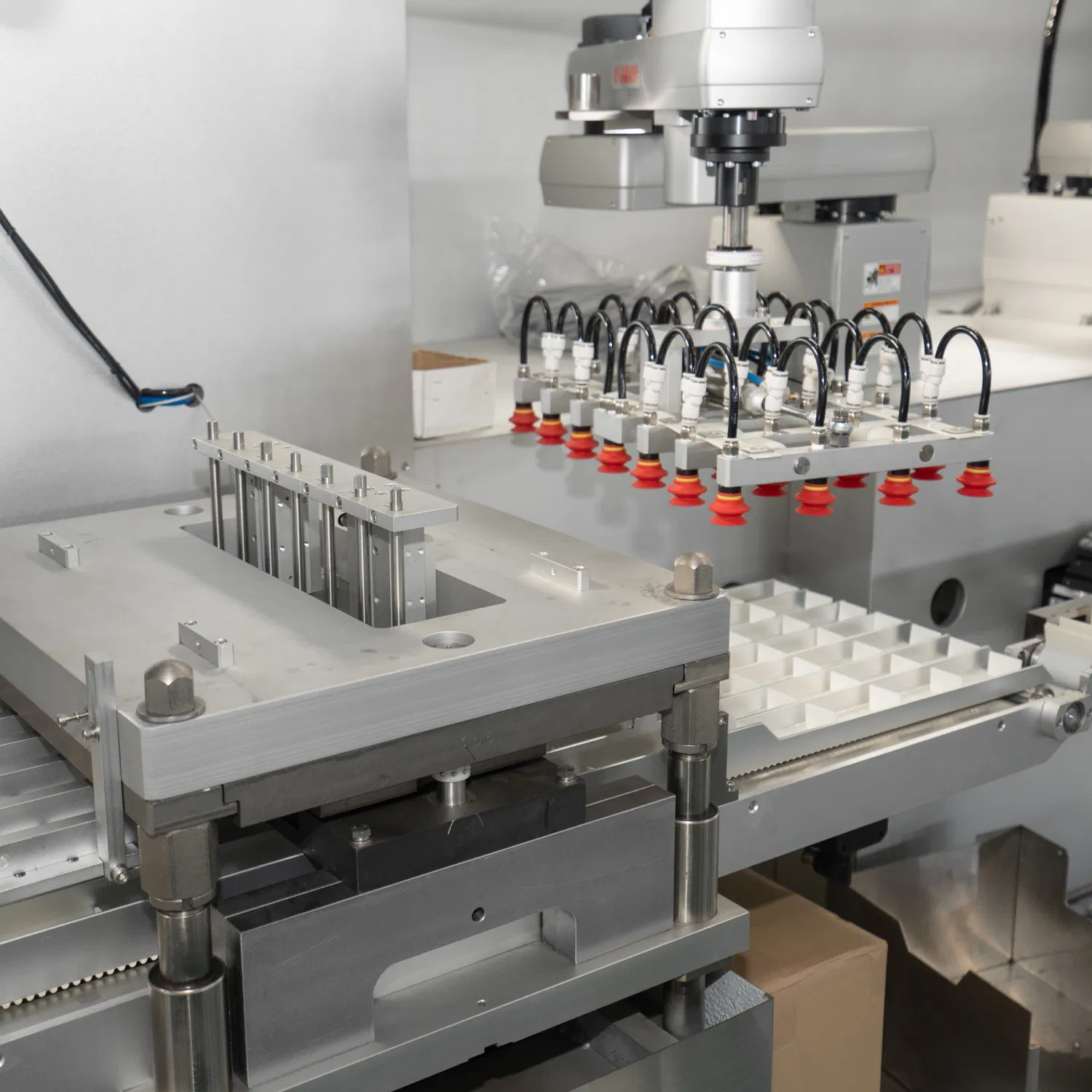

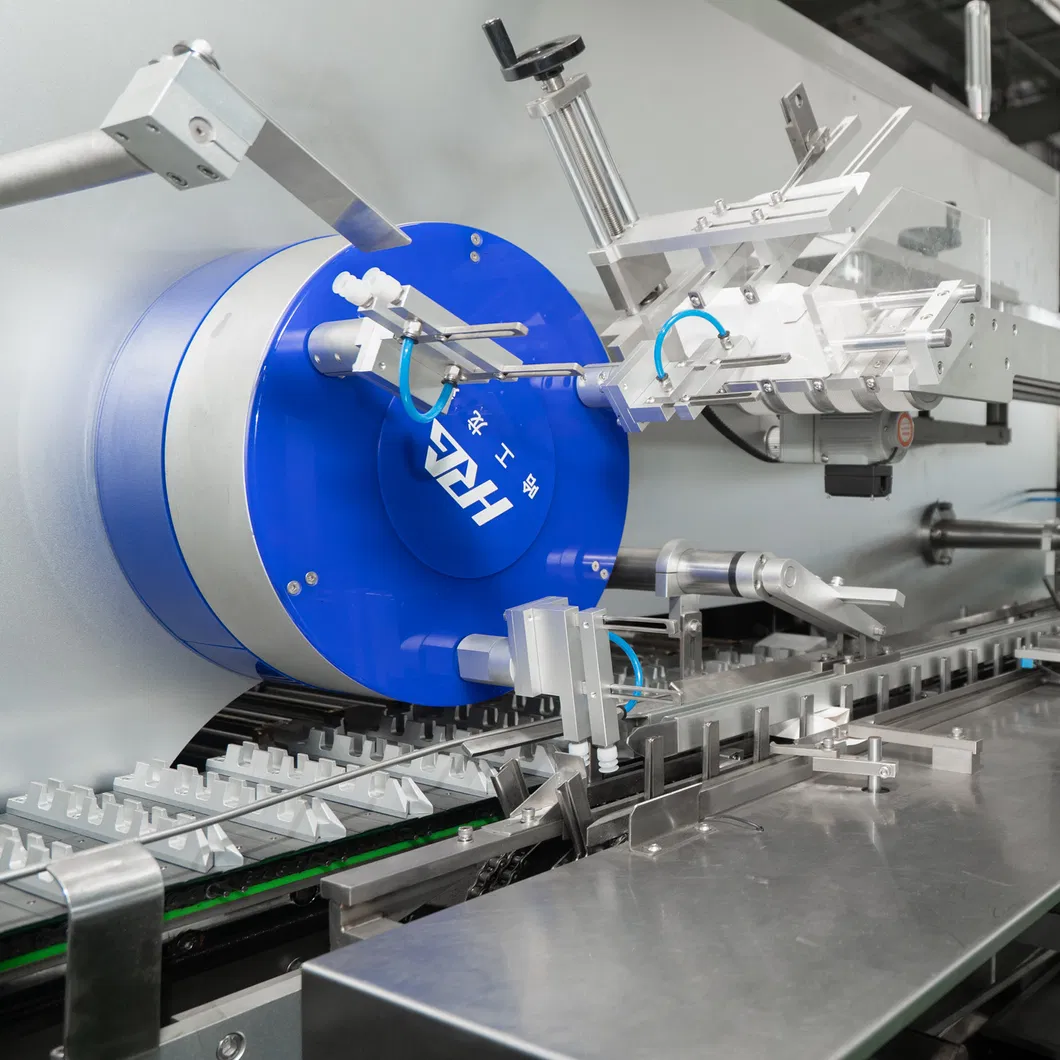

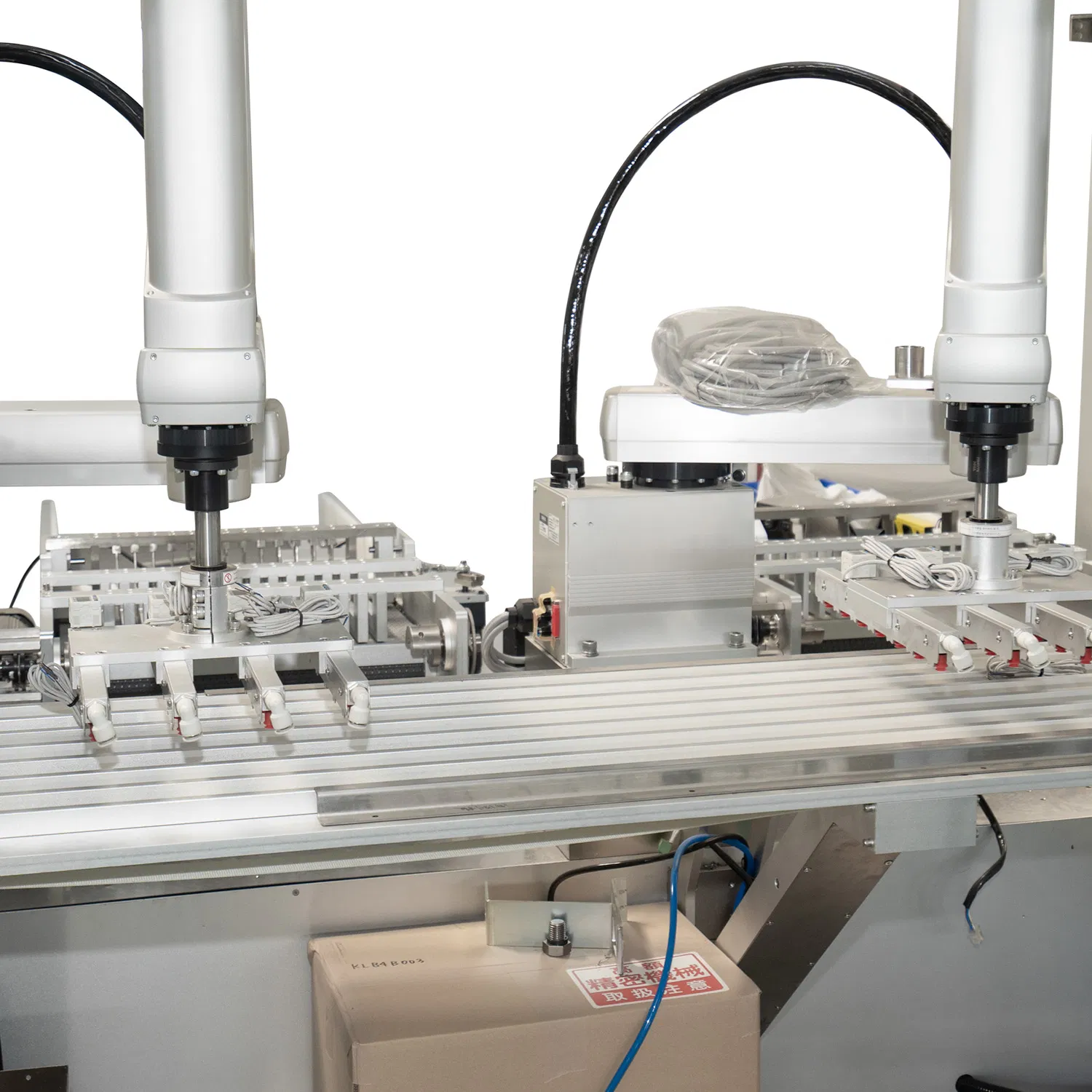

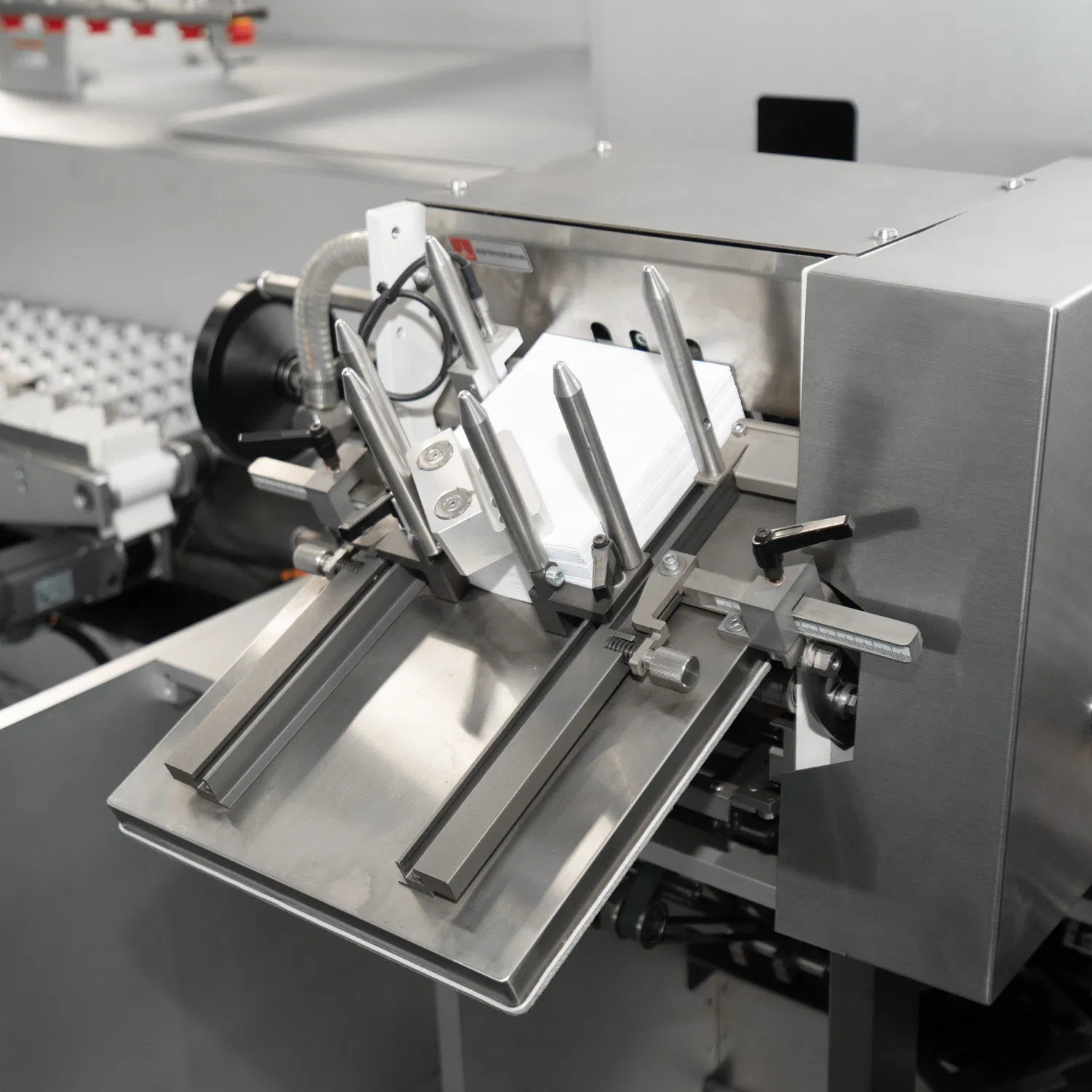

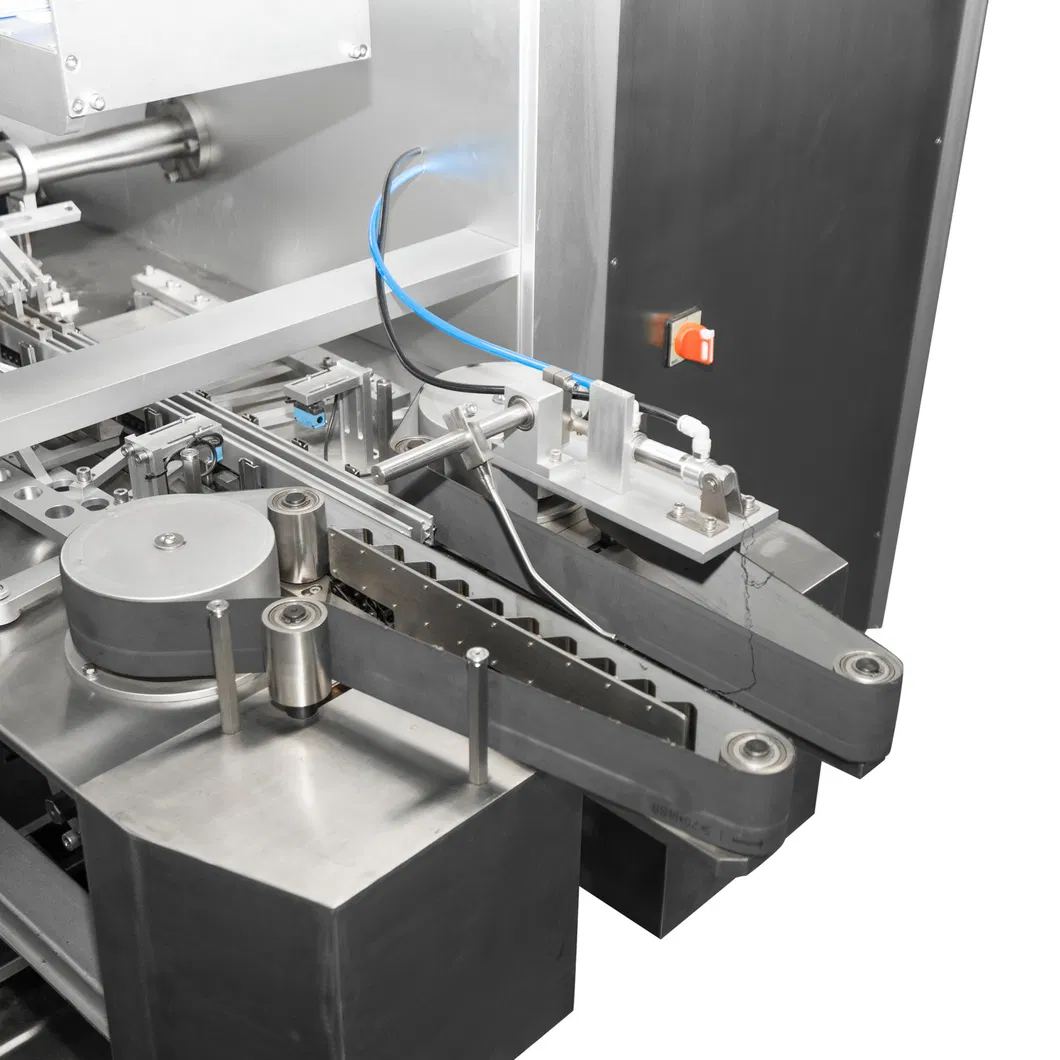

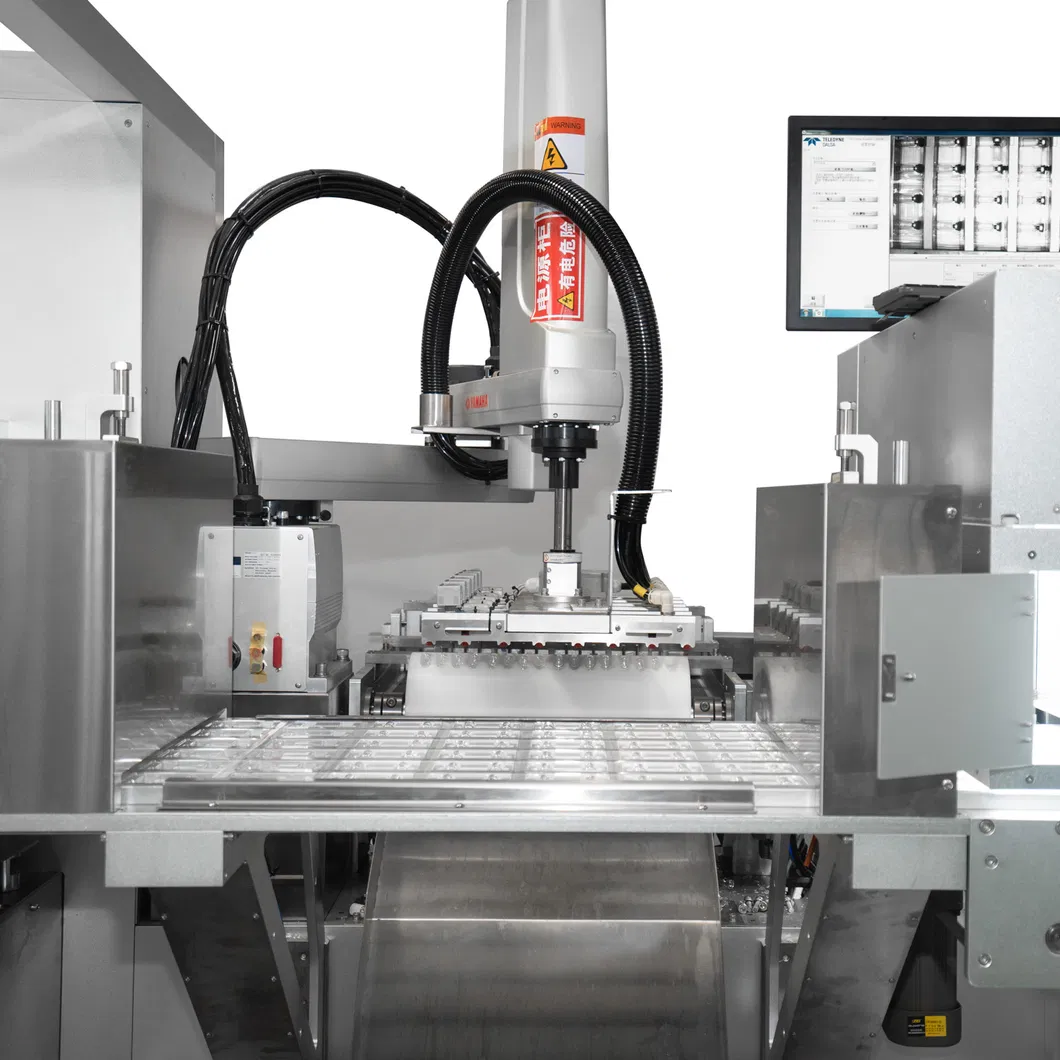

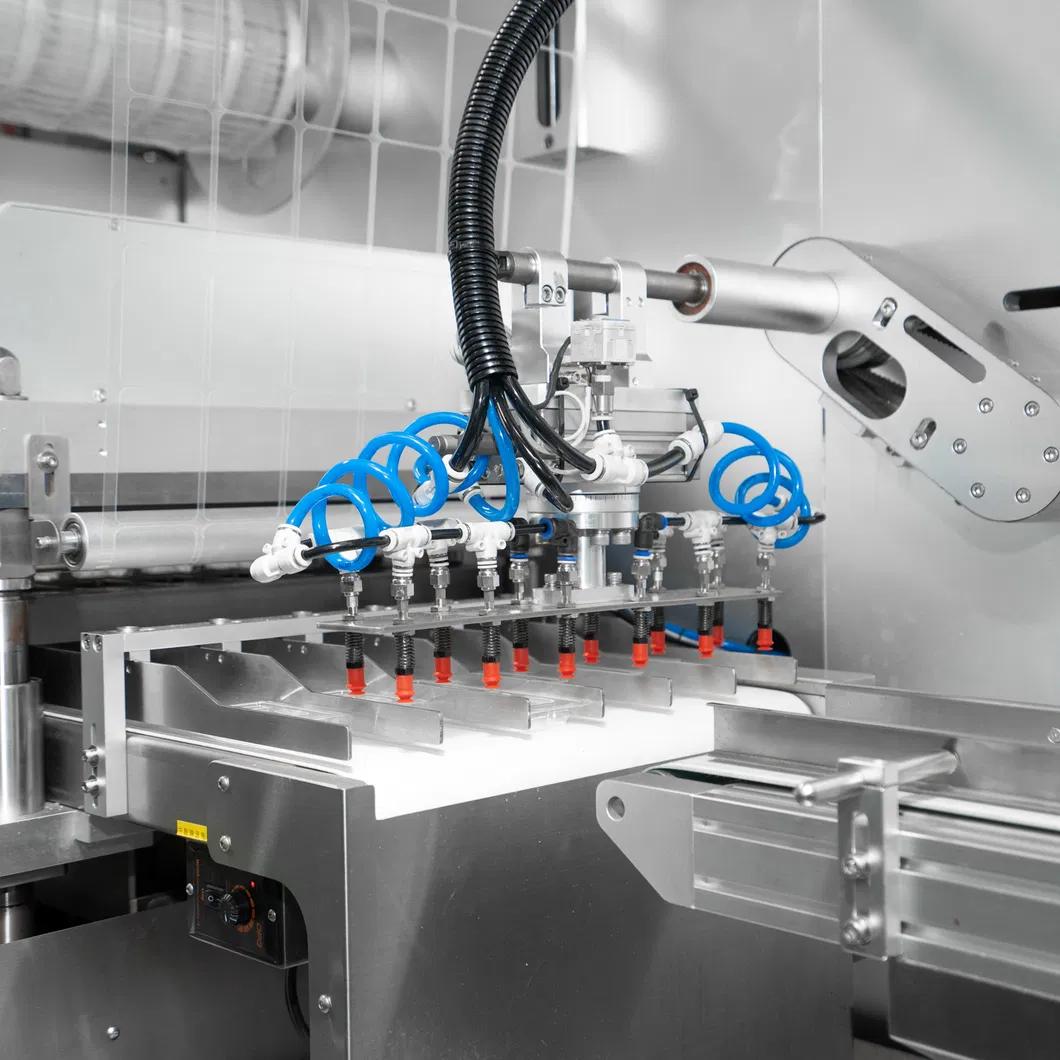

With modular design, the DPTL-350/420 is applicable to tray making, loading, lamination and packing into cartons for vials, ampoules, injectables (powder), oral liquids or trays of bigger sizes and special shapes for medical appliances, electronics (cells) and cosmetics, all modules integrated in one line with high speed.
| Line Model | DPTL 350-150 | DPTL 420-200 | DPTL 600-300 |
|---|---|---|---|
| Max. Capacity | 150 cartons/min. | 200 cartons/min. | 300 cartons/min. |
| Max. Carton Size | 170 x 180 x 60 mm | ||
| Min. Carton Size | 55 x 30 x 15 mm | ||
| Total Power | 16.5 Kw | 19.4 Kw | 21.4 Kw |
| Main Motor Power | 1.5 Kw | 2.4 Kw | 4.4 Kw |
| Air Pressure | ≥0.6 MPa | ≥0.6 MPa | ≥0.6 MPa |
| Dimensions (LxWxH) | 10500x1170x1900mm | 11800x1570x2100mm | 12000x1600x2100mm |
| Weight | 6600 Kg | 7000 Kg | 7500 Kg |
We offer Preventative Maintenance and After Sales Service. We provide comprehensive maintenance options to prevent equipment issues before they become problems. One year warranty is included!
Installation Services are available with all new machine purchases. We provide the technical know-how for smooth transition and support for installing, debugging, and operation training.
All machines can be customized depending on your requirements. Our designs incorporate advanced technology with PLC control, reasonable compact structure, and high filling accuracy.
Every machine undergoes strict inspection before storage. We use high-quality electrical components and offer life-long maintenance services beyond the warranty period.
