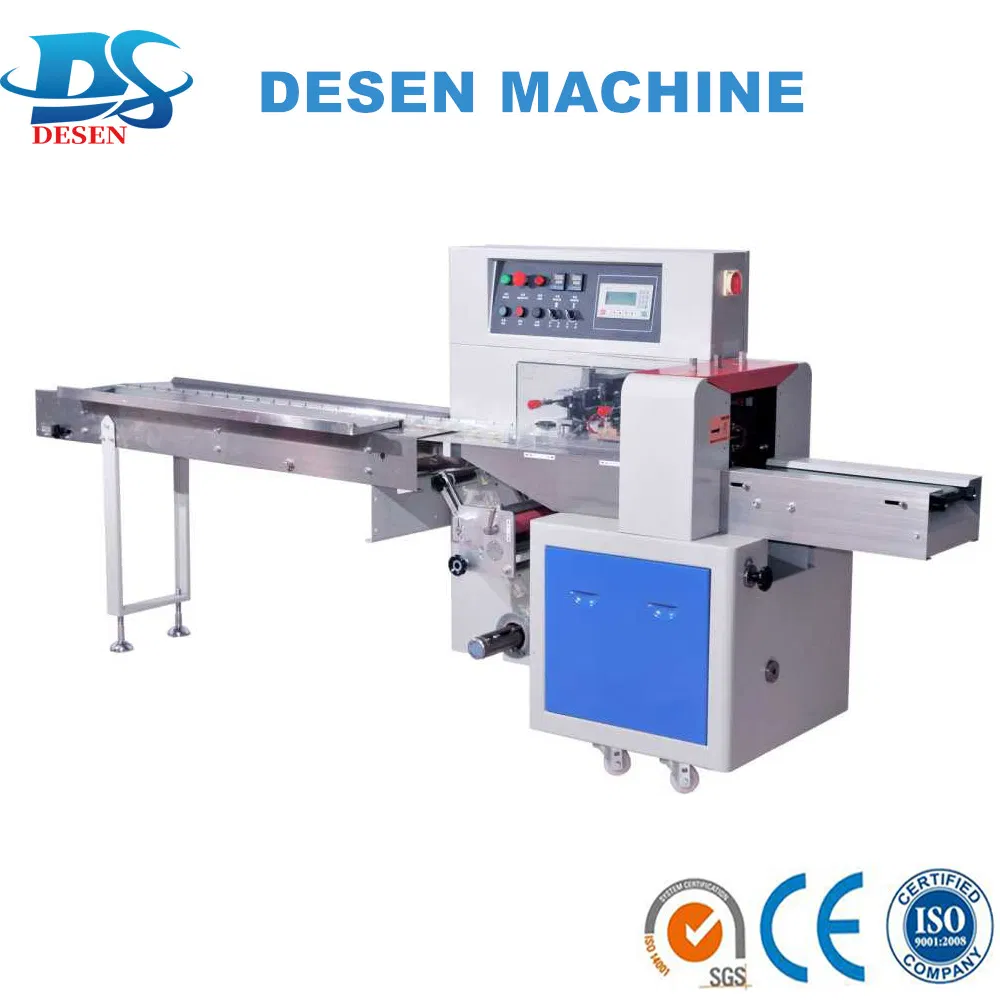

Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine
Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine
Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine
Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine
Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine
1 / 5
Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine
Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine
Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine
Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine
Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine

Automatic Medical Disposable Surgical Labour Protection Latex Rubber Glove Packaging Machine

Customization: Available
Automatic Grade: Automatic
Application: Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Hardware
Send Inquiry

Product Description

Basic Information
Model NO.
MZ-350B
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Seal
Driven Type
Electric
Material Type
Solid
Packaging
Bag
Packaging Material
Film
Film Width
Max.350mm
Bag Length
65-190 or 120-280mm
Bag Width
50-160mm
Product Height
Max.40mm
Packaging Speed
40-180bags/Min
Voltage
220V 50/60Hz
Power
2.6kw
Machine Weight
580kgs
Origin
China
Production Capacity
500PCS/Month
Product Description

3ply earloop Non-woven fabric Disposable face mask flow packaging machine

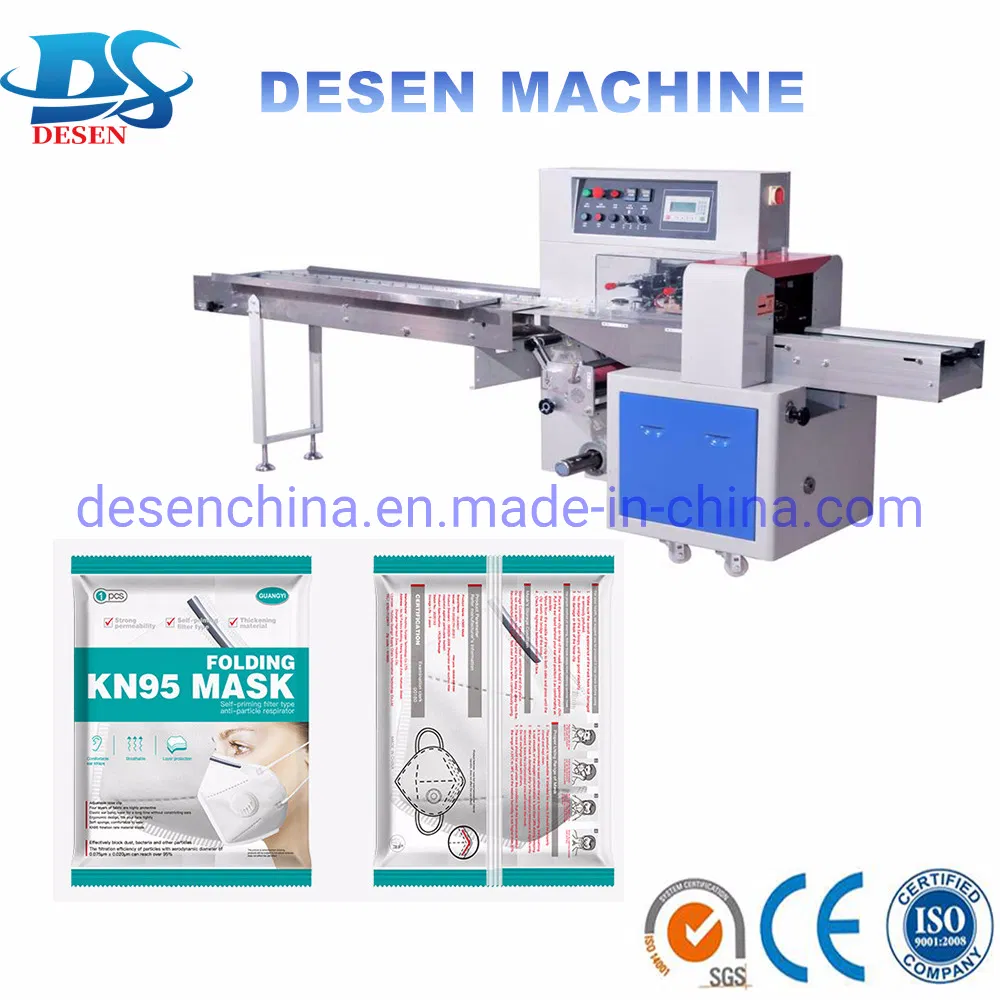

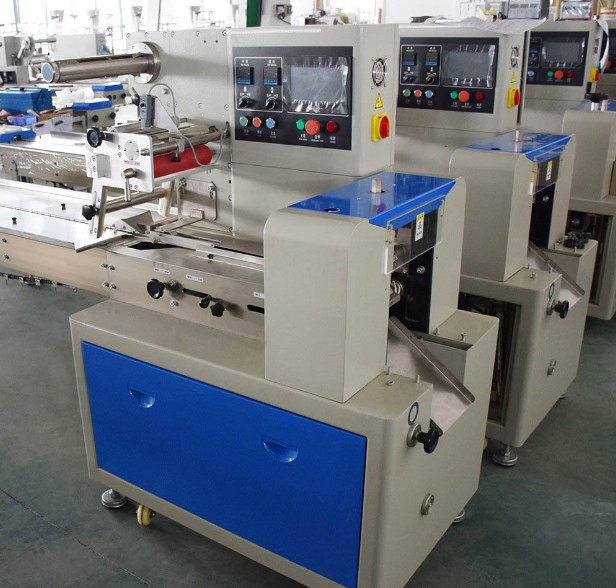

Packaging Machine View 1

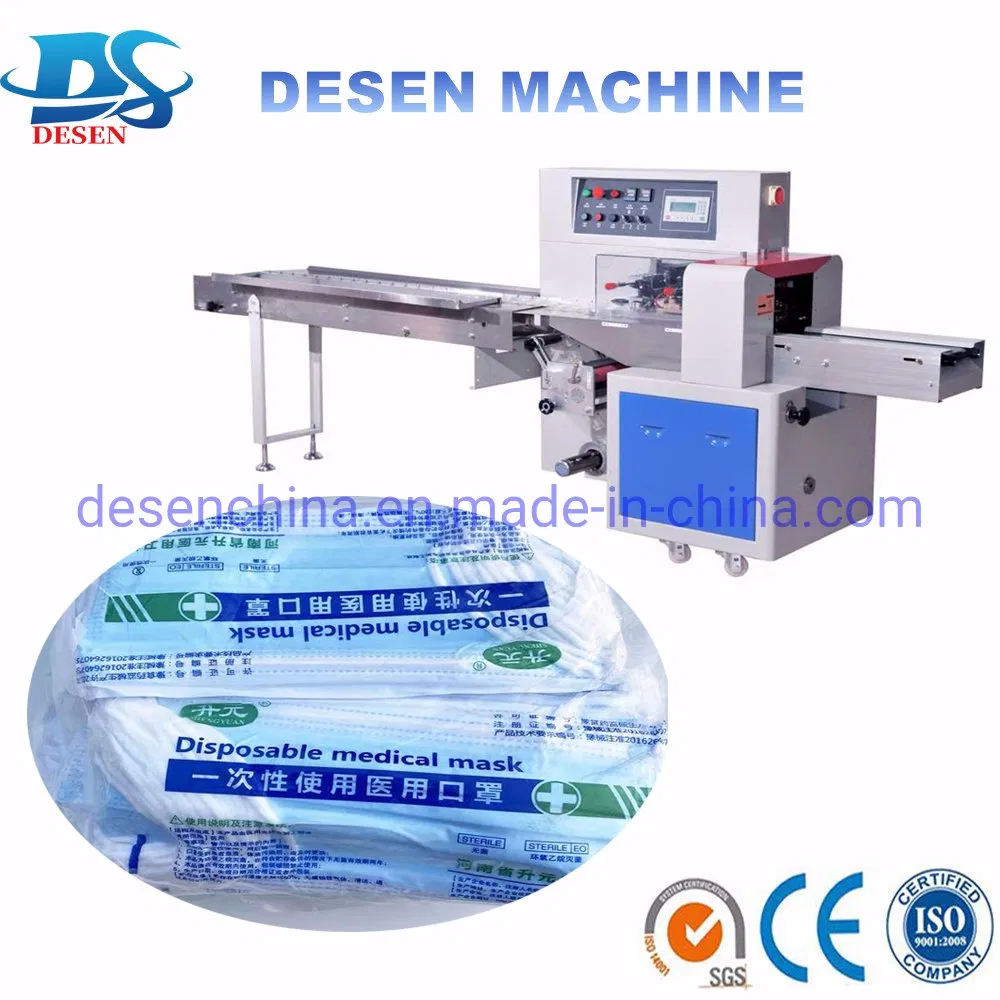

Packaging Machine View 2

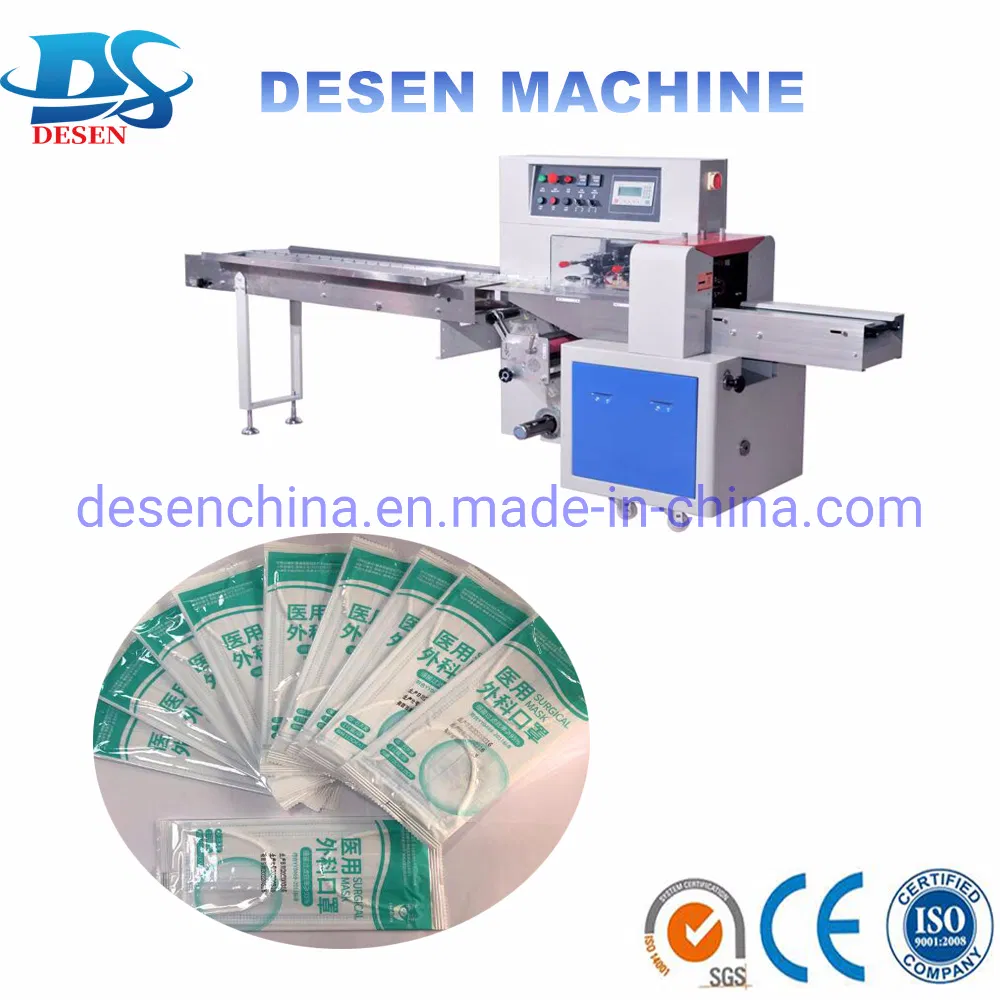

Packaging Machine View 3

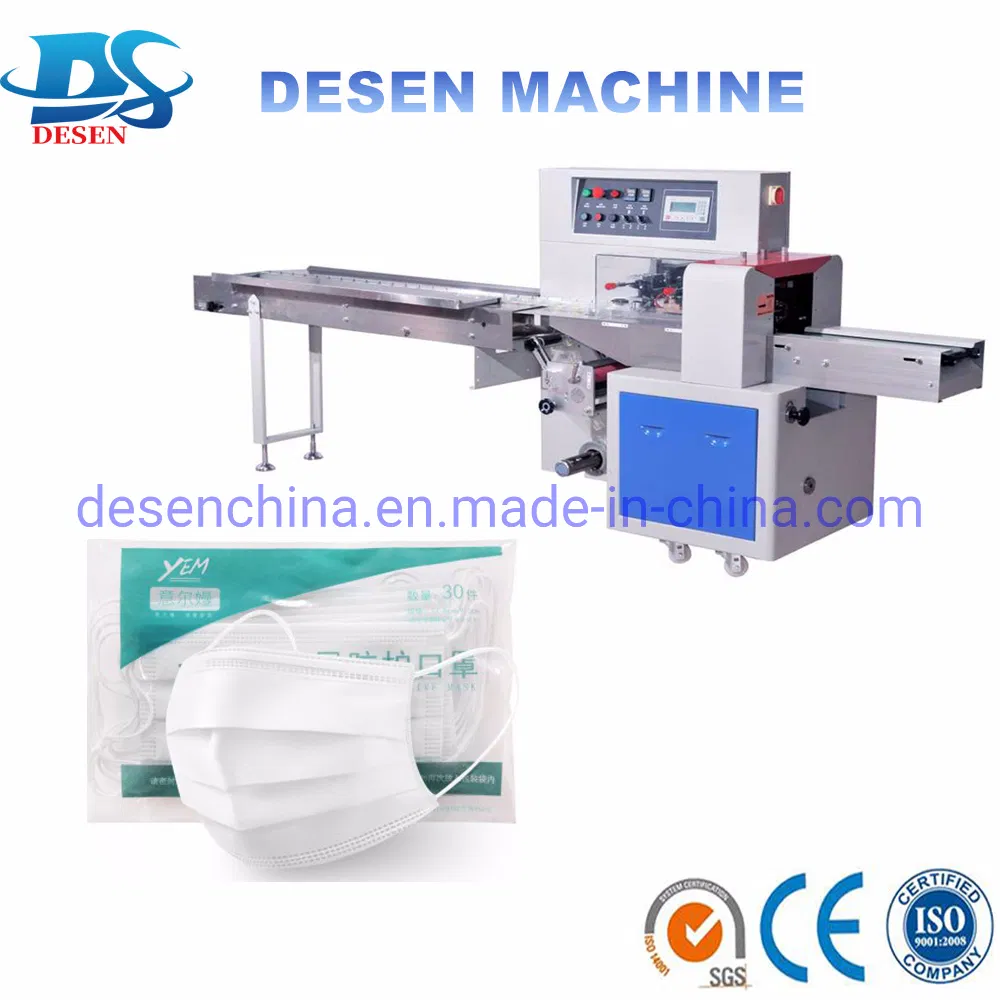

Packaging Machine View 4
Key Features
✓Compact structure, stable function and simple operation.
✓Double frequency converter controller; length of package is cut immediately once setting, saving time and film.
✓Imported electric appliances and touch man-machine interface for convenient parameter setting.
✓Self-checking function for easy trouble reading; high sensor photoelectric color chart tracking for precise cutting.
✓Dependent temperature PID controlling suitable for various packaging materials.
✓Position stop function to prevent adhesive sticking and waste of membrane.
✓Clean rotation system for reliable operation and convenient maintenance.
✓All controls operated by software, facilitating adjustment and technical upgrading.
Performance And Characteristics

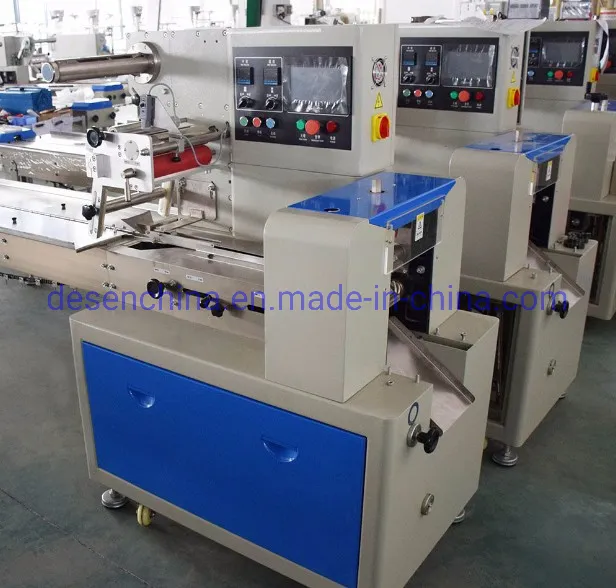

Performance View 1

Double frequency conversion control allows bag length setting and cutting in one step, saving time and membrane.

Performance View 2

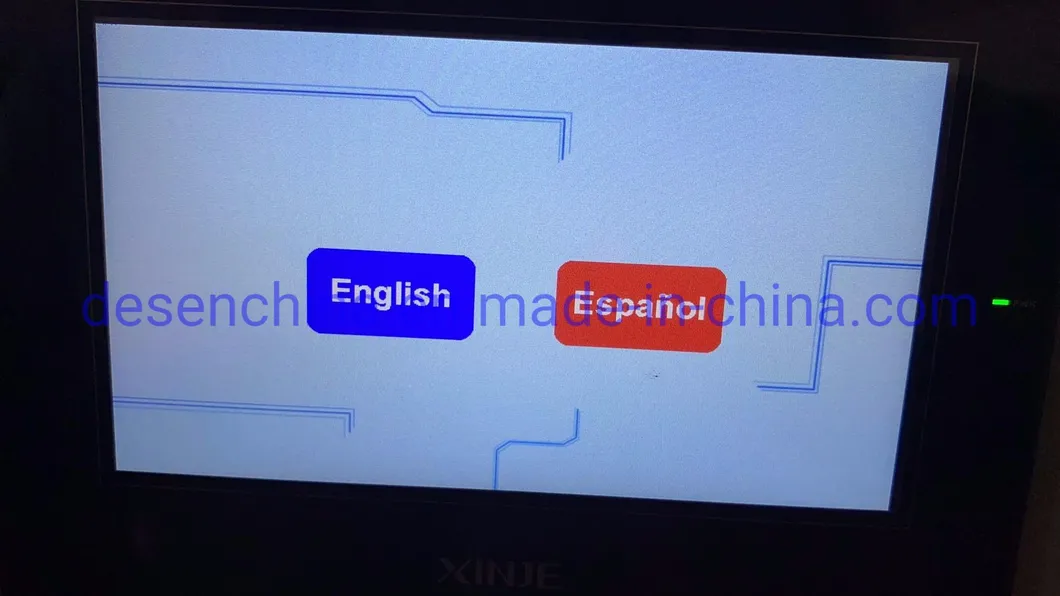

Touch human-machine interface with fault self-diagnosis. Multiple language options available (English, Spanish, Chinese, etc.).

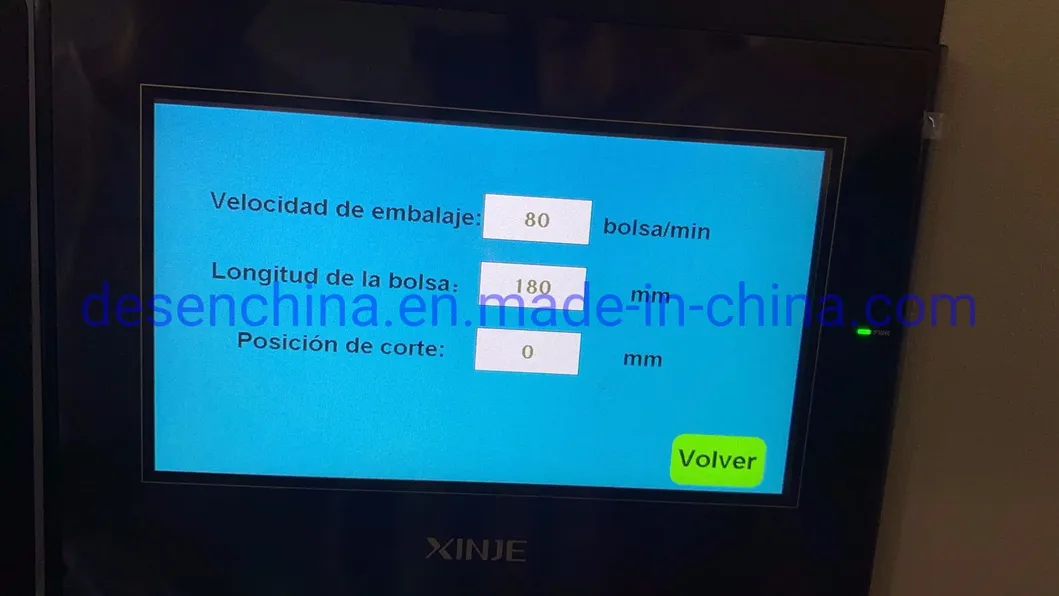

Performance View 3

Temperature independent PID control, better suited for a variety of coated materials.

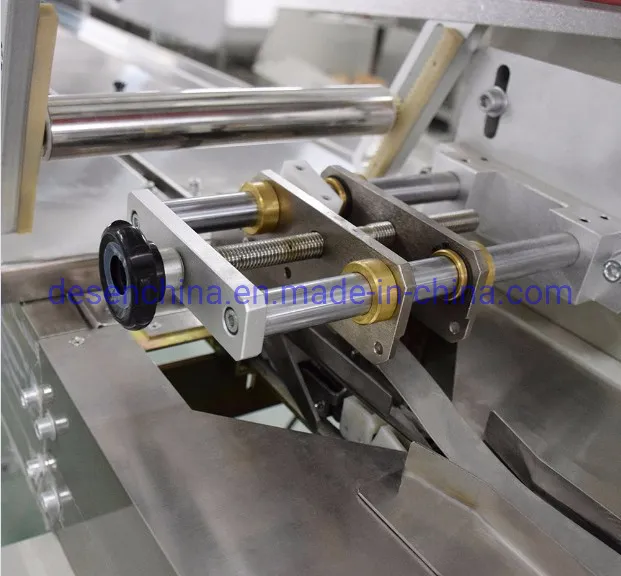

Performance View 4

Multi-linked film roll shafts coordinate pulling for smoother operation across different film materials.

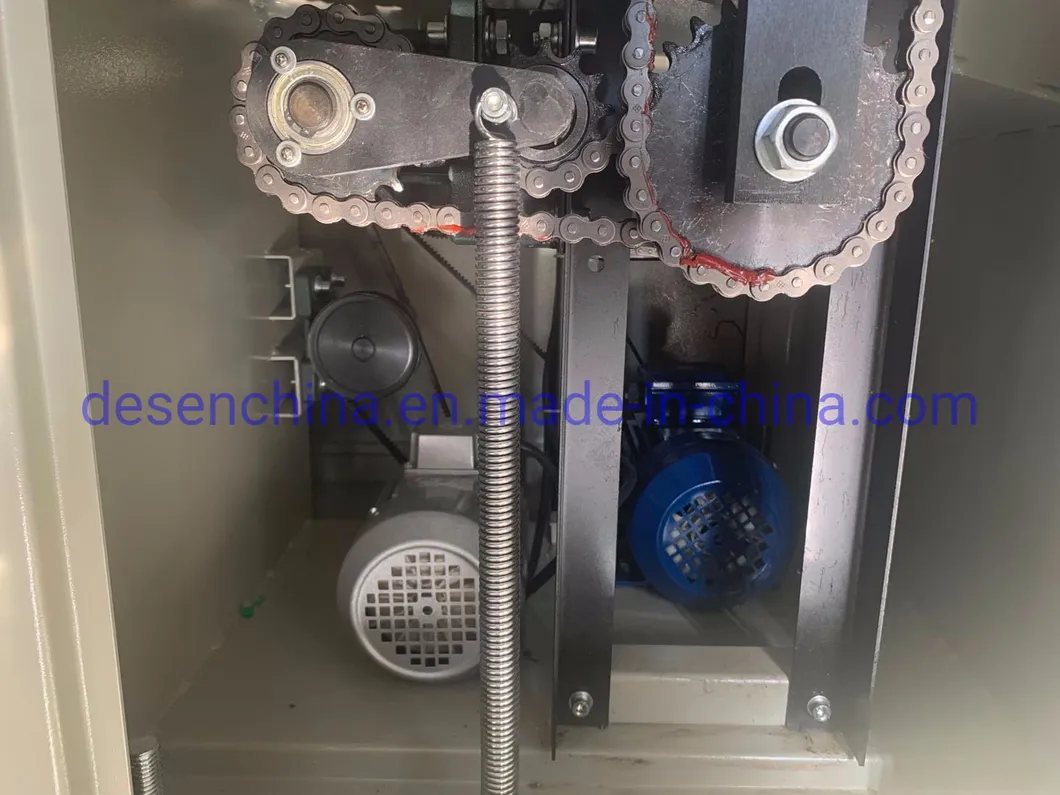

Performance View 5

Adopted imported stepper motor for low noise and high tracking accuracy. Servo motor optional.

Technical Parameter
Model MZ-250B MZ-320B MZ-350B
Film widthMax. 250mmMax. 320mmMax. 350mm
Bag length65-190 / 120-280mm
Bag width30-100mm50-160mm
Product heightMax. 40mm
Dia of film rollMax. 320mm
Packaging speed40-230 bag/min40-180 bag/min
Power220V, 50/60HZ, 2.4KVA220V, 50/60HZ, 2.6KVA220V, 50/60HZ, 2.6KVA
Size (L×W×H)4090×680×1420mm4090×720×1420mm4300×770×1420mm
Weight500kg550kg580kg
Export Packaging & Processing

Exporting Wooden Cases:

Wooden Case Packaging

Production Processing:

Production Processing
Frequently Asked Questions
Q1: What materials can the MZ-350B packaging machine handle? The machine is designed for solid products such as disposable face masks, medical gloves, and other similar items using various film materials.
Q2: Is the bag length adjustable during operation? Yes, the bag length can be set and adjusted through the touch screen interface, and the double frequency converter allows for immediate cutting without manual adjustment.
Q3: What is the maximum packaging speed of this machine? The MZ-350B model can achieve a packaging speed of 40 to 180 bags per minute, depending on the product size and material.
Q4: Does the machine support different languages on the touch screen? Yes, the human-machine interface supports multiple languages including English, Spanish, and Chinese for global usability.
Q5: What are the power requirements for installation? The machine operates on a standard voltage of 220V at 50/60Hz with a power consumption of approximately 2.6kw.
Q6: How does the machine ensure cutting accuracy? It utilizes a high-sensitivity photoelectric color chart tracking system and imported stepper motors to ensure the cutting position is precise every time.
