Basic Information
Model NO.
JY-280/320/350/450/600/700/900
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Film Width
280/320/350/450/600/700/900mm
Packing Speed
Max.300PCS Per Min
Control System
Servo Motor and PLC

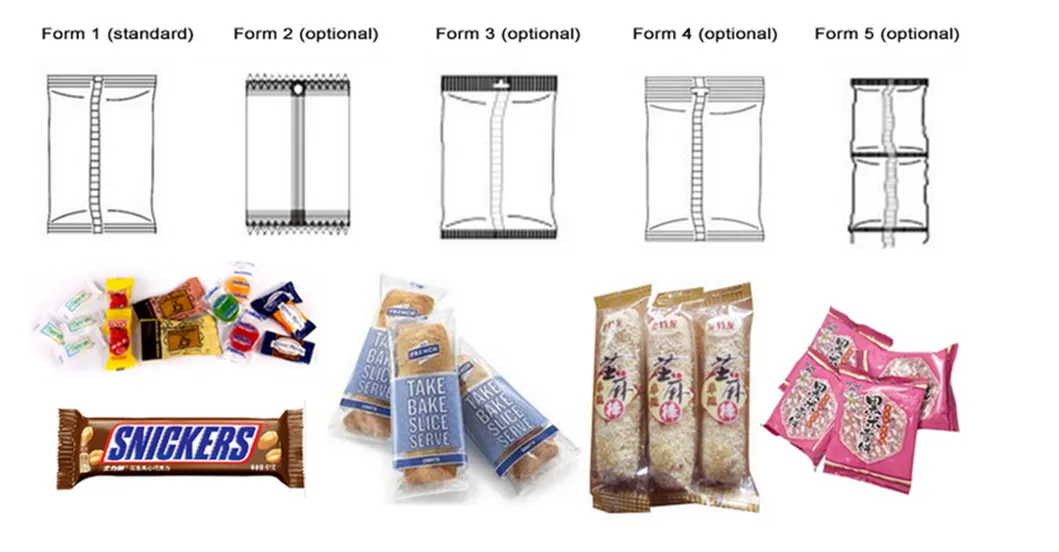

Bag Sealing System
Back Seal/End Seal
Date Printer
Ink Roll and Tto
Transport Package
Wooden Case
Product Description
Horizontal Flow Packing Machine
JY serious flow packing machine has good performance at solid product packaging solution such as bread, cake, chocolate, energy bar, tortillas, ice-lolly, vegetable, face mask and more.
Main Features
⚙️Servo motor control: Accurate bag length setting.
📱7-inch touch screen: Easy operation with multiple language options.
🌡️PID Temperature control: Low-temperature sealing to increase speed and prevent film burning. Suitable for aluminium, paper, PE, and composite films.
👁️Photoelectric eye tracking: High sensitivity color tracking and numerical input for cutting accuracy.
💾Memory Function: Store 10 kinds of product packing data for quick setup.
🚫Safety Logic: No product, No pack system.
Working Process
Horizontal flow packing is a fully automatic process including: Product Feeding → Film Forming → Product Wrapping → Bag Sealing → Bag Packing.
Technical Specifications
| Model |
JY-280 |
JY-320 |
JY-350 |
JY-420 |
JY-450 |
JY-700 |
JY-900 |
| Control System |
1/3 servo motor control |
| Max. Film Width |
280mm |
320mm |
350mm |
420mm |
450mm |
700mm |
900mm |
| Bag Length |
60-280mm |
60-280mm |
60-300mm |
60-320mm |
80-350mm |
100-400mm |
100-400mm |
| Bag Width |
20-120mm |
20-140mm |
20-160mm |
20-190mm |
20-210mm |
50-320mm |
100-400mm |
| Bag Height |
5-50mm |
5-65mm |
5-80mm |
5-80mm |
5-90mm |
5-120mm |
5-150mm |
| Packing Speed |
300pcs/min |
300pcs/min |
300pcs/min |
250pcs/min |
200pcs/min |
160pcs/min |
100pcs/min |
| Construction |
Carbon steel |
Carbon steel |
Stainless steel |
Stainless/Carbon steel |
Stainless steel |
Carbon steel |
Advantages of Servo Motor System
- Accuracy: Achieves closed-loop control of position, velocity, and torque.
- Speed: Rated speeds can reach 2000-3000rpm.
- Stability: Smooth low-speed operation without stepping phenomena.
- Timeliness: Dynamic response time for acceleration/deceleration is within milliseconds.
- Comfort: Significant reduction in heat and noise.
Packing and Delivery
1. Packaging: Each machine consists of 2 packages; Gross weight 450kg-700kg (2.5-5.0 Cbm).
2. Nearest Seaport: Ningbo Port.
3. Delivery Time: Within 7-15 days.
Why Choose Our Solutions
- Expertise in solid product packaging solutions.
- Smart packing technology with excellent innovation.
- Reliable machinery manufacturing with CE certification.
- High-efficiency servo drive systems compared to traditional inverters.
Frequently Asked Questions
What types of products can the JY series flow packing machine handle?
The machine is designed for solid products including bread, cakes, chocolate, energy bars, tortillas, ice-lollies, vegetables, and medical face masks.
What is the advantage of a servo motor over a stepper motor?
Servo motors provide higher accuracy via closed-loop control, faster speeds (up to 3000rpm), better stability at low speeds, and faster dynamic response times.
What packing films are compatible with this machine?
The PID temperature control system allows for the use of various films, including aluminium film, paper film, PE film, and composite films.
How fast can this machine pack products?
Depending on the model, the machine can reach a maximum speed of 300 pieces per minute (e.g., JY-280, JY-320, and JY-350 models).
What is the typical lead time for delivery?
The standard delivery time is within 7 to 15 days, with shipments typically arranged through Ningbo Port.
Does the machine have a "No Product No Pack" feature?
Yes, the machine includes a high-sensitivity photoelectric eye and logic control to ensure it does not create empty bags when no product is detected.
