| Model Number | JY-280/320/350/450/600/700/900 |
|---|---|
| Machine Type | Forming Filling Sealing Machine |
| Function | Forming Species: Bag Moulding, Forming Function: Forming |

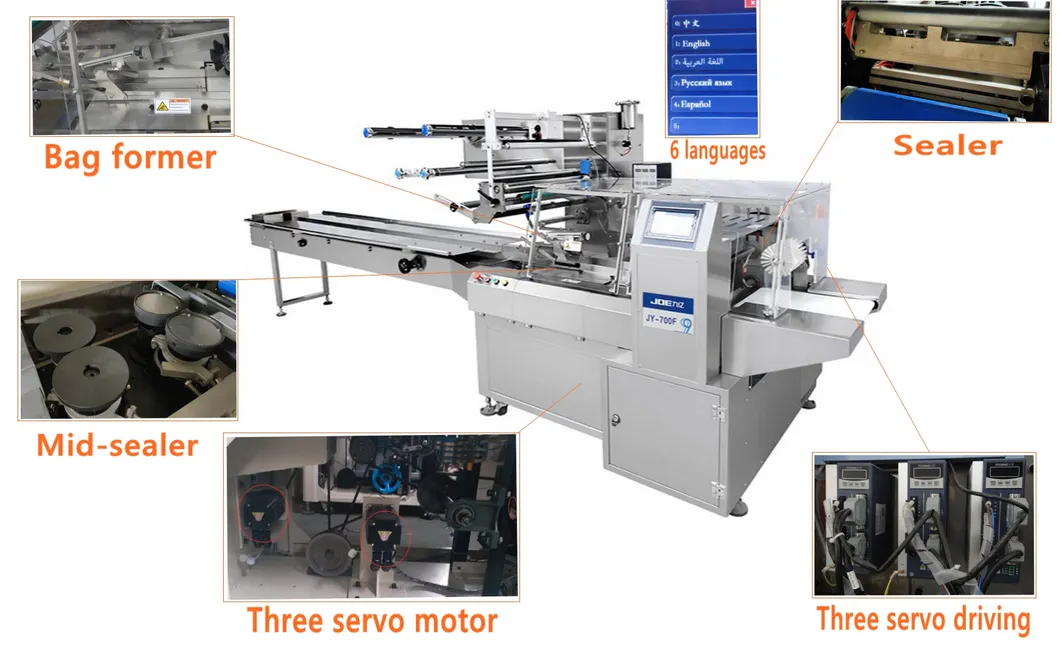

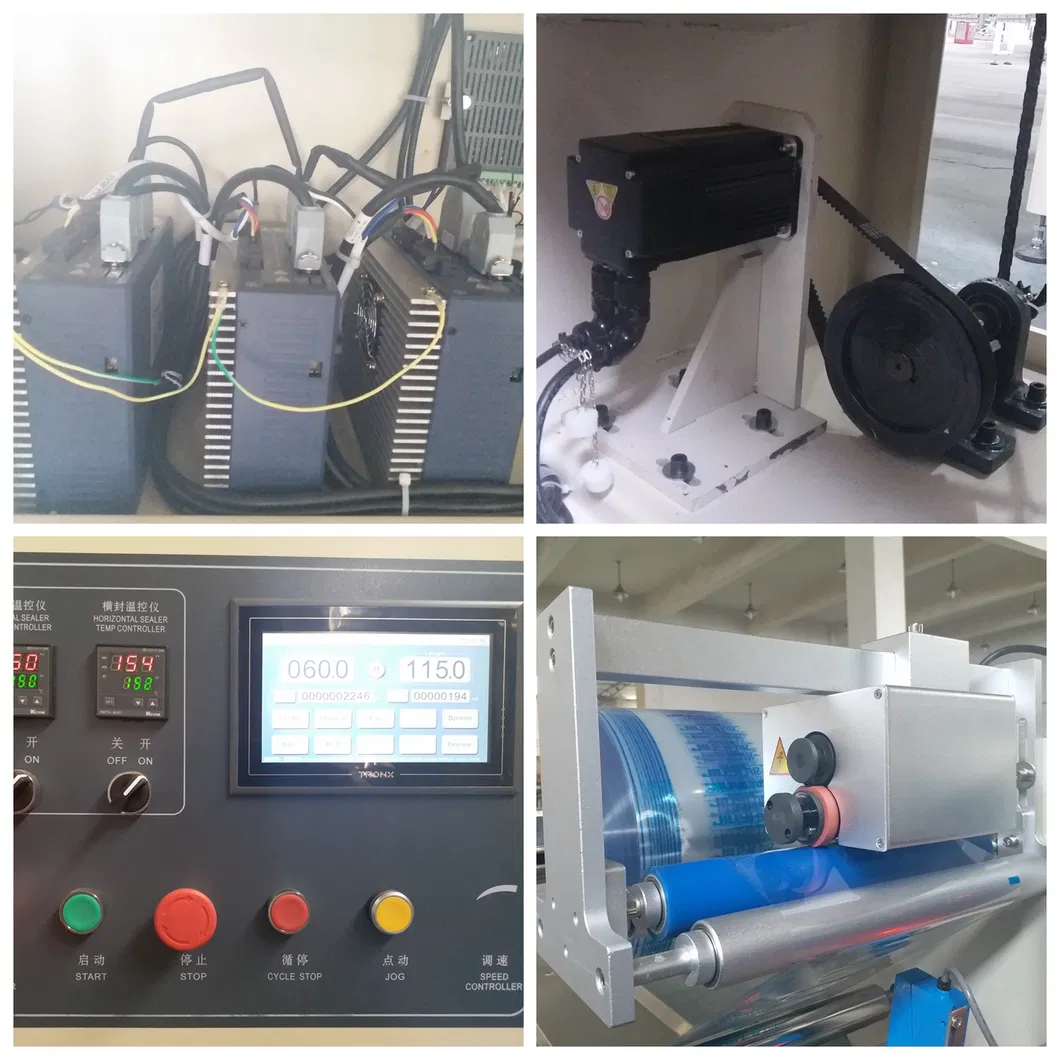

| Driven Type | Electric / Servo Motor and PLC Control |
| Packaging Material | Film (Aluminum, Paper, PE, Composite Film) |
| Dimension Details | Film Width: 280-900mm | Bag Width: 35-350mm | Bag Length: 65-550mm |
| Packing Speed | Max. 300 PCS Per Minute |
| Sealing Type | Back Seal / End Seal |
| Origin | China |
| Capacity | 1000 sets Per Year |

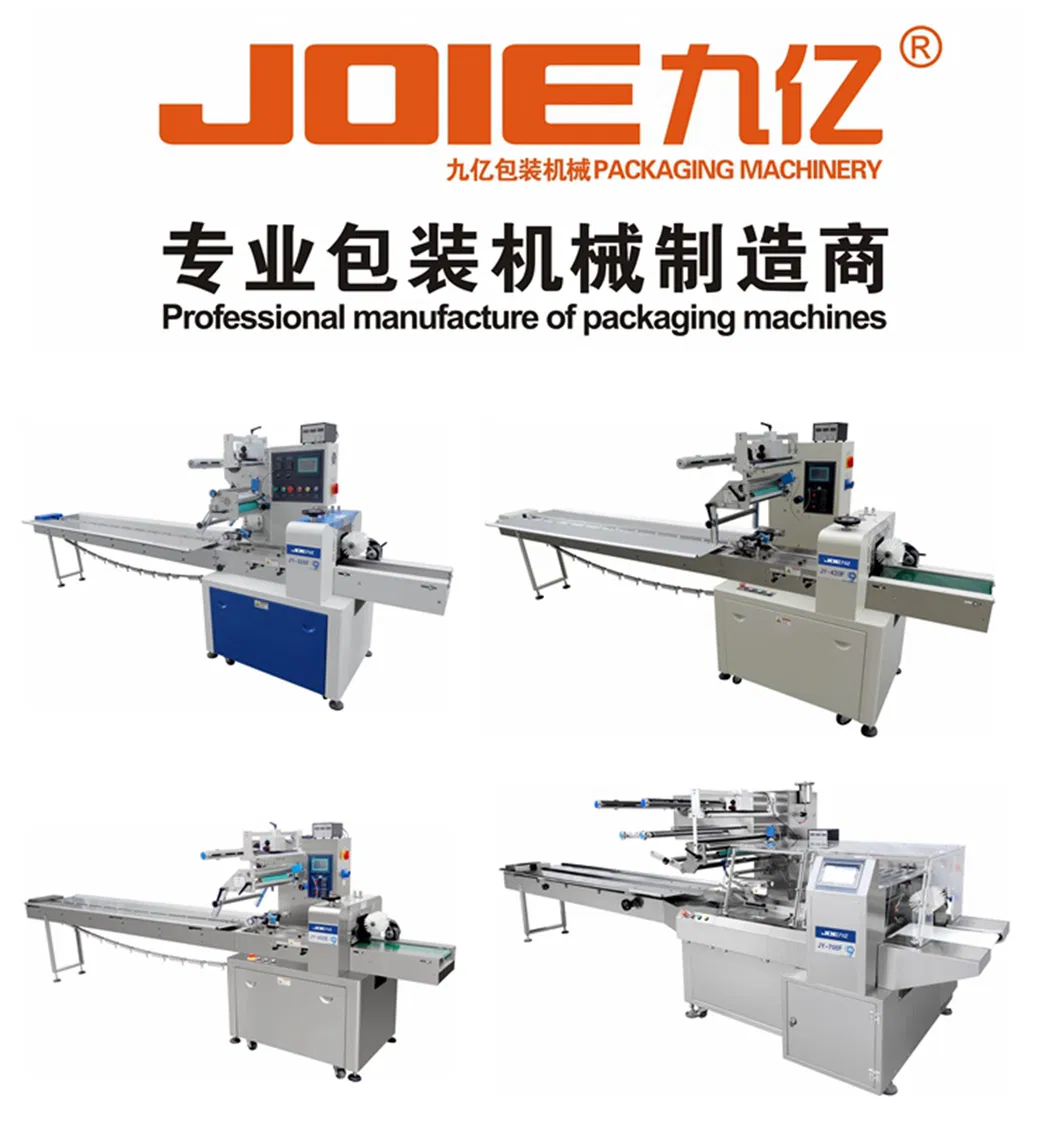

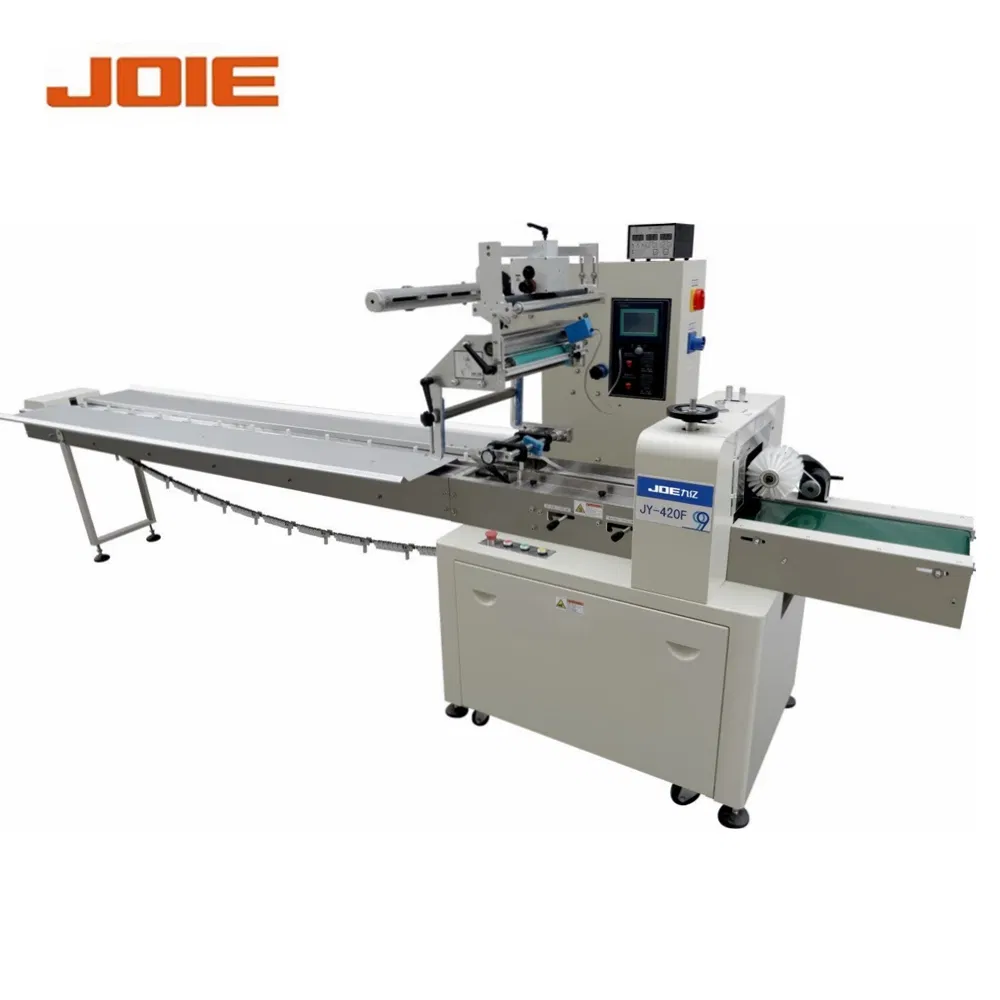

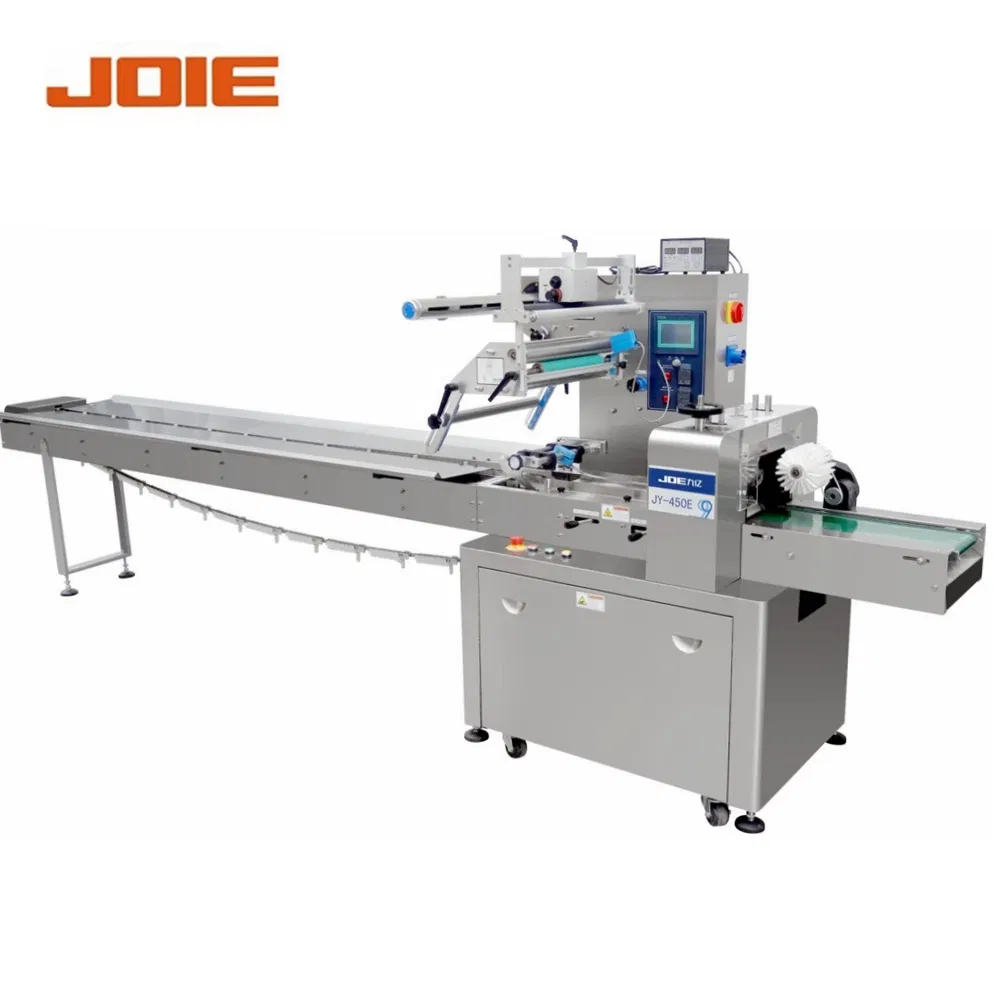

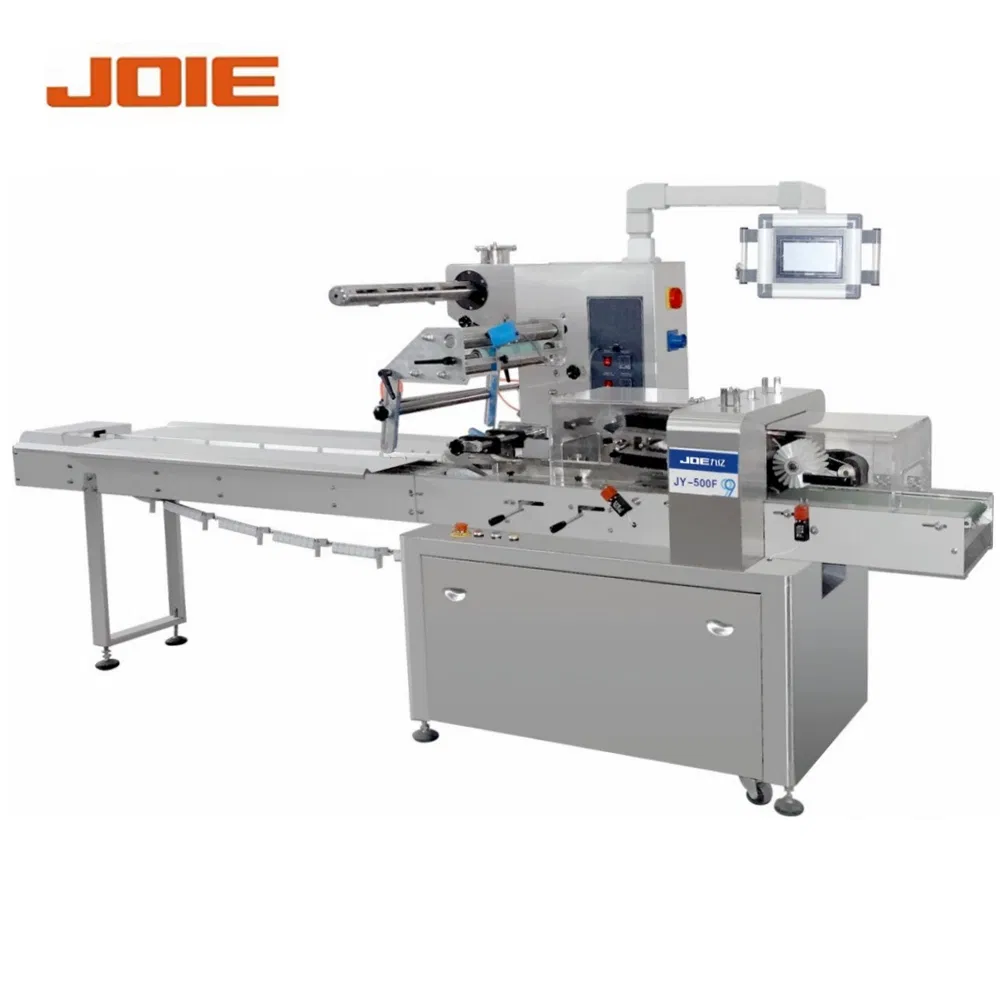

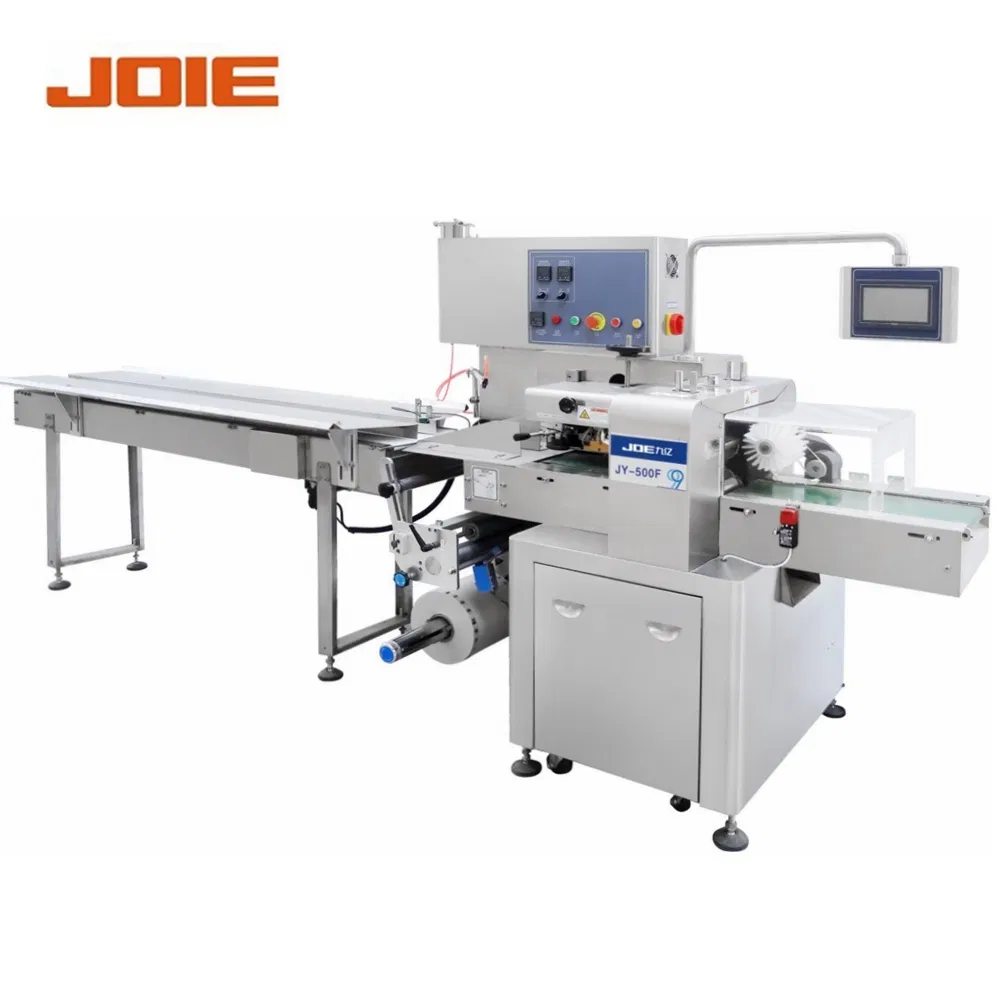

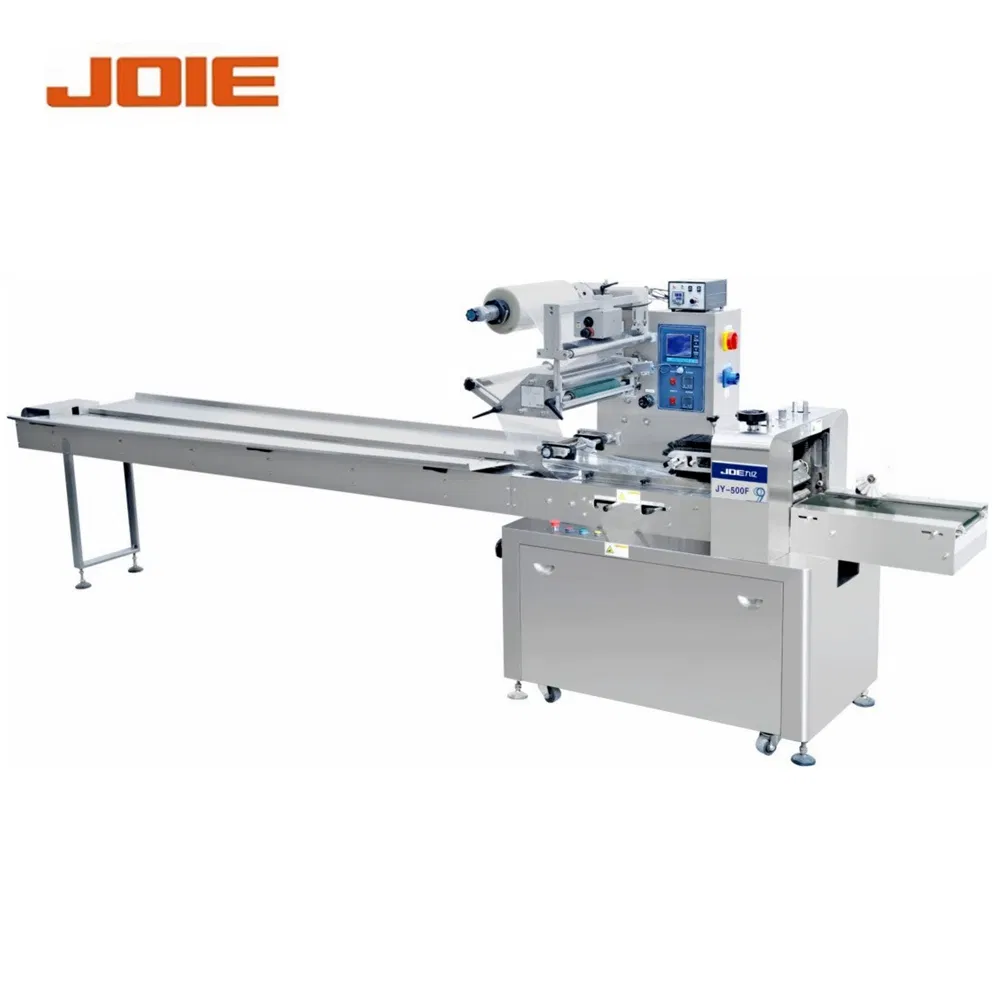

The JY series horizontal flow packing machine offers professional performance for solid product packaging solutions such as bread, cakes, chocolate, energy bars, tortillas, ice-lollies, vegetables, and face masks.

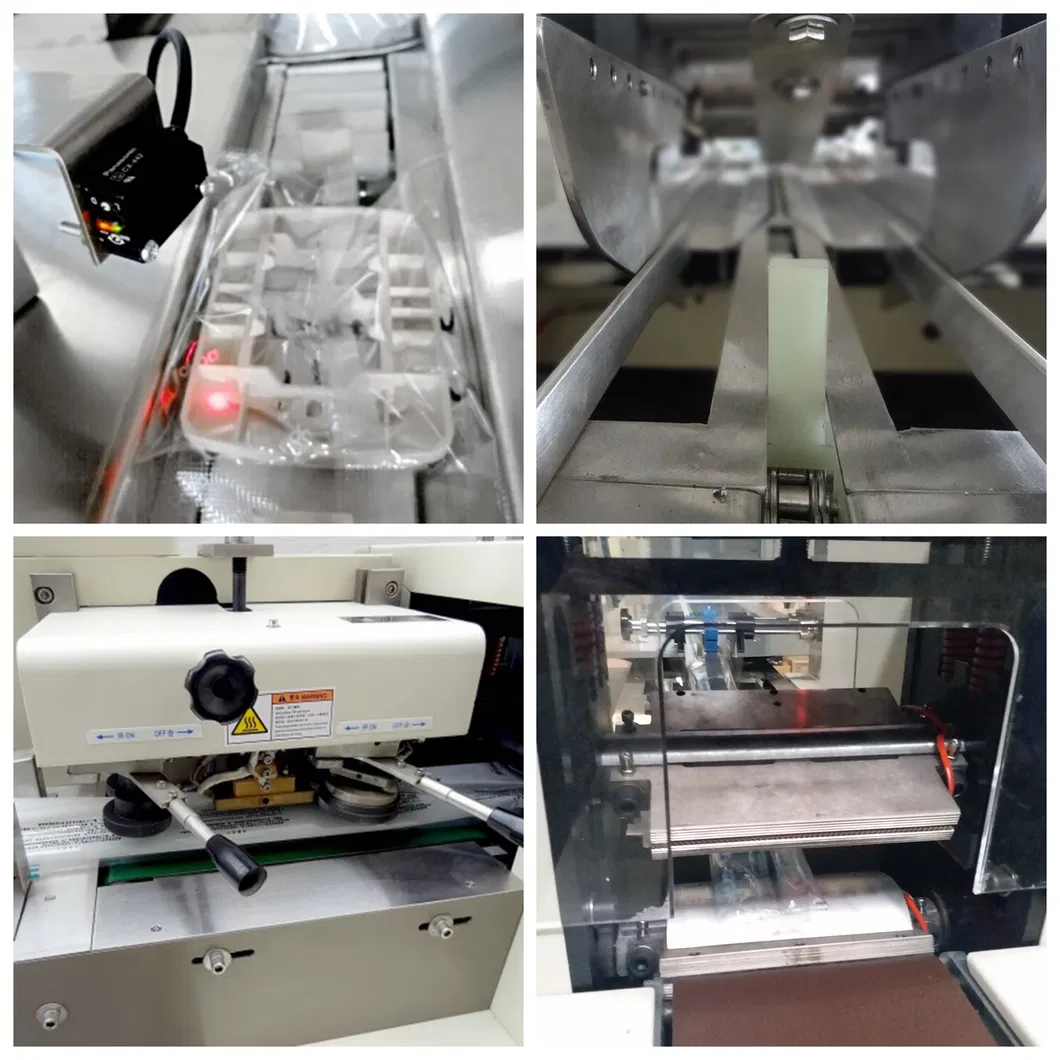

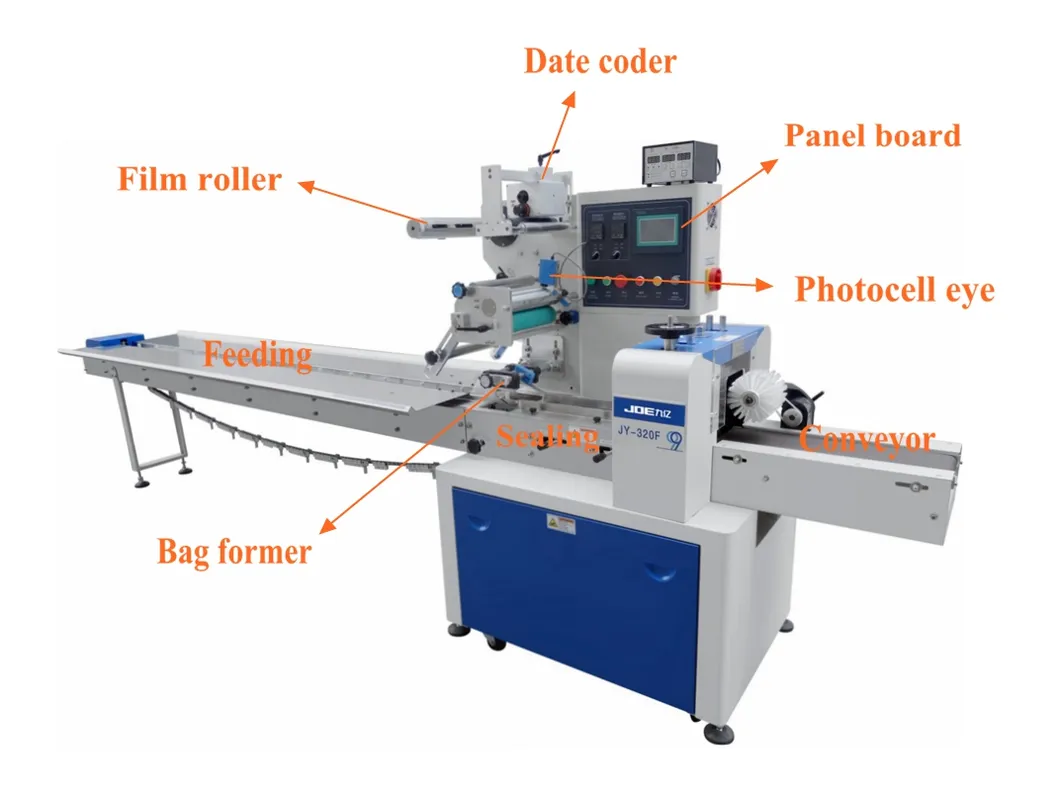

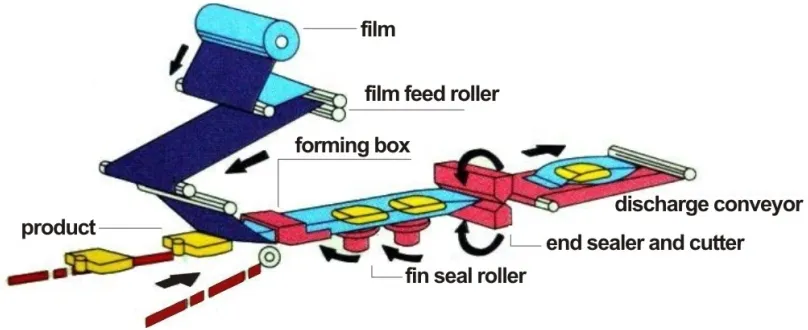

Product feeding → Film forming → Product wrapping → Bag sealing → Finished packing.
| Model | JY-280 | JY-320 | JY-350 | JY-450 | JY-700 | JY-900 |
|---|---|---|---|---|---|---|
| Control System | 1/3 Servo Motor Control | |||||
| Max. Film Width | 280mm | 320mm | 350mm | 450mm | 700mm | 900mm |
| Bag Length | 60-280mm | 60-280mm | 60-300mm | 80-350mm | 100-400mm | 100-400mm |
| Bag Width | 20-120mm | 20-140mm | 20-160mm | 20-210mm | 50-320mm | 100-400mm |
| Max. Height | 50mm | 65mm | 80mm | 90mm | 120mm | 150mm |
| Packing Speed | 300pcs/min | 300pcs/min | 300pcs/min | 200pcs/min | 160pcs/min | 100pcs/min |
As experts in the packaging industry, we provide smart and innovative packing solutions. Our machinery is reliable, efficient, and designed for mutual benefit.
