Dpp-180 Automatic Food/Medical Products Aluminum Aluminum Blister Packaging Machine

📋 Basic Info.

Model NO.

Dpp 180

Automatic Grade

Automatic

Type

Forming Filling Sealing Machine

Driven Type

Electric

Material Type

Capsules, Tablets

Packaging Material

Aluminum Aluminum, Aluminum Plastic

Capacity

6300 Version/Hour

Voltage

110V/220V/380V 50Hz

Machine Weight

820kg

Package Size

2750x630x1450mm

⭐ Recommended Products

📝 Product Description

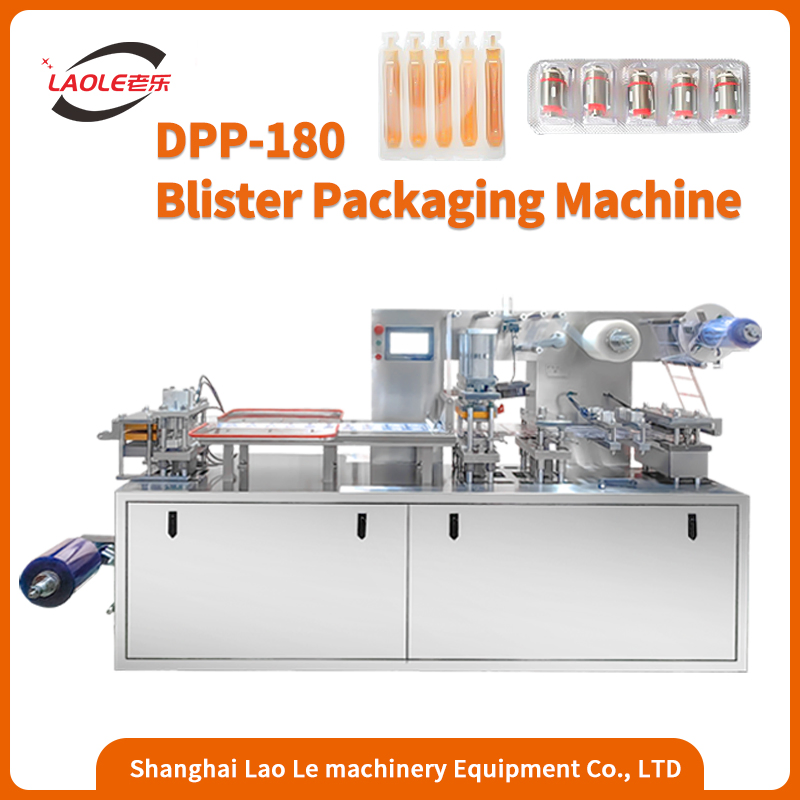

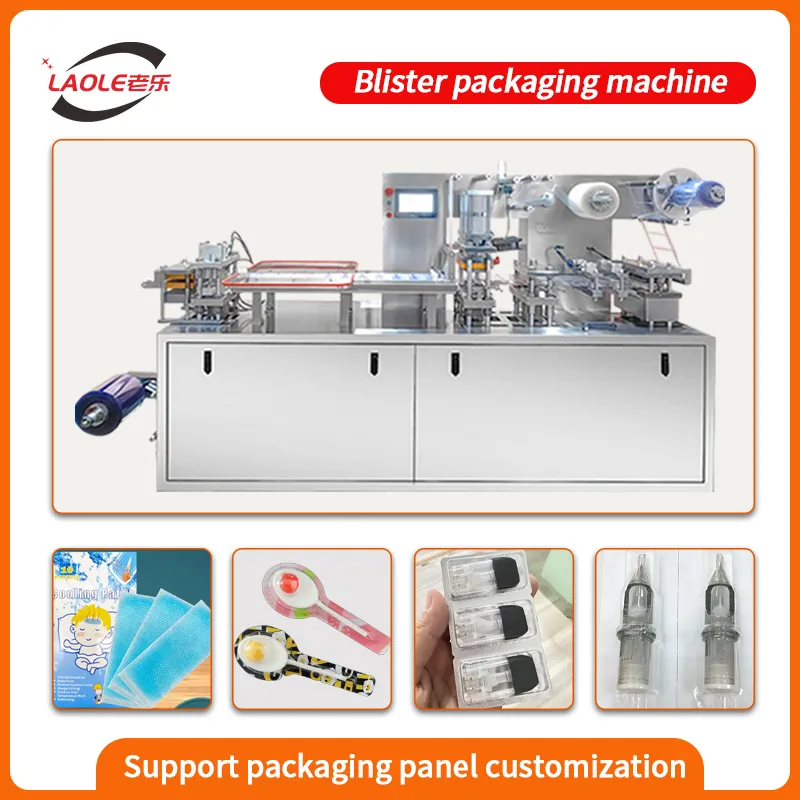

Blister Packaging Machine DPP-180

✔

The new high-power transmission mechanism is adopted, and the main transmission shaft is driven by the row chain, eliminating gear transmission error and noise.

✔

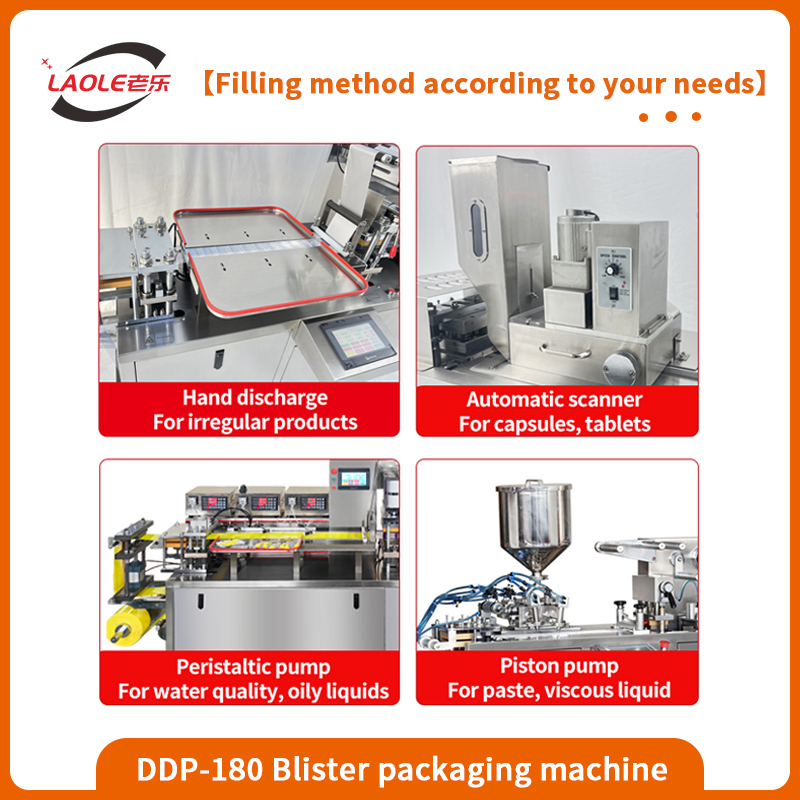

Electrical appliance adopts imported control system; can be configured with missing material leakage filling and particle detection rejection devices.

✔

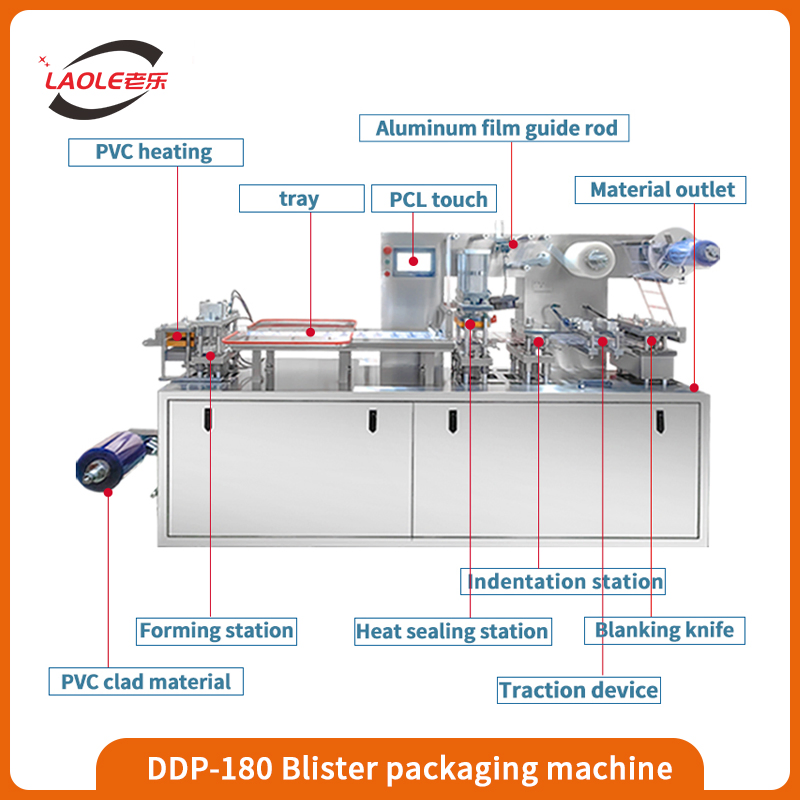

Segmented combination design: PVC forming, feeding, heat sealing, and punching can be separate for packaging flexibility.

✔

Photoelectric control system ensures ultra-long distance multi-station synchronization stability for PVC, PTP, and duralumin packaging.

✔

Equipped with photoelectric detection and correction device with imported stepper motor traction for graphic and text printing optimization.

✔

Suitable for: capsules, vegetarian tablets, icing, rubber pills, injections, and special-shaped medical devices or electronic components.

⚙️ Product Parameters

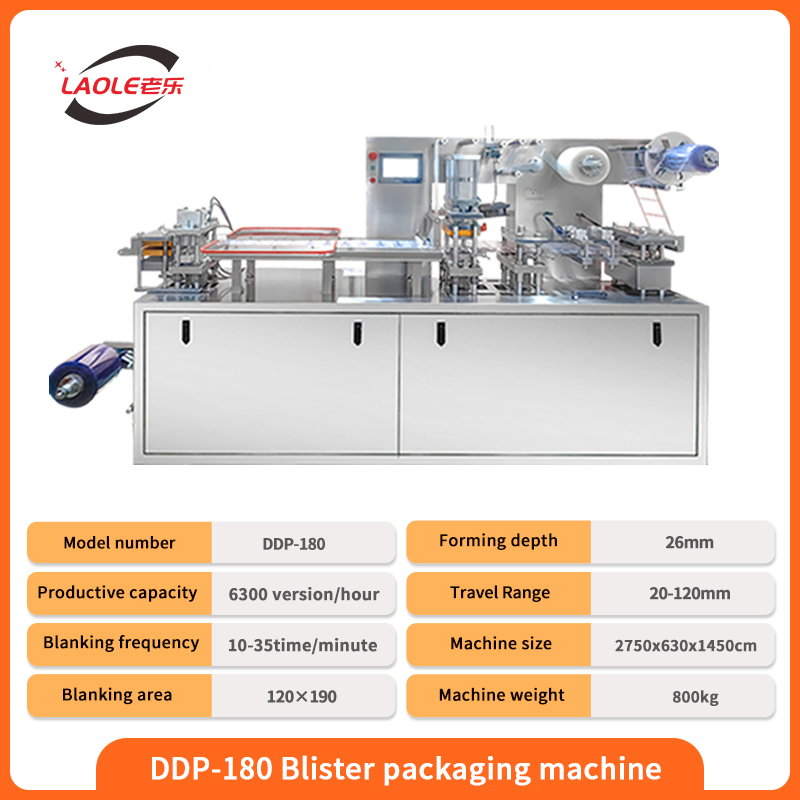

Model	DPP-180
Punch frequency	10-38 times/min
Production capacity	6300 plates/hour
Max. Forming area & Depth	120x190x26mm
Standard stroke range	20-120mm
Air pressure	0.6-0.8mpa
Total power supply	220V 50Hz 5Kw
PVC hard film	0.15-0.5x200mm
Overall dimension	2750x630x1450mm
Weight	820kg

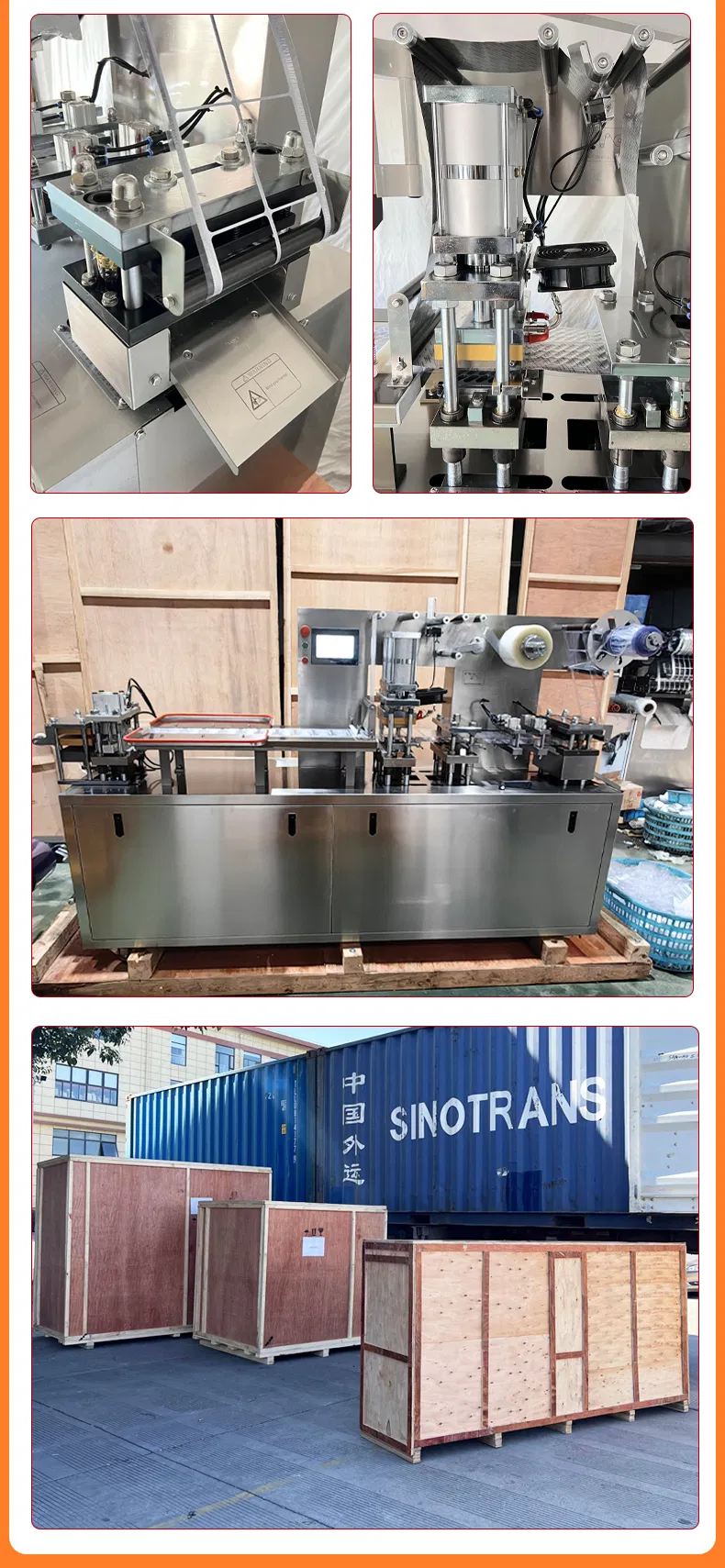

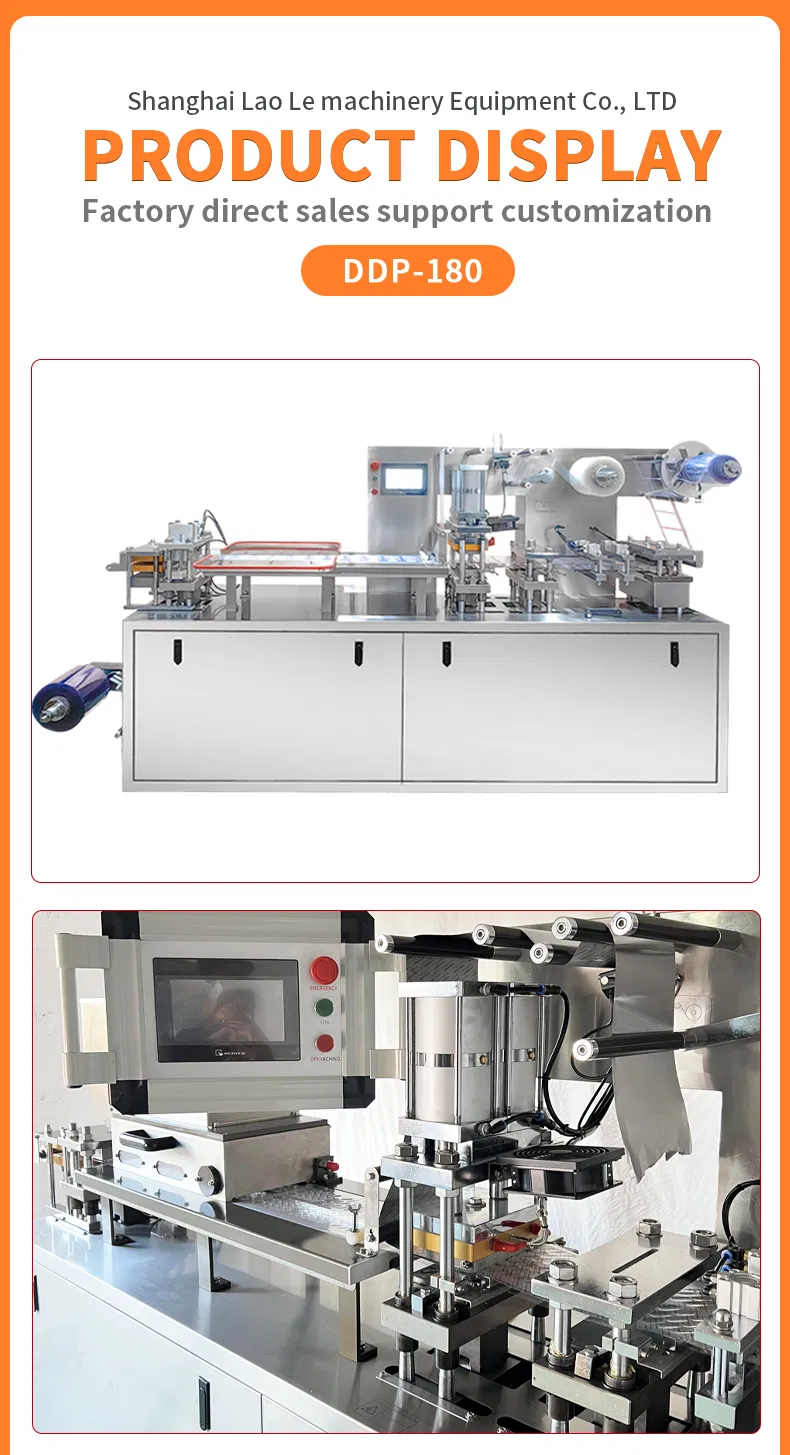

📸 Detailed Photos & Production Process

🏭 Factory Profile

We specialize in the supply and customization of pharmaceutical and packaging machinery, offering a wide range of solutions including:

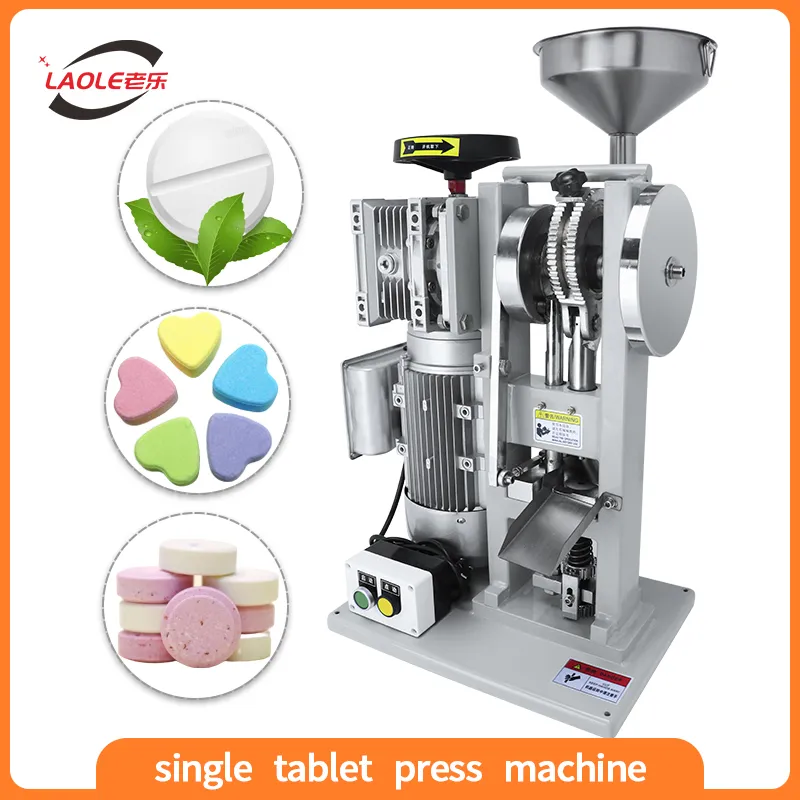

Customized dies for tablet presses (single punch, rotary, flower basket).
Flat packaging machines for capsules, tablets, liquids, and pastes.

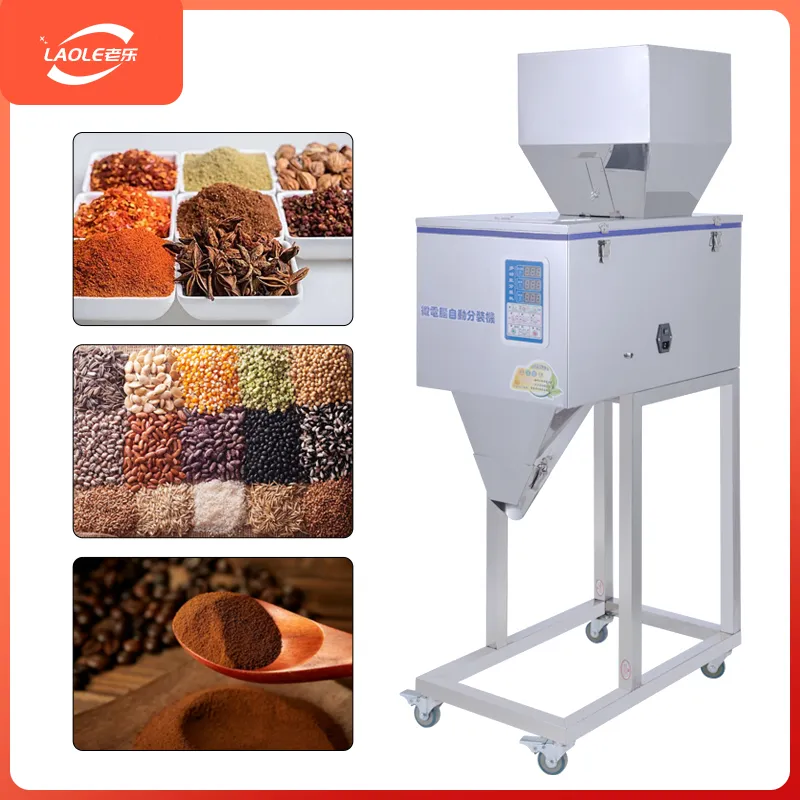

Small bag flexible packaging machines for granules and powders.
Complete packaging production lines including counting, sealing, capping, and labeling.

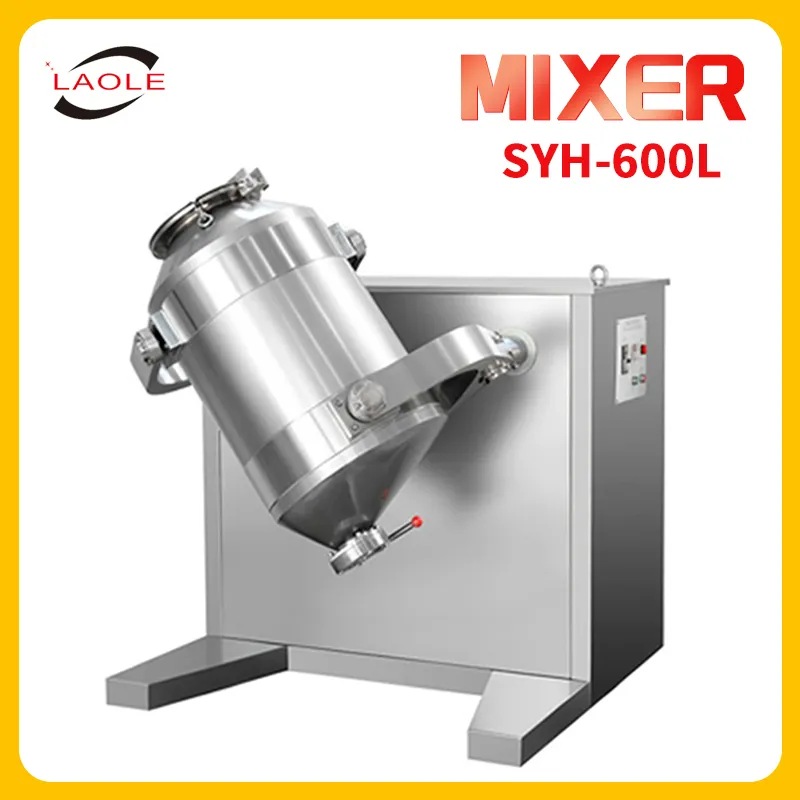

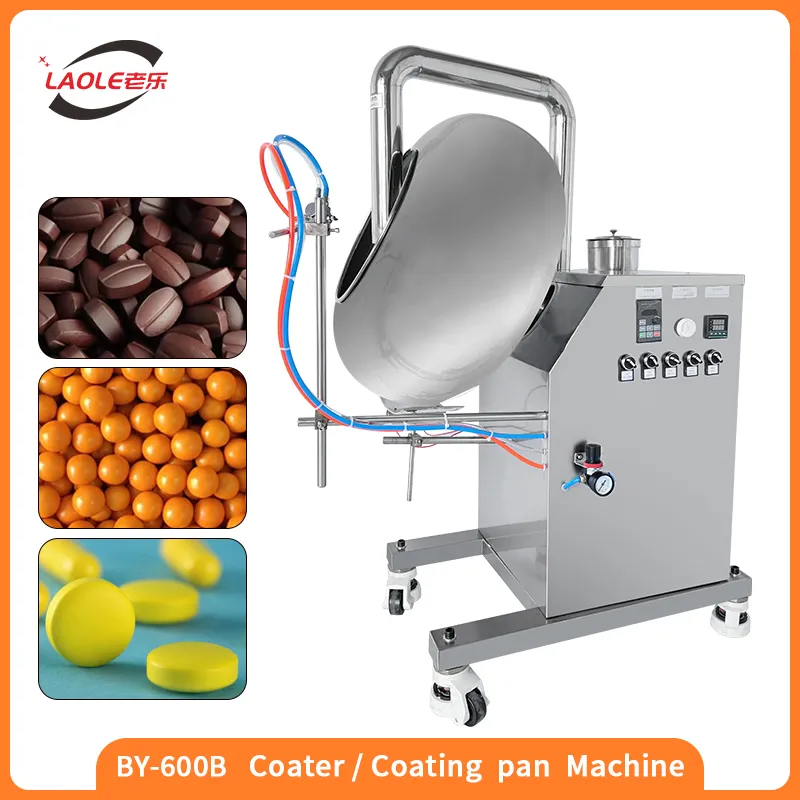

Supporting equipment: Mixers, Granulators, Coating machines, and Pulverizers.

❓ Frequently Asked Questions

Are you a factory or a trading company?

We are a factory and manufacturer. We have our own production facilities to ensure direct quality control.

How do you guarantee your machine quality?

Best quality is our principle. We put a high value on our reputation and utilize rigorous manufacturing standards throughout the production process.

What if we don't know how to operate the machine?

An operation manual and video demonstration are sent along with the machine to provide clear, step-by-step instructions.

How can I get spare parts for the machines?

Non-artificial damaged spares will be sent freely during the 1-year warranty period.

What are the accepted payment terms?

We usually accept T/T payment, credit insurance orders, and standard wire transfers.

Can the products be customized?

Yes, we can customize machines based on your specific design ideas or imprint requirements to suit your needs.
