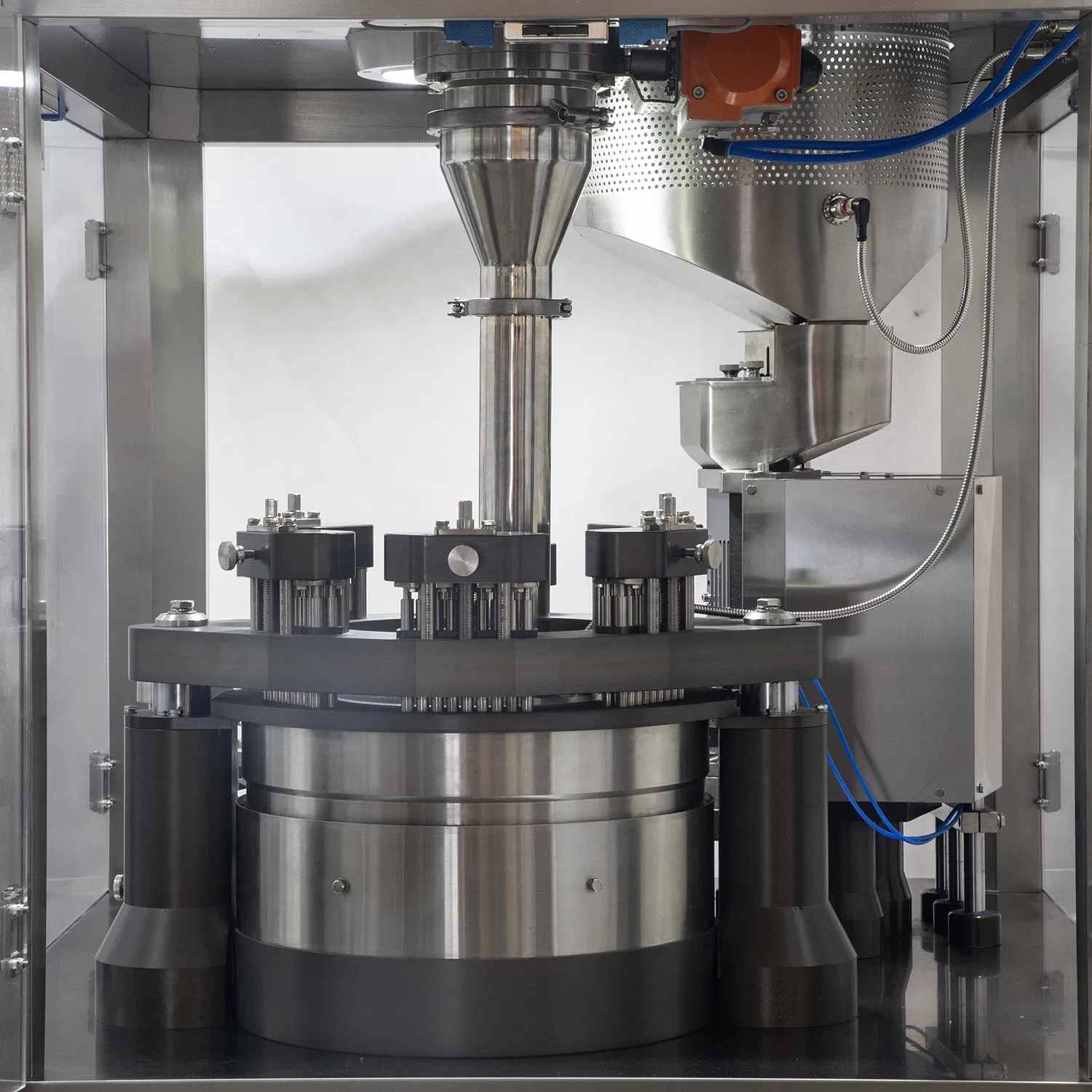

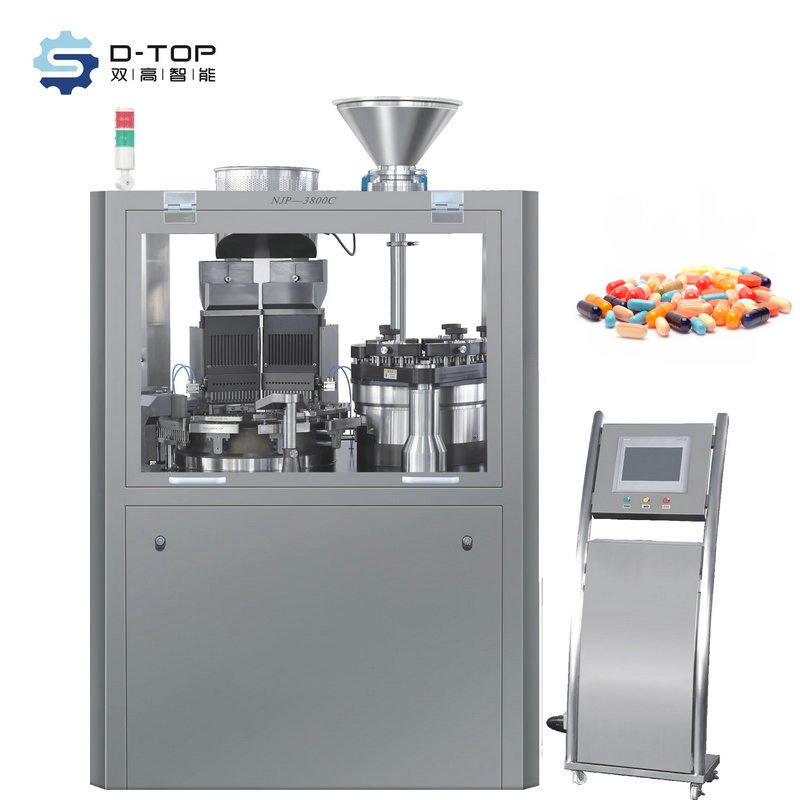

The NJP-3800C automatic capsule filling machine is an innovative third-generation product featuring advanced technologies and optimized configuration. It integrates all functions of domestic capsule filling machines while introducing five major innovations. This high-performance machine has reached the top level in the domestic industry, ensuring stability, precision, and efficiency in pharmaceutical production.
| Model NO. | NJP-3800C | Filling Range | 00#, 0#, 1#, 2#, 3#, 4# |
| Condition | New | Filling Principle | Volumetric Filling |
| Machine Type | Capsule Filling Machine | Main Material | Stainless Steel |
| Filling Capacity | 228,000 PCS Per Hour | Weight | 2200kg |
| Total Power | 10.5kw | Segment Bores | 27 Holes |
| Operating Noise | <75dB(a) | Suitable for | Powder, Granule, Pellet, Tablet |
| Specifications | Technical Data (NJP-3800C) |
|---|---|
| Maximum Yield | 228,000 grains/hour |
| Machine Dimensions | 1395×1180×2260mm |
| Power Supply | 380/220V 50Hz |
| Vacuum Requirements | 63m³/h -0.04~-0.08MPa |
| Compressed Air | 12m³/h (0.3~0.4MPa) |
| Capsule Loading Rate | Empty ≥ 99.9% / Full ≥ 99.8% |
| Loading Accuracy | Western Med ±3% / Chinese Med ±4% |
| Material Standard | 316 Stainless steel for contact parts (cGMP) |

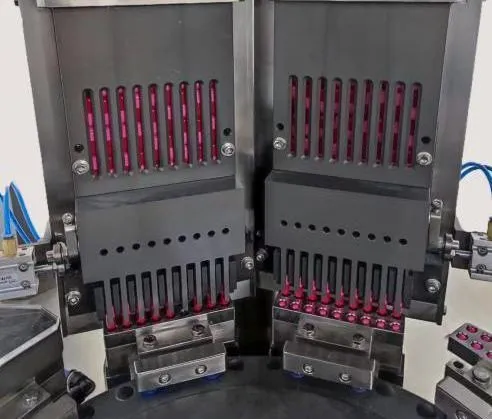

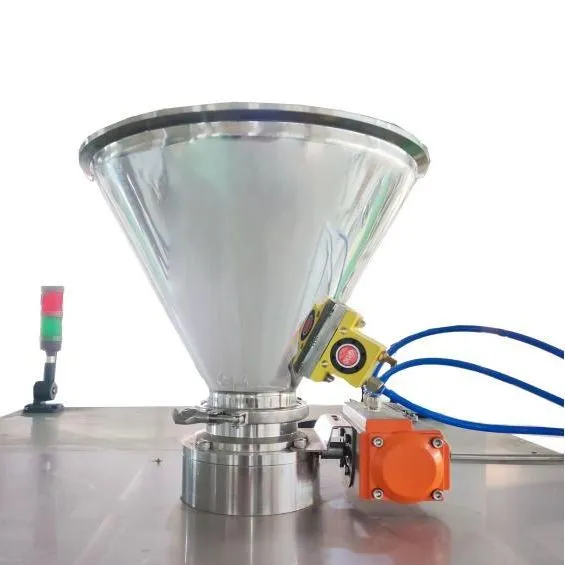

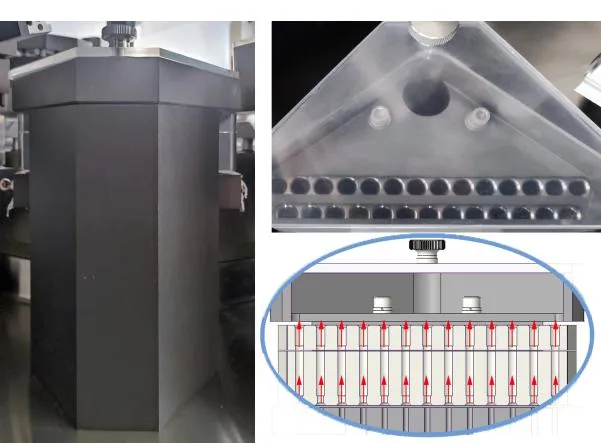

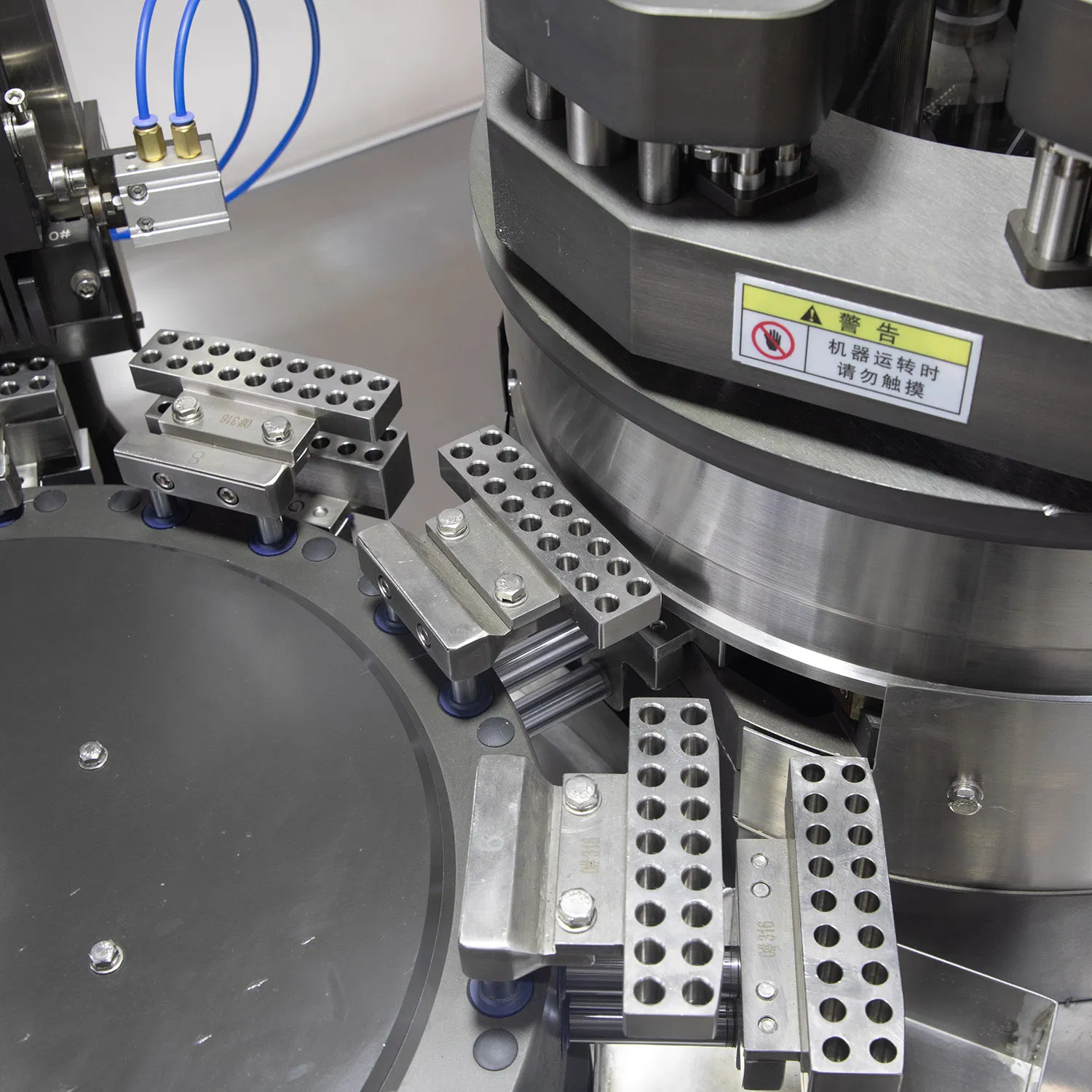

The new powder hopper adopts a disc valve feeding method with a vibration device, solving fluidity issues for traditional powders. The sowing rack is driven by high-precision guide rails, ensuring orderly seeding and direction adjustment.

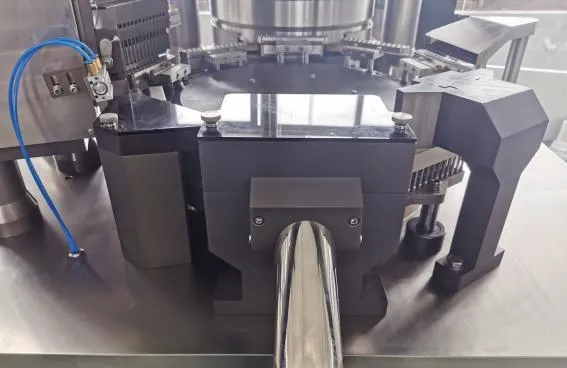

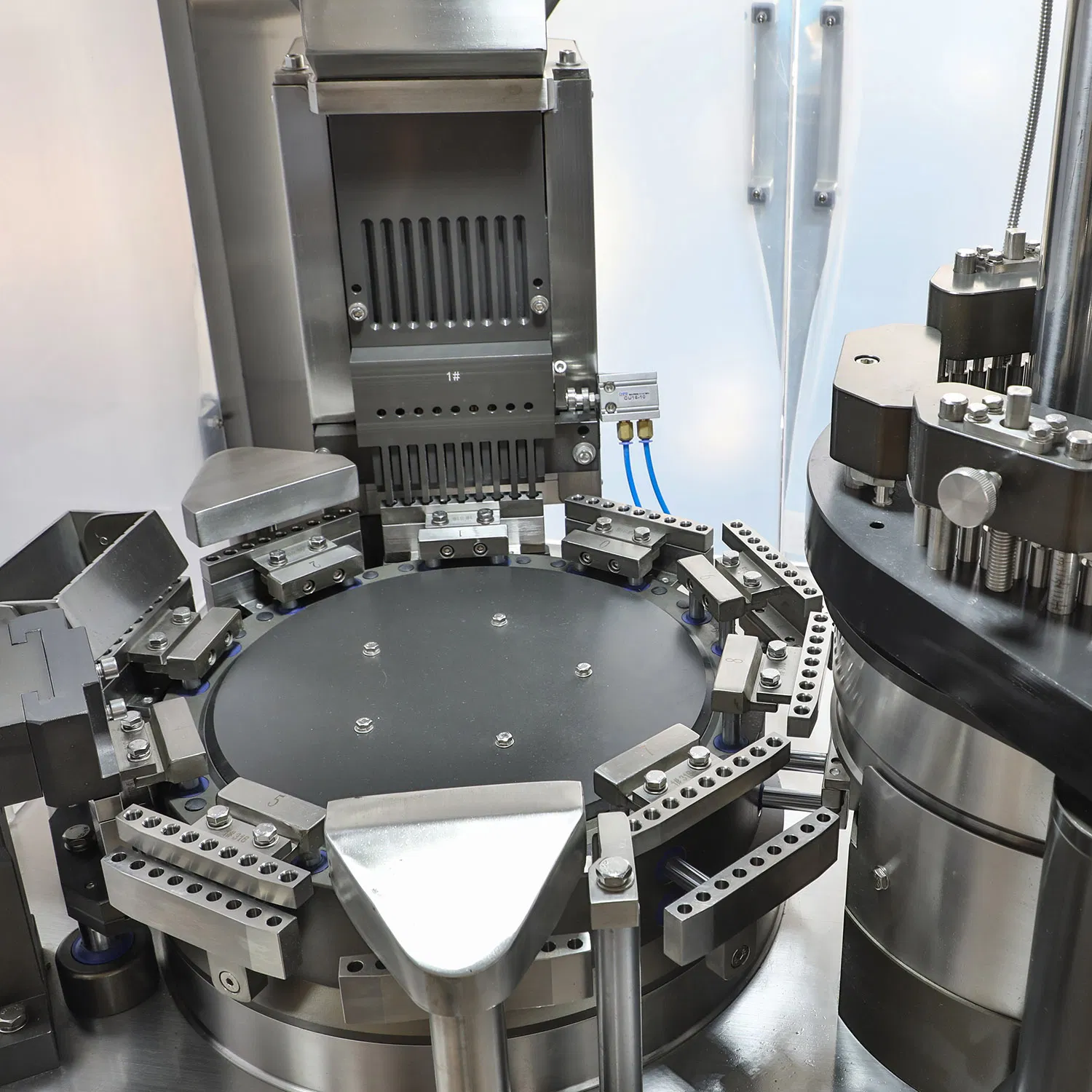

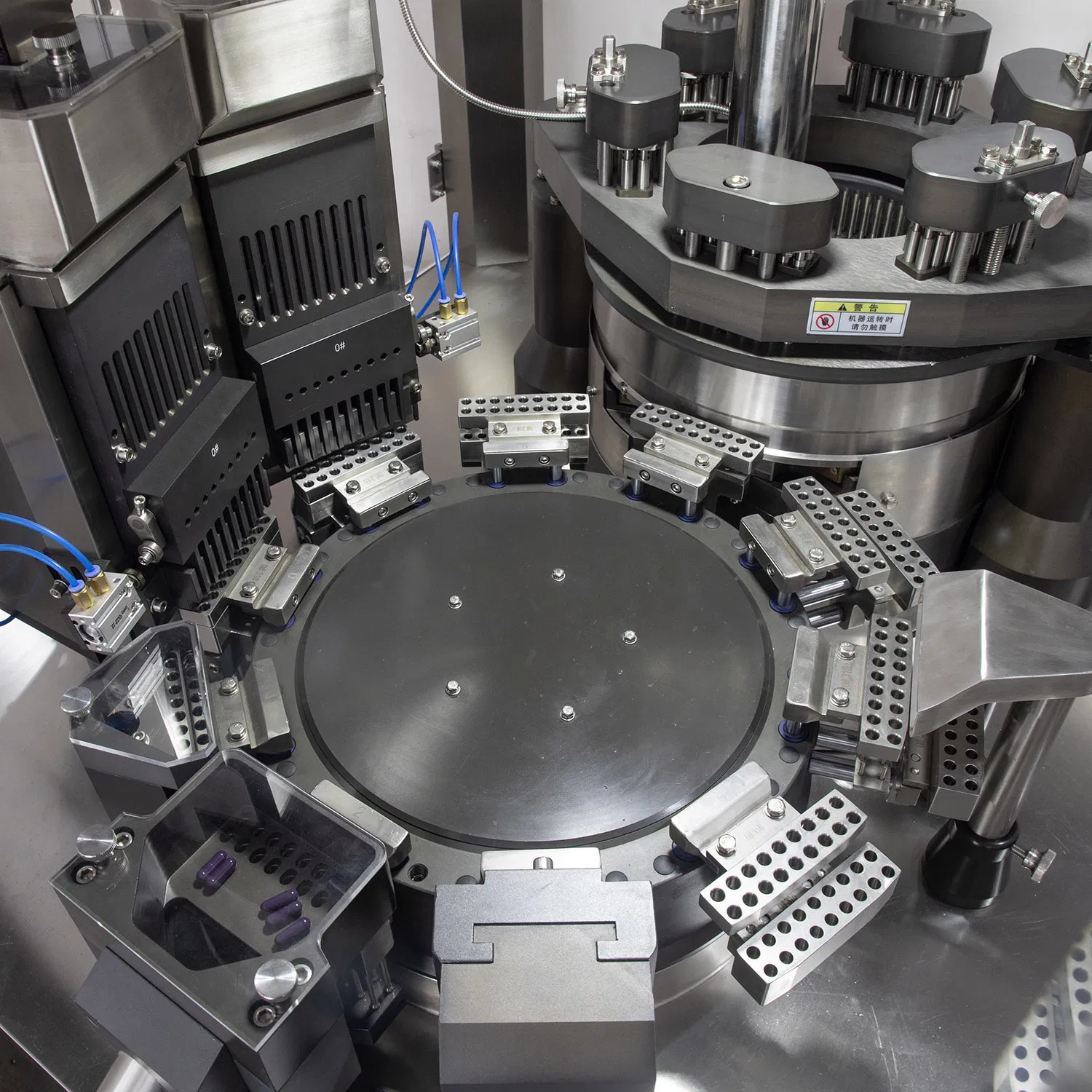

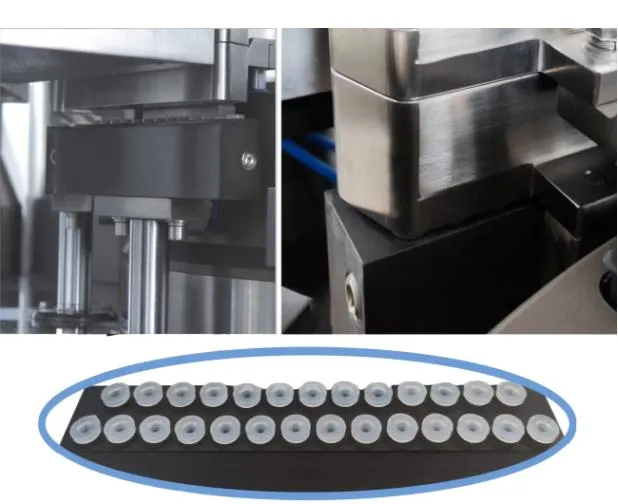

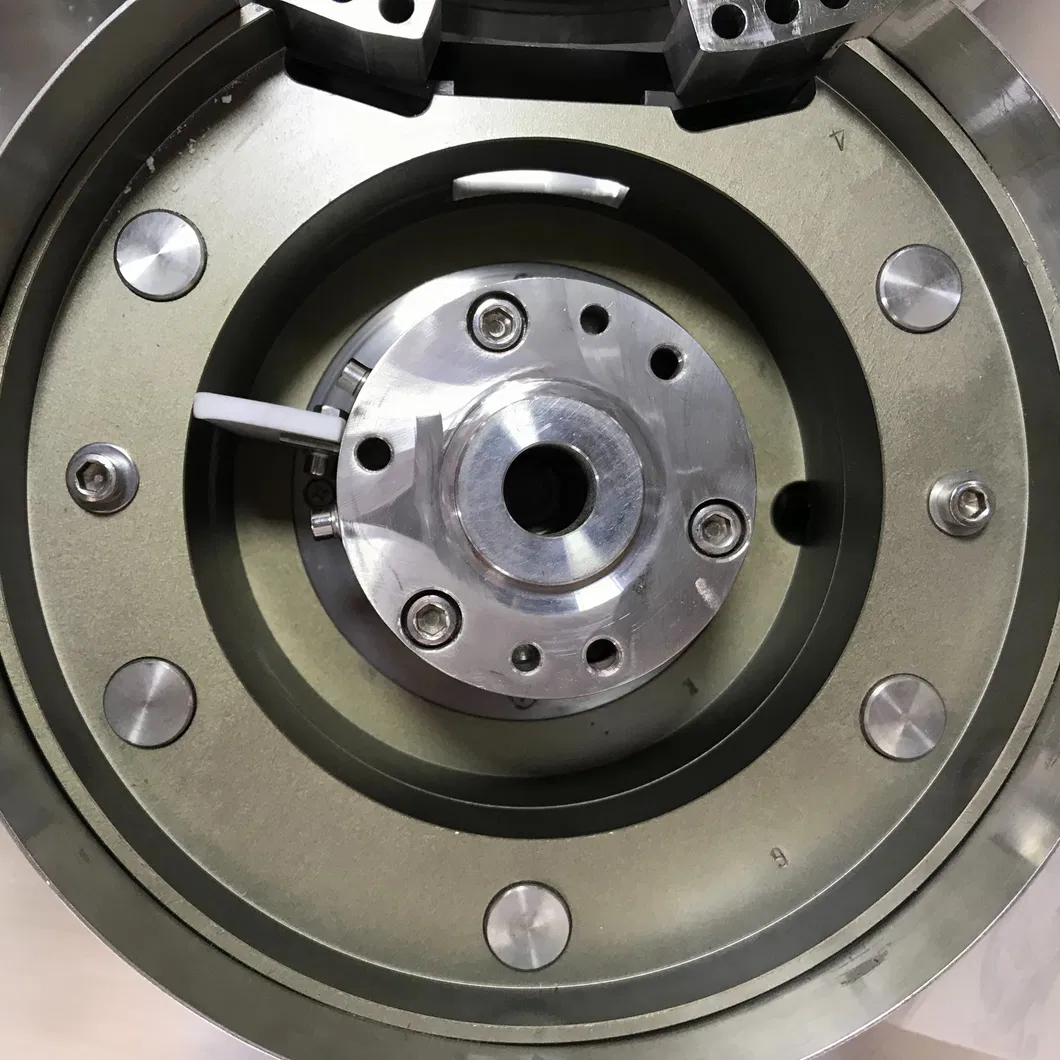

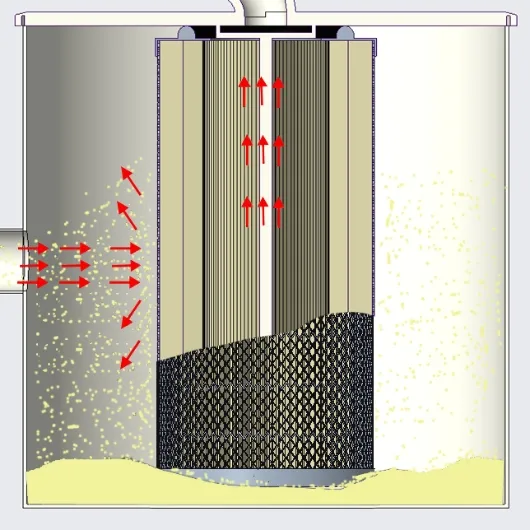

The one-piece molded turntable provides superior sealing and silent operation. The filling station includes a negative pressure room connected to a powder recycler, preventing waste and cross-contamination.
