Automatic Bottle/Blisters/Food Packaging Cartoning Machine/Carton Packing Machine/Pharmaceutical Machine/Cartoner Packaging Machine for Medicine

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZHJ-300

Automatic Grade

Automatic

Application

Cosmetics, Drinks, Medical, Dairy, Oil, Snack

Type

Filling and Sealing Machine

Forming Species

Cartoner

Driven Type

Pneumatic

Material Type

Solid

Packaging

Cartons

Packaging Material

Paper

Transport Package

Wooden Carton

Specification

2000x800x1800mm

HS Code

8422303090

Product Description

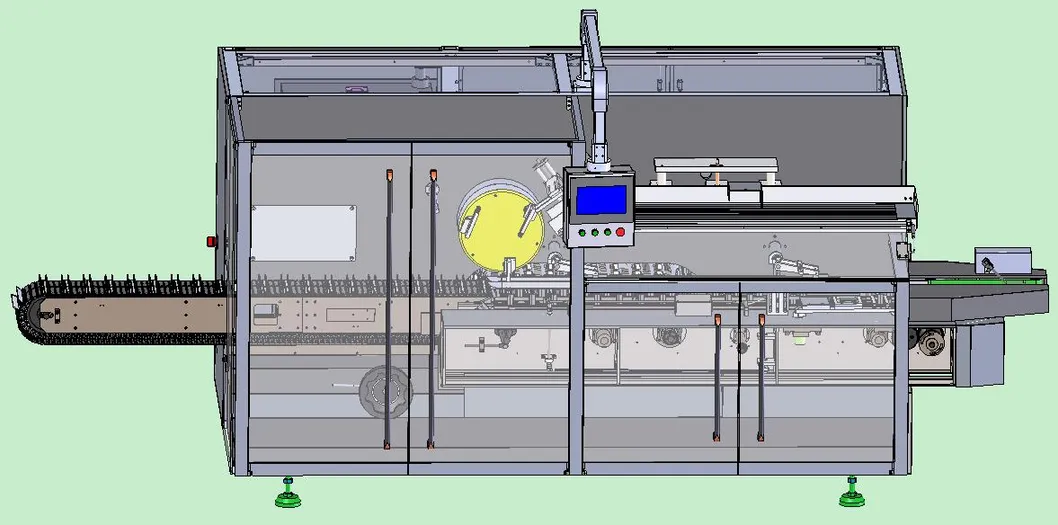

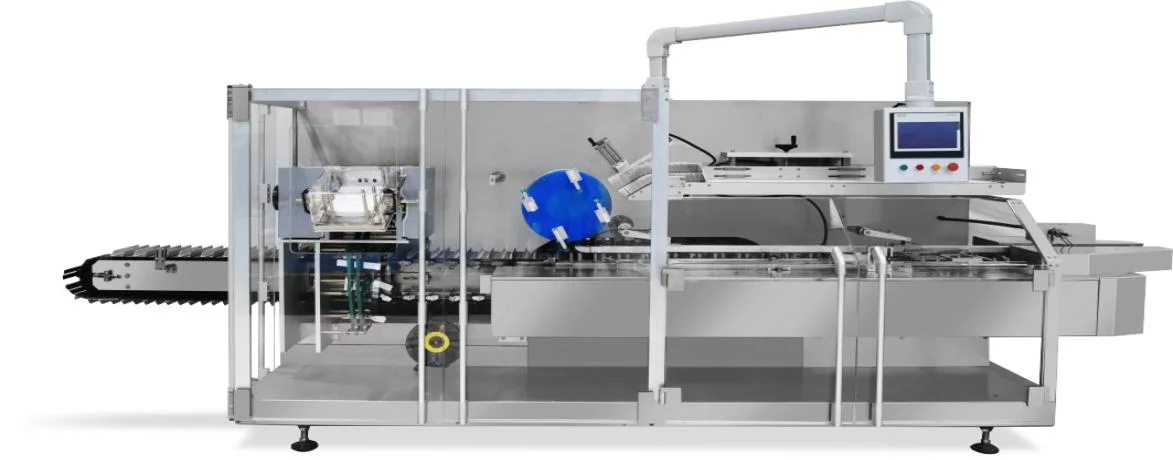

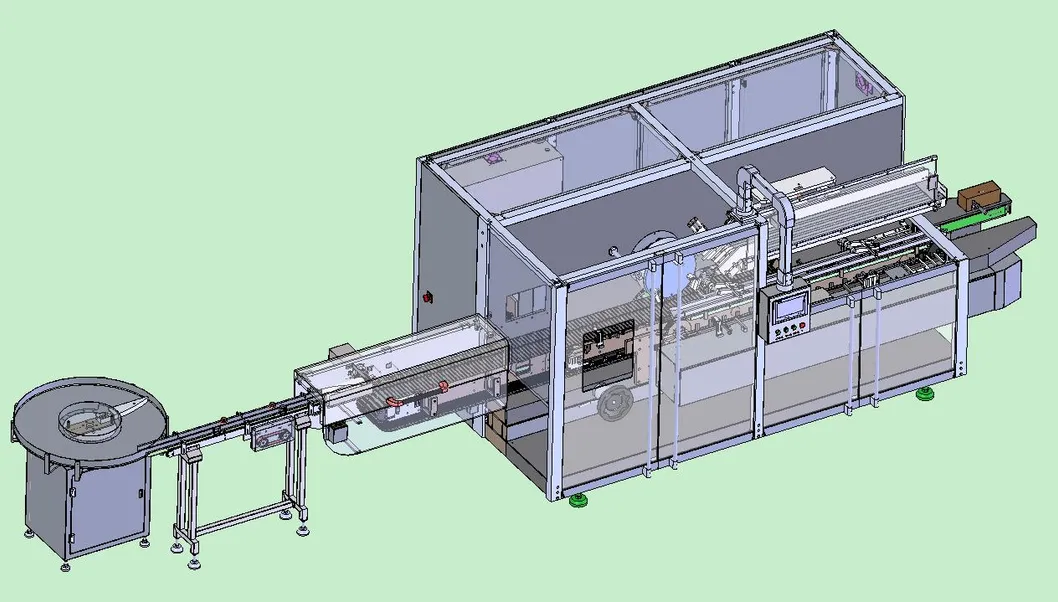

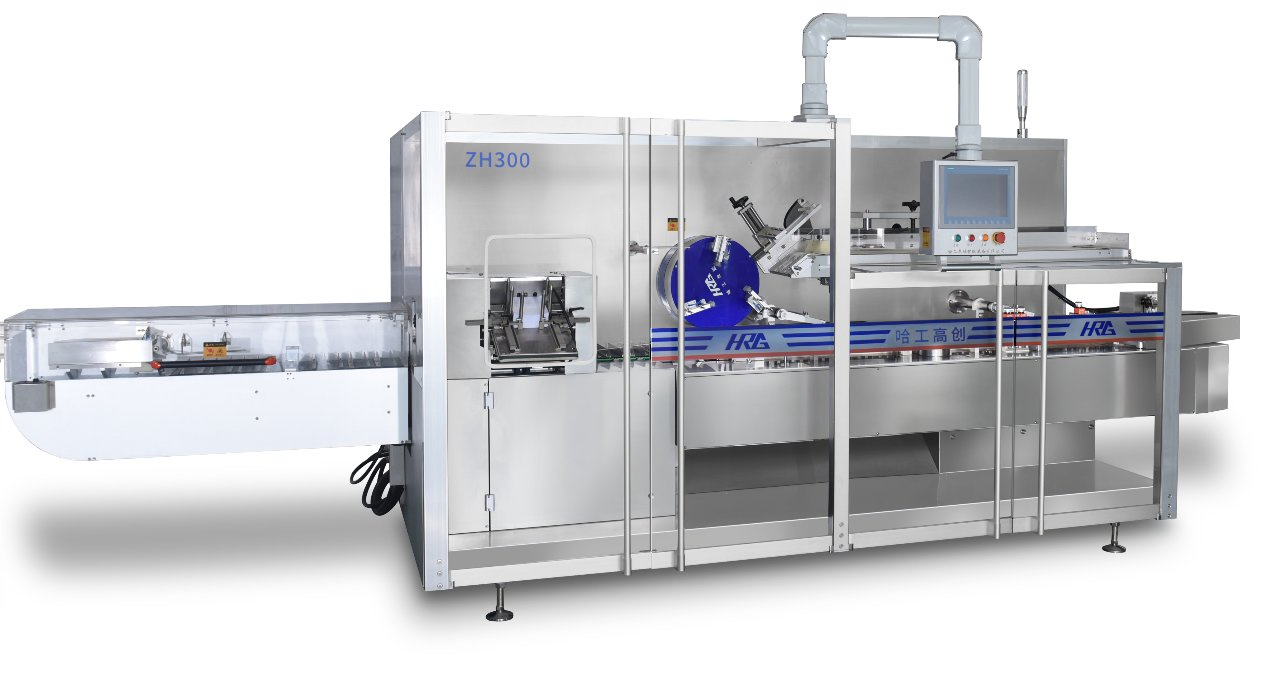

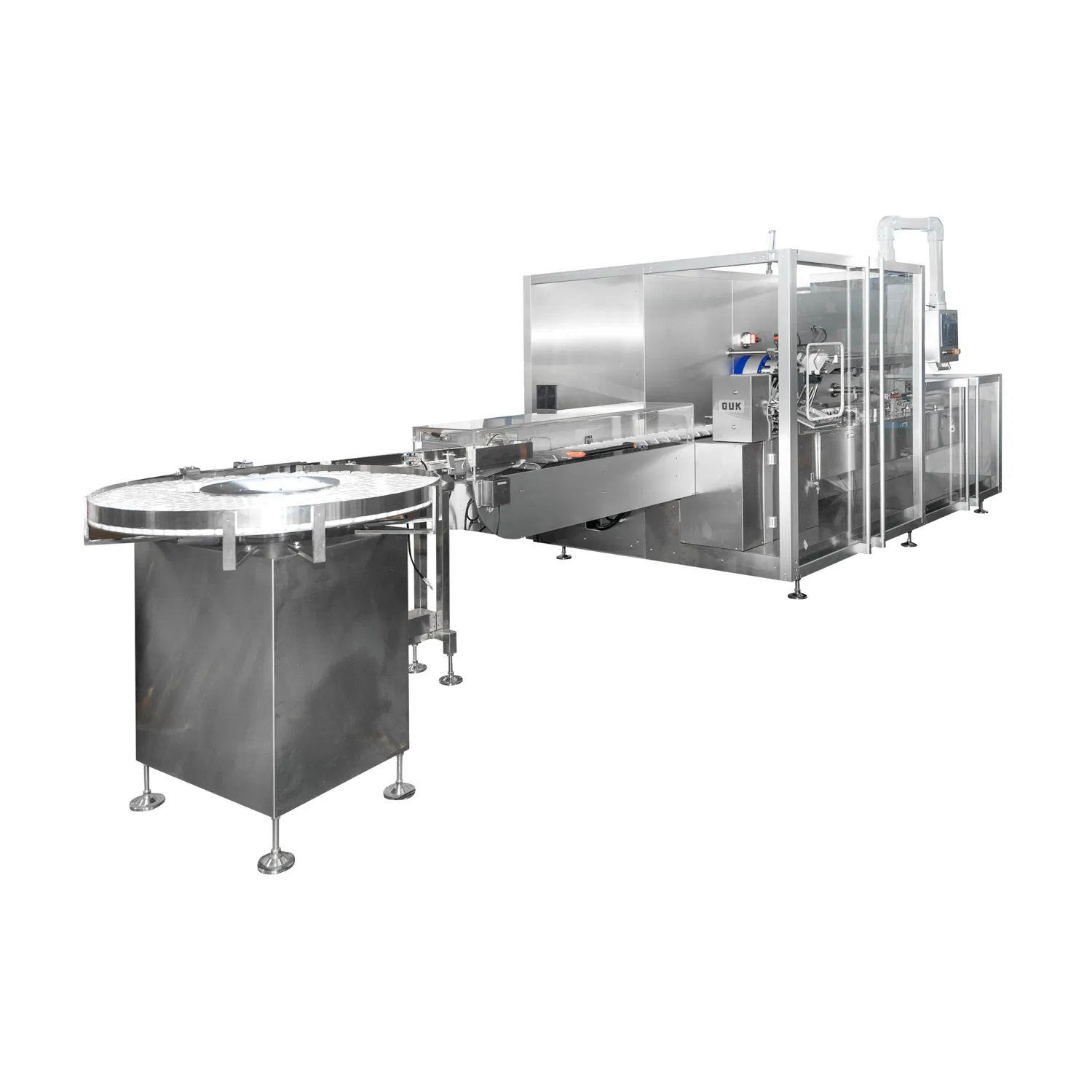

Fully automatic continuous-type cartoning machine ZHJ-300 is a high-tech product integrating the technologies of mechanics, electronics, pneumatics and optics. This model is suitable for automatic feeding and cartoning of blisters, bottles, ointments and other items of various specifications. The processes of inline product conveying, carton fetching, forming, batch number embossing, and tuck sealing are all completed automatically. This machine can be integrated with blister packing machines, filling machines, and shrink wrapping machines for mass production.

Core Characteristics

Advanced Design: Incorporates international concepts to ensure process rationality and stability.
Durable Construction: Base frame welded with carbon steel, aged to ensure long-term assembly accuracy.
Precision Processing: Key components processed using CNC machine tools and machining centers.
Top-Tier Components: Utilizes world-renowned brands for electrical parts to ensure high-speed stability.
Intuitive Interface: Siemens HMI touch screen displays parameters and faults for easy troubleshooting.
Safety First: Includes door cover protection, isolation transformers, and low-voltage control.
Overload Protection: Automatic stop and alarm systems for conveyor chains and pushing mechanisms.
Waste Reduction: Product-first principle: no product feeding means no carton or leaflet wastage.

Detailed Mechanisms

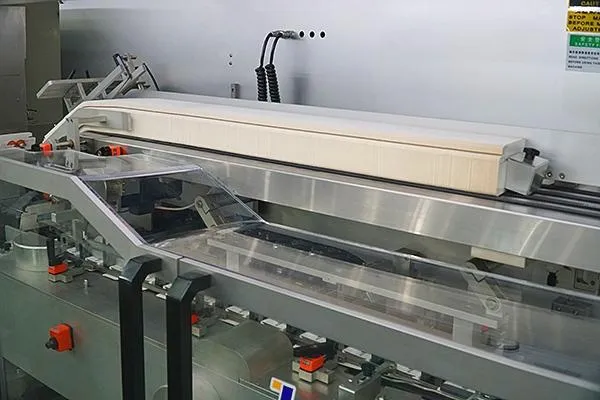

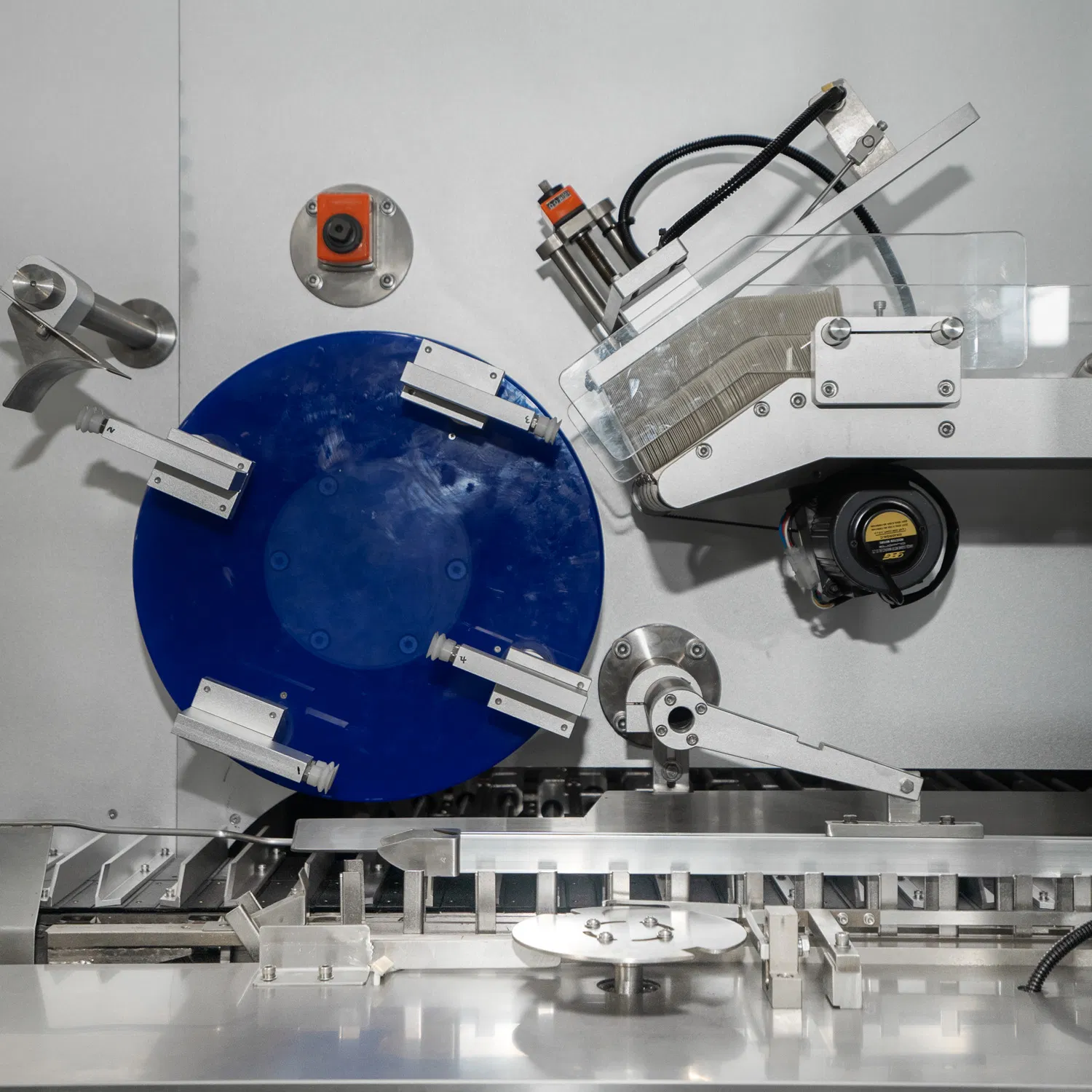

Carton Magazine: Accommodates 1,000 cartons with a shortage alarm system and lifting mechanism for easy maintenance.

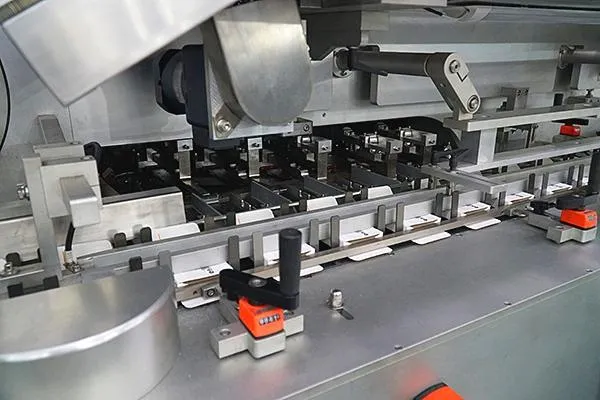

Back Pushing Mechanism: Consists of 21 pairs of rods with independent lane changing to ensure product and leaflet safety.

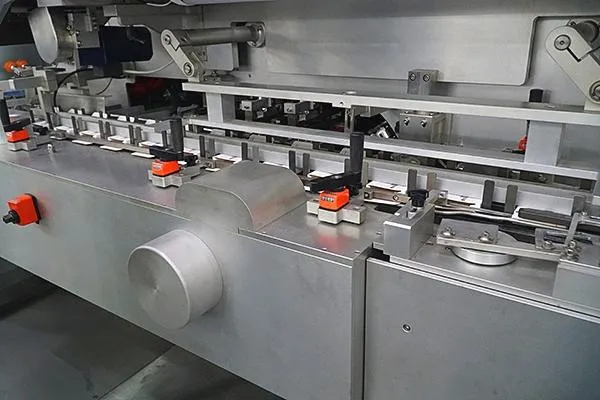

Digital Display & Handwheel: Supports tool-free format changeover for high efficiency.

Product Parameters

Specification Item	Technical Data
Cartoning Speed	150 ~ 300 cartons/minute
Carton Size Range	Max: 210x135x65mm \| Min: 70x20x18mm
Leaflet Specifications	65 ~ 75g/m²
Main Motor Power	2.2KW
Machine Power	4KW
Machine Size	4810x1800x1762mm
Machine Weight	2500kg
Power Supply	380V/50Hz
Working Pressure	0.6 ~ 0.8MPa
Noise Level	≤75dB

Packages & Certificates

Services & Support

Customization: All machines can be customized based on specific requirements, incorporating PLC control and compact structures for reliable performance.

After-Sales: We provide preventative maintenance and technical support. A one-year warranty is included, with life-long maintenance services available.

Installation: Technical know-how for debugging and operation is provided to ensure a smooth transition for your facility.

Frequently Asked Questions

What is the production speed of the ZHJ-300?

The machine operates at a high speed of 150 to 300 cartons per minute, depending on the product size and configuration.

What types of products can this machine handle?

It is designed for blisters, bottles, ointments, and other solid items used in medical, cosmetic, and food industries.

Is the machine easy to adjust for different carton sizes?

Yes, the machine features handwheels and digital displays for tool-free format changeover within a specified range.

What safety features are included for operators?

It includes Siemens PLC control, overload protection systems, door cover sensors, and low-voltage control buttons to ensure operator safety.

Can this machine be integrated into an existing production line?

Absolutely. It can be linked with blister packing machines, flow pack machines, filling machines, and shrink wrappers for fully automated production.

What is the lead time and payment terms?

Standard machines are typically ready within 3 months. Our standard payment terms involve a 30% deposit with the balance due before shipment.
