Basic Specifications
Model NO.MD-ZMJ
Automatic GradeAutomatic
ApplicationCleaning, Detergent, Cosmetics, Drinks
TypeForming Filling Sealing Machine
Driven TypeElectric
Material TypeNonwoven Fabric and Alu Foil Paper
Wipe (Unfolded)60mm X 30mm
Packing Size50mm X 50mm
Process Capability240-320 Package/Min
Total Power220V, 50Hz, 2.6 Kw
Weight700 Kg
HS Code8422309090
Product Description

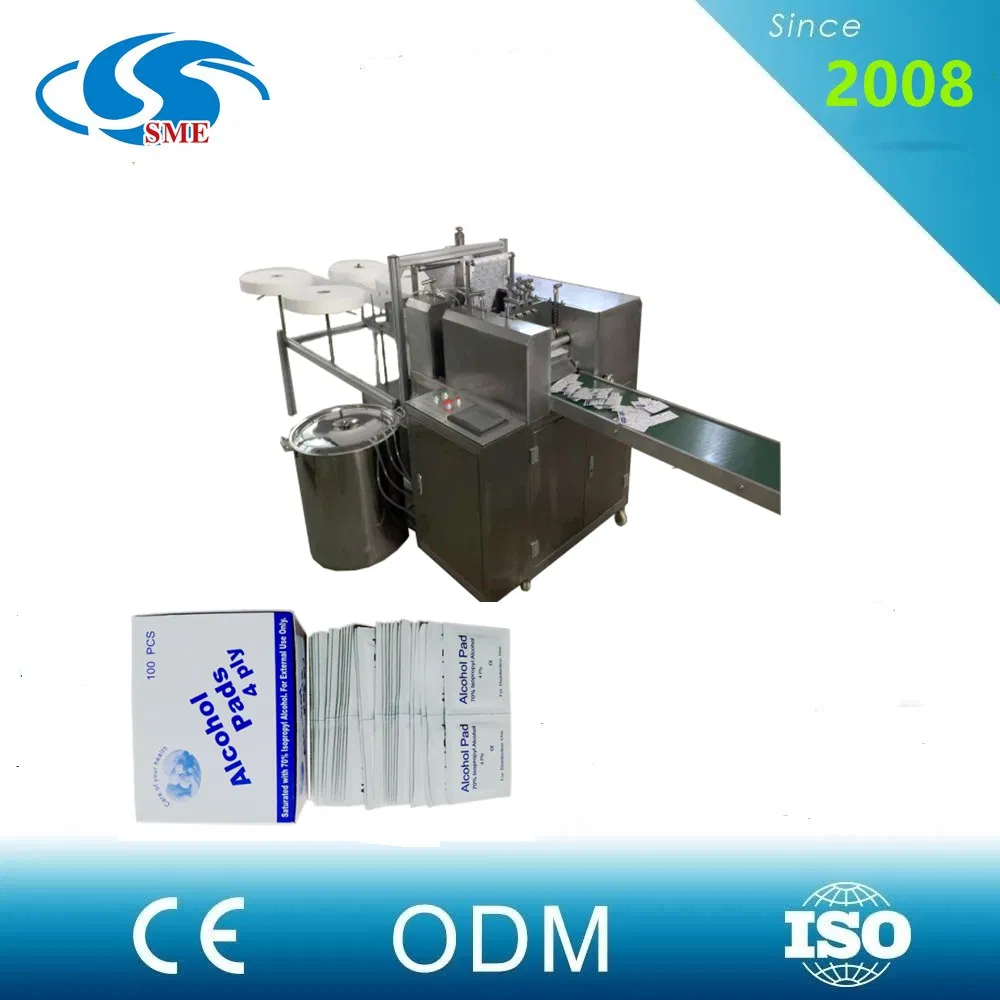

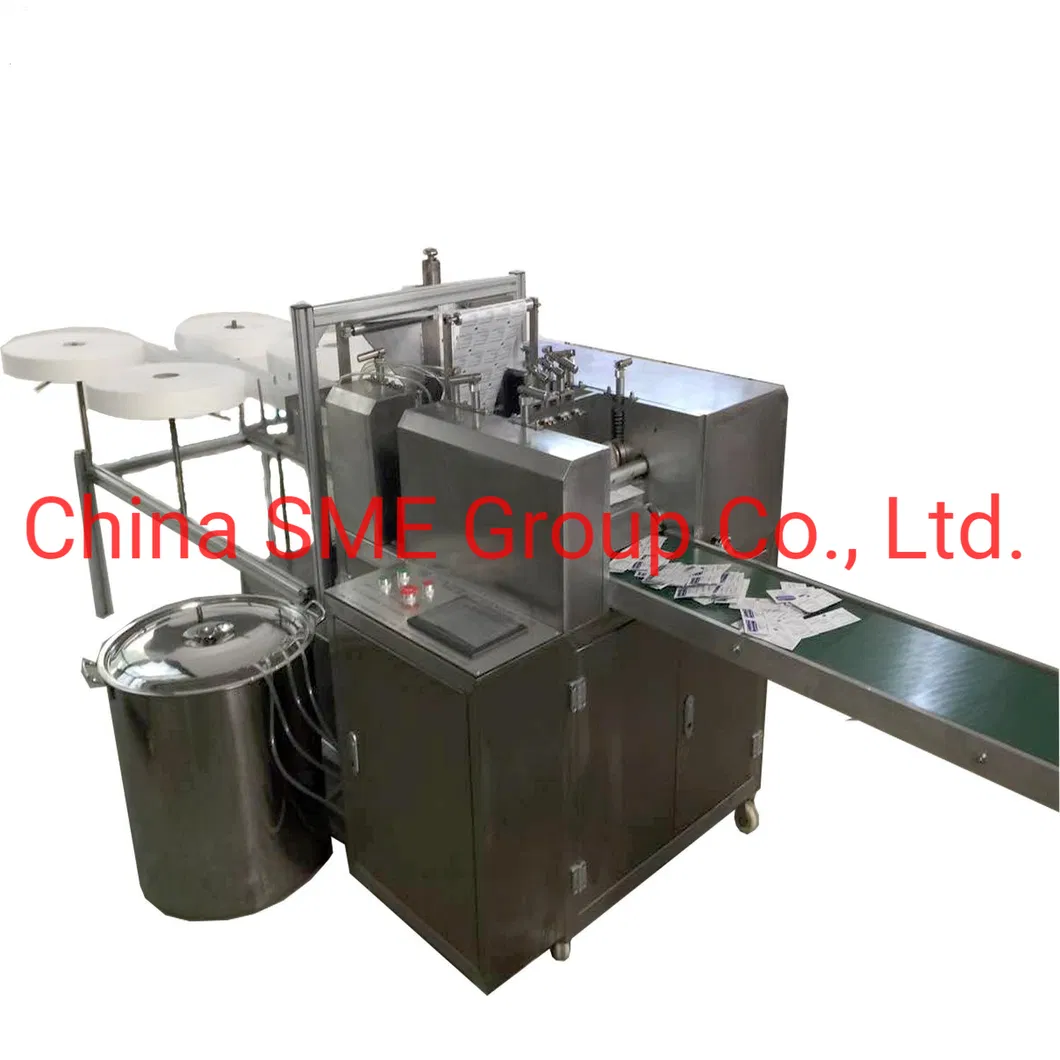

Full-auto Alcohol pre-pad wipes packing machine
⭐ Distinguishing features: High speed: 240-320package/min
Production process:
Non-woven cloth onto the machine → folding → cutting → adding liquid → into the bags → making the bags → sealing the bags → cutting → product.
Technical Parameters
| Wipe (Unfolded) |
Wipes (Folded) |
Packing Size |
Non-woven Width |
| 60mm x 30mm |
30mm x 30mm |
50mm x 50mm |
60cm |

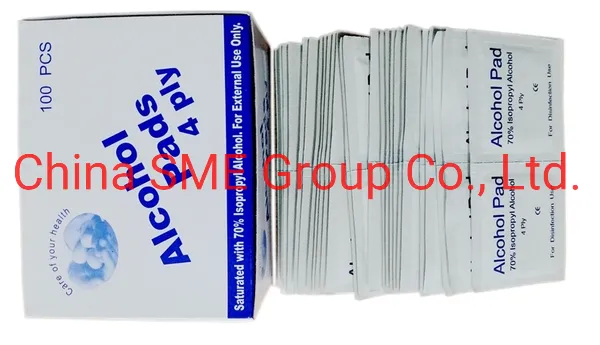

Sample Picture:
Main Dispositions & Features
- Intelligent packaging machine controller (bag length settings, photo mark tracking, counting)
- Stepper control system
- Four-sided seal bag, packing sealing system (dual in bag, seal pattern with reticulate)
- Advanced temperature control system
- Wetting system adding liquid at a precise fixed amount
- Intelligent photoelectric trademark vertical positioning system
- Packing materials manually horizontally correcting system
- Non-woven folding and cutting installment
- Coated stainless steel shield, main contact parts using stainless steel 304
- Electrical control box with emergency stop and conditioning switches

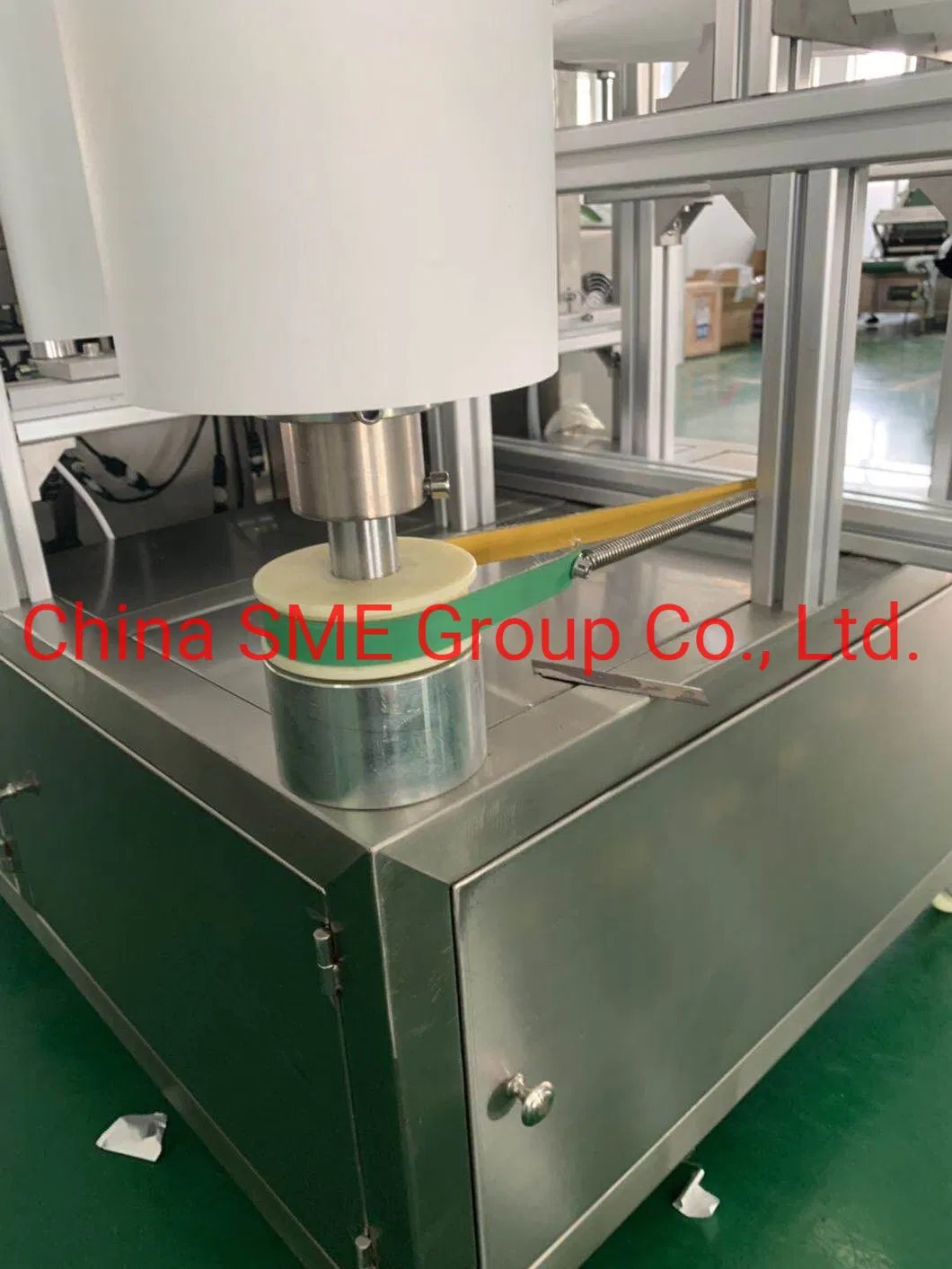

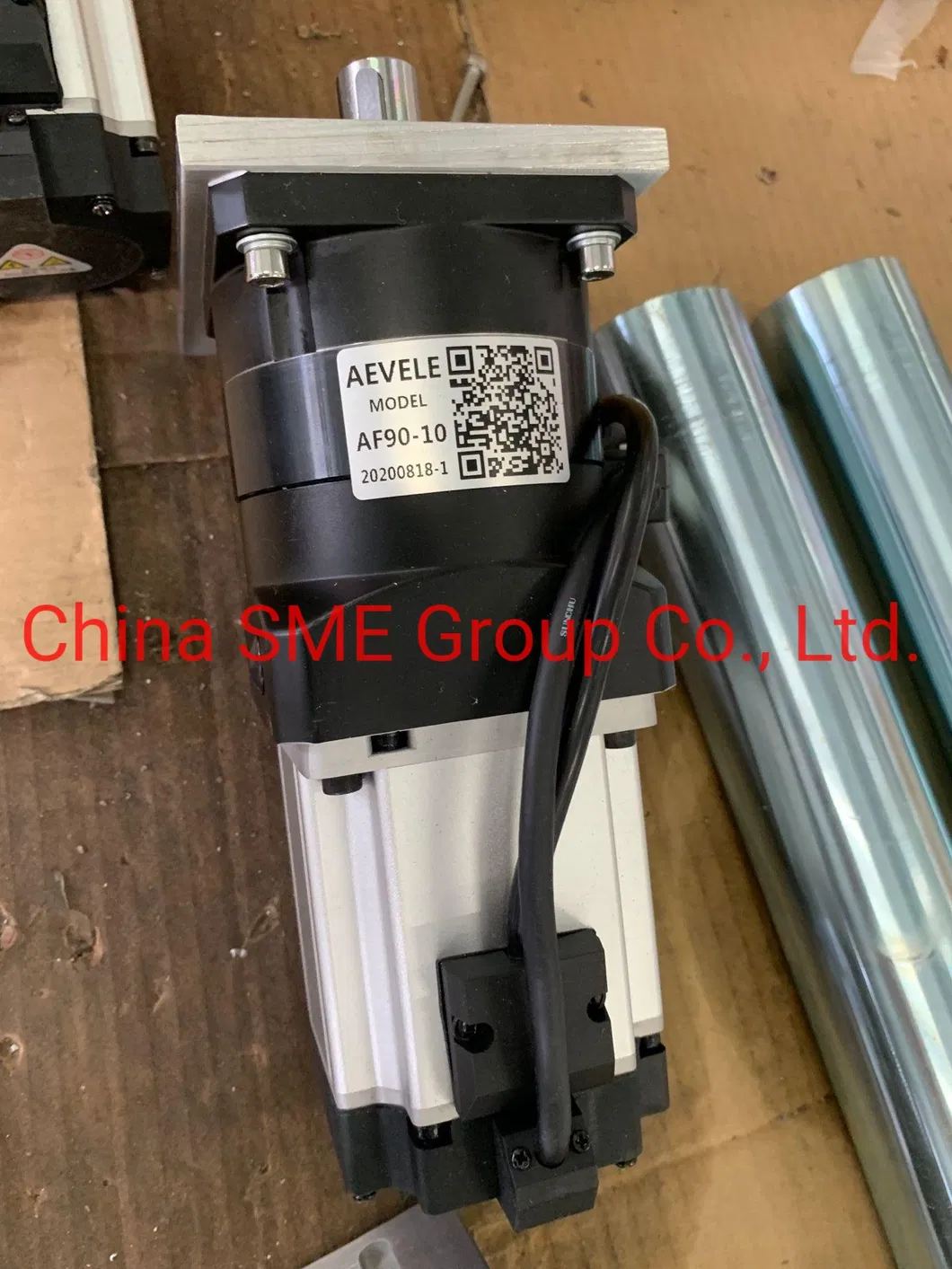

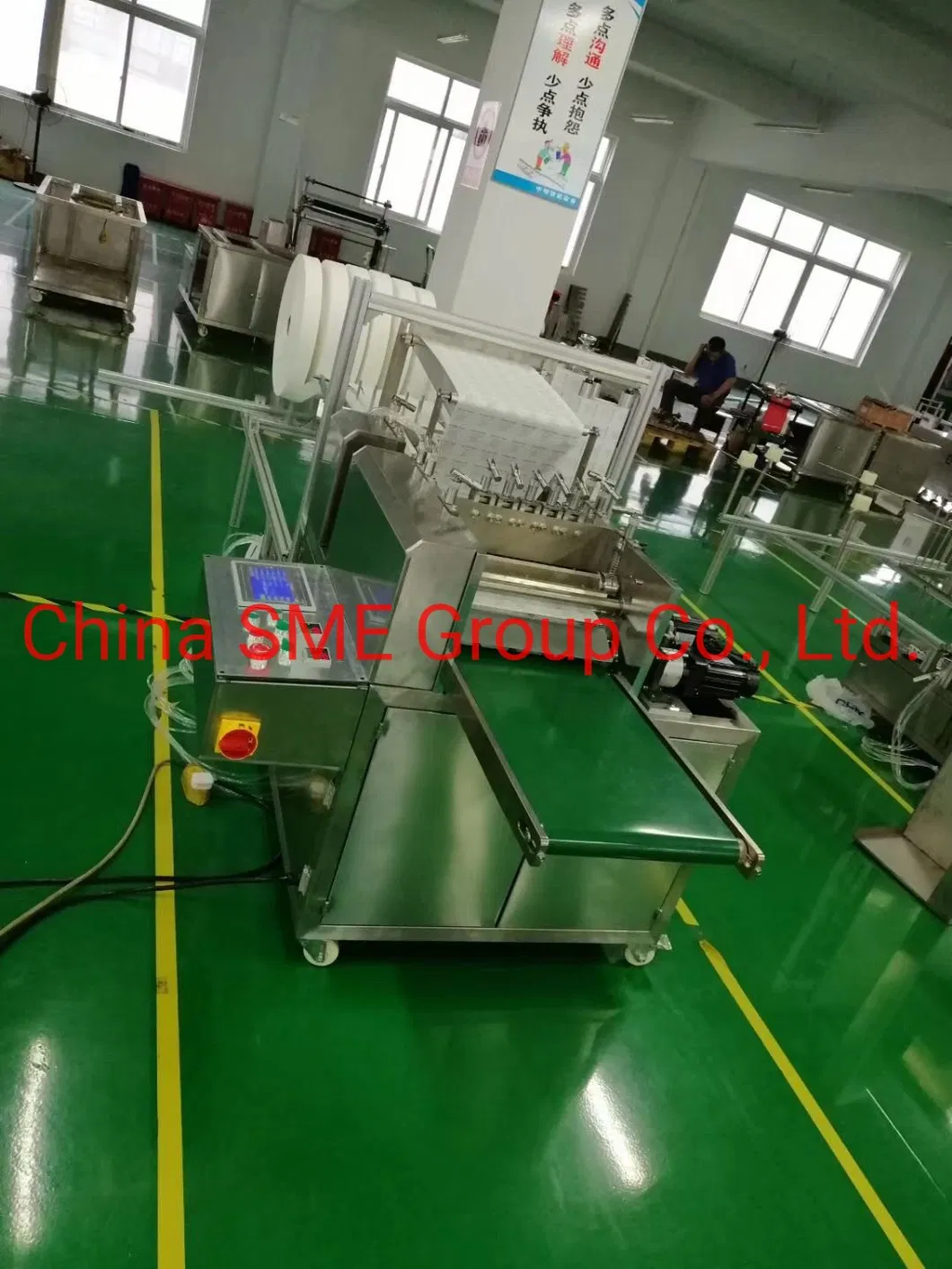

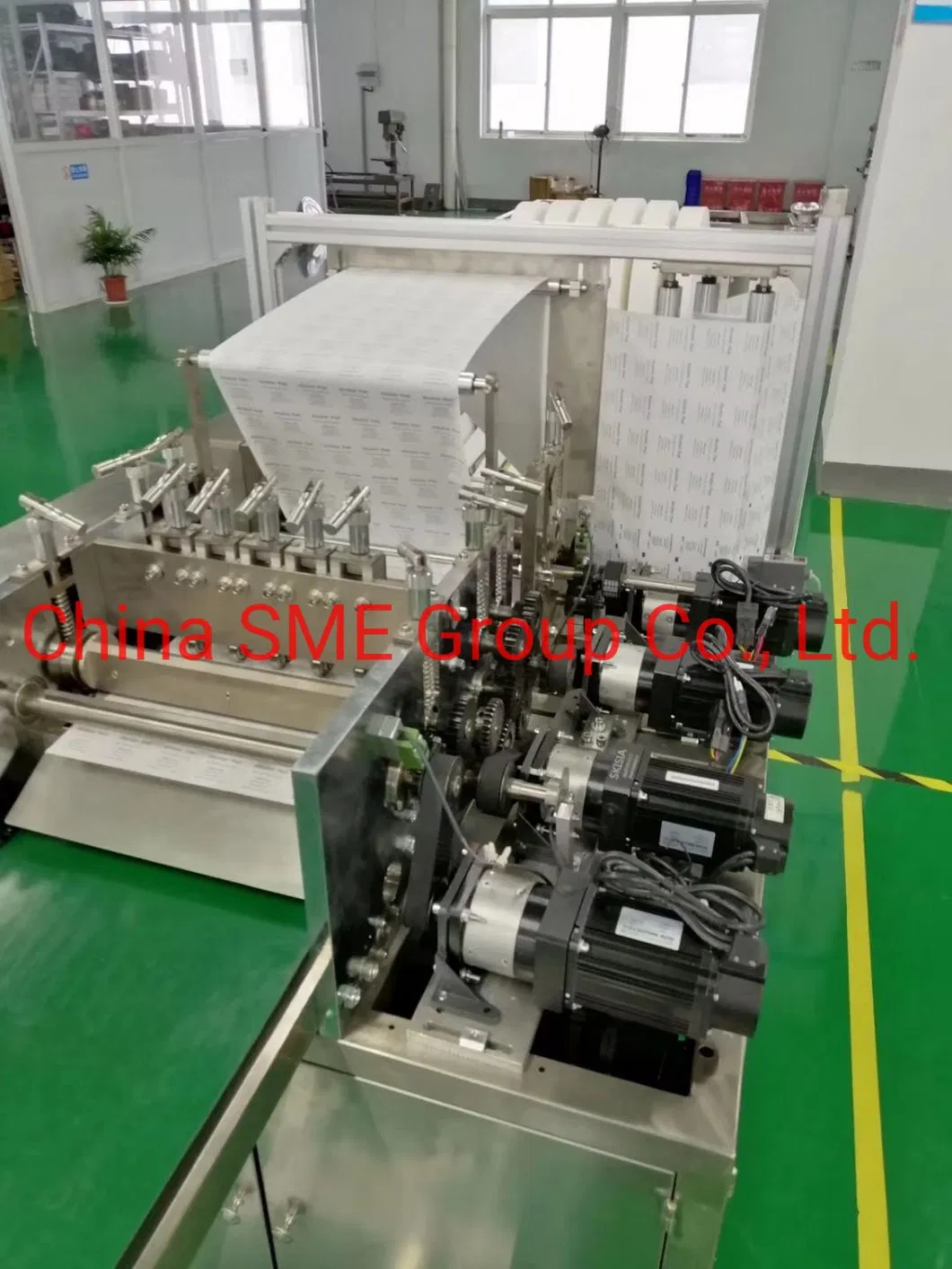

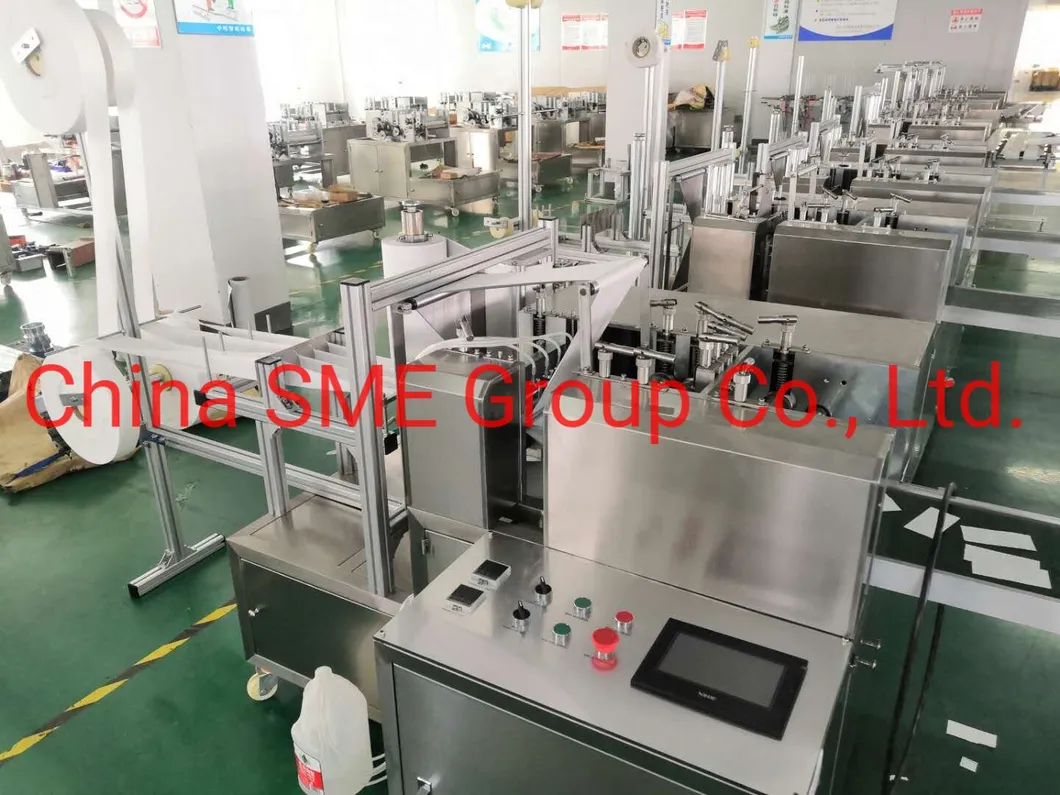

Machine Details
Apparatus & Components
| No |
Name |
Origin |
Model and Specification |
Quantity |
| 01 | Machine cover | - | Stainless steel 304 | 1 |
| 05 | Touch screen | EVIEW | MCGS TPC7062K | 1 |
| 06 | Servo motor | Japan | Mitsubishi HF-KN73J-S100 | 1 |
| 08 | PLC block | Germany | Siemens CPU224CN | 1 |
| 11 | Power switch | Japan | OMRON S8JC-205024C | 1 |
| 20 | Metering pump | Japan | IWAKI | 2 |
Exhibition & Logistics
Professional Solutions
Specializing in designing and developing integrated packaging products and solutions for medical, pharmaceutical, food, and electronics industries. With extensive experience, we provide complete end-to-end solutions by offering state-of-the-art packaging equipment, including Alcohol Swab Packing Machines, Wet Wipe Making Machines, and VFFS Packing Machines. Our equipment combines a functional design with optimum ease of operation and a long life span.
Frequently Asked Questions
1. What is the production speed of the Alcohol Pre-pad Packing Machine?
The machine is capable of high-speed production, ranging from 240 to 320 packages per minute, depending on the material and liquid volume.
2. What types of packaging materials can be used?
The machine is compatible with 73-110g/sqm paper and aluminum compound materials, as well as various films suitable for four-sided sealing.
3. Does the machine support automatic liquid addition?
Yes, it features a precise wetting system with high-quality metering pumps (such as IWAKI from Japan) to add liquid at a fixed amount automatically.
4. What are the folded and unfolded dimensions of the wipes?
The standard unfolded wipe size is 60mm x 30mm, which folds into a 30mm x 30mm pad for a final package size of 50mm x 50mm.
5. What is the power requirement and total weight of the equipment?
The machine operates on 220V, 50Hz with a total power of 2.6 Kw. The total weight of the machine is approximately 700 Kg.
6. Which industries are these machines suitable for?
Our machines are widely used in Medical, Pharmaceutical, Food Processing, Electronics, and Cosmetic industries for the high-efficiency packaging of alcohol pads and wet wipes.
