Integrated Packaging Solutions / Customized Packing Machine/ Automatic Case Packers with Low Price

After-sales Service:	Field Installation, Commissioning and Training
Warranty:	1 Year
Application:	Drinks, Vegetable, Fruit

Send Inquiry

Product Description

🔹 Basic Specifications

Forming Function

Forming, Filling, Seal

Driven Type

Electric

Material Type

Solid

Packaging

Cartons

Packaging Material

Plastic

Weight

3000kg

Capacity

Customized

Function

Filling, Wrapping, Labeling, Sealing, Printing

Key Selling Points

Good Quality and Competitive Price

Core Components

Motor, PLC, Bearing, Engine

Main Function

Weighing Forming Filling Sealing Packing

Packaging Type

Stand-up Pouch, Bags, Pouch, Carton Box

Bag Length

50-300mm

Origin

China

Specification

3.2 x 2.5 x 2.5M

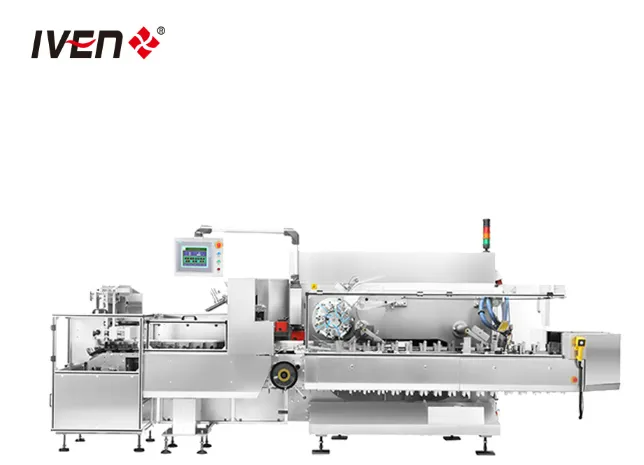

🚀 Integrated Packaging Solutions

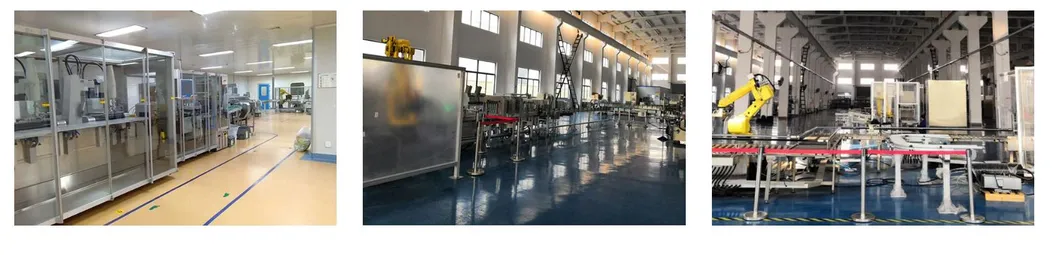

The secondary packing production line for pharmaceutical and medical applications is primarily composed of a cartoning machine, big case cartoning, labeling, weighing station, palletizing unit, and Regulatory Code System.

Once the production process in secondary packing is accomplished, the products are efficiently transferred to the warehouse.

📋Key Features:

✔Meets high-level capacity with automatic transportation and sealing.
✔Complies with GMP and international design standards.
✔Transparent and visible packaging process.
✔Full servo control for stability.
✔Super long carton storage (over 100 cartons).
✔Industrial robots suitable for various medical production lines.

⚙️ Product Operation Steps

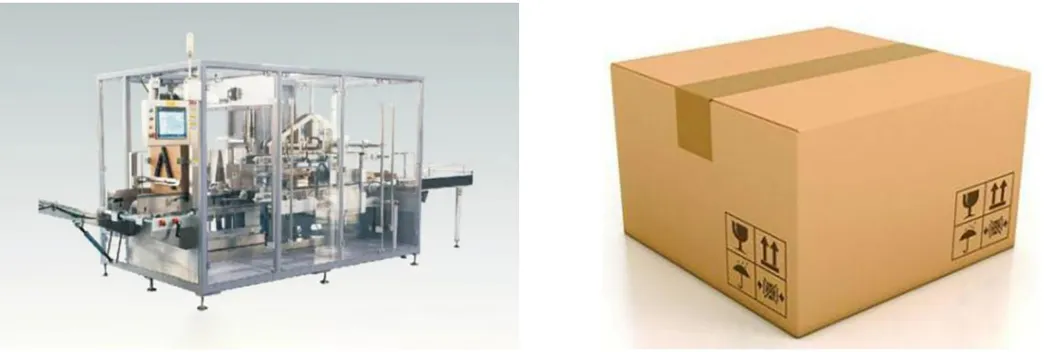

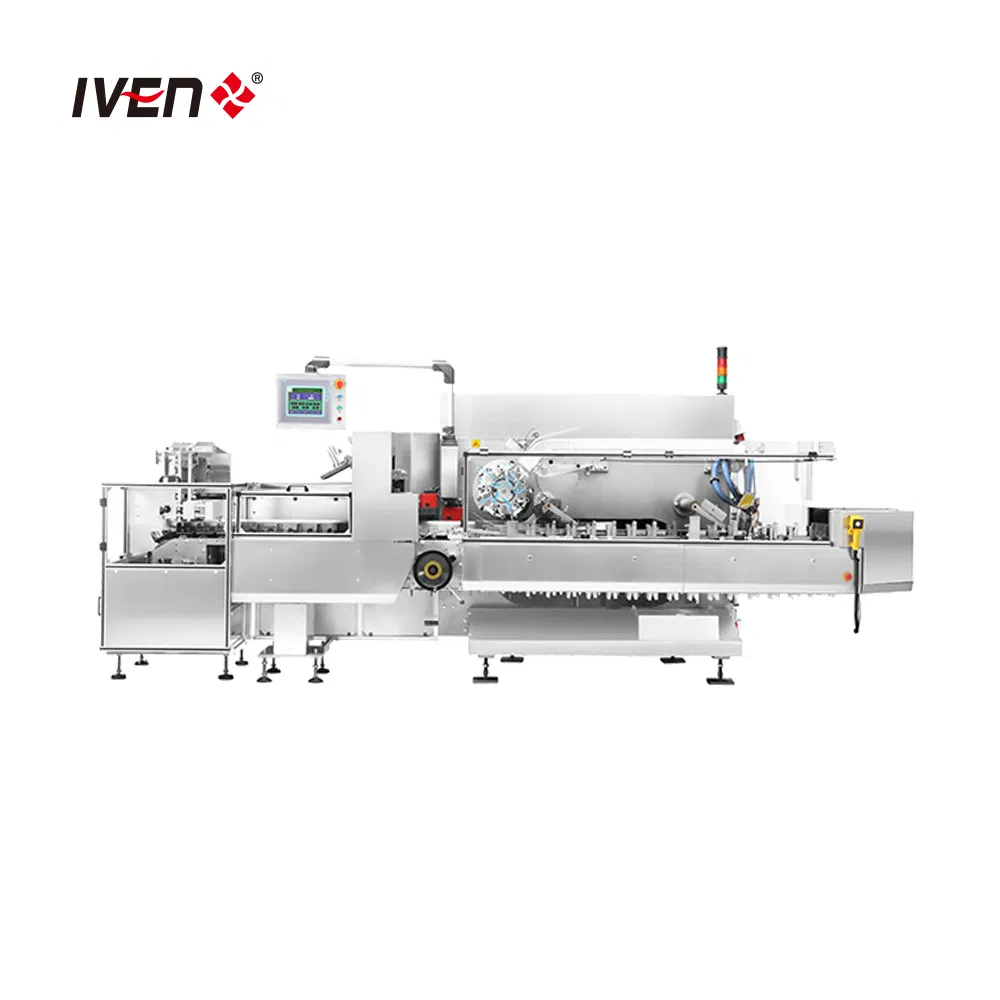

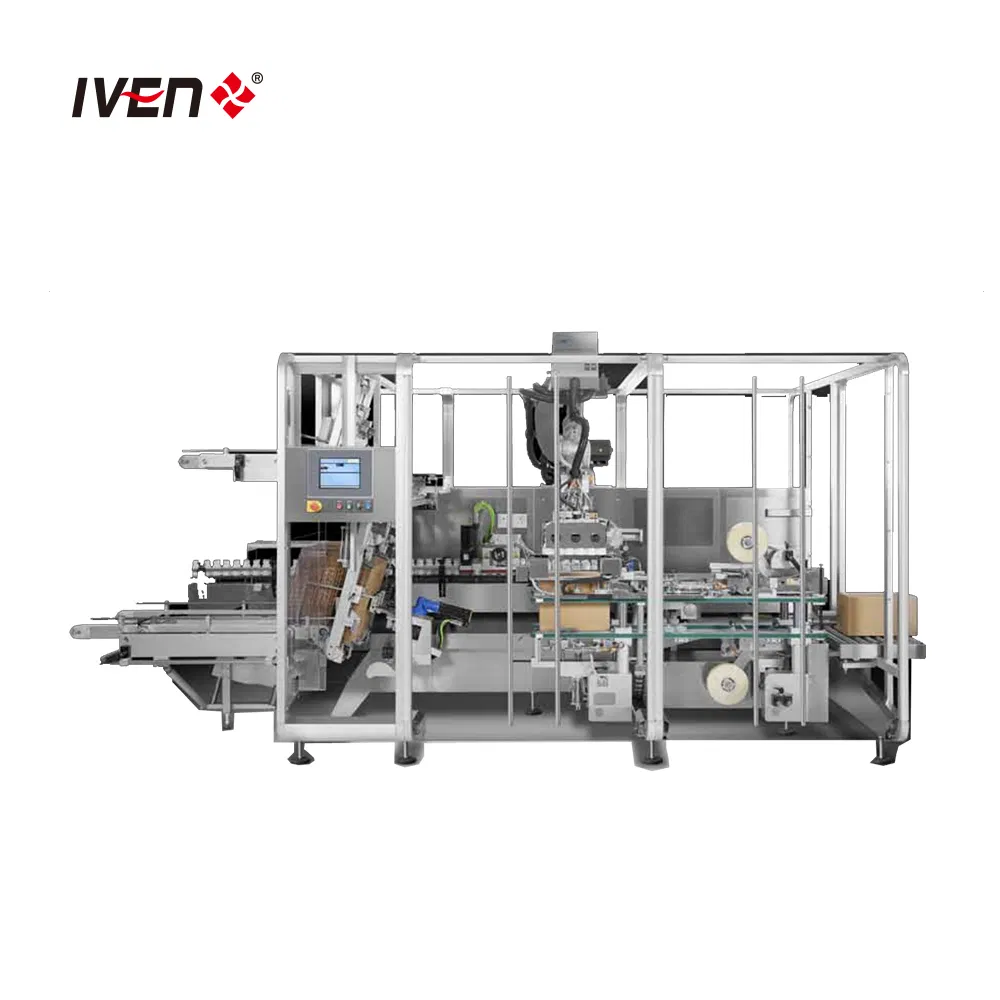

Step 1: Cartoning Machine

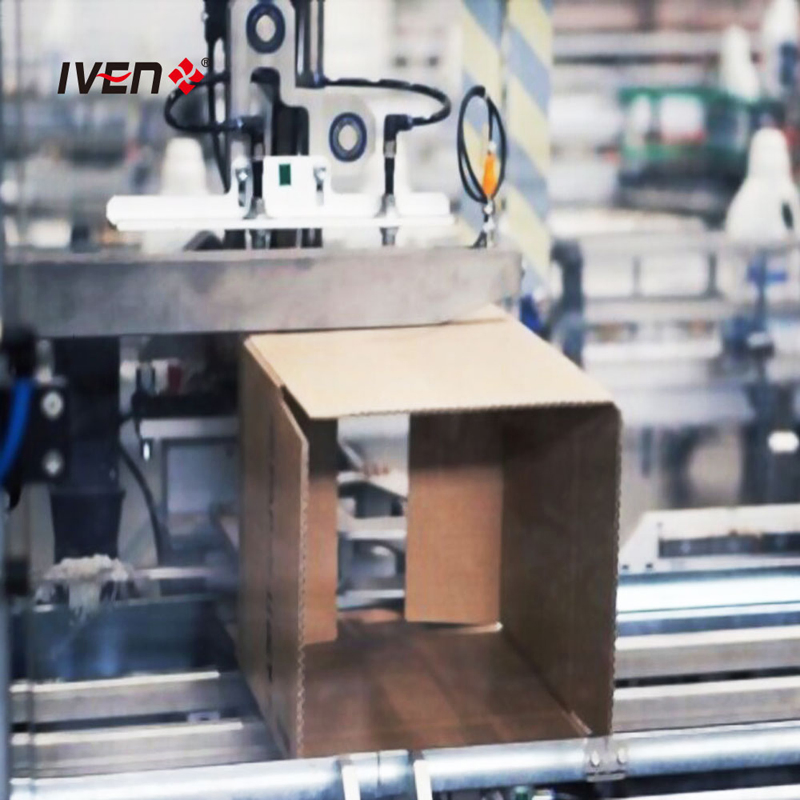

Automatic carton box unfolding, feeding products with leaflets, and sealing the carton.

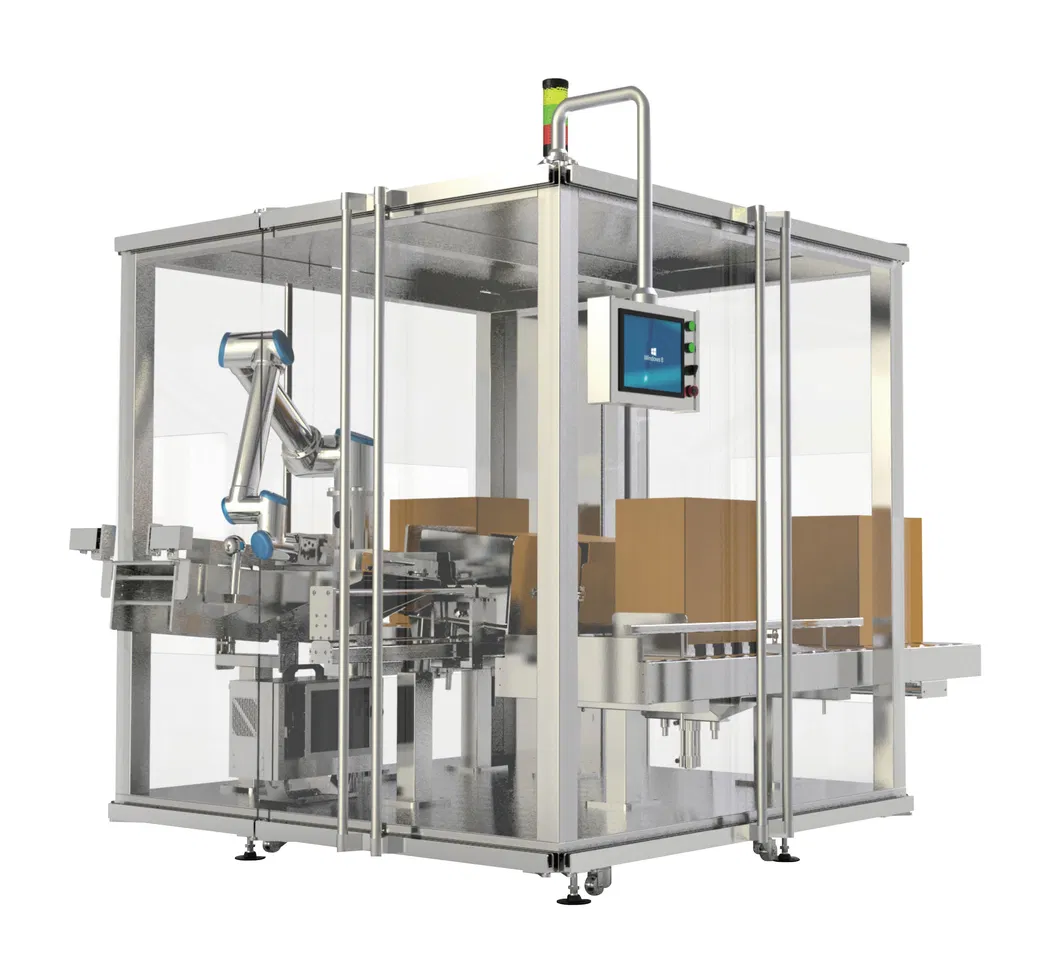

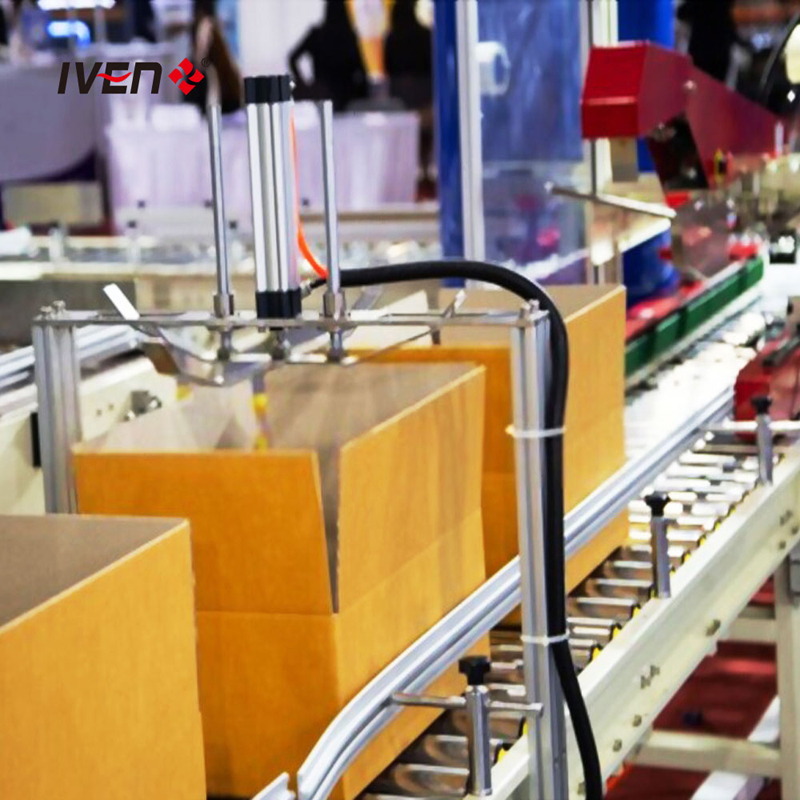

Step 2: Big Case Cartoning Machine

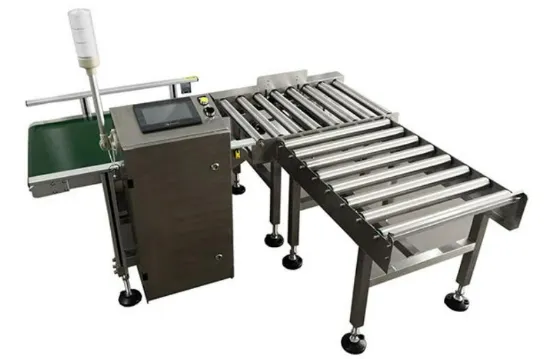

Feeding cartons into big cases (one by one or layer by layer), sealing, weighing, and labeling.

Step 3: Automatic Palletizing Unit

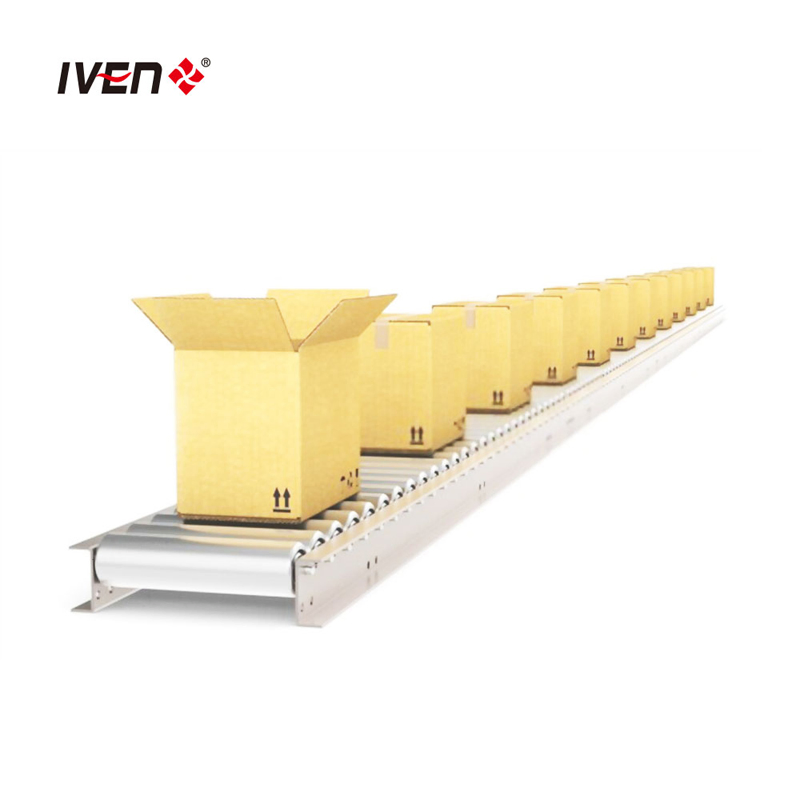

Cases are transferred via auto-logistic units to the robotic station for personalized palletizing.

📊 Technical Parameters

Cartoning Machine Specifications		Parameters
Heads amount of opening carton		5
Speed		200-220 box/min
Power supply		380V 50Hz
Main motor		2.2 Kw
Vacuum pump		1.3 Kw
Weight		3000 Kg
Air compressed	Consumption	40 NL/min
Air compressed	Pressure	0.6 MP

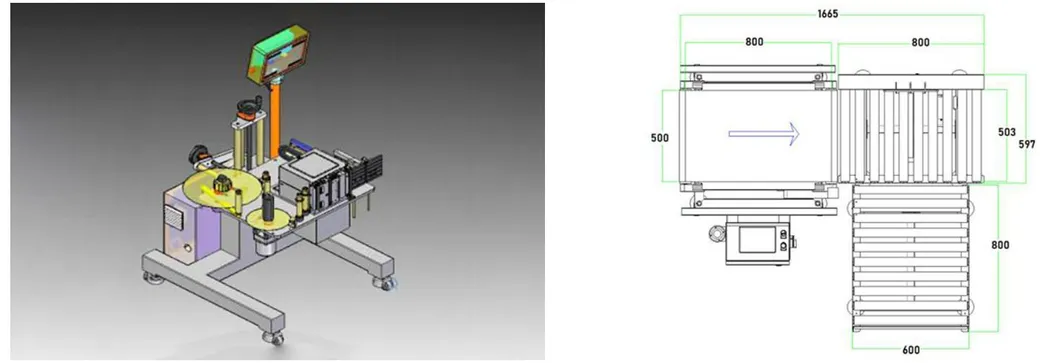

Item	Labeling Machine Parameters
Labeling speed	Flat: 5-30 cases/min \| Corner: 2-12 boxes/min
Labeling accuracy	±3mm
Control unit	PLC S7-200smart Siemens
Body Material	Stainless Steel 304 and Aluminum
Printing	Zebra printer (300dpi)

🌟 Technical Advantages

💎Full servo control for stable running.

💎Troubleshooting display for easy maintenance.

💎Small footprint & space occupied.

💎Man-machine cooperation robot (maintenance-free).

💎Mitsubishi and Siemens high-speed PLC.

💎Visual camera for multi-specification identification.

❓ Frequently Asked Questions

Q: What industries is this packaging production line suitable for?

A: It is specifically designed for the pharmaceutical and medical industries, providing secondary packaging solutions like cartoning, labeling, and palletizing.

Q: Does the equipment comply with GMP standards?

A: Yes, the production line is designed and manufactured to meet high-level capacity requirements and complies with GMP and other international standards.

Q: Can the system handle different carton and bag sizes?

A: Yes, the system supports customization. While there are standard size ranges, adjustments can be made to accommodate different customer requirements.

Q: What brand of control components are used?

A: We use high-performance components from world-renowned brands, including Siemens, Mitsubishi, Omron, and SMC.

Q: Is the palletizing process fully automatic?

A: Yes, the system features an automatic palletizing unit with robotic stations that can be customized to meet specific logistical needs.

Q: How does the system ensure safety during operation?

A: The equipment includes external protection such as organic glass doors with detection sensors that stop the machine if opened, plus comprehensive alarm systems.
