State-of-The-Art IV Dressings Machine with User-Friendly Design Elements

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

🔍 Overview

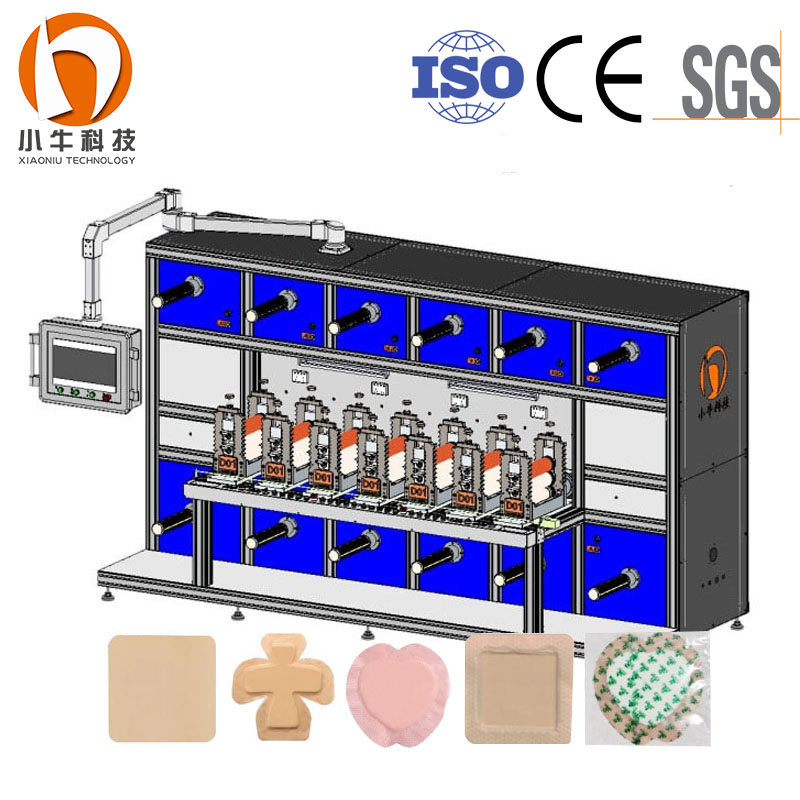

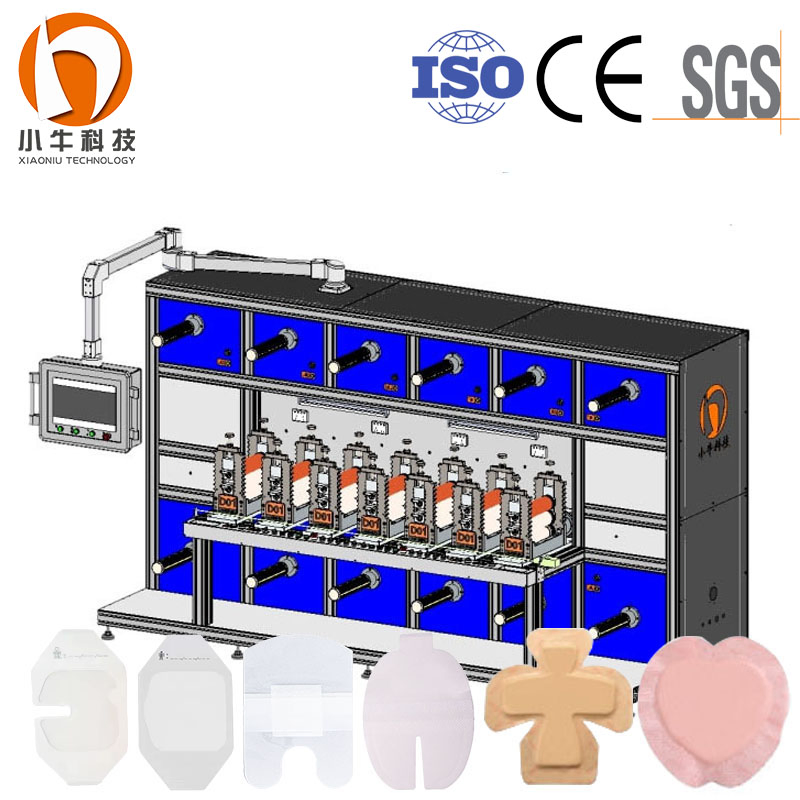

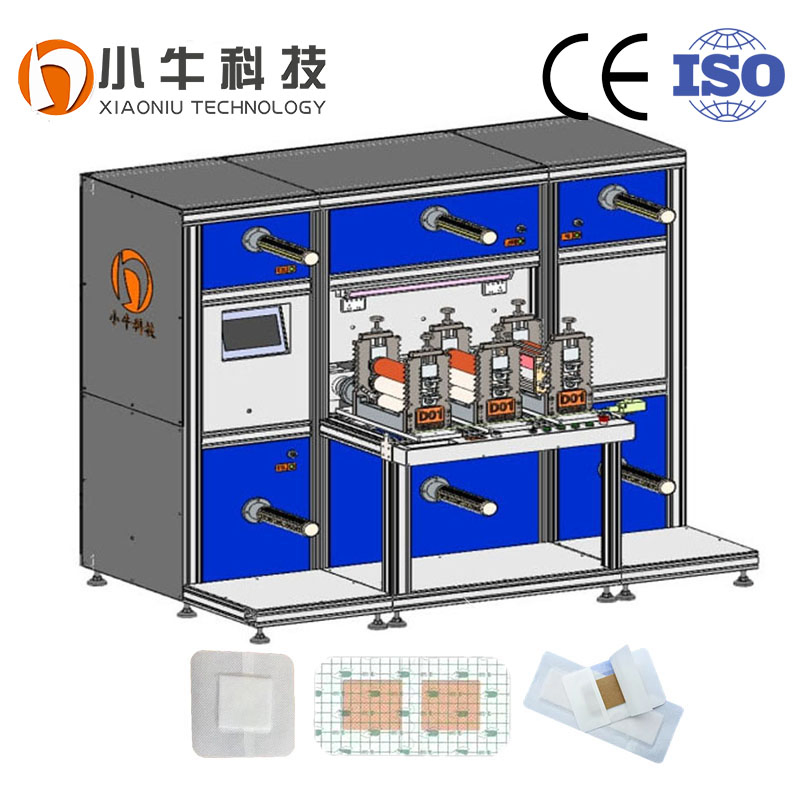

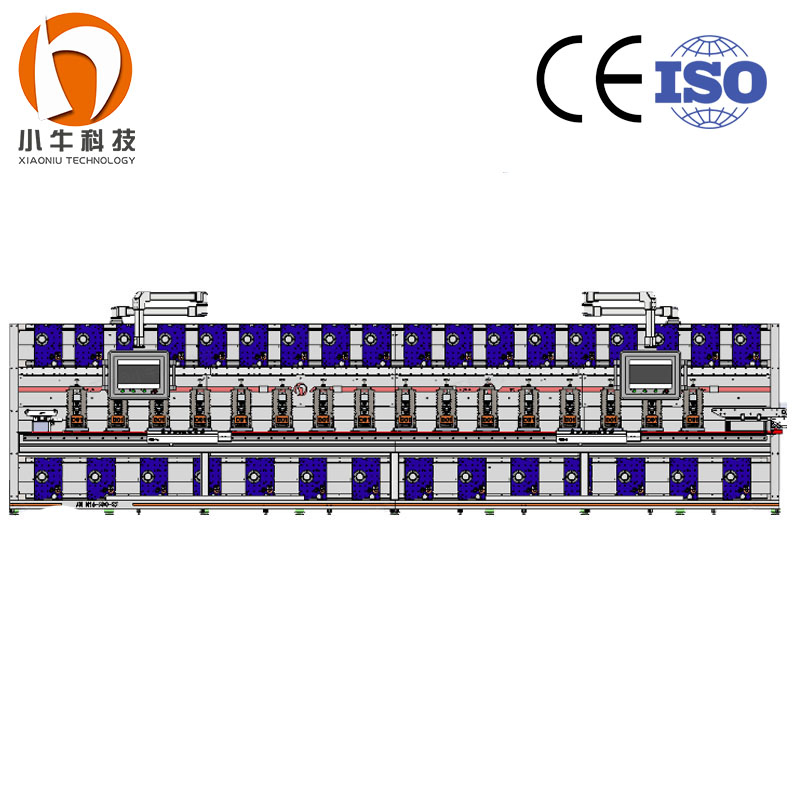

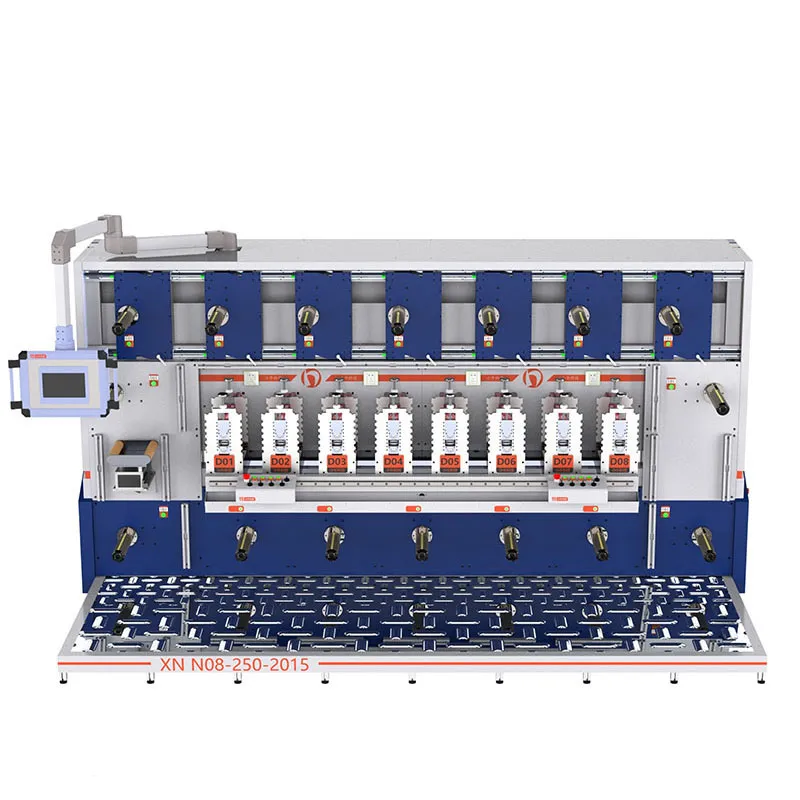

High Speed Automatic Medical Silicone Foam Dressings Machine

This 8-station rotary die-cutting machine features servo-driven stations and feed shafts for independent or synchronized operation. It enhances efficiency with synchronous, asynchronous, speed ratio, and constant tension functions.

📋 Basic Specifications

Model NO.	XN8
Species	Rotary Die-Cutting Machine
Imprinting Type	Rotary
Template Form	Horizontal
Die Cutting Tool	Metal Mold
Automatic Grade	Automatic / Computerized

Power	20kw
Feed Width	250mm / 350mm (Customized)
Cutting Precision	±0.1mm
PLC System	Omron
Drive Motor	Servo
Max Speed	60m/min

🚀 Key Technical Advantages

⚡

High Efficiency
Continuous roll cutting with 5-60m/min speed.

🎯

Superior Precision
±0.1mm precision for stable high-end processing.

🧩

Modular Design
Multi-station design for integrated compounding.

⚙️

Intelligent Control
Full-auto operation with smart tension control.

🛠️ Industrial Applications

Essential for high-precision mass production of flexible materials, widely used in:

Medical Consumables 3C Electronics Automotive Parts New Energy Packaging & Printing

📺 Equipment Demonstration

📦 Finished Products Showcase

Silicone Foam Dressing

I.V. Dressing

Acne Patches

Hydrocolloid Dressing

Infusion Dressing

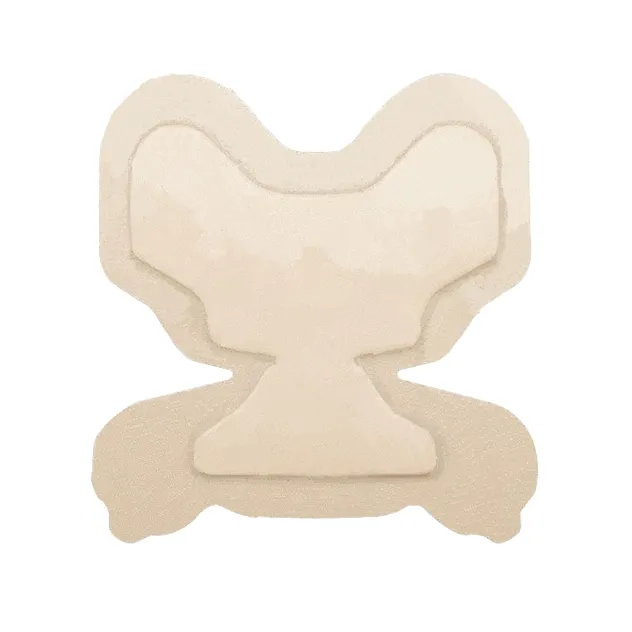

Foam Dressing

🔧 Main Components

🚢 Logistics & Packaging

❓ Frequently Asked Questions

1. What materials can the rotary die-cutting machine process? The machine is adaptable to all flexible substrates, including medical-grade silicone, foam, hydrocolloids, and electronic shielding materials.

2. What is the production efficiency of this equipment? It offers high-speed continuous roll cutting with an adjustable efficiency ranging from 5 to 60 meters per minute.

3. Can one machine produce different types of products? Yes, the modular design allows you to share a machine for multiple products by simply adding stations or changing die cutters.

4. What control system does the machine use? The machine utilizes a high-performance PLC servo control system from OMRON for maximum stability and precision.

5. What kind of after-sales support is provided? We provide a one-year warranty, 24/7 global technical help, and on-site or remote training for operation and maintenance.

6. Is the die-cutting precision guaranteed? Absolutely. The machine achieves a cutting precision of ±0.1mm, ensuring consistency for high-end medical and electronic components.
