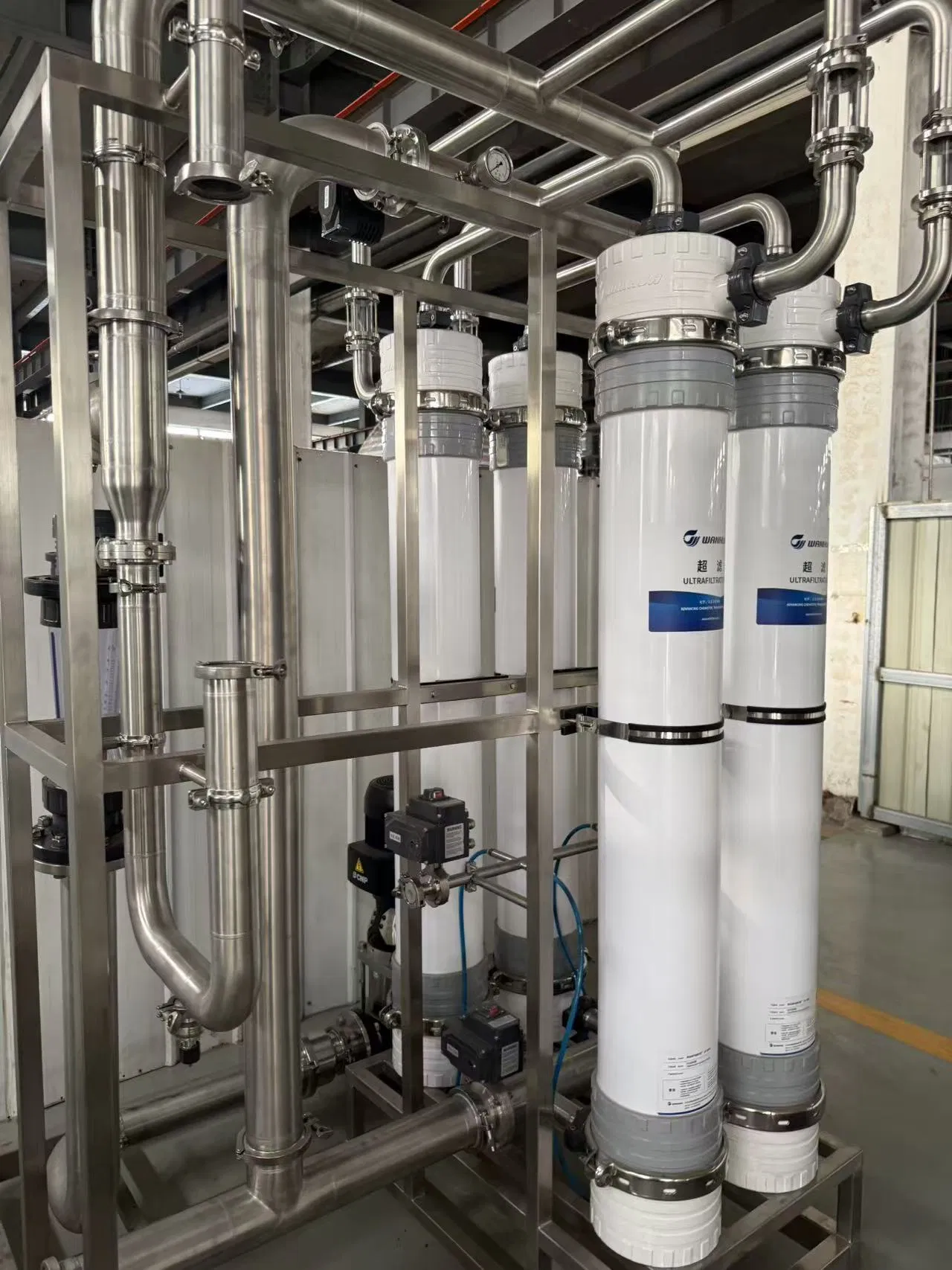

Advanced UF Water Treatment System for Effective Solid Removal
Advanced UF Water Treatment System for Effective Solid Removal
Advanced UF Water Treatment System for Effective Solid Removal
Advanced UF Water Treatment System for Effective Solid Removal
Advanced UF Water Treatment System for Effective Solid Removal
1 / 5
Advanced UF Water Treatment System for Effective Solid Removal
Advanced UF Water Treatment System for Effective Solid Removal
Advanced UF Water Treatment System for Effective Solid Removal
Advanced UF Water Treatment System for Effective Solid Removal
Advanced UF Water Treatment System for Effective Solid Removal

Advanced UF Water Treatment System for Effective Solid Removal

Customization: Available
Membrane Type: Tubular
Type: UF
Send Inquiry

Product Description

i

Basic Product Information

Model NO. UF
Product Type Ultrafiltration (UF) System
Material Stainless Steel 304 / 316
Function Removes Suspended Solids, Bacteria, Colloids
Application Pharmaceutical Industry, Food & Beverage, Chemical
Automation Automatic Backwashing
Capacity e.g., 1,000 L/Day (Customizable)
Power Supply AC 220V / 380V (50Hz / 60Hz)
Certification CE, ISO9001
Origin China
HS Code 8421299090
D

Detailed Description

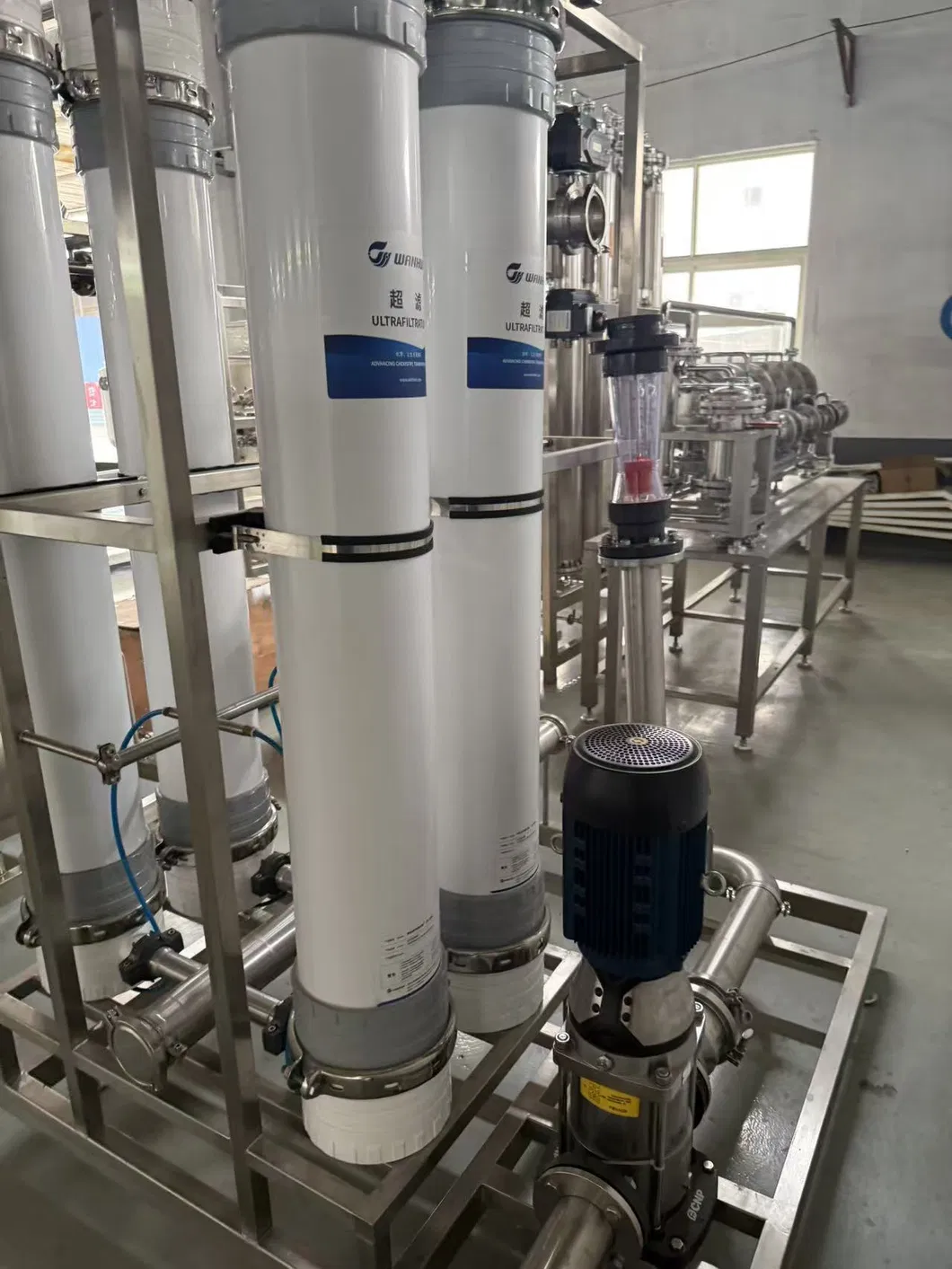

Advanced UF Water Treatment System

Our state-of-the-art Ultrafiltration (UF) Water Treatment System is a pinnacle of engineering excellence. It is designed to deliver pristine, safe, and purified water across industrial, pharmaceutical, and laboratory sectors. This system efficiently eradicates suspended solids, bacteria, and colloids, serving as a superior pretreatment for RO systems or a robust standalone purification solution.

Key Technical Specifications

  • Premium Construction: Crafted with Stainless Steel 304/316 and featuring high-performance Toray UF membranes.
  • Thermal Range: Operates efficiently within 5-45°C environmental conditions.
  • Smart Automation: Equipped with automatic backwashing and optional PLC control for minimal maintenance.
  • Compact Design: Dimensions approx. 1.0-1.5m (L) x 0.6-0.8m (W) x 1.5-1.8m (H); Weight 200-400 kg.

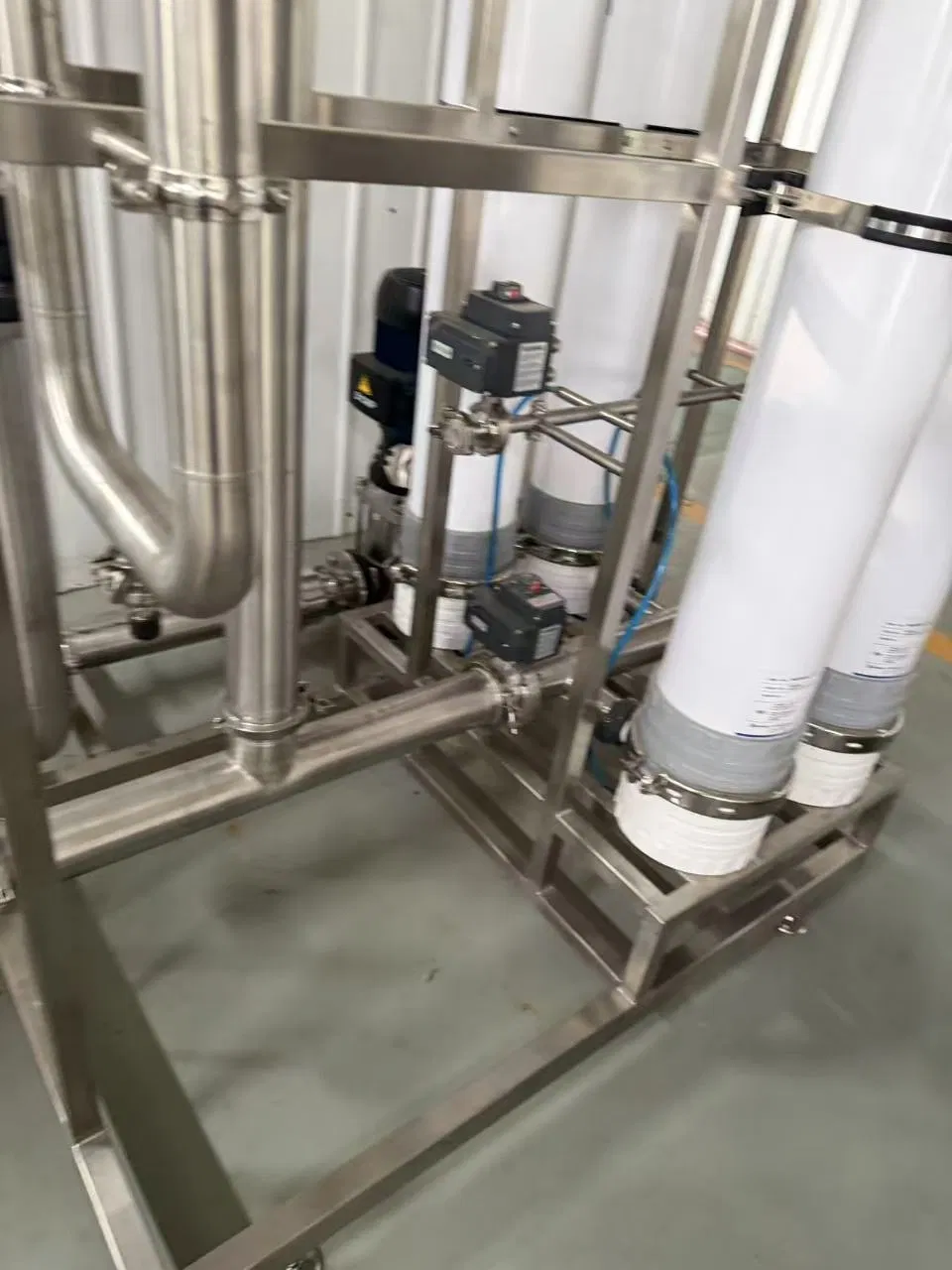

UF System Detail 1

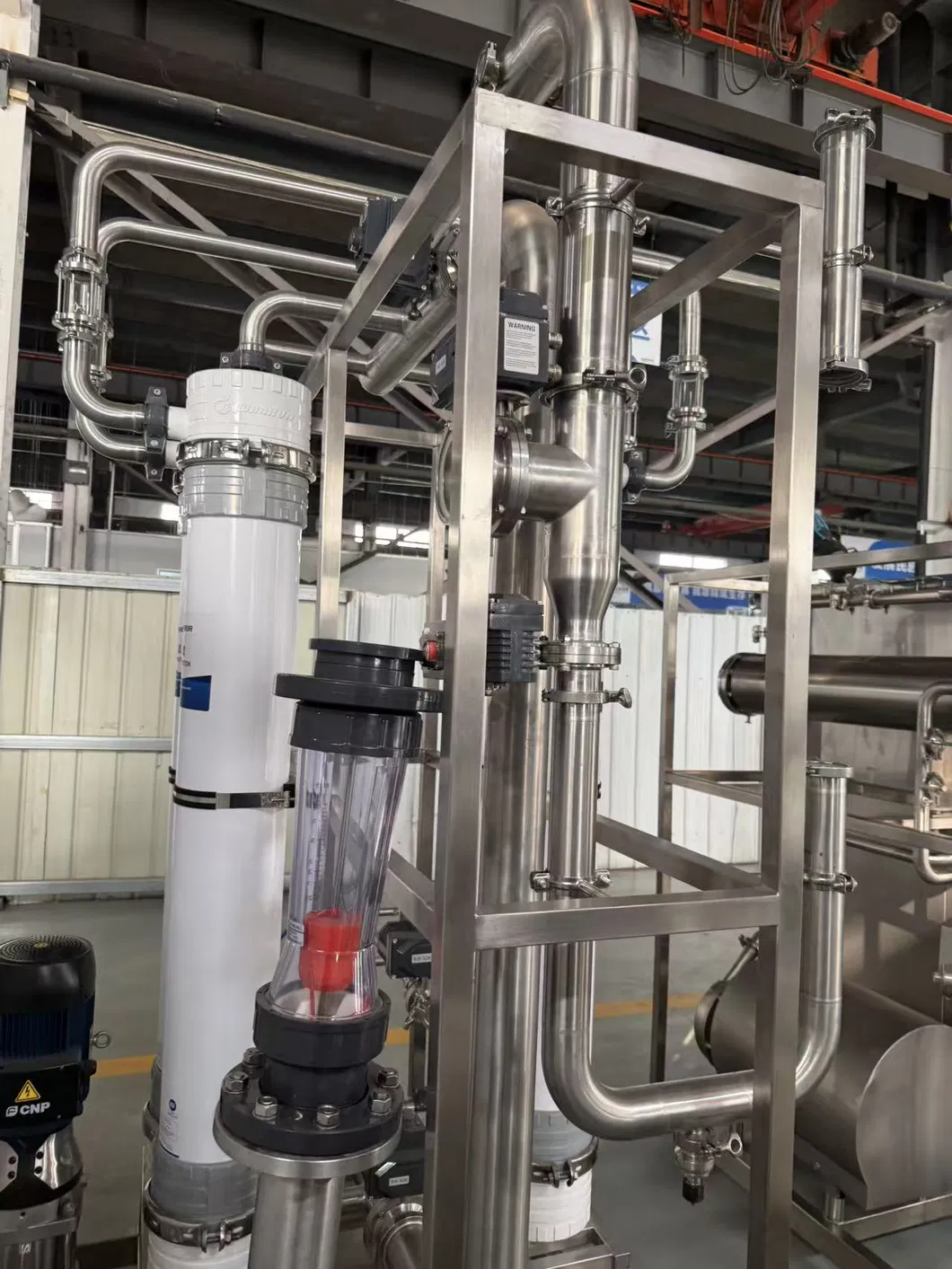

UF System Detail 2

Core Advantages

  • ✔ Efficient Filtration: Consistently high water quality by removing bacteria and colloids.
  • ✔ Energy Saving: Optimized flow and backwash systems significantly lower operating costs.
  • ✔ Durability: Robust stainless steel construction ensures a long service life.
  • ✔ Customization: Adjustable flow rates and configurations to meet specific site requirements.
UF System Detail 3

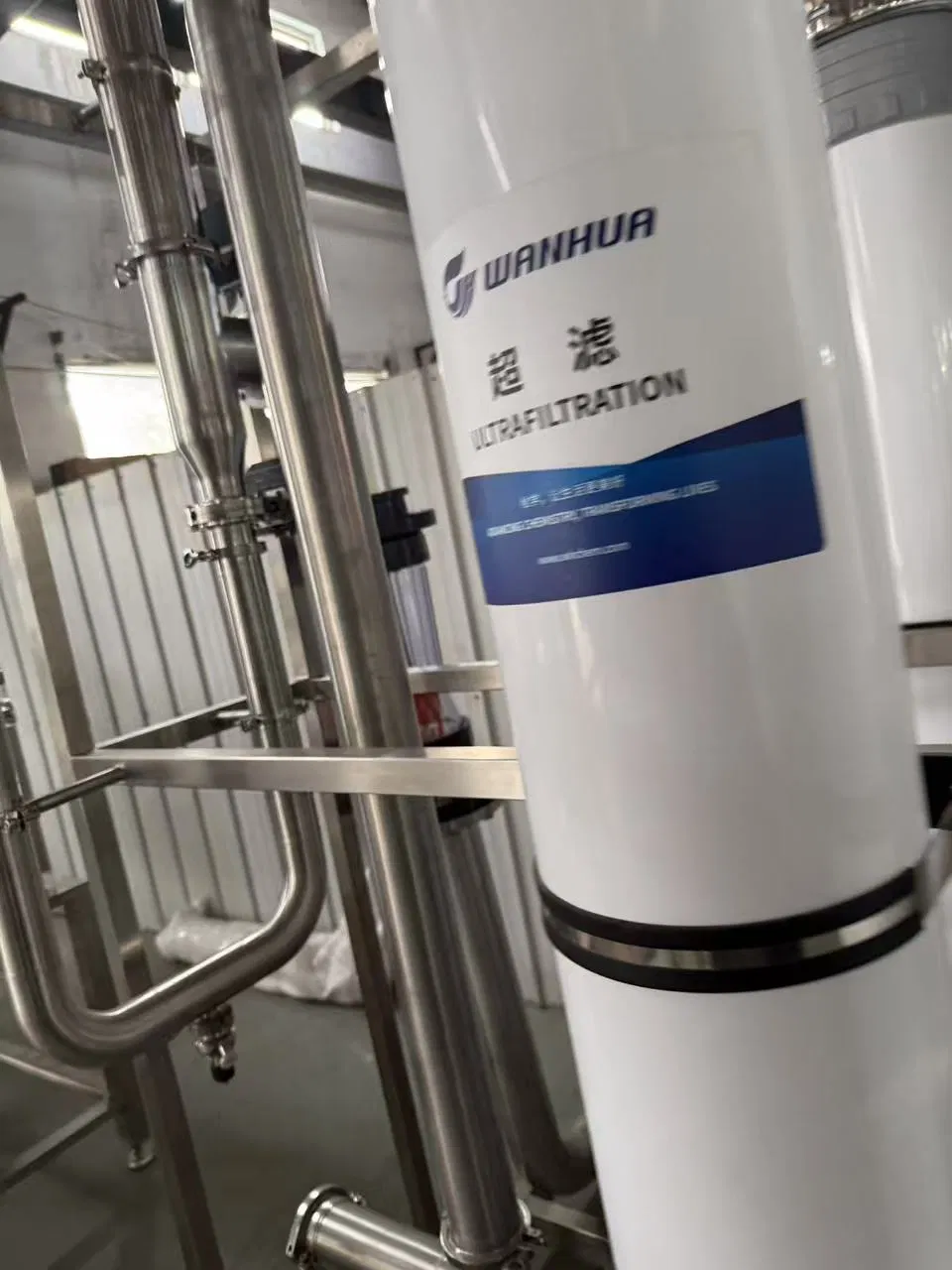

UF System Detail 4
P

Packaging & Logistics

Package Size 300.00cm * 150.00cm * 200.00cm
Gross Weight 1500.000kg
Transport Package Secure Wooden Case

Frequently Asked Questions

1. What impurities does the Ultrafiltration (UF) system remove?
The system is highly effective at removing suspended solids, bacteria, viruses, colloids, and high-molecular-weight organic matter from raw water.
2. Is the capacity of the system customizable?
Yes, while our standard model handles 1,000 L/day, we provide customized flow rates and configurations based on specific client requirements.
3. What is the benefit of automatic backwashing?
Automatic backwashing prevents membrane fouling by periodically flushing out trapped particles, ensuring consistent flow rates and extending the lifespan of the membranes.
4. Can this system be used as a pretreatment for Reverse Osmosis (RO)?
Absolutely. Using a UF system as pretreatment significantly reduces the Silt Density Index (SDI) of water, protecting RO membranes from premature fouling.
5. What materials are used for the housing and frame?
We use high-grade Stainless Steel 304 or 316, which provides excellent corrosion resistance and durability for industrial and pharmaceutical environments.
6. Does the system require professional installation?
The system features a compact, integrated design. While it is user-friendly, we provide comprehensive technical support to ensure correct commissioning and operation.
