Advanced Disposable IV Dressings Machine for Medical Supply Chains

1 / 5

Advanced Disposable IV Dressings Machine for Medical Supply Chains

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

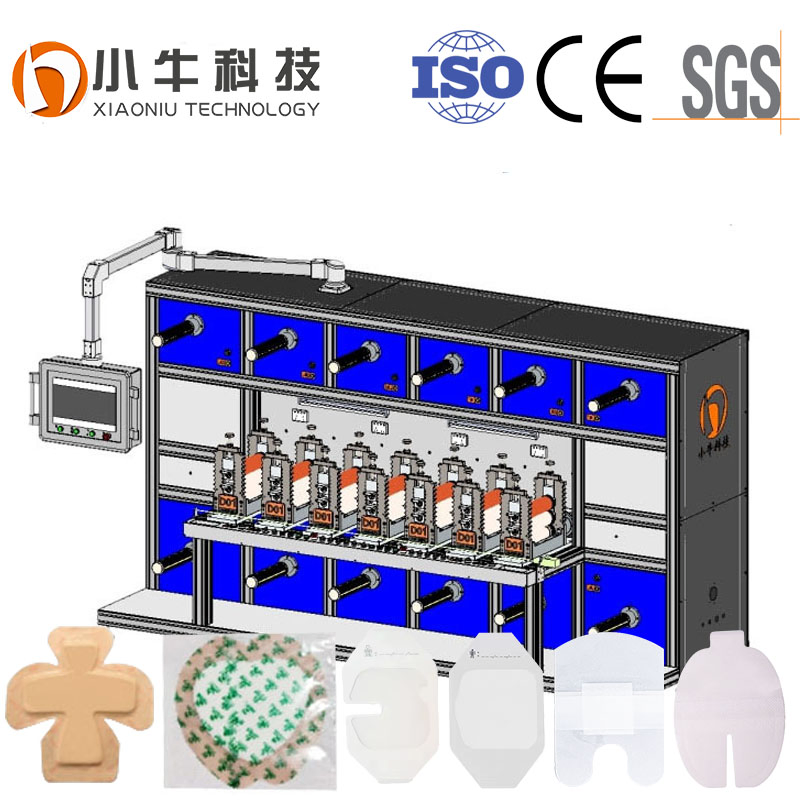

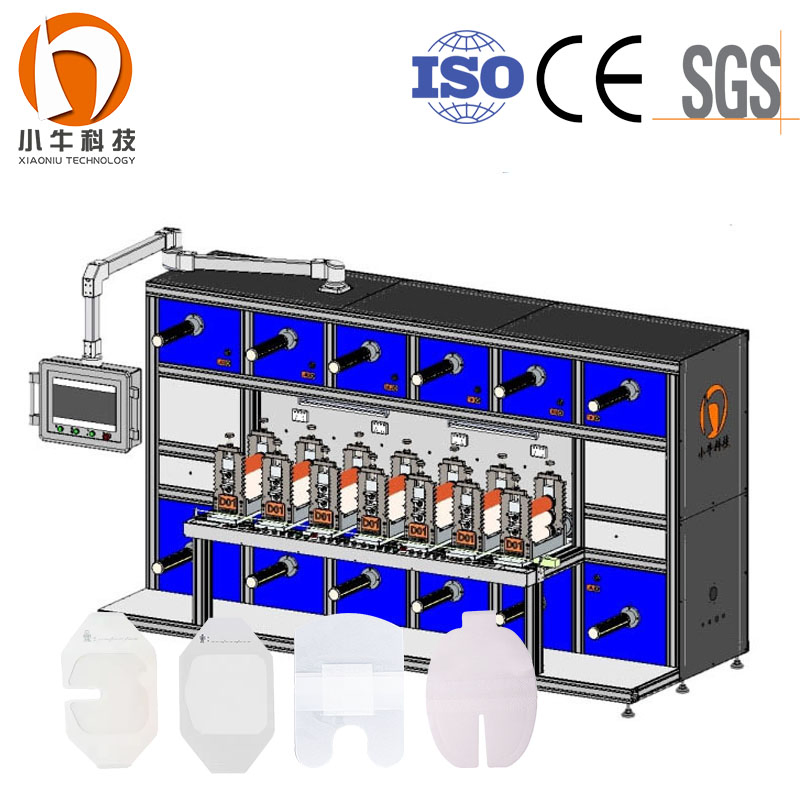

Disposable Medical IV Catheter Fixation Dressing Manufacturing Machine

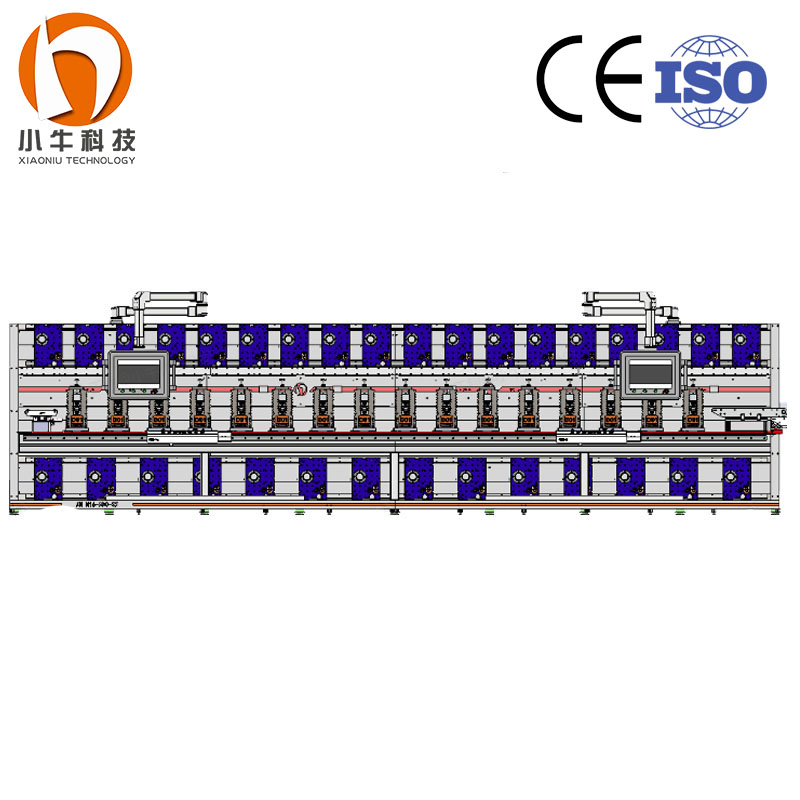

This 13-station rotary die-cutting machine, driven by servo motors, offers independent operation for each station and feed shaft. It supports various pressing, die-cutting, and transfer needs, with synchronous, asynchronous, speed ratio, and constant tension functions. A truly automatic, intelligent universal machine.

Basic Specifications

Model NO.	XN13	Species	Rotary Die-Cutting Machine
Automatic Grade	Automatic	Computerized	Computerized
Cutting Precision	±0.1mm	Drive Motor	Servo
Power	32.5kw	Voltage	Customized (Standard AC380V)
Feed Width	250mm / 350mm / Customized	Max Speed	60m/min

Core Advantages

★ High Efficiency: Continuous roll cutting at 5-60m/min speeds.

★ High Precision: ±0.1mm precision for stable and consistent processing.

★ Multi-Station: 13-station design allows for integrated multi-process compounding.

★ Intelligence: Omron PLC control with intelligent tension and deviation management.

★ Versatility: Suitable for medical consumables, 3C electronics, and new energy materials.

★ Smart Memory: Power-off memory and asynchronous processing capabilities.

Product Application & Samples

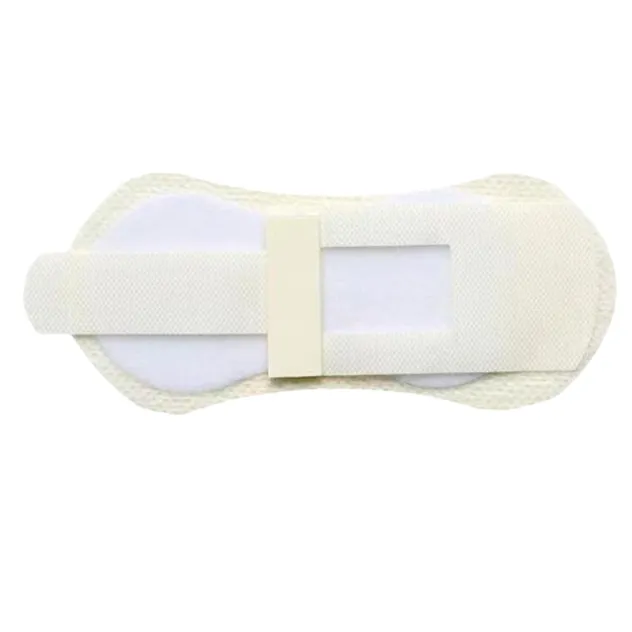

Catheter fixation dressings

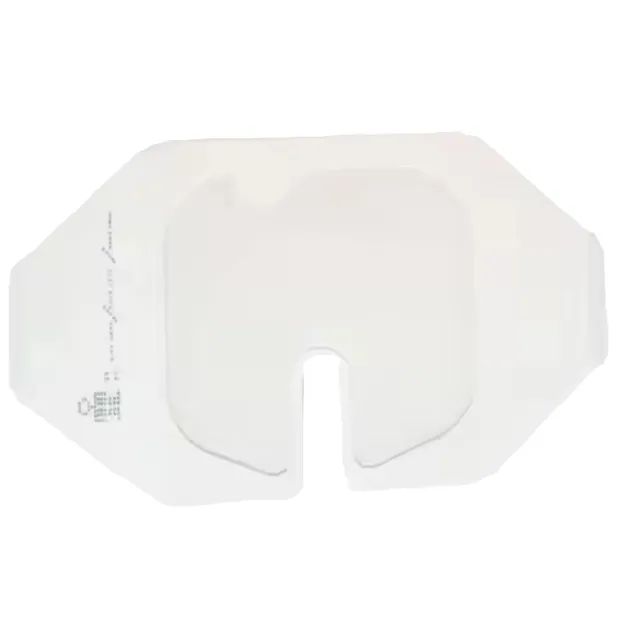

I.V. dressing

Acne patches

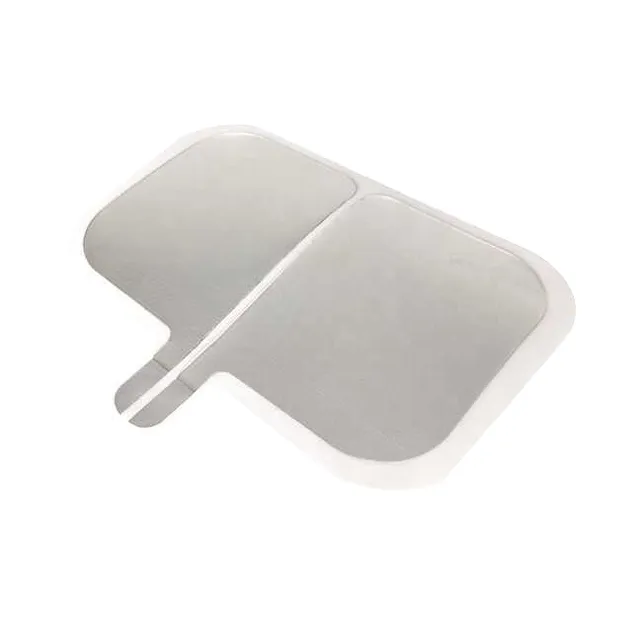

ESU pads

Infusion dressing

Operational Features

✔Automatic Target Tracking

✔Dual System Capability

✔Material Breaking Alarm

✔Asynchronous Target Tracking

✔System Failure Monitoring

✔Constant Tension Control

Components & Engineering

Main Precision Parts

Electronic Control System

Multi-Station Configuration

Delivery & Packaging

Package Size	549.00cm * 170.00cm * 260.00cm
Gross Weight	5600.00kg
Packing Type	Professional Wooden Packing

Frequently Asked Questions

1. What materials can this rotary die-cutting machine process? The machine is designed for a wide range of flexible substrates, including medical dressings, hydrocolloids, foam materials, EMI shielding materials, and adhesive sticker products.

2. What is the cutting precision of the XN13 model? The machine features a high-precision servo-driven system that ensures a die-cutting precision of ±0.1mm, providing stable and consistent results for mass production.

3. Can one machine produce different types of medical dressings? Yes. Due to its modular design, you can share one machine for various products by adding stations or changing die cutters, making it a highly cost-effective solution.

4. What kind of control system does the machine use? The equipment utilizes a full PLC servo control system, primarily using high-quality Omron components for reliable performance and intelligent operation.

5. What after-sales services are available? We provide a standard 1-year warranty, 24/7 technical assistance, and spare parts supply. Engineers can be dispatched for on-site training and debugging if required.

6. How fast is the production delivery? Standard fast delivery is typically within 20 days post-design approval. We also provide free sample processing and videos before purchase.
