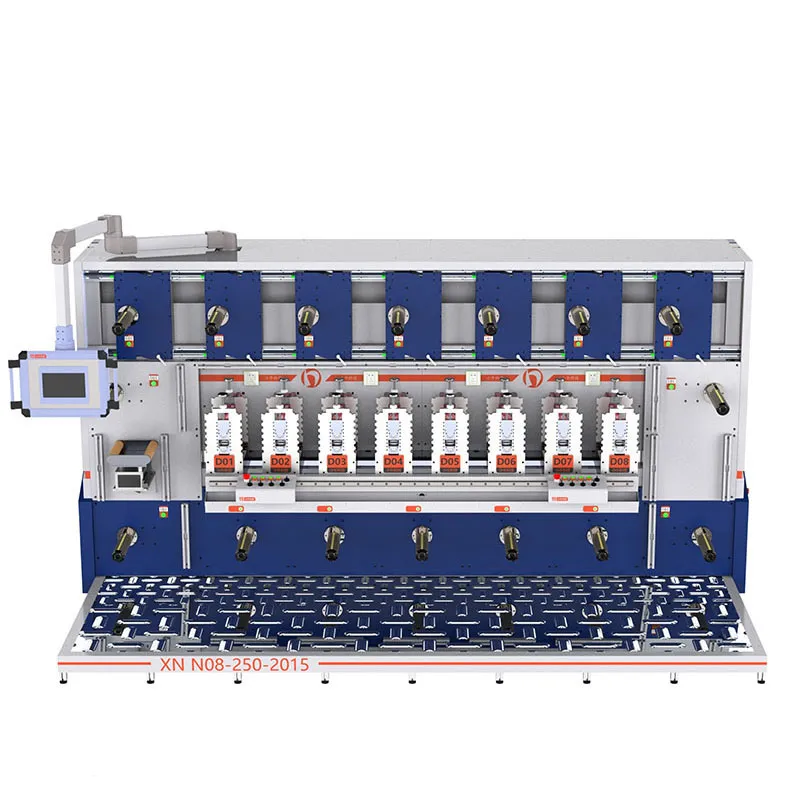

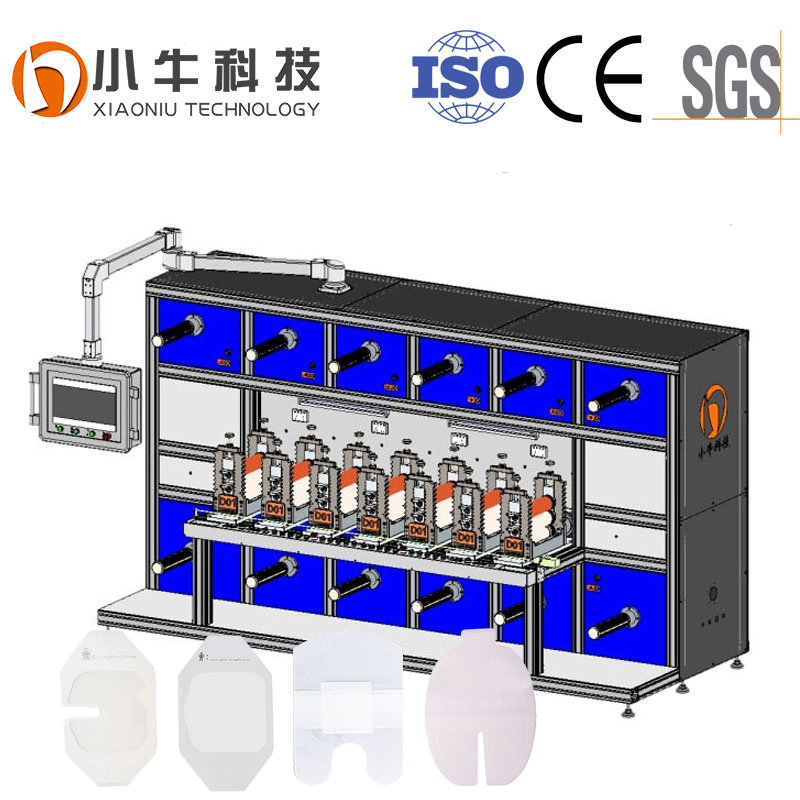

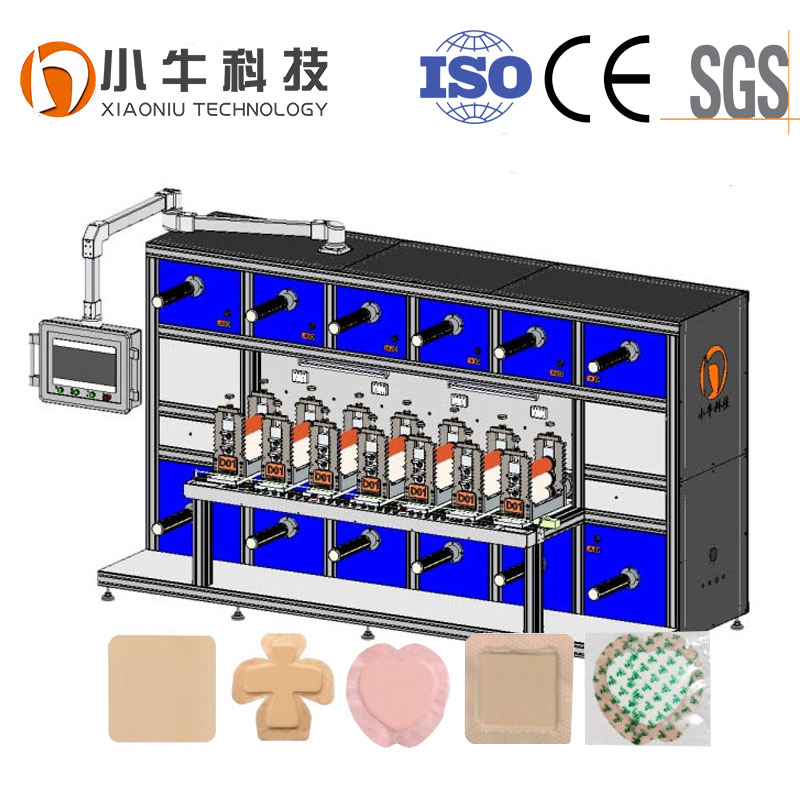

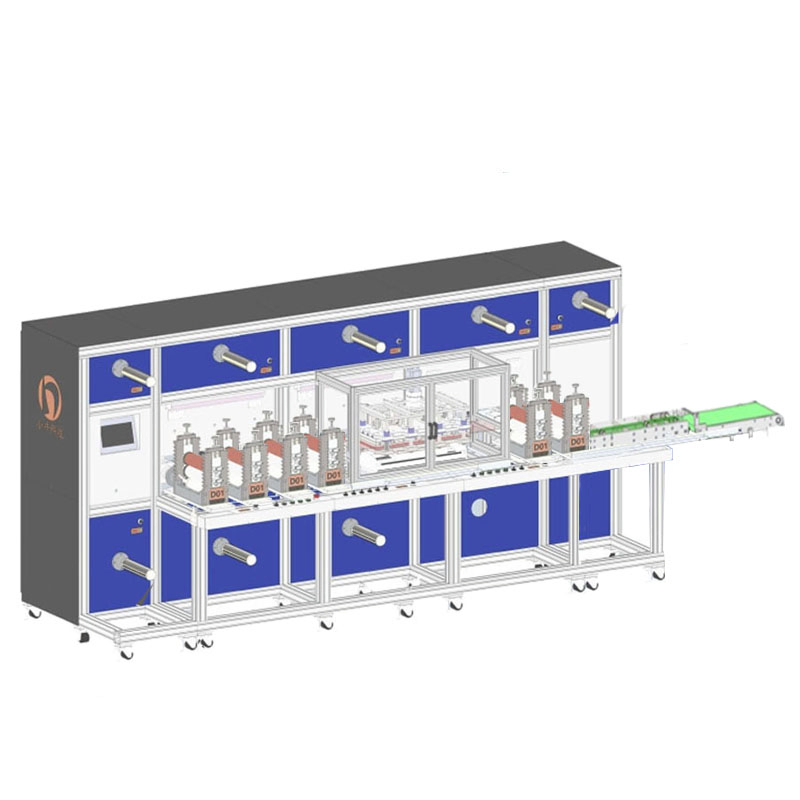

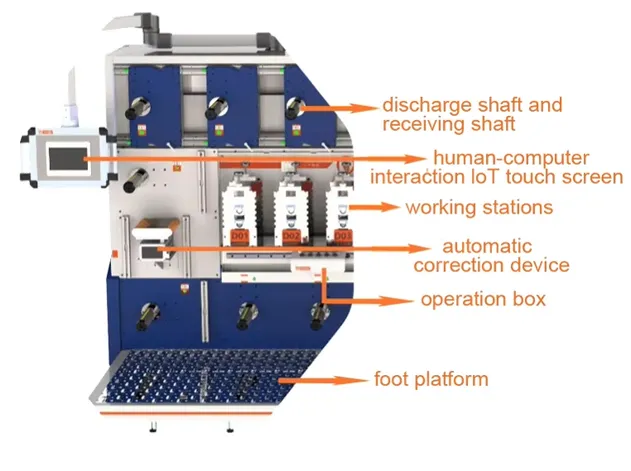

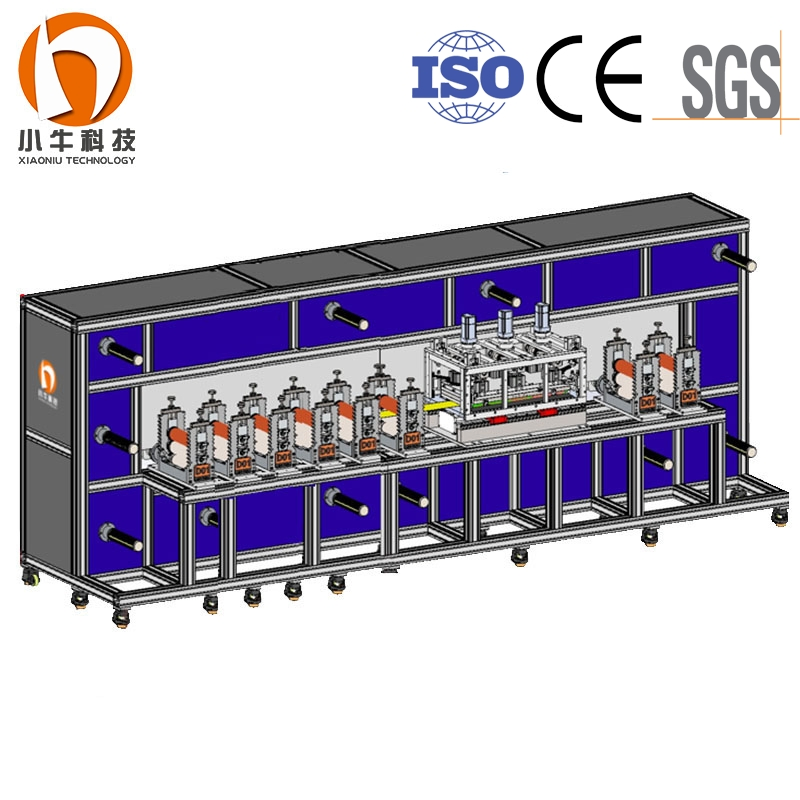

An 8-station rotary die-cutting machine equipped with servo-driven stations and feed shafts. This system allows for independent or synchronized operation for pressing, die cutting, and transfer. It supports advanced functions including synchronous, asynchronous, speed ratio, and constant tension control, making it a highly intelligent universal machine for precision manufacturing.

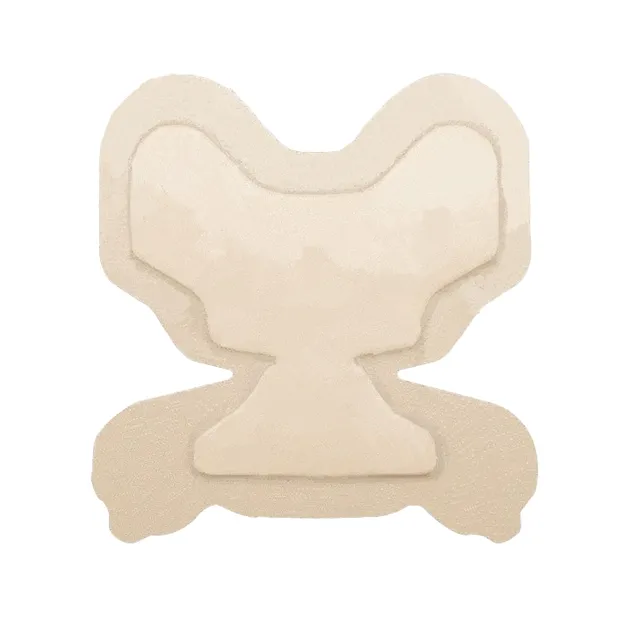

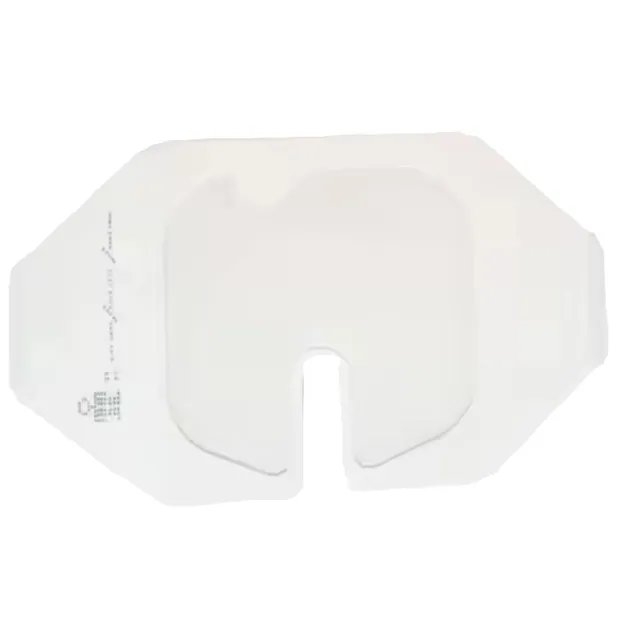

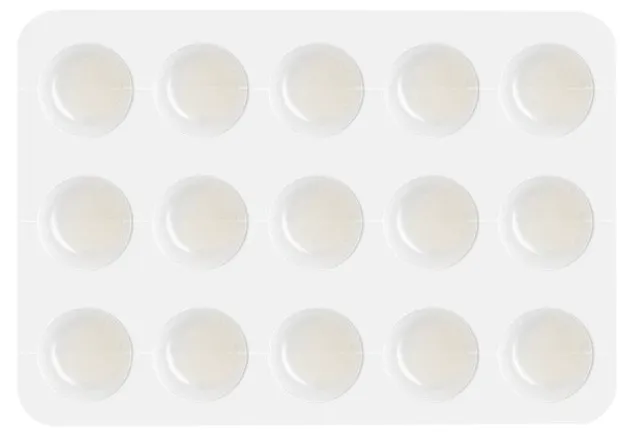

Our rotary die-cutting machines are engineered for high-precision, mass production of flexible materials across diverse industries:
| Power (KW) | 20kw |
| Working Voltage (V) | AC380 (Customizable) |
| Feeding Width (mm) | 250mm or 350mm |
| Max. Diameter (mm) | 400mm |
| Die Cutting Precision (mm) | ±0.1 |
| Production Speed | 60m/min |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Gear |
Package Size: 384.00cm * 170.00cm * 240.00cm
Gross Weight: 3200.000kg

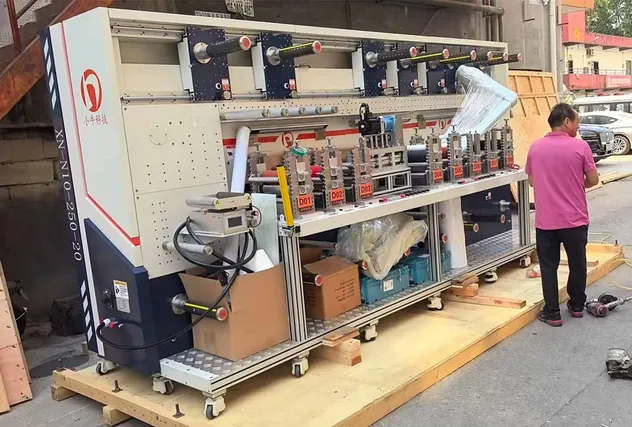

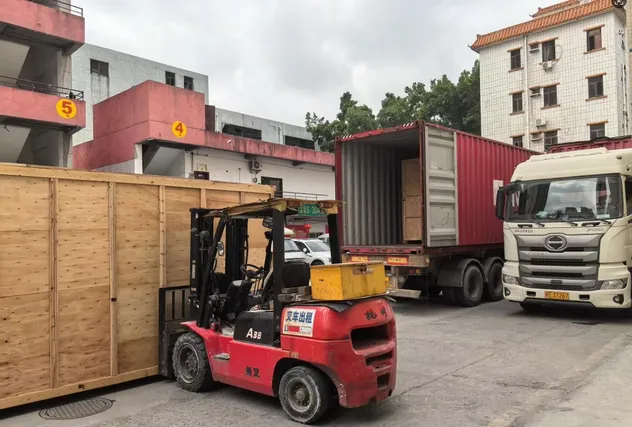

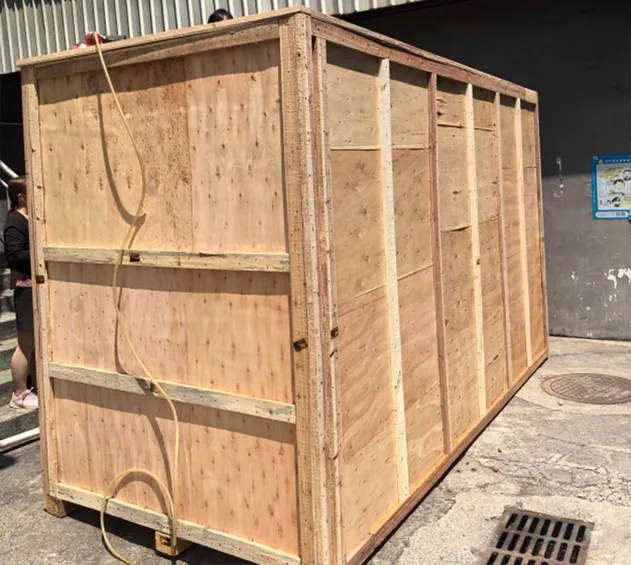

Packing Type: Secure Wooden Packing for Export.
Our facility excels in die-cutting technology, offering high-precision rotary and high-speed medical dressing equipment. With over 15 years of expertise, we hold national patents and CE certification. We provide integrated solutions, including equipment customization, technical support, and comprehensive after-sales services.
