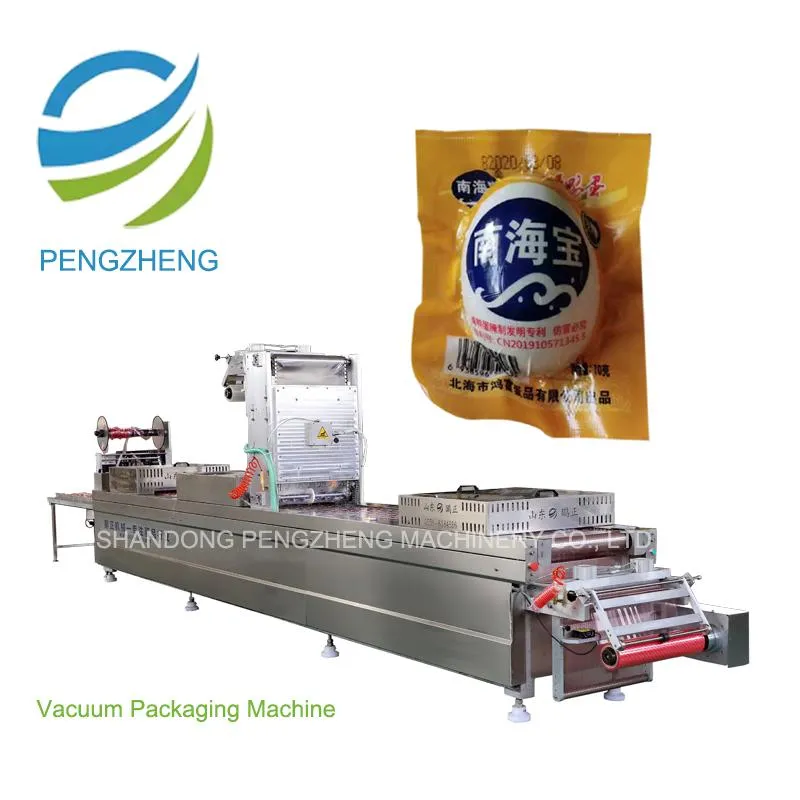

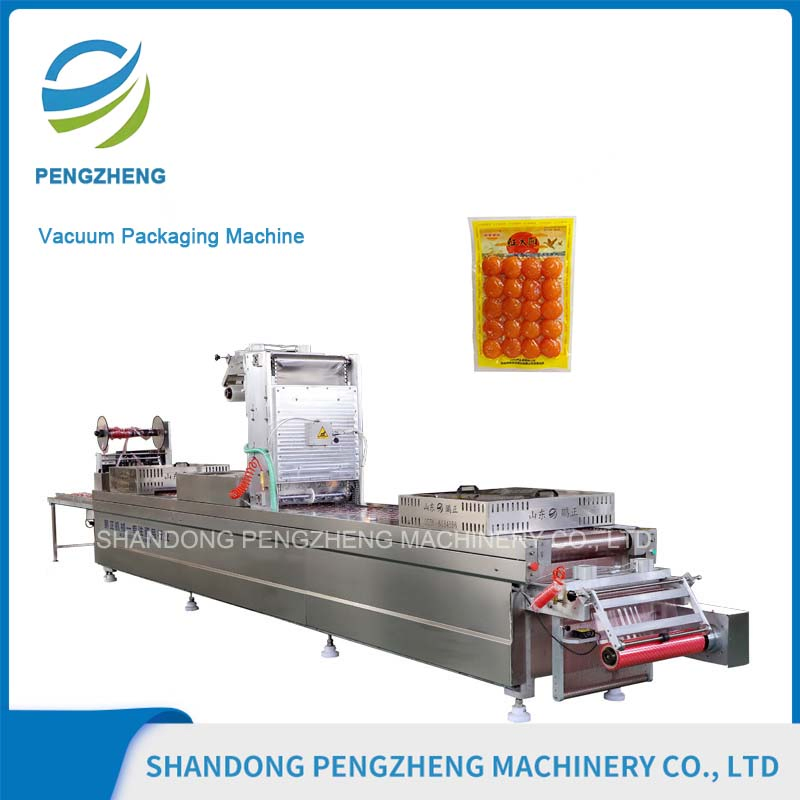

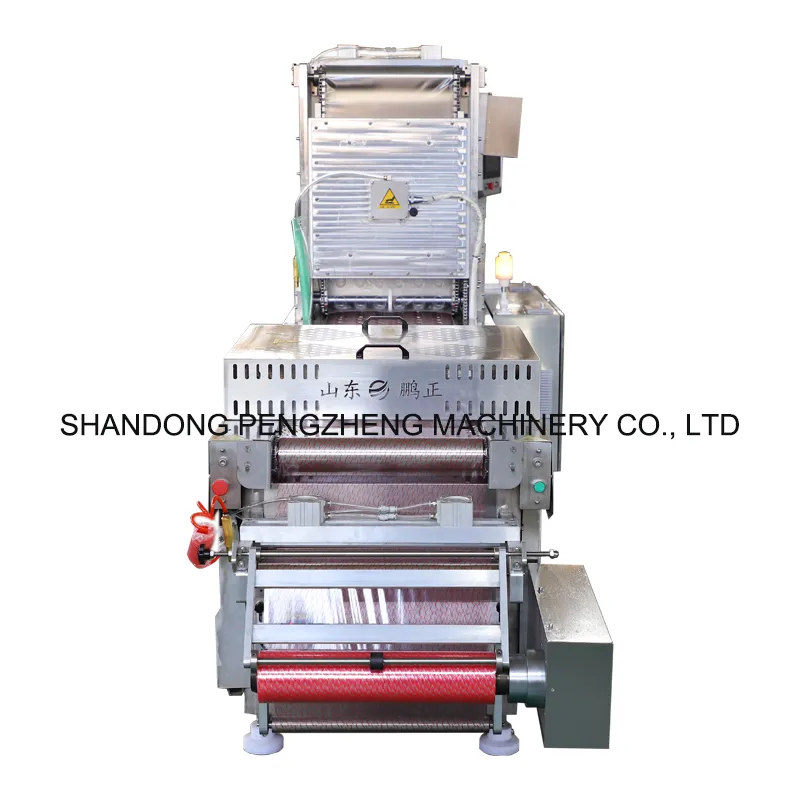

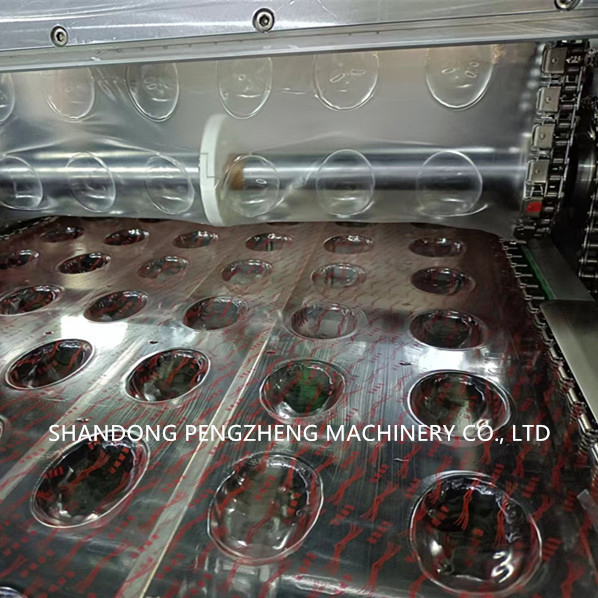

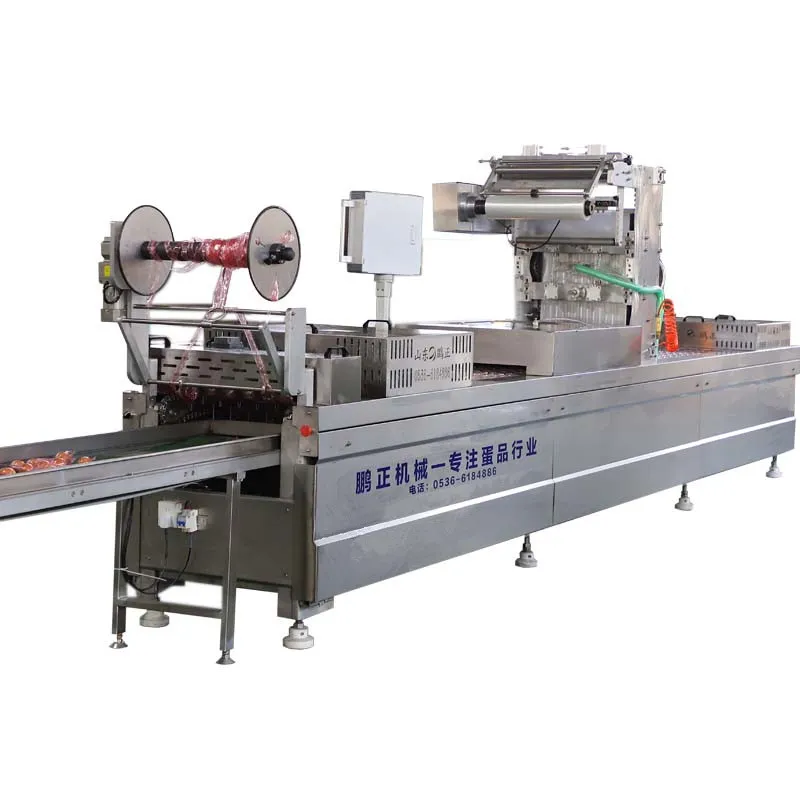

This innovative machine is designed for medical products and food items like eggs. It features double-side stretching and double-side forming of film, ensuring efficient and precise packaging. The process involves heating and stretching a bottom film, loading materials, covering with a top film, and vacuum forming in a seamless chamber.

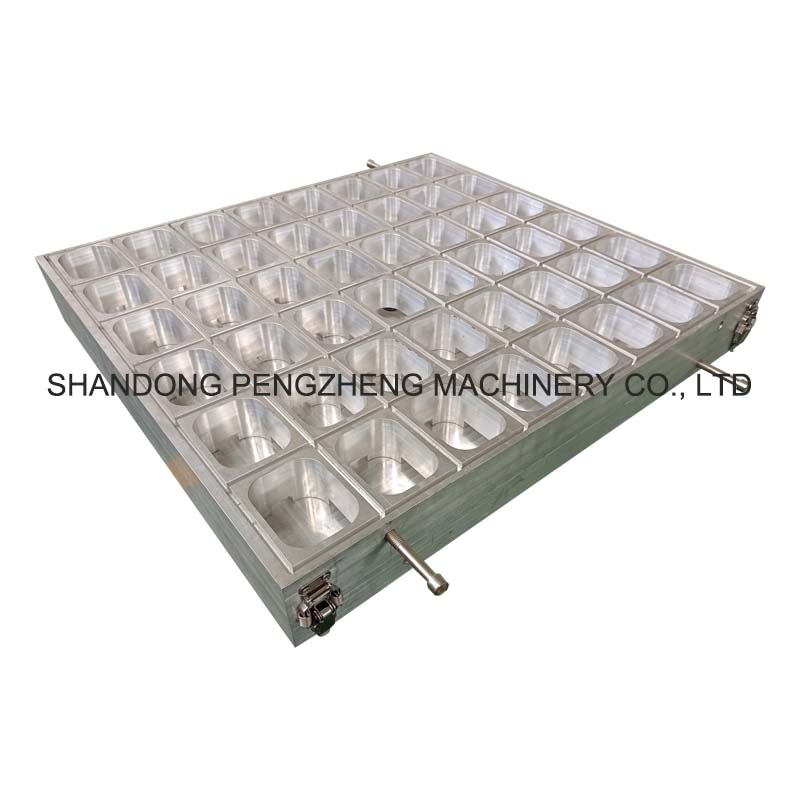

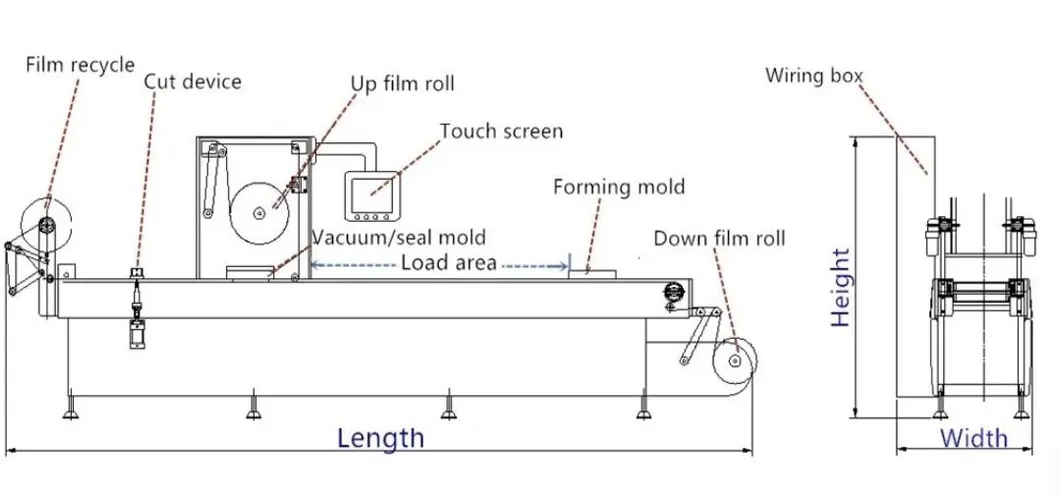

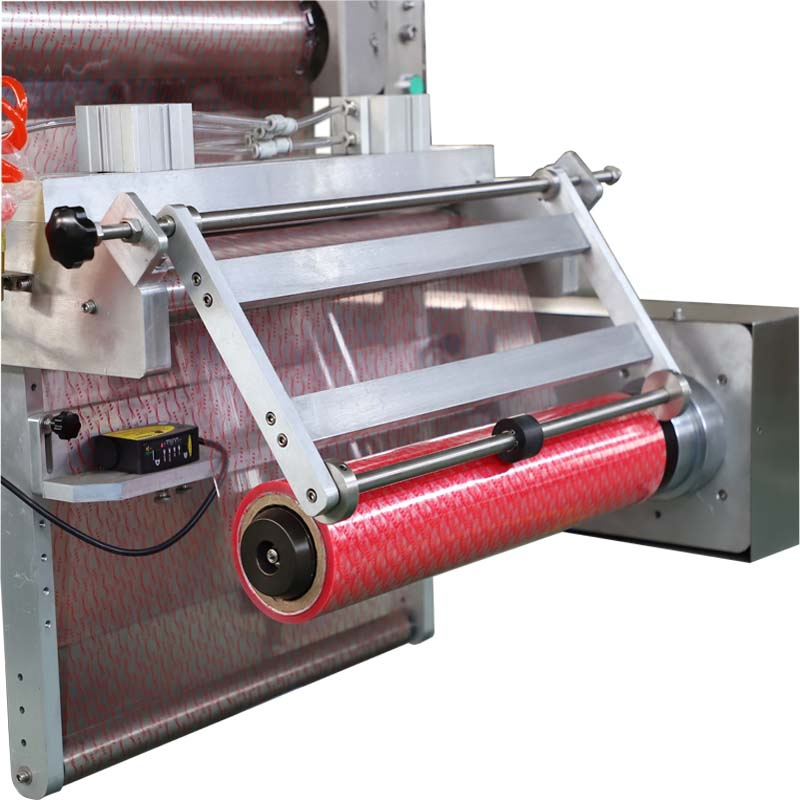

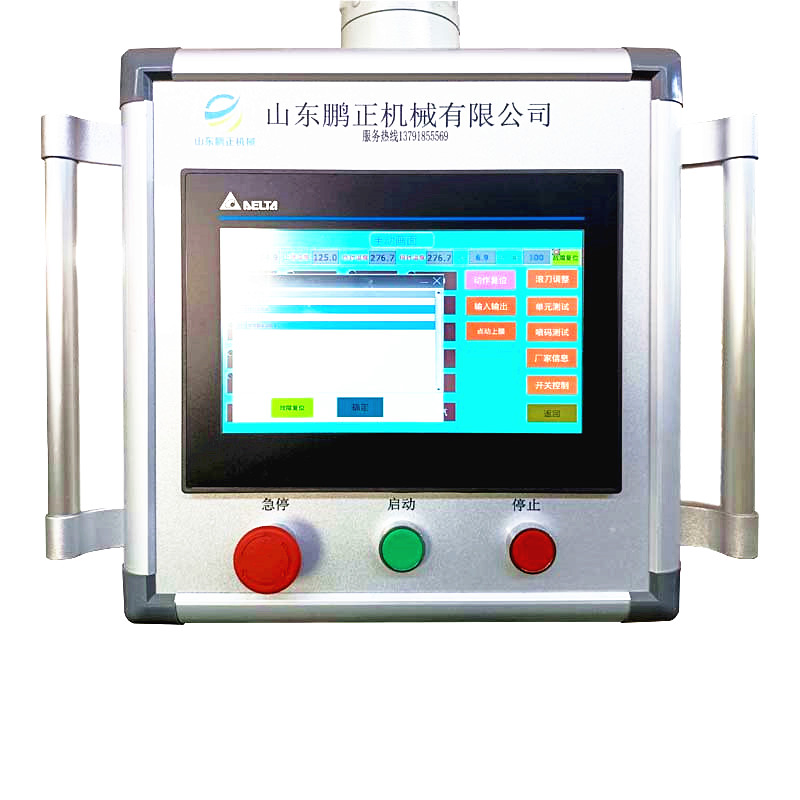

The main structure is built with Stainless Steel 304 (6mm thickness). It includes a bottom film device, electronic magnetic preload, forming device, loading area, vacuum/sealing device, touch screen control, and a waste film collection system.

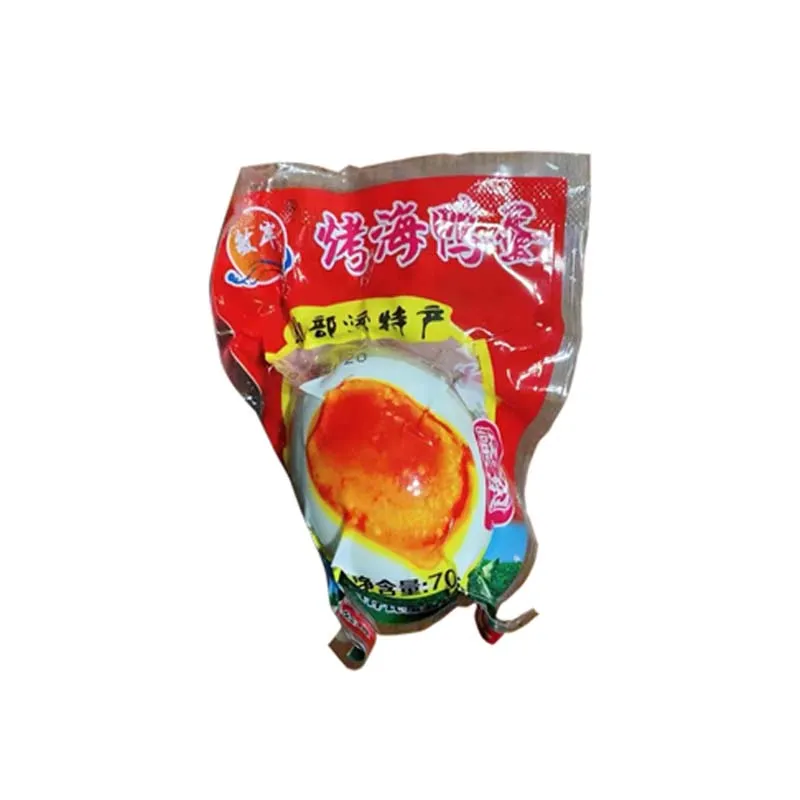

| Details | Traditional Bag | Single-Side Stretch | Double-Side Stretch |
|---|---|---|---|
| Stretch Film | None | Single Side | Double Side |
| Forming Depth | None | Max 120mm | Uniform & Thicker |

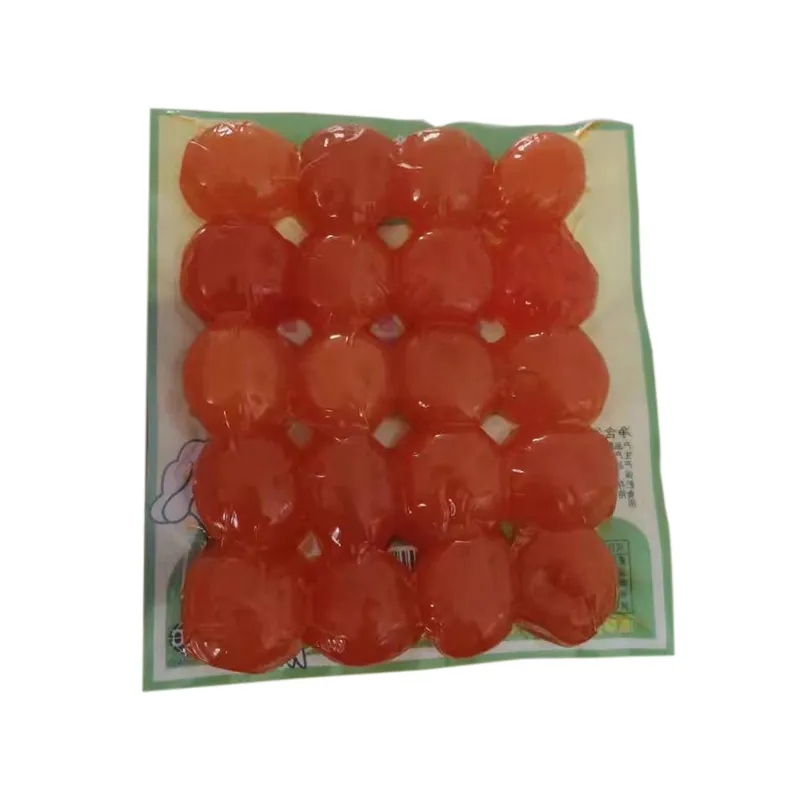

| Appearance | Beautiful Printing | More Beautiful | Most Beautiful / Imitation of Traditional Bag |
No Film, No Working: Automatically shuts down when film runs out to reduce loss.

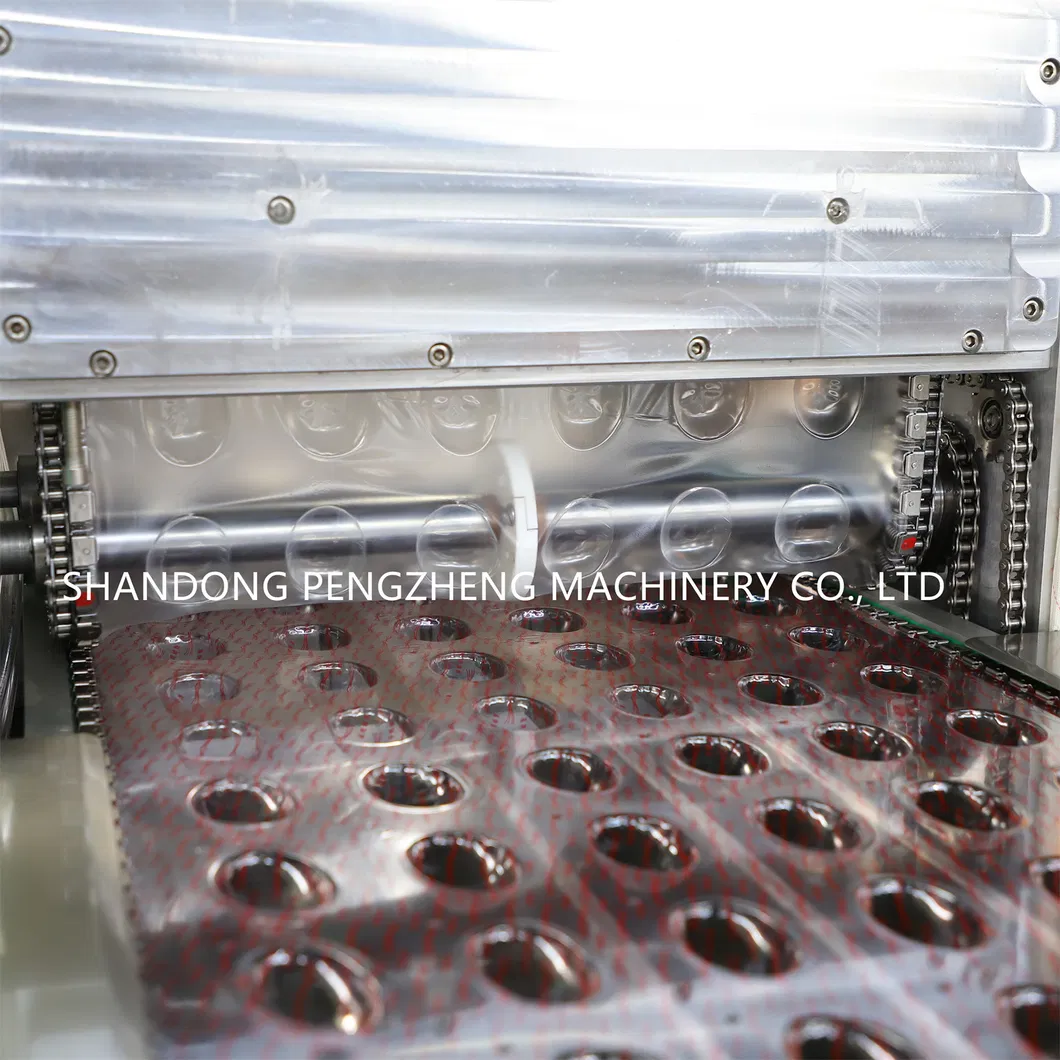

Automatic Correction: Includes intelligent calibration for both top and bottom film to prevent deviation.
Pre-sealing Device: Solves pollution issues by ensuring a broken egg does not contaminate others.
| Main Components | Brand/Spec |
|---|---|
| Vacuum Pump | RIETSCHLE (Germany) |
| Electrical Components | Schneider (France) |
| Servo Motor | Schneider (France) |
| Chain | TYC (Taiwan) |
| Working Temperature | 70-120 °C (Thermoforming) |
| Vacuum Degree | ≤200 Pa |
| Packing Capacity | 12000-14000 pieces / h |
