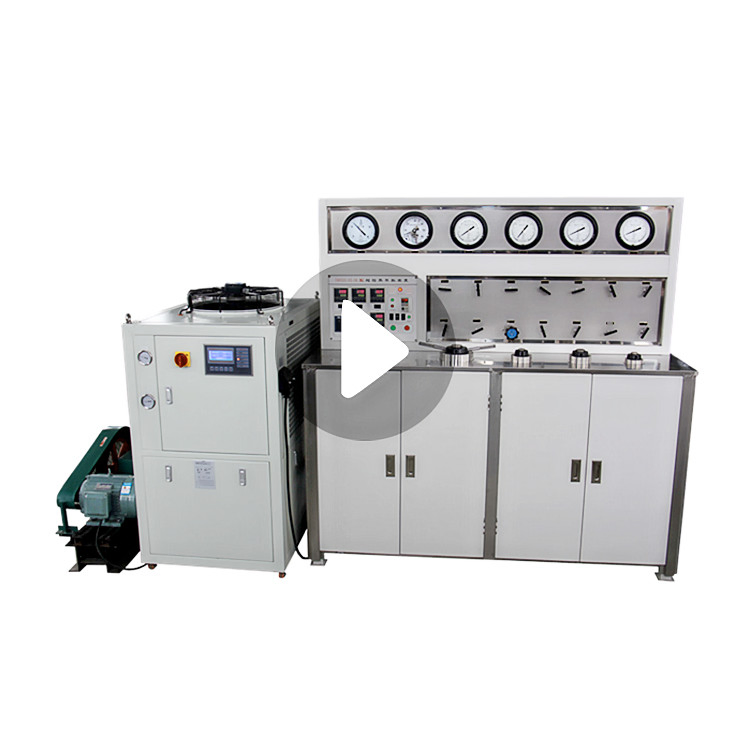

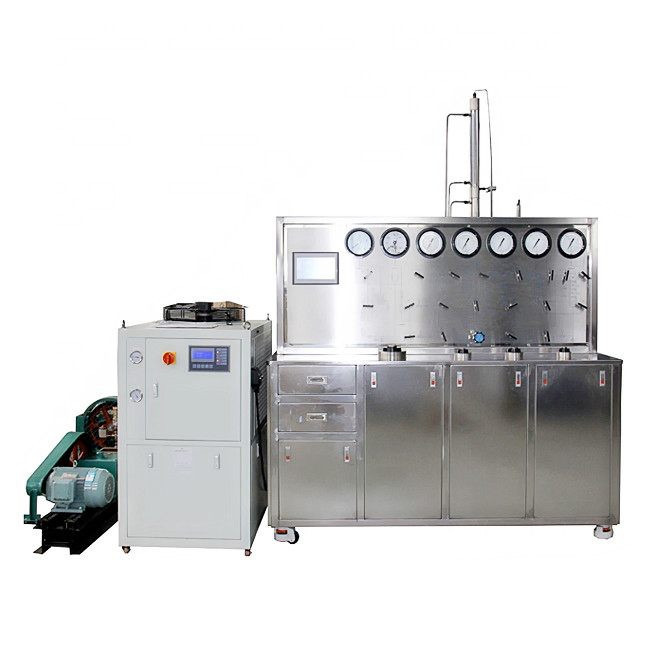

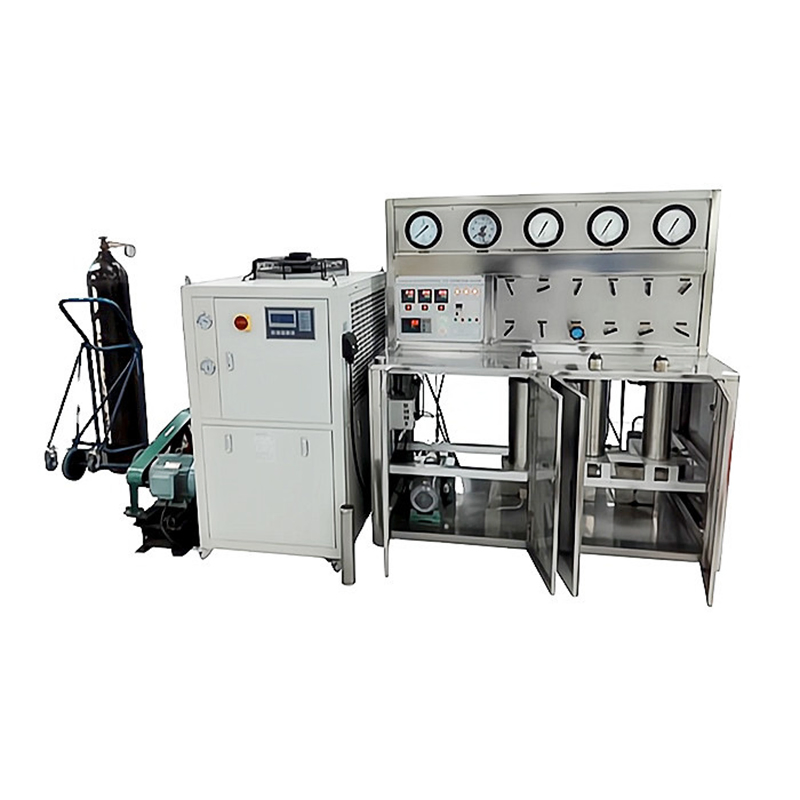

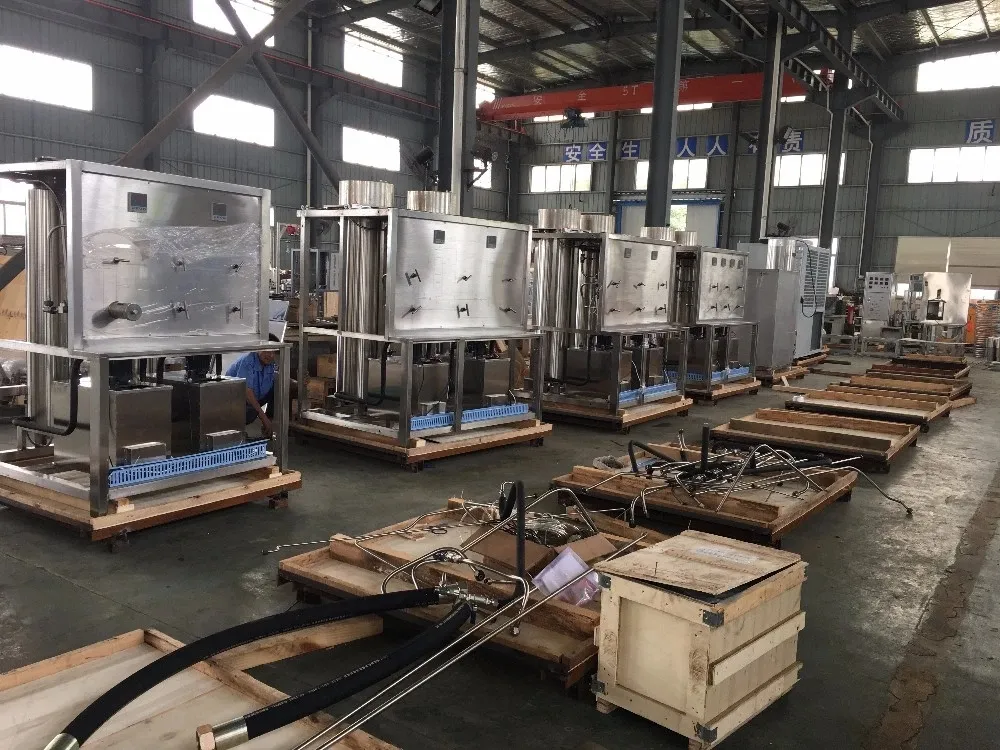

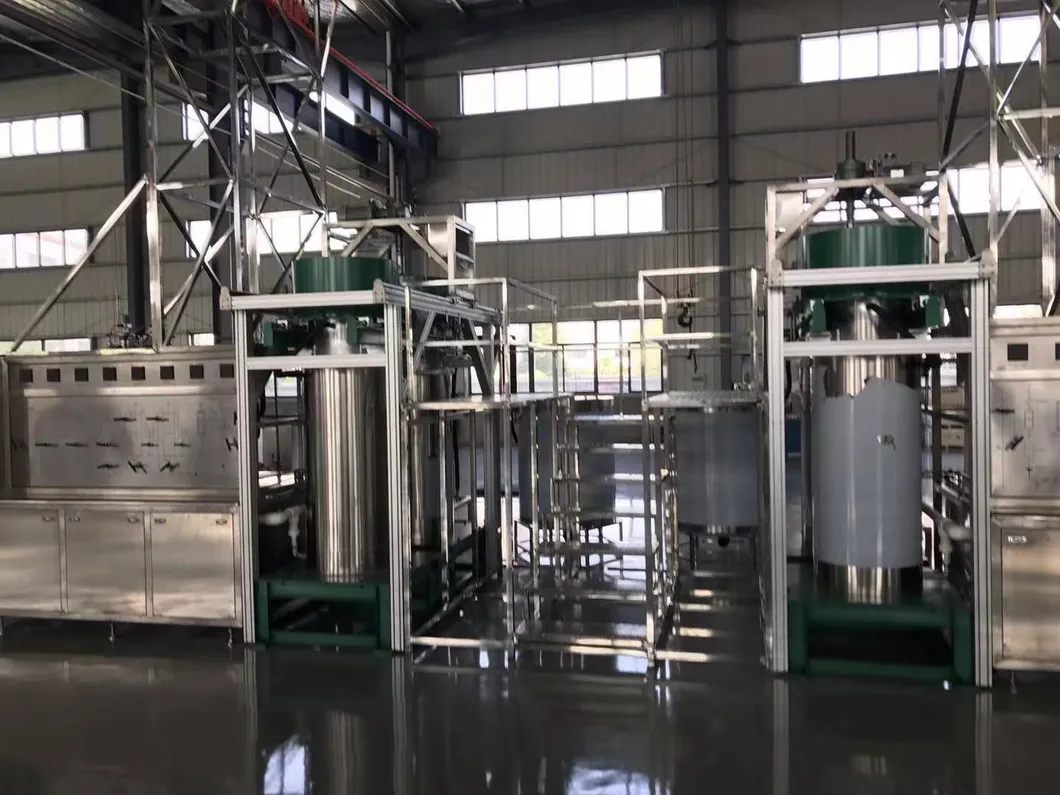

Supercritical fluid technology is a advanced separation technology in modern chemical processing. This system utilizes CO2 as the solvent to perform clean and efficient extractions.
As CO2 fluid under a supercritical state has higher density and dielectric constants, its dissolvability changes abruptly with pressure and temperature. This allows for selective extraction and easy separation of the solvent from the extracted substances.
The Supercritical CO2 extraction is specially suitable for fat-soluble and heat-sensitive substances with high boiling points. It is widely used for biological products, foodstuff, and pharmaceutical purification.
| No. | Model | Capacity | Pressure(Mpa) | Power(KW) | Temp(ºC) | Flow(L/H) | Dimension(mm) |
|---|---|---|---|---|---|---|---|
| 1 | SN-0.5 | 0.5L | 50 | 10 | 85 | 50 | 2500*2500*1600 |
| 2 | SN-1 | 1L | 50 | 10 | 85 | 50 | 2500*2500*1600 |
| 3 | SN-5 | 5L | 50 | 18 | 85 | 50 | 2500*2500*1600 |
| 4 | SN-10 | 10L | 40 | 18 | 85 | 100 | 3000*2500*1600 |
| 5 | SN-20 | 10L*2 | 40 | 25 | 85 | 200 | 3000*3000*1800 |
| 6 | SN-30 | 10L*3 | 40 | 30 | 85 | 210 | 5000*4800*1800 |
| 7 | SN-48 | 24L*2 | 40 | 45 | 85 | 400 | 5000*5000*4200 |
| 8 | SN-96 | 24L*4 | 40 | 58 | 85 | 600 | 5800*5000*4200 |
| 9 | SN-100 | 50L*2 | 40 | 60 | 85 | 800 | 6200*6000*45000 |
| 10 | SN-120 | 30L*4 | 40 | 60 | 85 | 800 | 6800*6000*4500 |
To ensure the safety of your goods, professional, environmentally friendly, and efficient packaging services in standard export wooden cases are provided.
